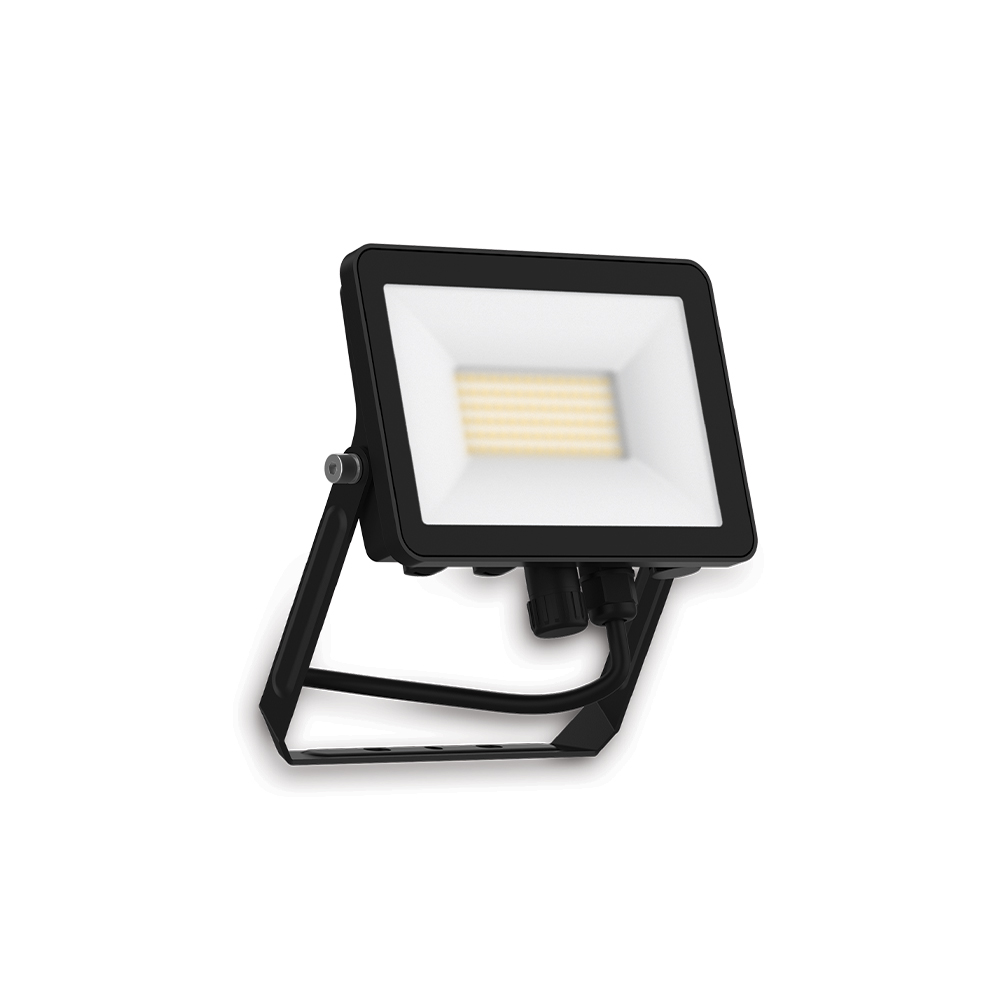

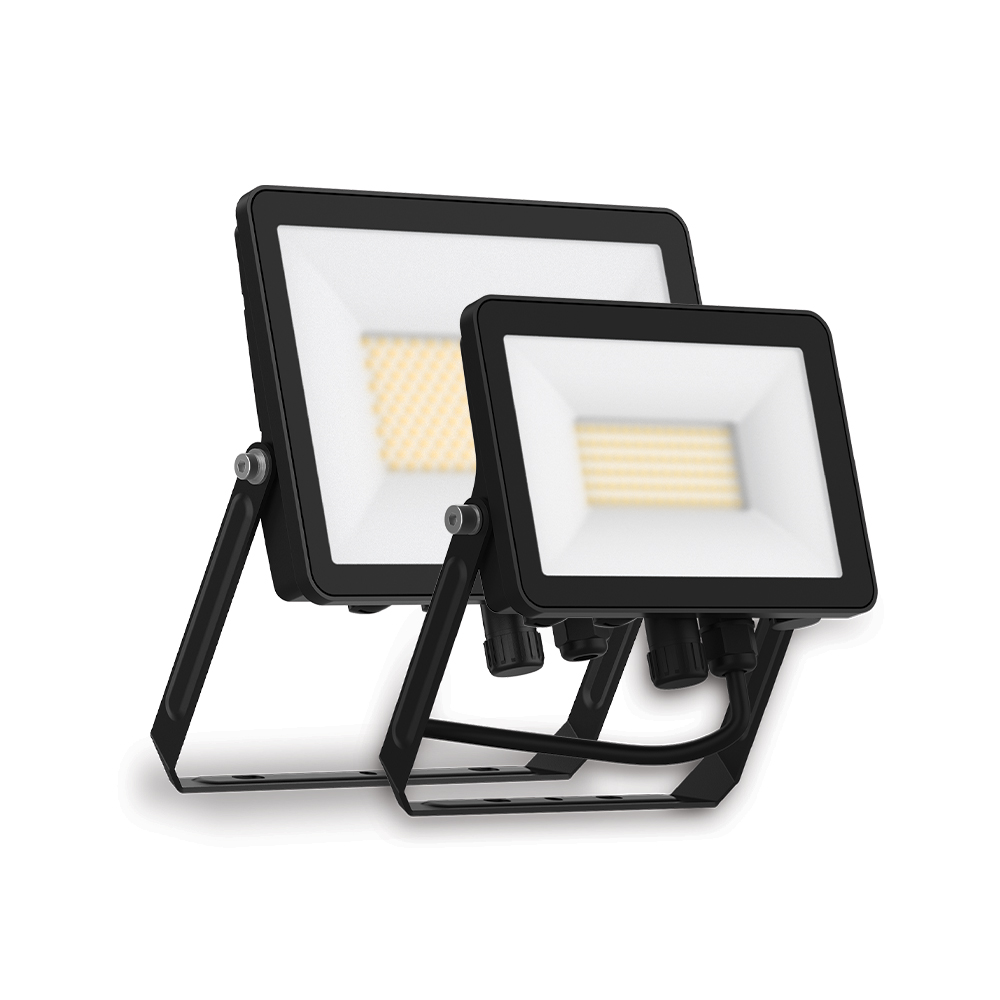

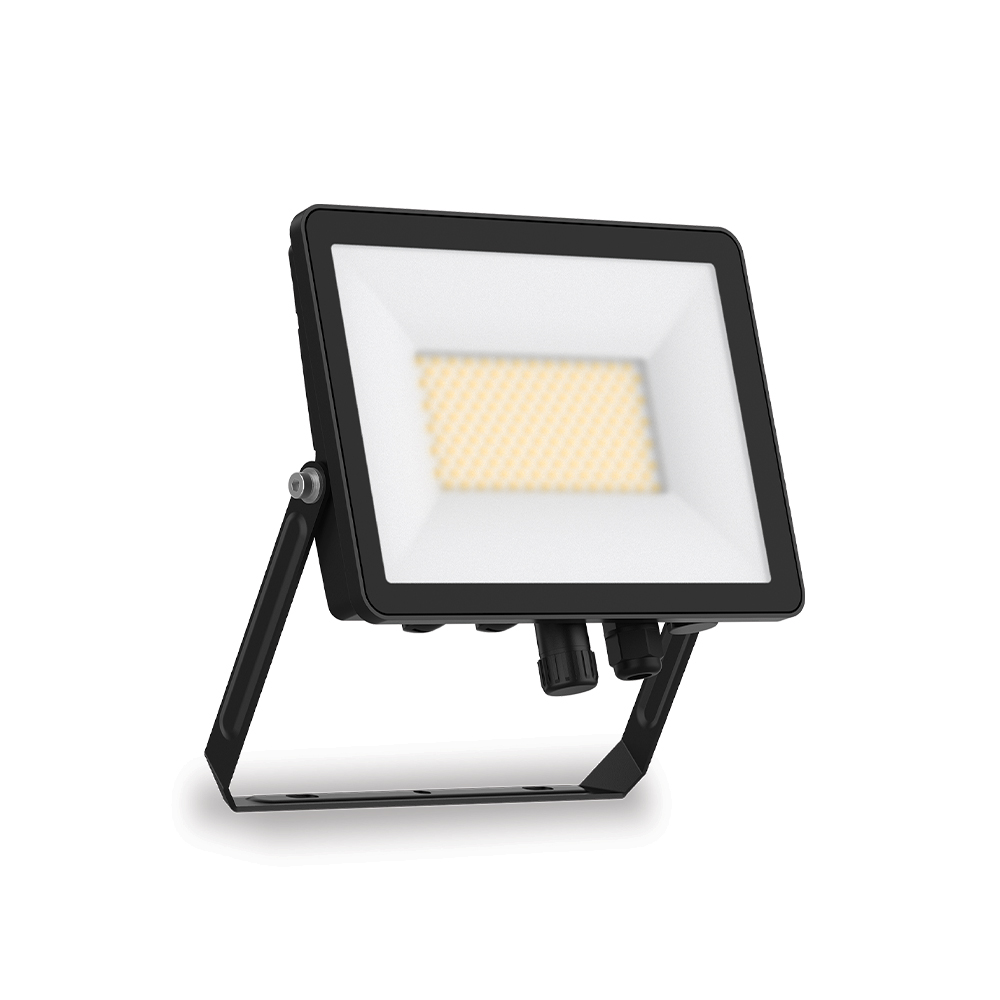

AT9819 TRI Series II
Slim LED floodlight – Tri-CCT
- High efficient LED array
- Compatible with retrofit sensor (sold seperately)
- Adjustable bracket
- Tri-CCT selectable
Selected Models
- Power Adjustable – 15W/20W/30W
- Power Adjustable – 30W/40W/50W
Specifications
Mechanical
| IP Rating | IP65 |
|---|---|
| IK Rating | IK06 |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -20 to 50 °C |
|---|---|
| Input Frequency | 50Hz Hz |
| Maximum Wattage | |
| AT9819/TRI/30 | 30 W |
| AT9819/TRI/50 | 50 W |
| Input voltage | 220-240V |
| Power Selection | |
| AT9819/TRI/30 | 15W/20W/30W W |
| AT9819/TRI/50 | 30W/40W/50W W |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
| Beam Angle | 110 ° |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
AT9819/TRI/30 |
| ||||||
AT9819/TRI/50 |
| ||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
Colour temperature
AT9819/TRI/30
| |||||||||
AT9819/TRI/50
| |||||||||
Driver
| Driver Type | Fixed output |
|---|---|
| Dimmable | No |
| Wiring Type | Flying leads (3 wire) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| AT9819/TRI/30 | 31 mm | 160 mm | 110 mm |
| AT9819/TRI/50 | 32 mm | 200 mm | 145 mm |
AT9819/TRI/30
AT9819/TRI/50
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 12569 | AT9819/TRI/30 | 30W Slim Power Adjustable Floodlight - Tri-CCT - Black - Series II | ||
| 12570 | AT9819/TRI/50 | 50W Slim Power Adjustable Floodlight - Tri-CCT - Black - Series II |
