AT9819 TRI
$0.00

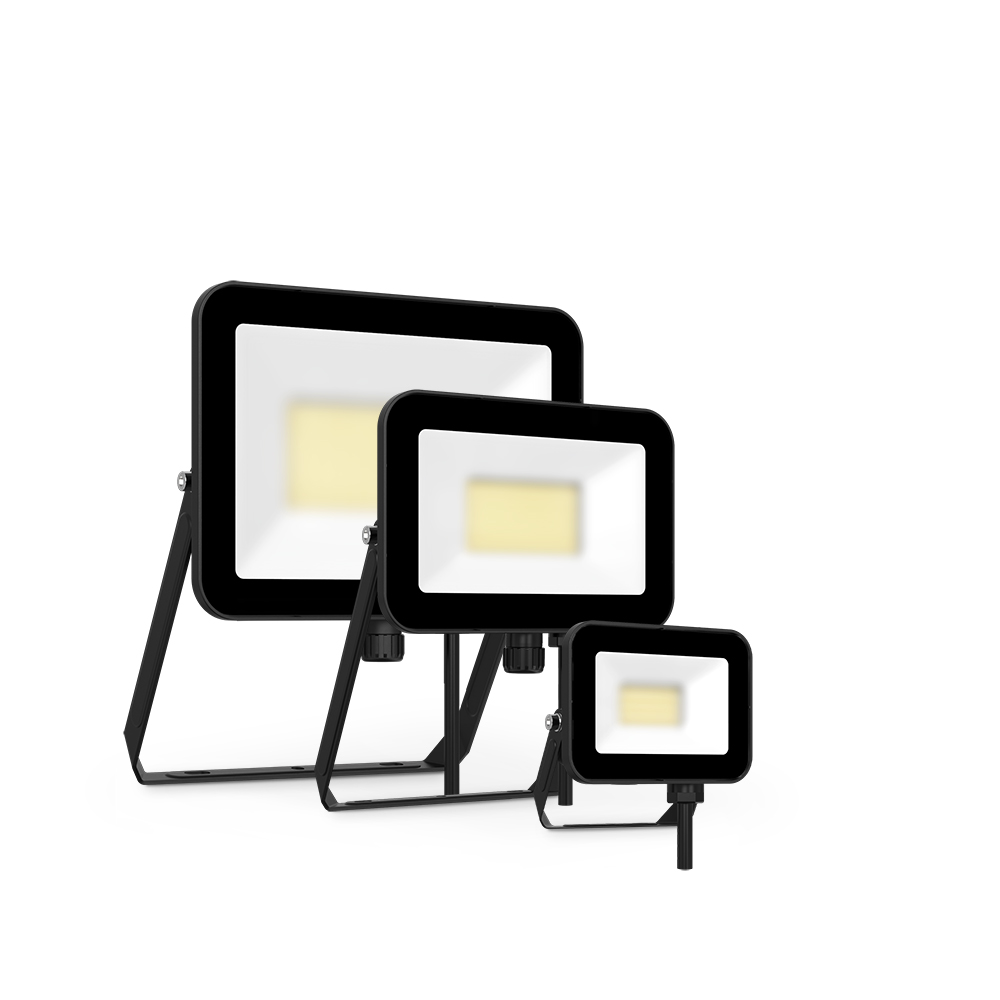

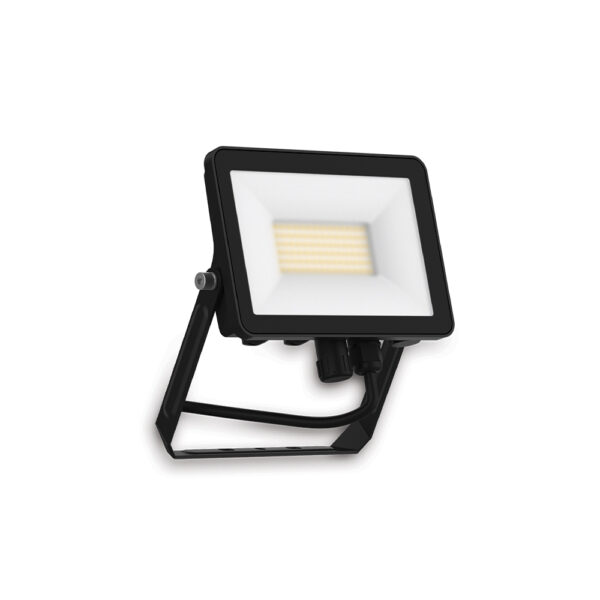

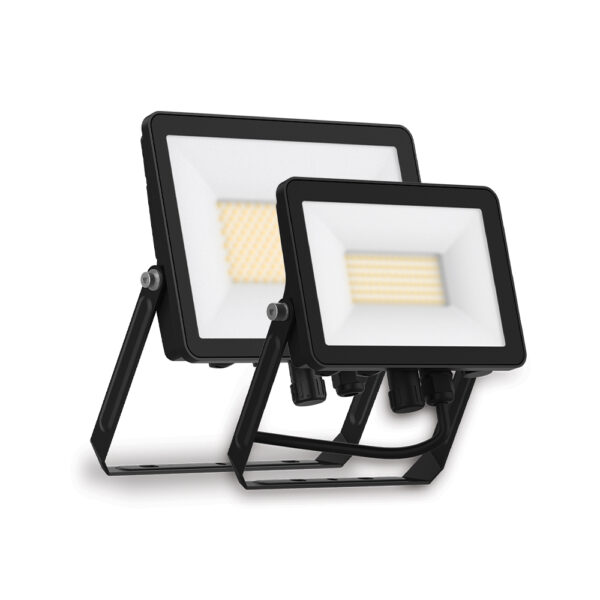

Slim Tri-CCT LED Flood Light
- High efficient LED array
- Adjustable bracket
- Tri-CCT selectable
Selected Models
- Compact Design
- IP65 weatherproof Rating
- Power Adjustable – 30W/20W/15W
- Compatible with retrofit sensor (sold seperately)
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9819/TRI/10 AT9819/TRI/30 | 100 lm/W |
| AT9819/TRI/50 | 107 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Adjustable |
|---|---|
| Body Material | Polycarbonate |
| Diffuser Material | Glass |
| Fitting Colour | Black |
| IK Rating | |
| AT9819/TRI/10 AT9819/TRI/30 | IK06 |
| AT9819/TRI/50 | IK07 |
| Installation Type | Surface mount |
| IP Rating | IP65 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | |
| AT9819/TRI/10 | 10 W |
| AT9819/TRI/30 | 30 W |
| AT9819/TRI/50 | 50 W |
| Surge Protection L/N-PE | 2kV |
| Surge Protection L-N | 2kV |
| Working Temp Range | -30 to 50 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 110 ° |
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
LED Lifetime
| LED Lifetime | 50000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
AT9819/TRI/10
| |||||||||||
AT9819/TRI/30
| |||||||||||
AT9819/TRI/50
| |||||||||||
Driver
| Dimmable | No |
|---|---|
| Integrated Driver | Yes |
| Driver Mode | Constant Current |
| Driver Type | Fixed output |
| Flex & Plug or Lead Length | 650 mm |
| Wiring Type | Flying leads (3 wire) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| AT9819/TRI/10 | 77 mm | 104 mm | 30 mm |
| AT9819/TRI/30 | 105 mm | 150 mm | 30 mm |
| AT9819/TRI/50 | 135 mm | 190 mm | 30 mm |
AT9819/TRI/10
AT9819/TRI/30
AT9819/TRI/50
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12303 | AT9819/TRI/10 | 10W Slim Floodlight - Tri-CCT - Black | |
| 12304 | AT9819/TRI/30 | 30W Slim Power Adjustable Floodlight - Tri-CCT - Black | |
| 12306 | AT9819/TRI/50 | 50W Slim Floodlight - Tri-CCT - Black |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12308 | AT9819/TRI/SENS | PIR Sensor to suit AT9819/TRI Series 30W and 50W Floods |
Photometrics
