Erskine
$0.00

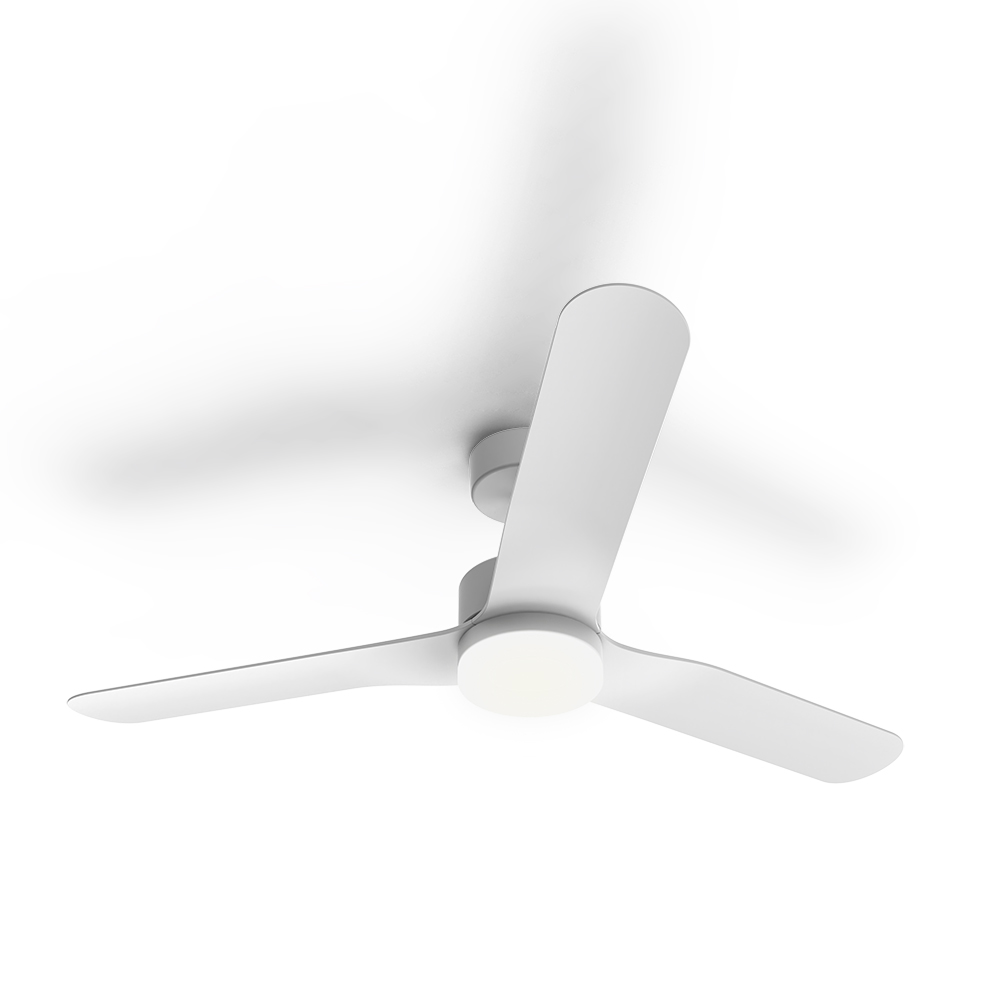

3 blade 40W DC ceiling fan
- Powerful and energy efficient 40W DC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Modern design ideal for indoor and covered outdoor applications
- Steel body and canopy with 3 ABS blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use (via remote control)

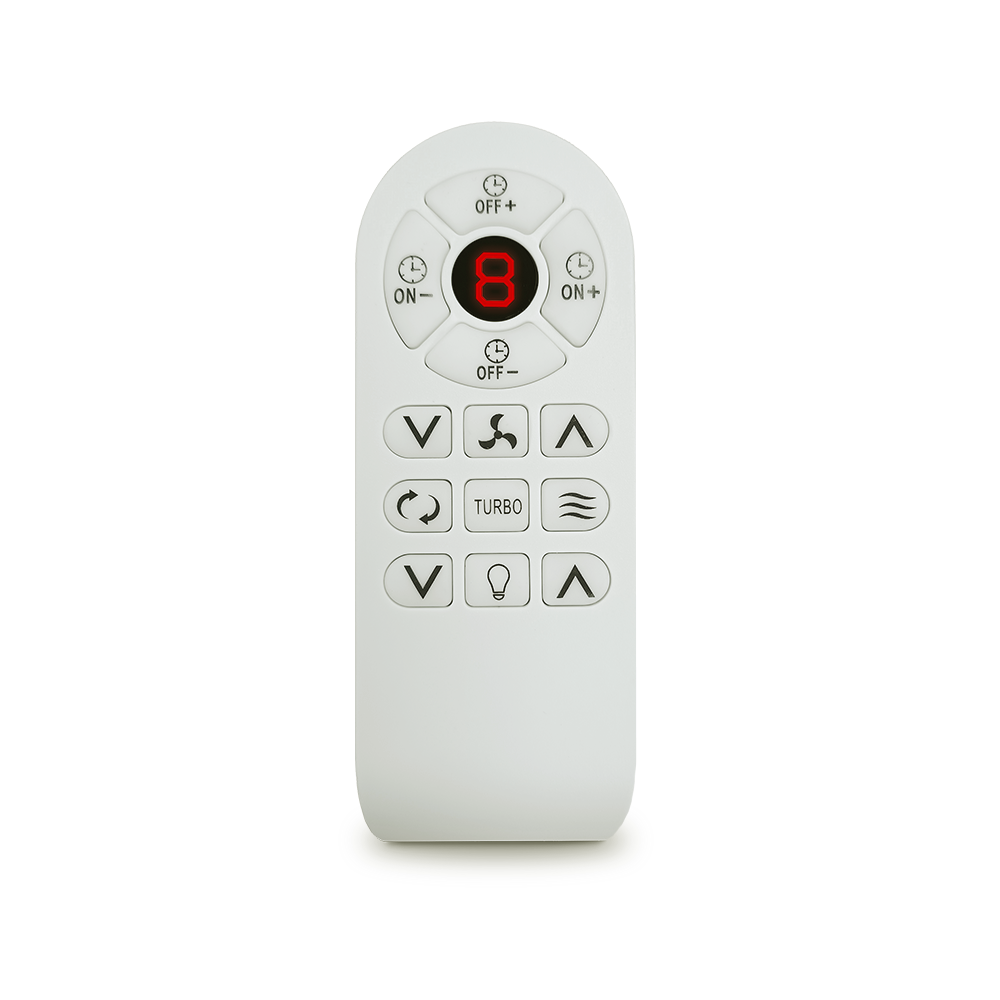

- Supplied with 8 speed remote including turbo speed function and up to 12h timer
Selected Models
- 16W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K (via remote control)
Specifications
Mechanical
| Body Material | Metal |
|---|---|
| Diffuser Material | Acrylic |
| Fitting Colour | Satin White |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Lamp
| CCT Configuration | TRI-CCT |
|---|---|
| Colour Rendering Index (CRI) | >80 |
Colour temperature
ERSKINE/52/LT/WH
| |||||||||
| ERSKINE/52/WH | |||||||||
Air Movement
| Motor Wattage | 40 W |
|---|---|
| Motor Type | DC |
| No. Speeds | 8 |
| Control | Remote control |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 280 mm |
| Blade Pitch | 10 ° |
| Blade Material | ABS |
| Fan Size | 1320mm (52inch) |
| Fan Speed 1 | 7 W, 130 rpm, 7200 m³/h |
| Fan Speed 2 | 10 W, 150 rpm, 8400 m³/h |
| Fan Speed 3 | 15 W, 170 rpm, 9600 m³/h |
| Fan Speed 4 | 20 W, 190 rpm, 12000 m³/h |
| Fan Speed 5 | 25 W, 200 rpm, 13200 m³/h |
| Fan Speed 6 | 30 W, 210 rpm, 14400 m³/h |
| Fan Speed 7 | 35 W, 220 rpm, 15000 m³/h |
| Fan Speed 8 | 40 W, 230 rpm, 15600 m³/h |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Item Code | Product Height | Product Weight | Product Width |
|---|---|---|---|
| ERSKINE/52/LT/WH | 350 mm | 4500 g | 1320 mm |
| ERSKINE/52/WH | 300 mm | 4200 g | 1320 mm |
ERSKINE/52/LT
ERSKINE/52
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18473 | ERSKINE/52/LT/WH | 52 inch (1320mm) 3 blade 40W DC ceiling fan W/LED Light Matt white | |
| 18470 | ERSKINE/52/WH | 52 inch (1320mm) 3 blade 40W DC ceiling fan Matt white |
Documents & Downloads
Instruction Manual
Datasheet
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12508 | DCREMOTE/BK | Remote control for DC ceiling fans - Remote only - Black | |
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
