Vandal – AT9999
$0.00

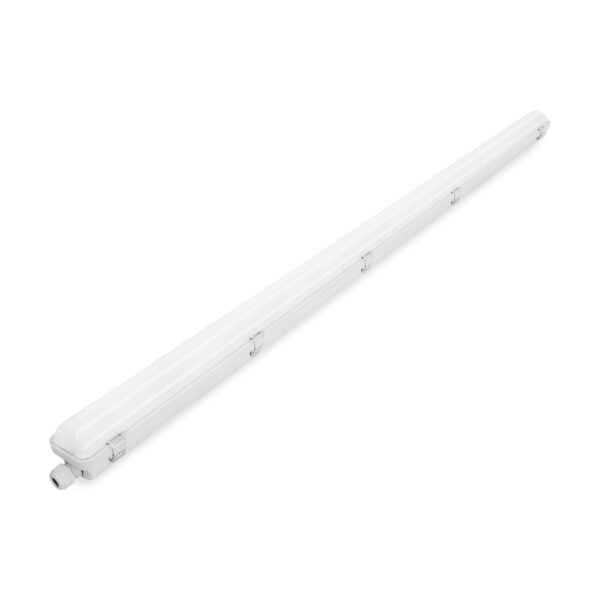

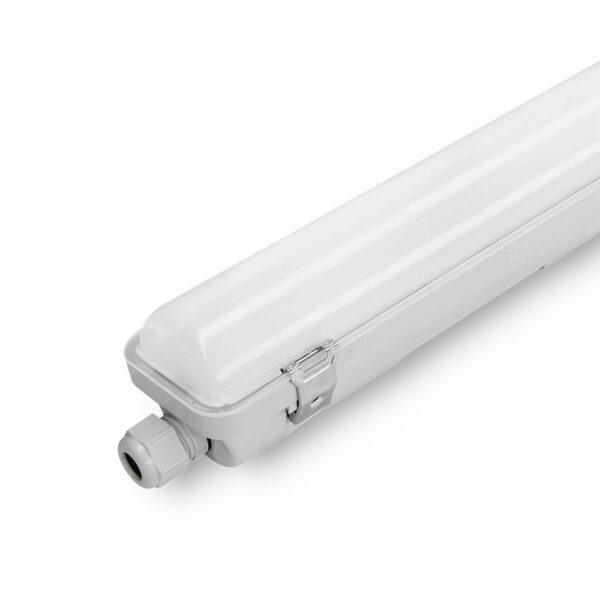

Vandal 600mm IK10 rated LED Batten IP66
- Strong polycarbonate body and diffuser, corrosion resistant
- Impressive vandal-resistance with an IK10 impact rating
- Weatherproof and dust proof IP66 rating for reliable outdoor use
- Tri-CCT to suit different applications – 3000K, 4000K, and 5000K colour temperatures
- Efficient LED technology with selectable power levels, 8/10/13/15W, to tailor output to your space
- Lightweight surface mount design
Specifications
Mechanical
| Body Material | Polycarbonate |
|---|---|
| Diffuser Material | Polycarbonate |
| Fitting Colour | Grey |
| IK Rating | IK10 |
| Installation Type | Surface mount |
| IP Rating | IP66 |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 45 °C |
Lamp
| Beam Angle | 180 ° |
|---|---|
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
Colour temperature
| 8 Watts | |
|---|---|
| Warm White (3000 K) | 970 lm |
| Cool White (4000 K) | 1030 lm |
| DayLight (5700 K) | 1040 lm |
| 15 Watts | |
| Warm White (3000 K) | 1710 lm |
| Cool White (4000 K) | 1840 lm |
| DayLight (5700 K) | 1820 lm |
Driver
| Dimmable | No |
|---|---|
| Driver Included | Yes |
| Driver Mode | Constant Current |
| Wiring Type | Re-wireable terminal block (3 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|
Dimensions
| Product Height | 115 mm |
|---|---|
| Product Length | 675 mm |
| Product Width | 96 mm |
AT9999
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 17921 | AT9999 | Vandal 600mm IK10 rated LED Batten IP66 |
Documents & Downloads
*Auto generated datasheet (beta)
