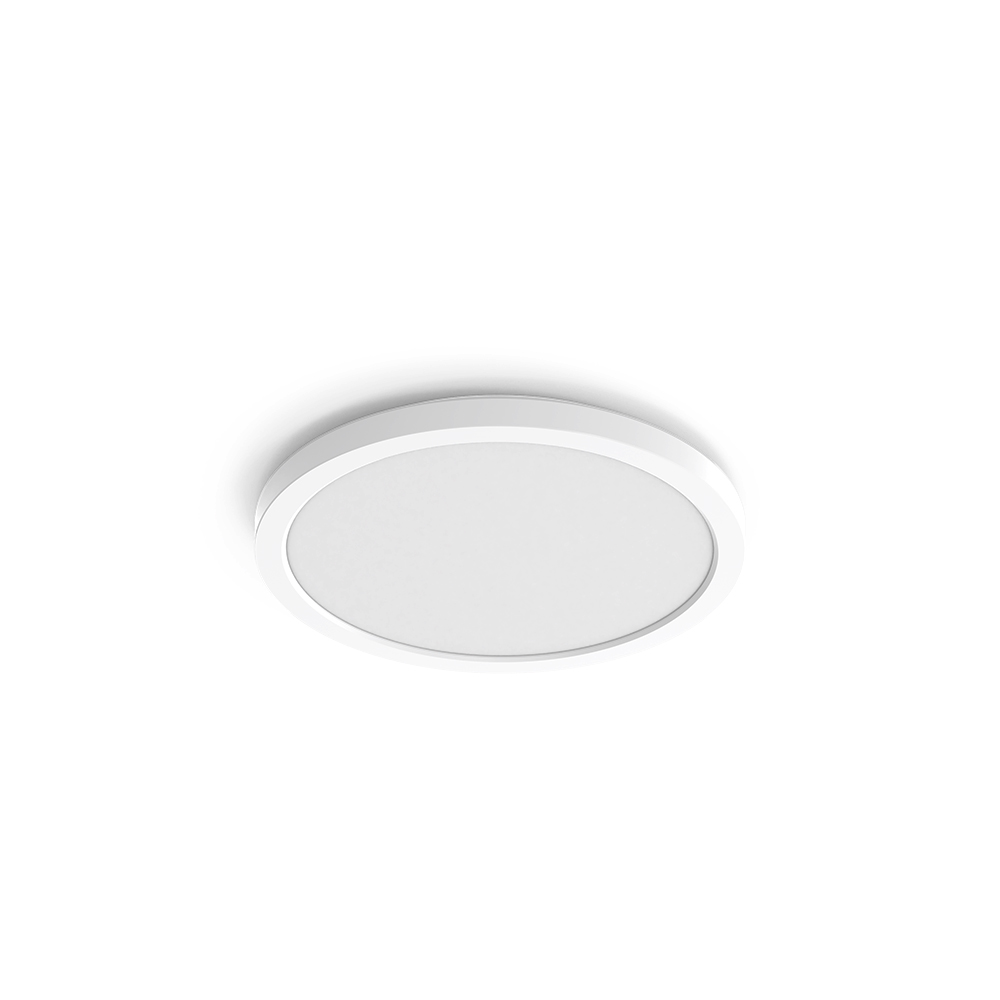

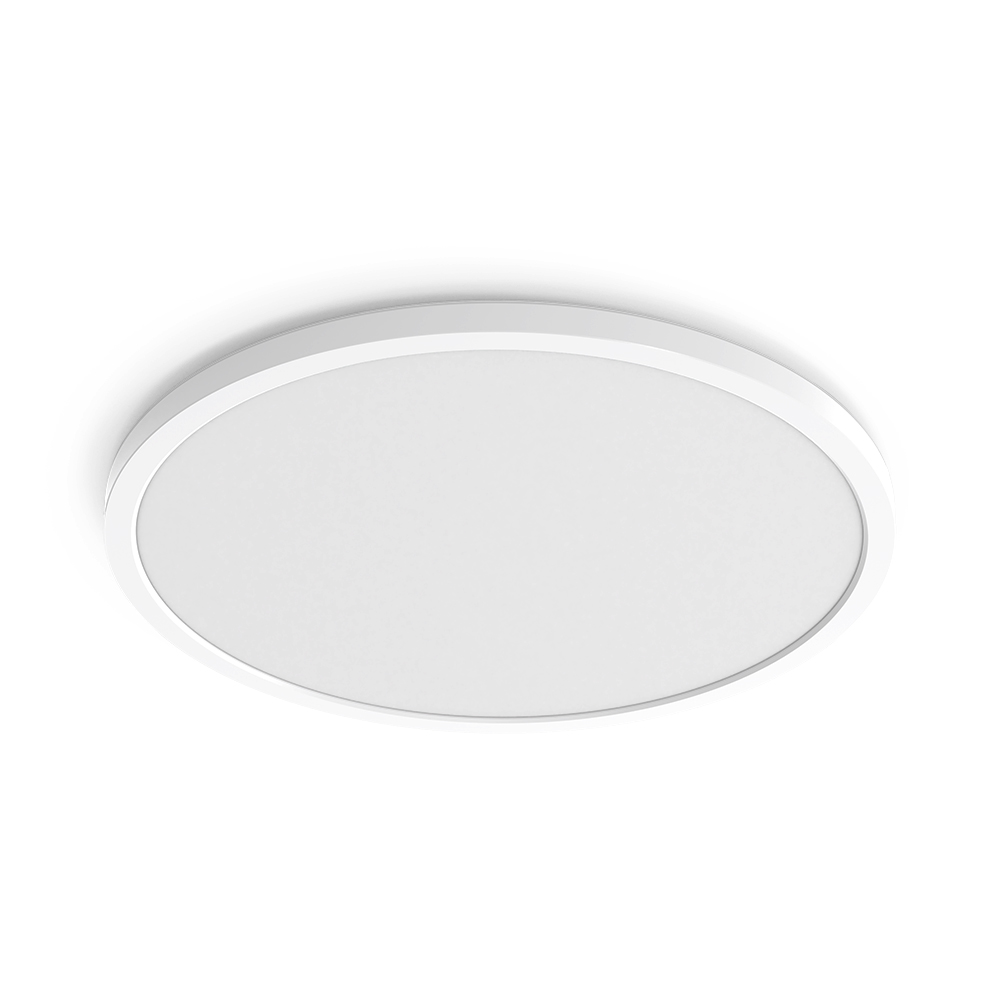

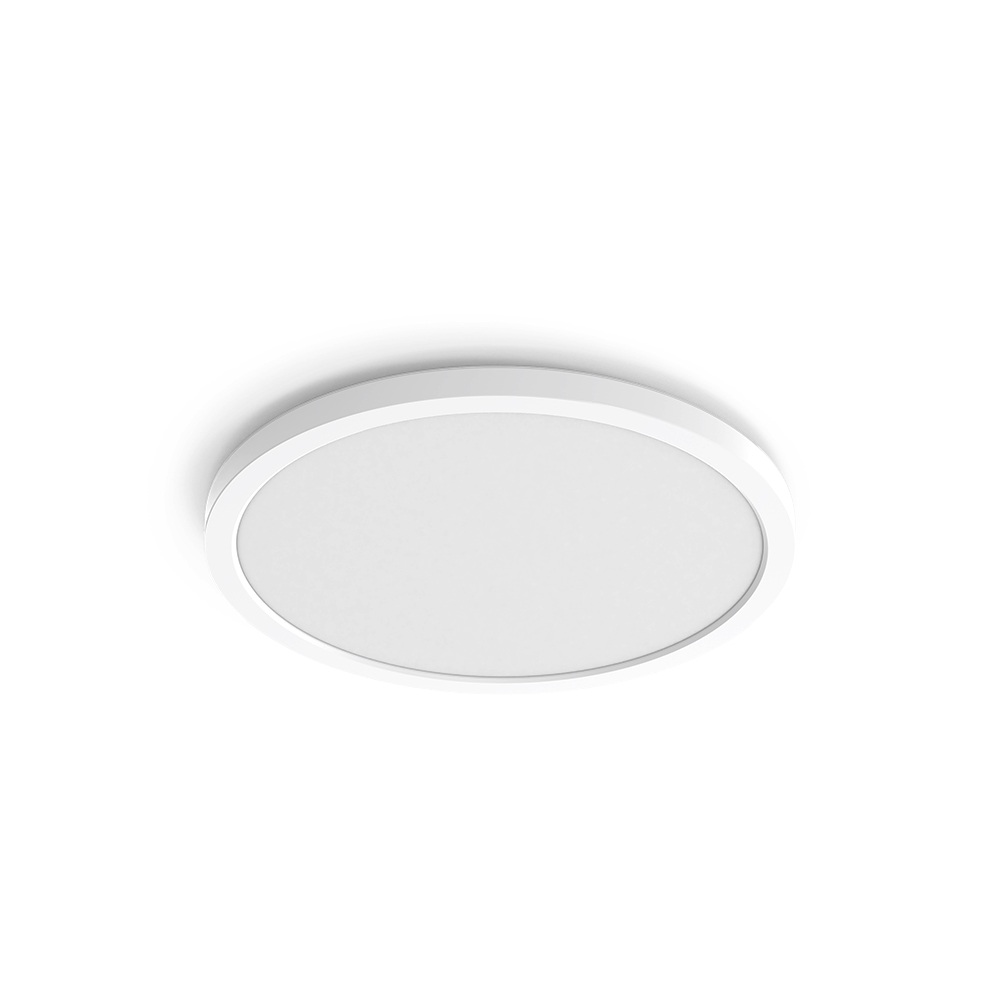

AT3030 TRI
Flat low-profile oyster – Tri-CCT – White

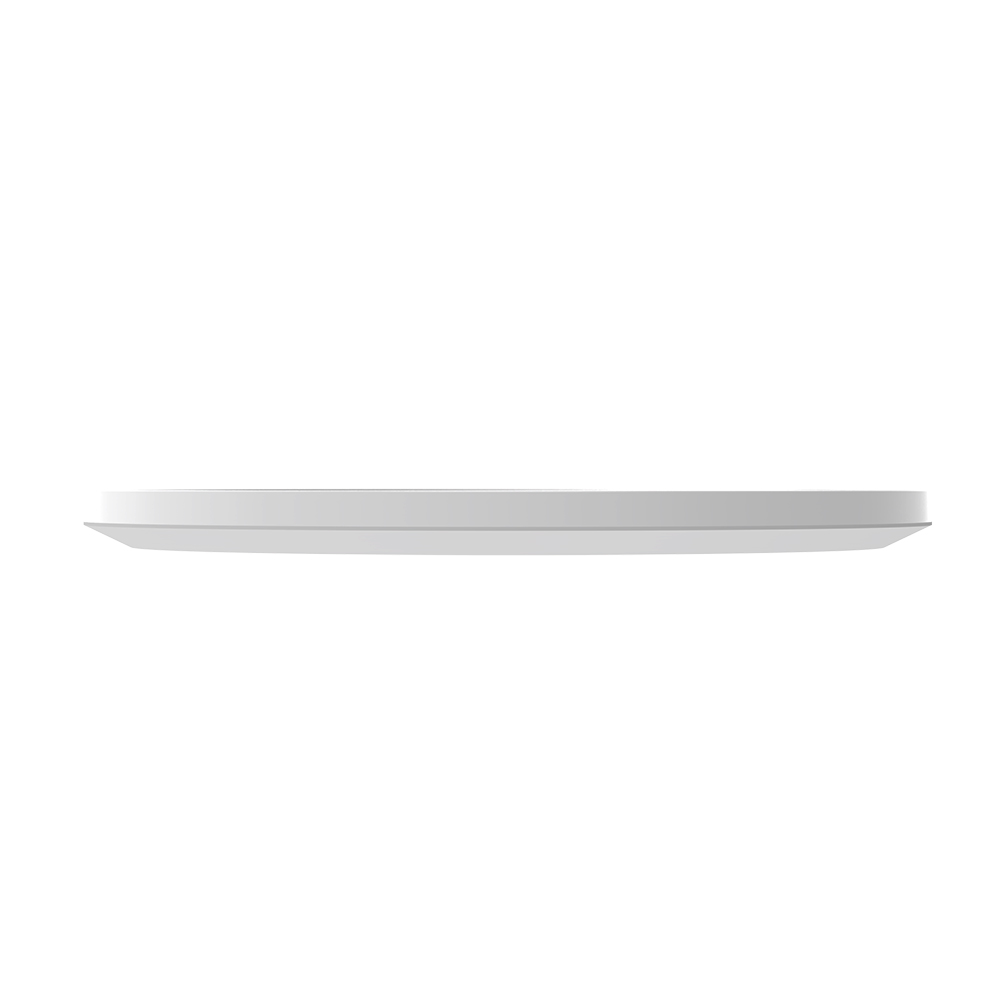

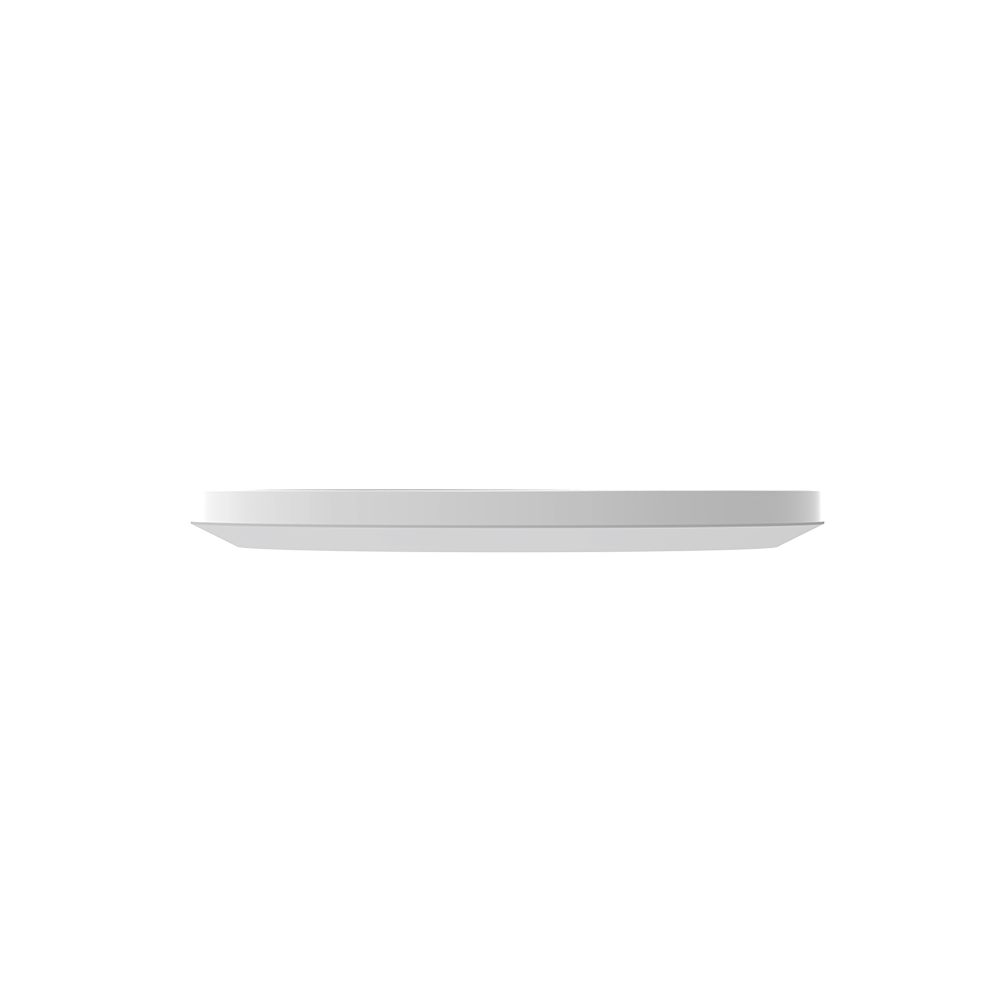

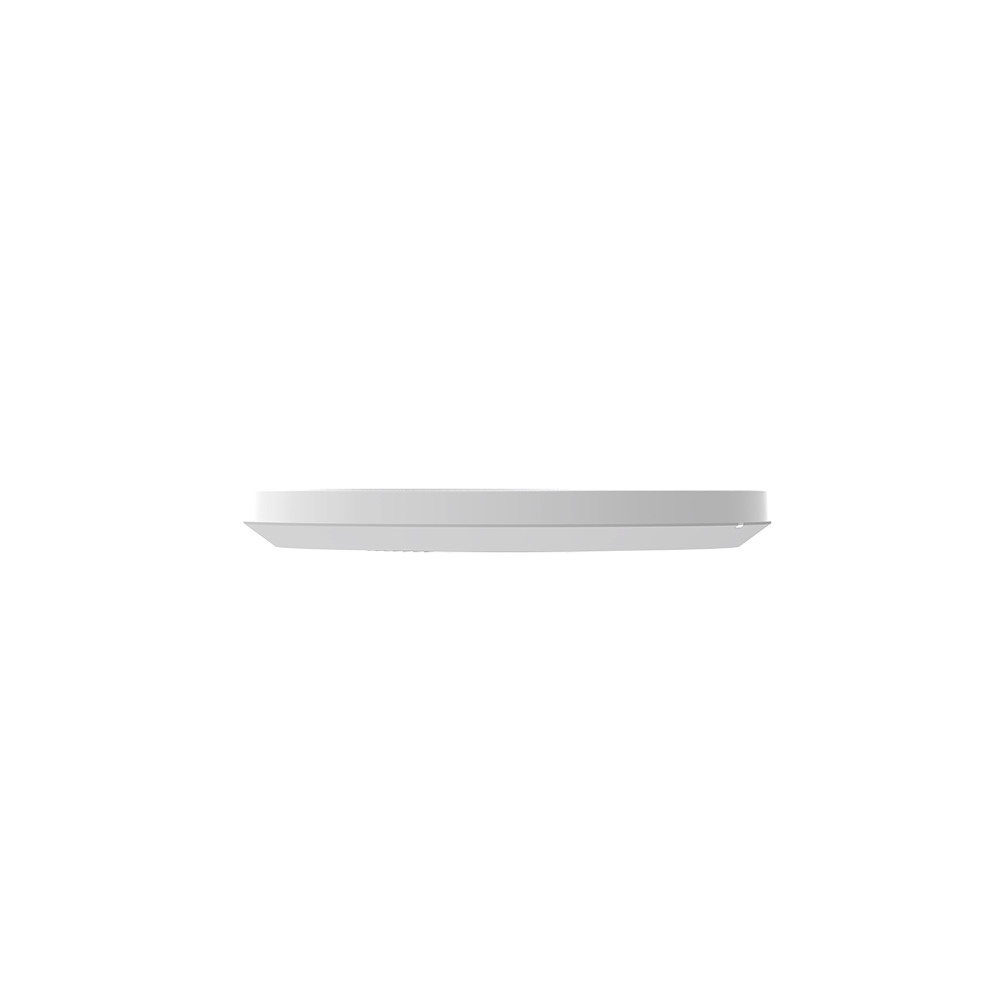

- Ultra-thin 27mm design; blends smoothly with modern decor.
- Tri-colour LEDs: 3000K, 4000K, 5700K; customise your colour temp.
- IP54 rated; ideal for bathrooms, kitchens, and laundries.
- Energy-efficient: Up to 120 lm/W for reduced electricity bills.
- Long-lasting: Over 54,000 hrs lifespan minimises replacements.
- Easy install with twist-and-go plate; saves time and effort.
- Dimmable functionality; adjust lighting to suit any occasion.
- Insect-resistant seal keeps the light clean and clear.
- Double insulated design
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT3030/12/TRI | 104 lm/W |
| AT3030/18/TRI | 116 lm/W |
| AT3030/24/TRI | 120 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 |
|---|---|
| Fitting Colour | White |
| Installation Type | Wall or Ceiling |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | |
| AT3030/12/TRI | 12 W |
| AT3030/18/TRI | 18 W |
| AT3030/24/TRI | 24 W |
| Input voltage | 230 |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
AT3030/12/TRI
| |||||||||
AT3030/18/TRI
| |||||||||
AT3030/24/TRI
| |||||||||
Driver
| Dimmable | Yes |
|---|
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 27 mm |
|---|
AT3030/12/TRI
AT3030/18/TRI
AT3030/24/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11427 | AT3030/12/TRI | 12W Flat low-profile oyster 250mm dia - Tri-CCT - White | |
| 11428 | AT3030/18/TRI | 18W Flat low-profile oyster 300mm dia - Tri-CCT - White | |
| 11429 | AT3030/24/TRI | 24W Flat low-profile oyster 400mm dia - Tri-CCT - White |
