AT5007

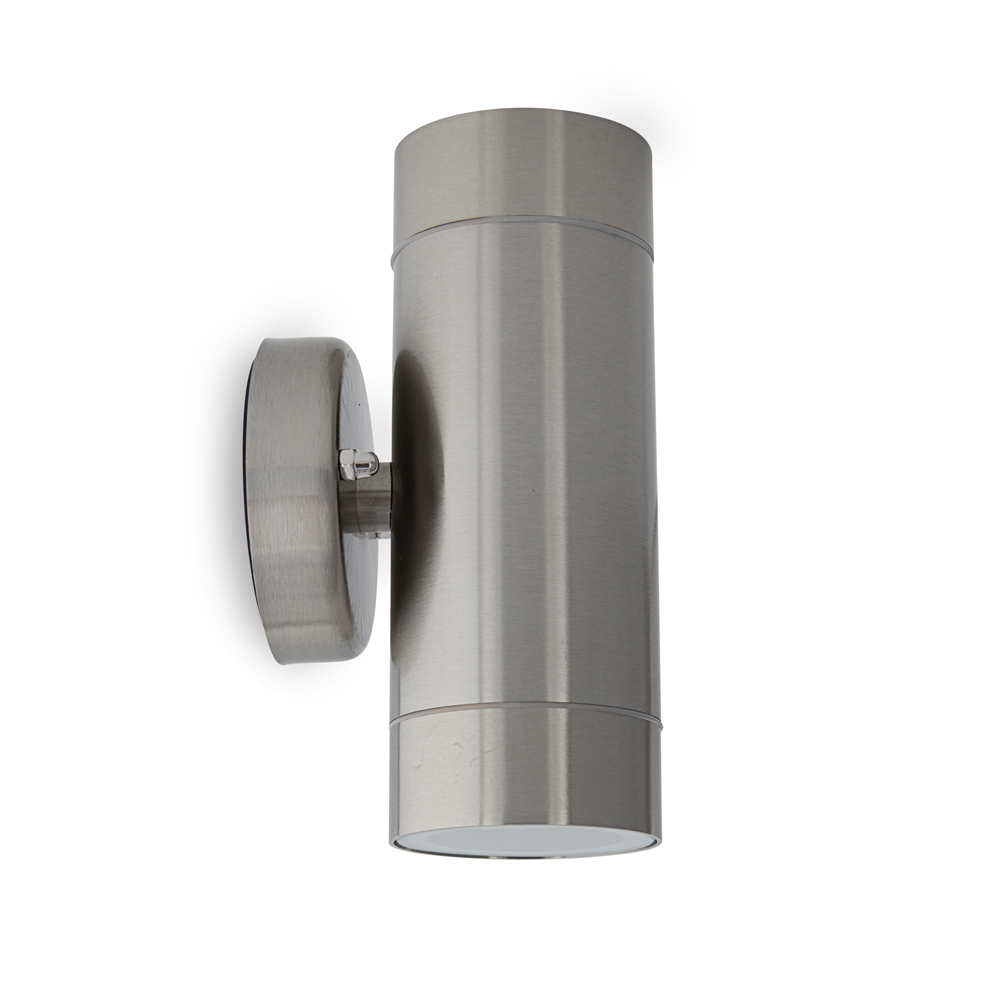

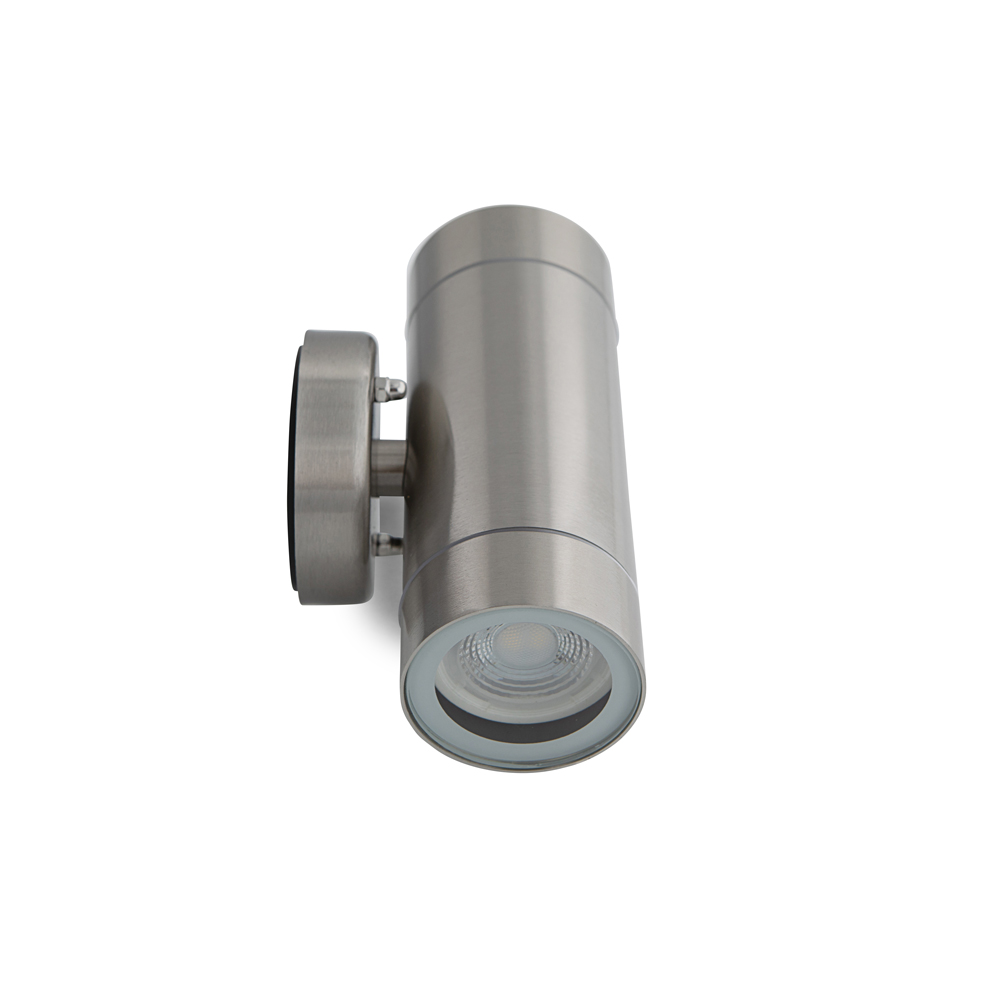

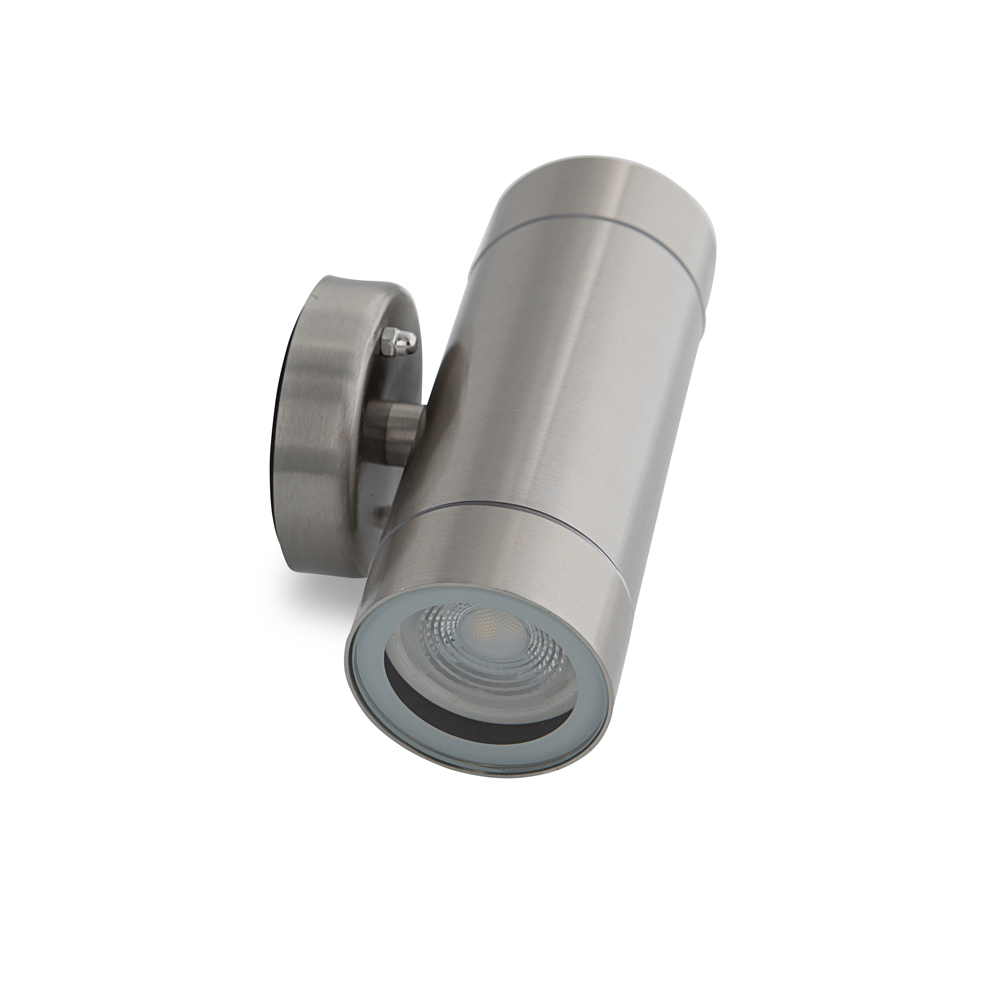

304 Stainless steel up/down exterior wall light with glass diffuser
- Ideal for residential applications
- Provided with glass lens
- Elegant Design
Specifications
Efficiencies
| Total System Efficiency | 71.4 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP44 |
|---|---|
| Adjustability | Fixed |
| Fitting Colour | Stainless |
| Product Finish | Steel |
| Body Material | 304 Stainless Steel |
| Installation Type | Wall mount |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 7 W |
| System Max Wattage | 7 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Number of Lamps | 1 |
|---|---|
| Globe Base | GU10 |
| Globe Included | Yes |
| CCT Configuration | Single |
| Maximum Bulb Wattage | 3.5 W |
| Beam Angle | 38 ° |
Colour temperature
| CCT Colour | Cool White |
|---|---|
| LED Wattage | 3.5 W |
| Luminaire Lumens | 2x250 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | 4000 K |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | No |
| Wiring Type | Re-wireable terminal block (3 pin) |
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 160 mm |
|---|---|
| Product Length | 86 mm |
| Product Width | 60 mm |
AT5007
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 10293 | AT5007 | 304 Stainless Steel Up/Down Light LED |
Documents & Downloads
*Auto generated datasheet (beta)
