AT9012 COB
$0.00

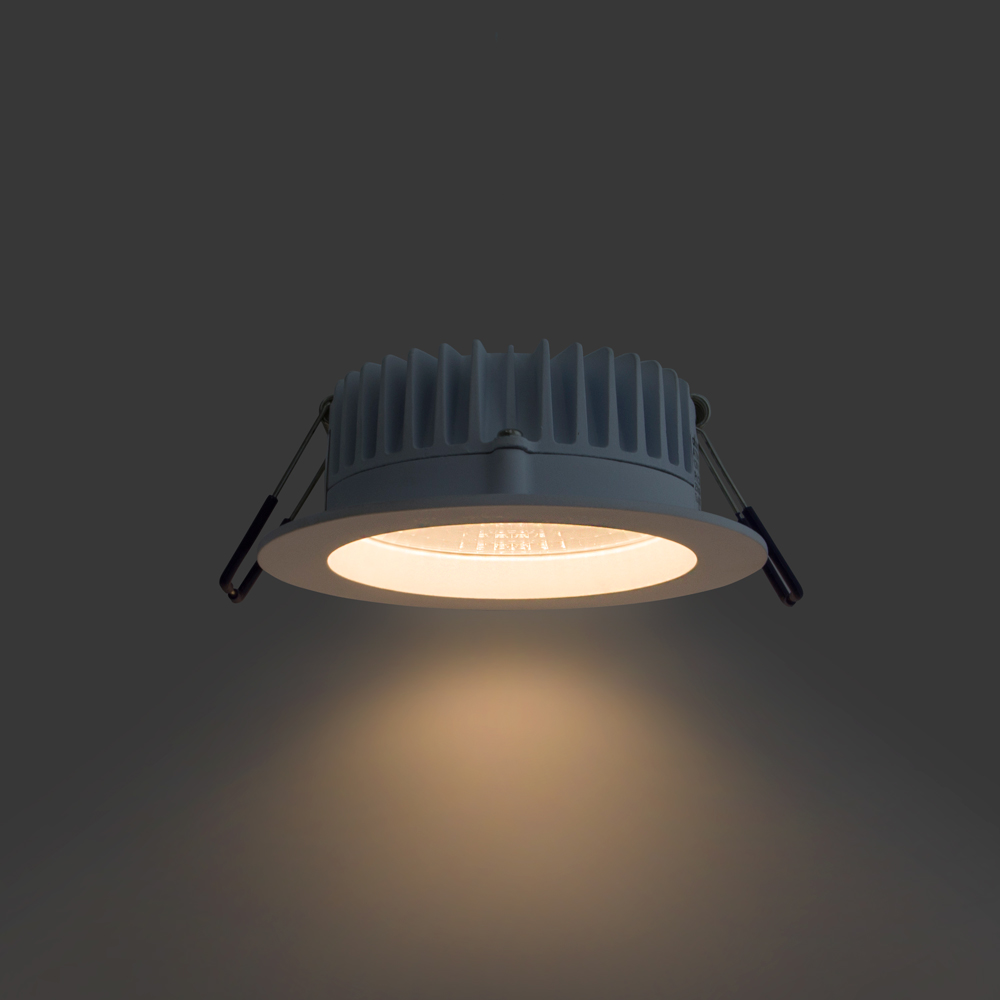

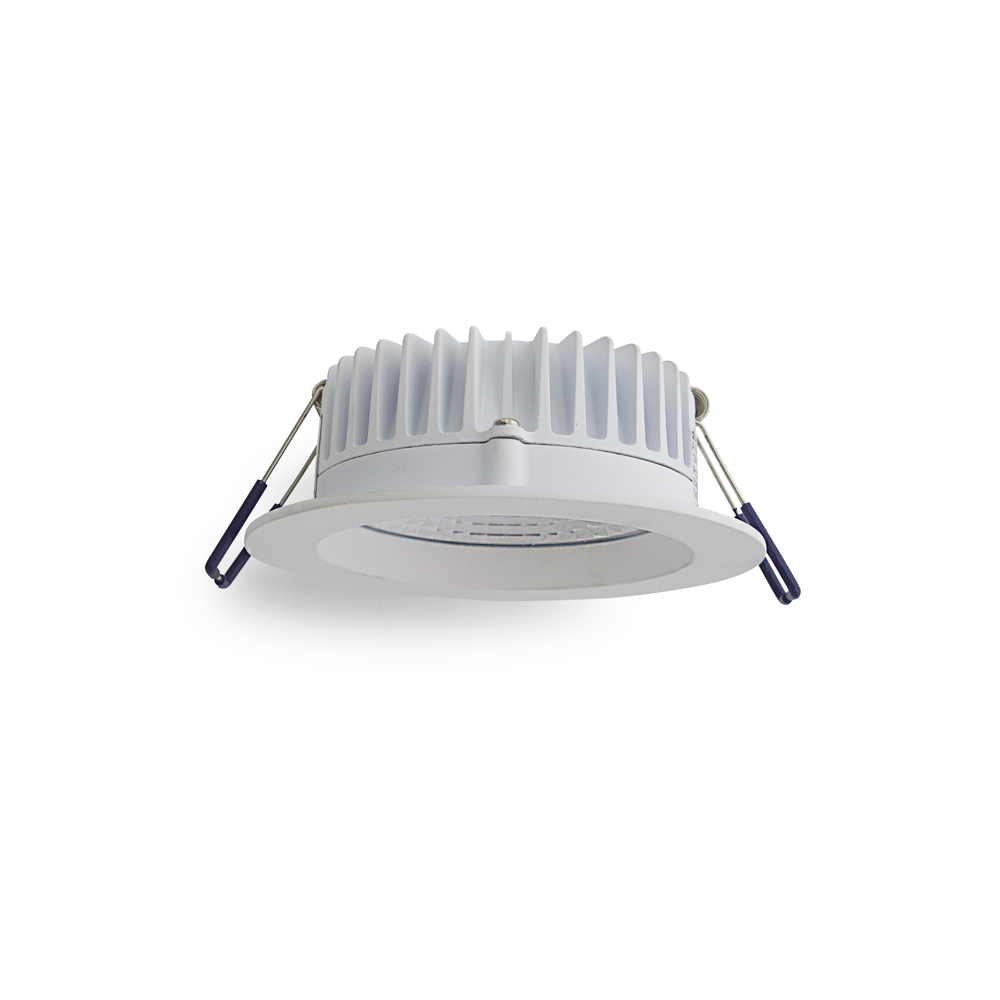

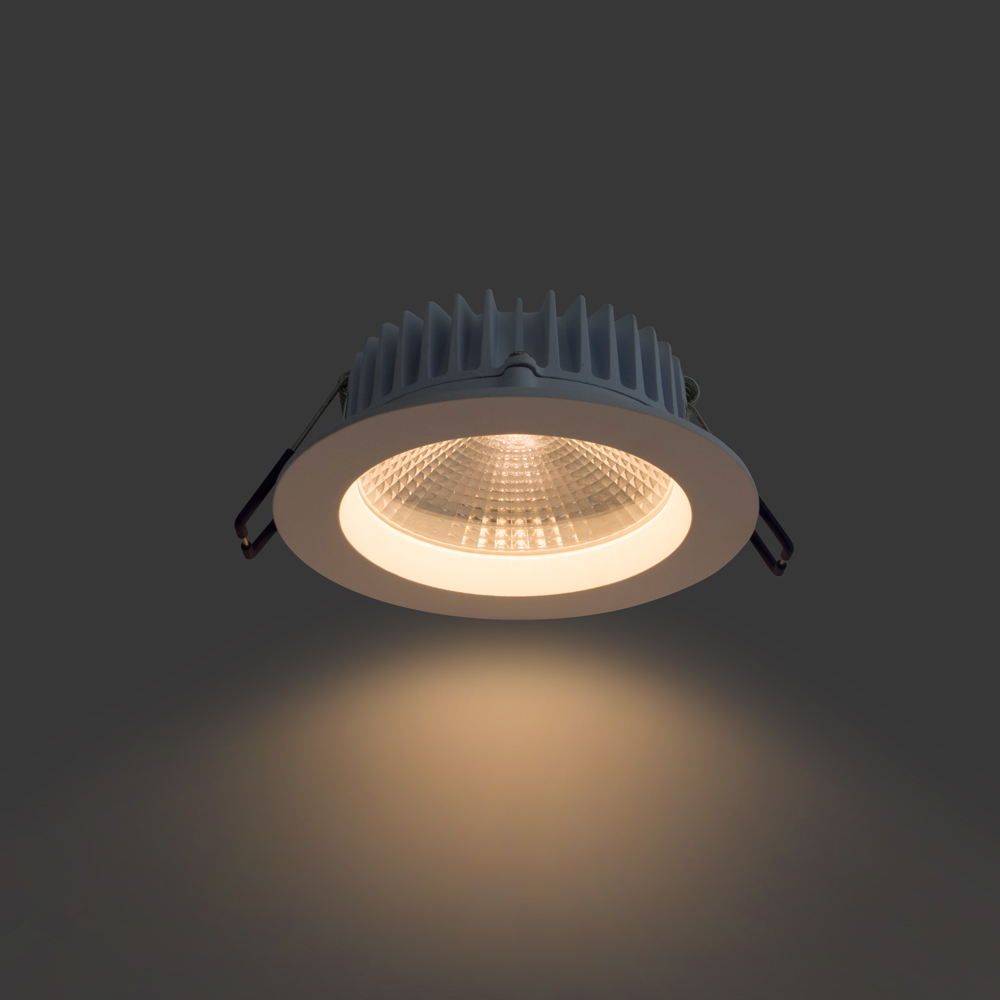

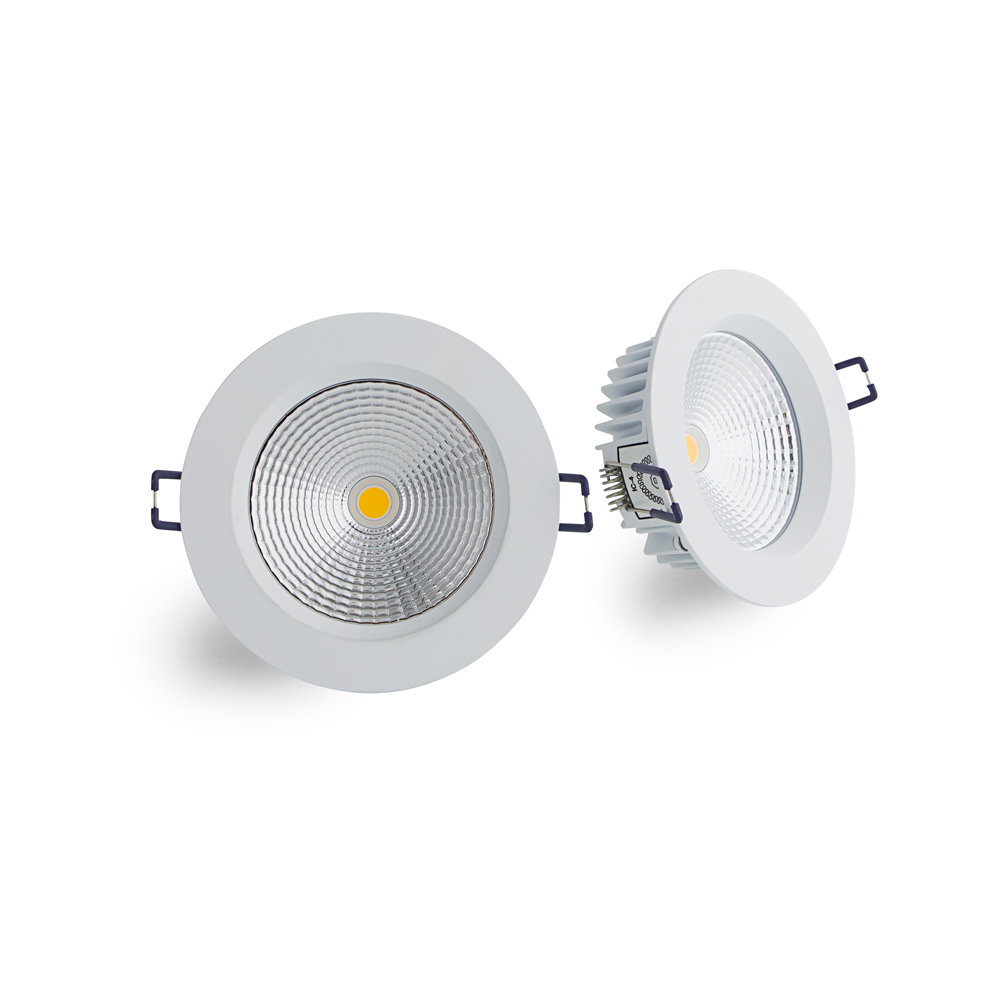

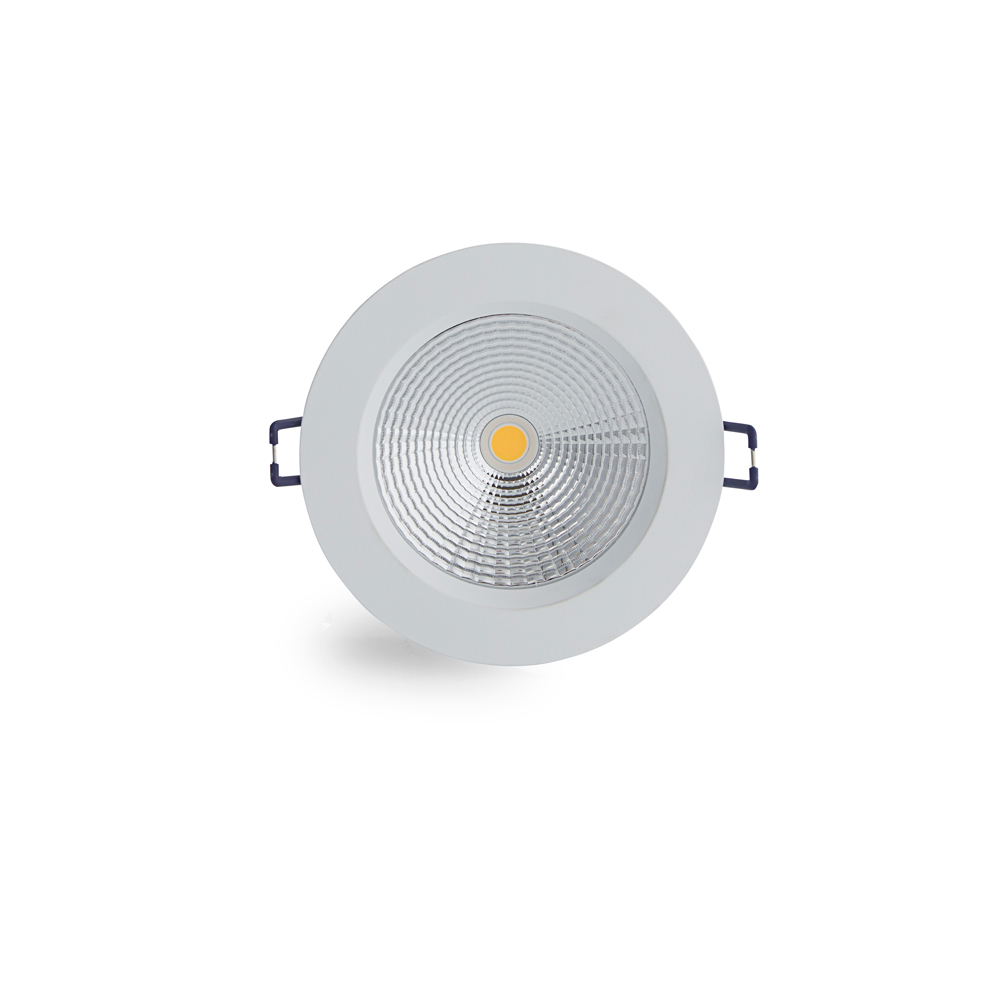

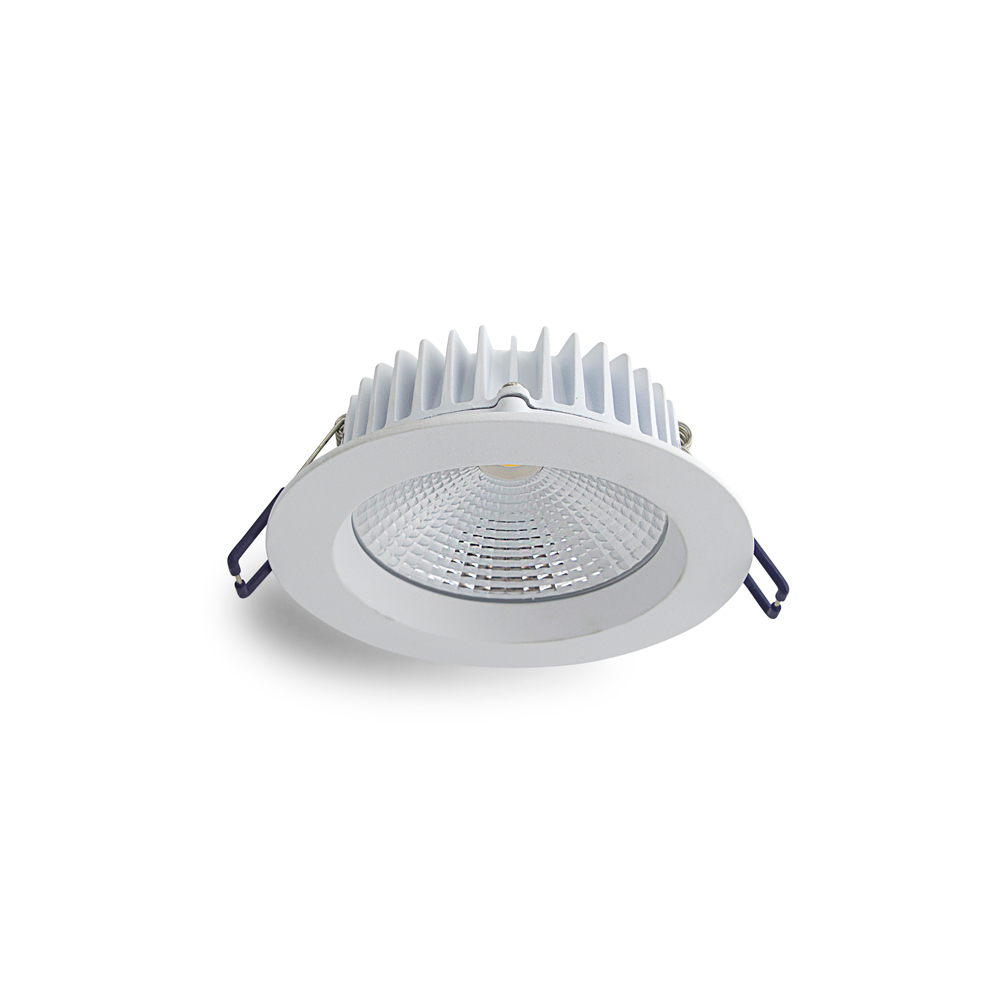

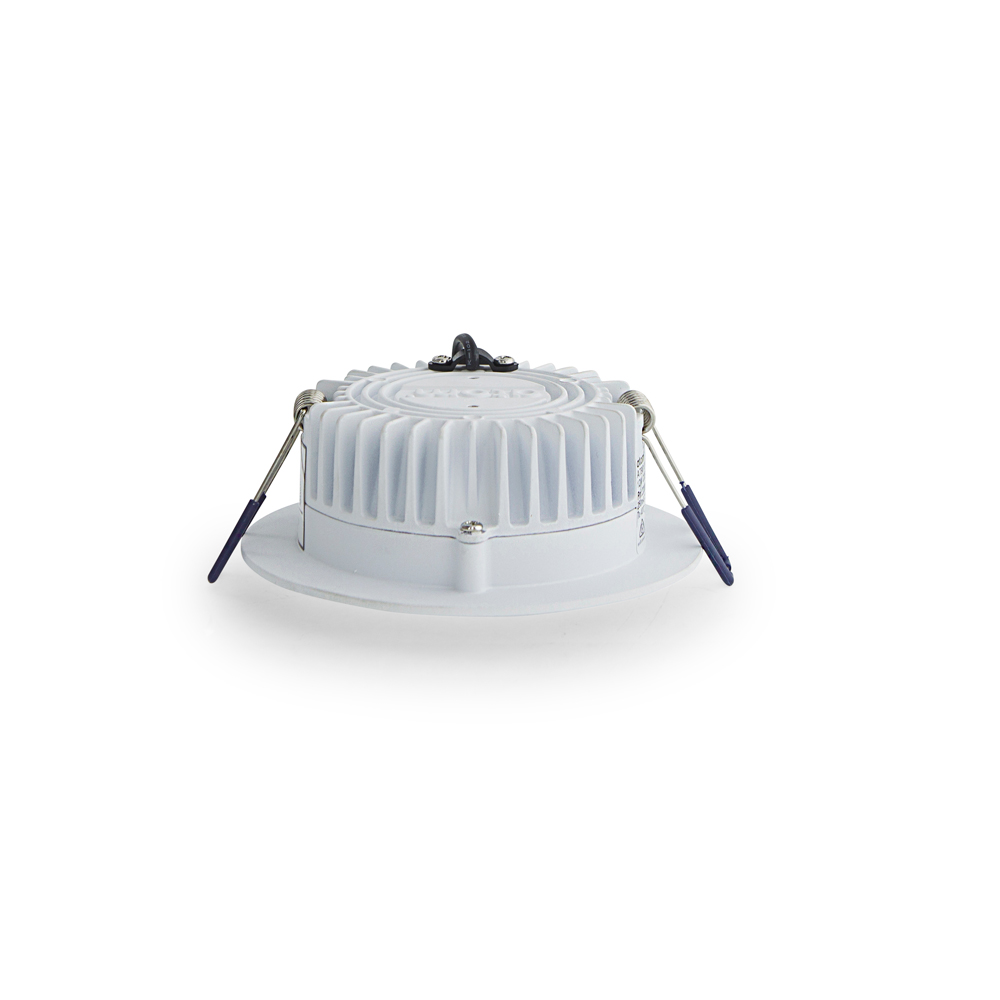

12W LED COB Downlight With Dimmable Driver
- Ideal for residential, retail, showroom and decorative lighting applications

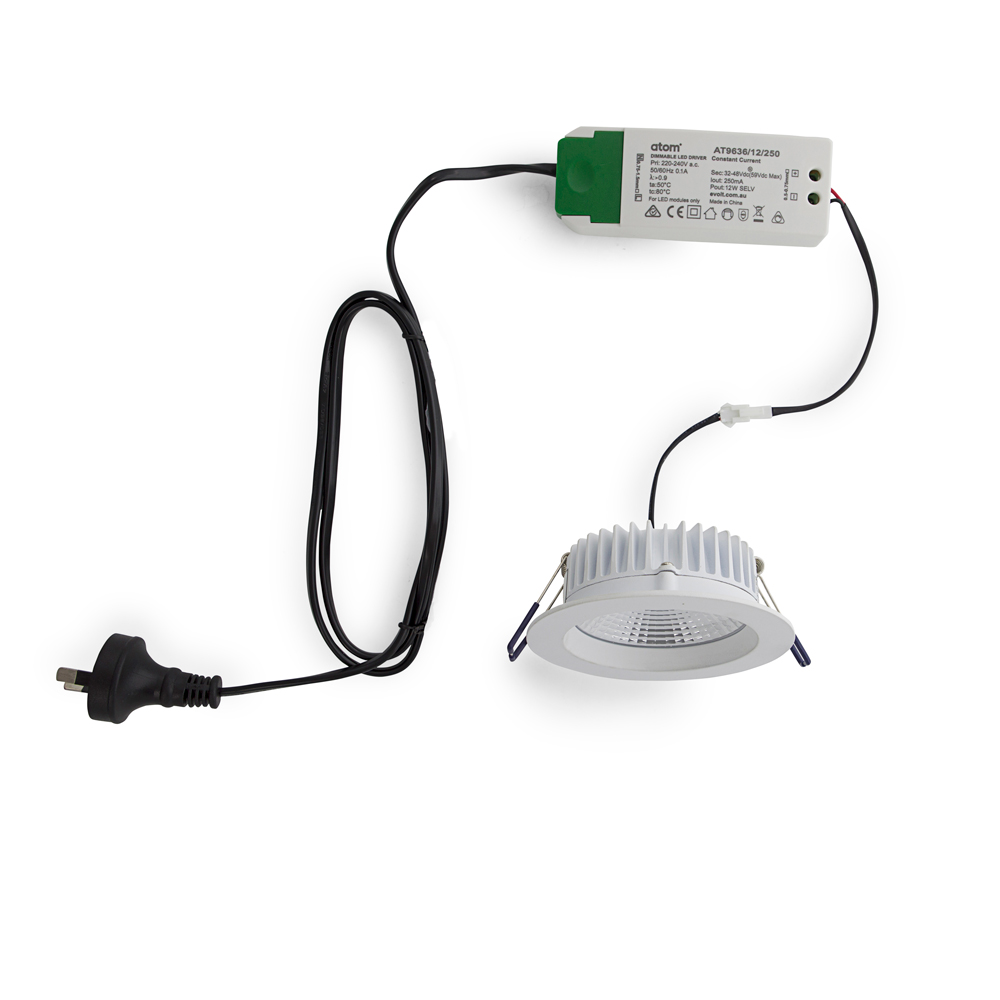

- Supplied with a dimmable LED driver
- Long life and durability
- Suitable for 24 hour use
- Easy to install
- Ideal for Residential, retail, and decorative
Specifications
Efficiencies
| Total System Efficiency | 81 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Product Finish | Power coated |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP44 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 12 W |
| Power Factor | 0.9 |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 90 ° |
| CCT Configuration | Single |
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | 350 mA |
| LED Type | COB |
| Number of Lamps | 1 |
LED Lifetime
| LED Lifetime | 50000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT | |
|---|---|
| AT9012/WH/COB/WW | 3000 K |
| AT9012/WH/COB/CW | 4000 K |
| CCT Colour | |
| AT9012/WH/COB/CW | Cool White |
| AT9012/WH/COB/WW | Warm White |
| Luminaire Lumens | |
| AT9012/WH/COB/CW | 1150 lm |
| AT9012/WH/COB/WW | 1220 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Dimmable | Yes |
|---|---|
| Driver Code | 10974 |
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Type | Dimmable ( Phase cut) |
| Driver Warranty | 3 Yr |
| Flex & Plug or Lead Length | 120 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Cutout | 92 mm |
|---|---|
| Product Diameter | 110 mm |
| Product Height | 37 mm |
AT9012/COB
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11133 | AT9012/WH/COB/CW | 12W Fixed COB LED Downlight - White/Cool White | |
| 11146 | AT9012/WH/COB/WW | 12W Fixed COB LED Downlight - White/Warm White |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 10121 | AT9018/WH | 140mm Downlight Extension Plate - White | |
| 10130 | AT9019/WH | 170mm Downlight Extension Plate - White |
Recommended Drivers
Wireless (IEC62386-104) with DT6
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14929 | DK1-0AABBHZX00035 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 350mA |
DALI DT6 LED Driver
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14911 | DK1-0AADADZX00035 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 350mA | |
| 14947 | DK1-0AAJADZX00035 | Driver Kit - DALI-2 LED driver with 2.4m CMS lead - set to 350mA | |
| 14965 | DK1-0AAKADZX00035 | Driver Kit - DALI-2 LED driver with 2.4m Wire-By-Click (WBC) lead - set to 350mA |
