AT9098 Stratos
8W low-glare LED COB adjustable downlight – CRI 90 – Tri-CCT
- Recessed lens with low-glare matte reflector
- Tri-CCT selectable: 3000K / 4000K / 5700K
- High colour accuracy with CRI 90 rating
- 50° beam angle
- IP54 rated front face
- Flex & plug lead and dimmable driver
Selected Models

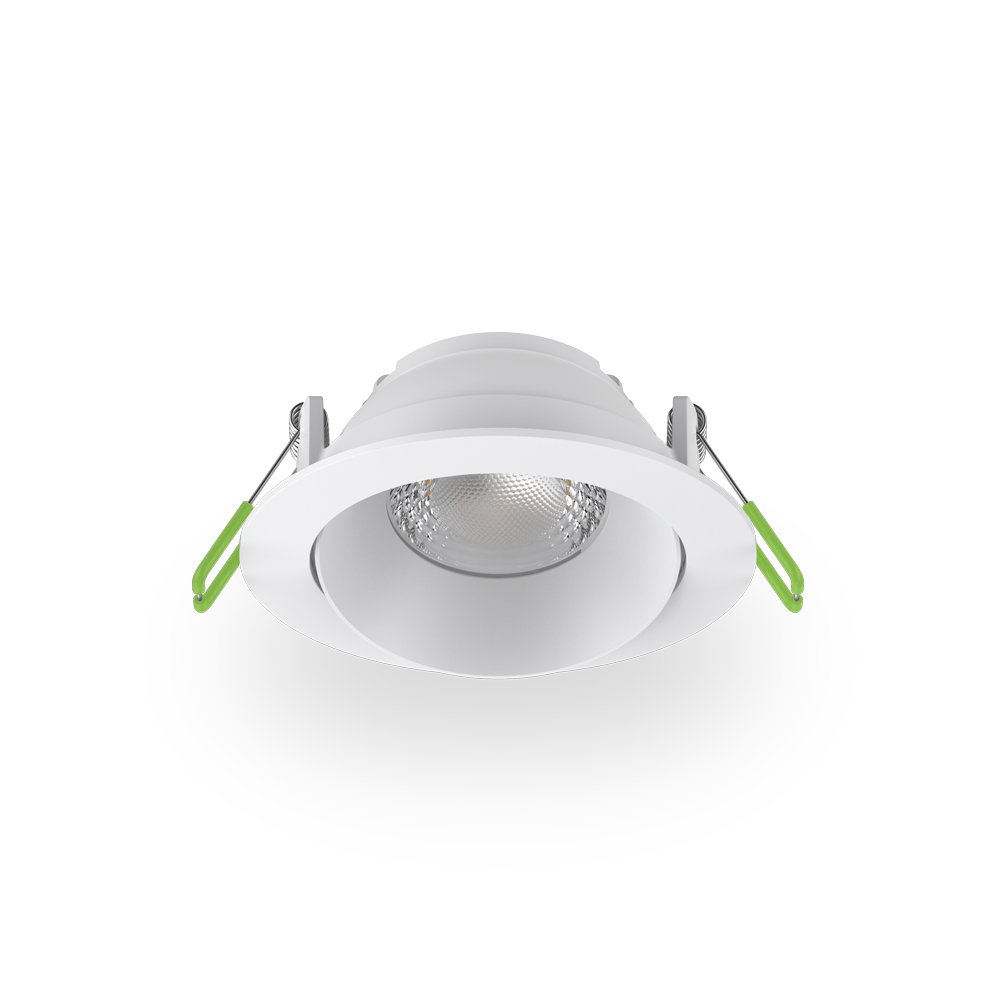

- Integrated COB LED in angle adjustable recessed downlight design

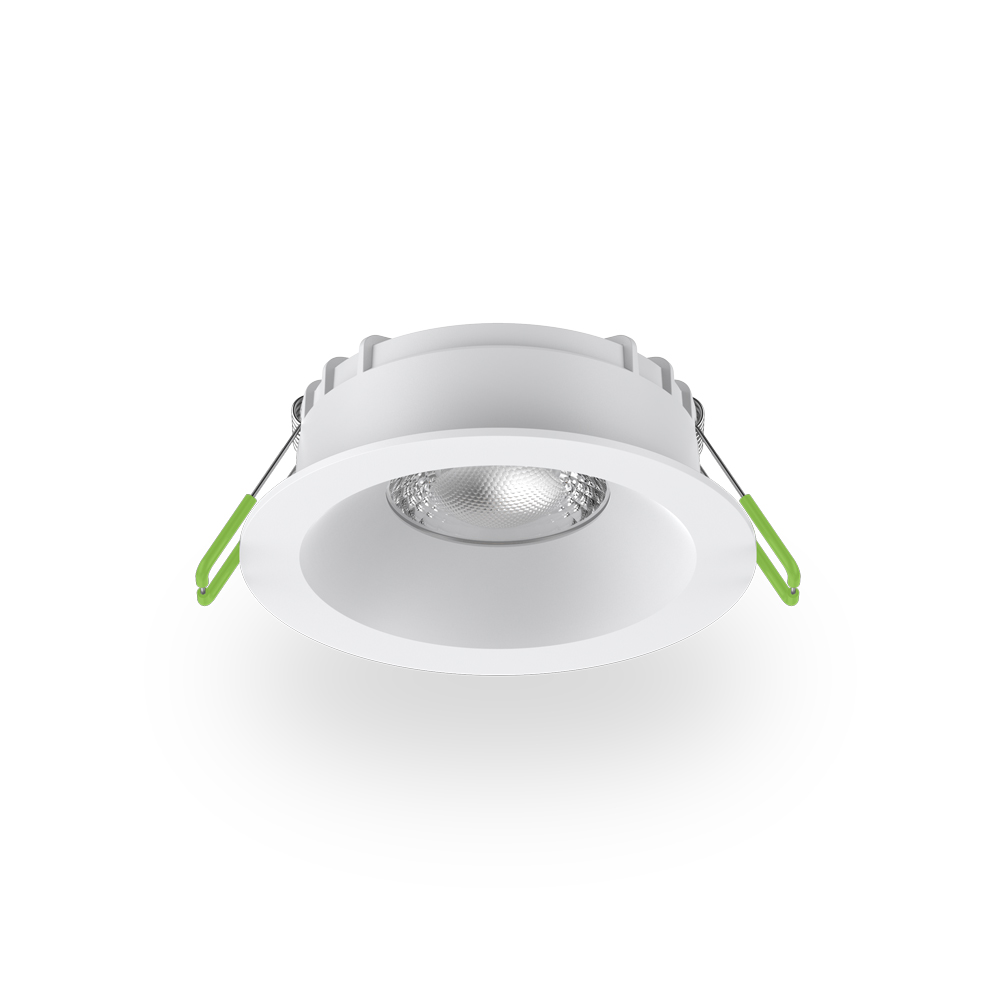

- Integrated COB LED in fixed recessed downlight design
Specifications
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | |
| AT9098/ADJ/WH | Adjustable |
| AT9098/WH | Fixed |
| Fitting Colour | White |
| Body Material | ABS Plastic |
| Diffuser Material | Clear Acrylic |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50Hz Hz |
| Maximum Wattage | 8 W |
| System Max Wattage | 8 W |
| Input voltage | 220-240V~ |
Lamp
| Colour Rendering Index (CRI) | >90 |
|---|---|
| LED Type | COB |
| CCT Configuration | TRI-CCT |
| Beam Angle | 50° ° |
| Maximum Bulb Wattage | 8 W |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
| TM-21 Test Hours | 17000 hrs | ||||||
Colour temperature
AT9098/ADJ/WH
| |||||||||||||
AT9098/WH
| |||||||||||||
Driver
| Dimmable | Yes |
|---|---|
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Non rewireable Flex & Plug |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|
Dimensions
| Product Height | 38 mm |
|---|---|
| Cutout | 90 mm |
| Product Diameter | 110 mm |
| Product Length | 110 mm |
| Product Weight | 21 g |
AT9098/ADJ/WH
AT9098/WH
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11634 | AT9098/ADJ/WH | STRATOS 8W 90mm cutout adjustable reduced-glare LED downlight - CRI90 - White - TRI-CCT | ||
| 11633 | AT9098/WH | STRATOS 8W 90mm cutout fixed reduced-glare LED downlight - CRI90 - White - TRI-CCT |
