AT9135 Hawk
$0.00
IP65 Led Security Spotlight
- Weatherproof: IP65 rated, resistant to harsh conditions.
- Durable: UV stable, corrosion-resistant plastic.
- Versatile: Tri-colour CCT LED for customised lighting.
- Reliable: 3-year warranty with a >108,000 hrs L70 lifetime.
- Quick Setup: Designed for easy installation.
- Large terminal block with room for cable entry.
- Double insulated design
Selected Models
- 230V 300W relay output
- PIR sensor
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9135/1LT AT9135/1LT/S | 110 lm/W |
| AT9135/2LT AT9135/2LT/S | 123 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP65 |
|---|---|
| Fitting Colour | Charcoal |
| Body Material | ABS |
| Diffuser Material | Glass |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | |
| AT9135/1LT AT9135/1LT/S | 9 W |
| AT9135/2LT AT9135/2LT/S | 18 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Input Current | |
| AT9135/1LT AT9135/1LT/S | 0.06 A |
| AT9135/2LT AT9135/2LT/S | 0.11 A |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| LED Type | COB |
| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) | 6-step MacAdam Ellipse |
| Beam Angle | 90 ° |
LED Lifetime
| LED Lifetime | 108000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| LED Lifetime Rating | L70B10 |
Colour temperature
| AT9135/1LT AT9135/1LT/S
| |||||||||
| AT9135/2LT AT9135/2LT/S
| |||||||||
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | No |
| Wiring Type | Re-wireable terminal block (3 pin) |
| Driver Mode | Constant Current |
Sensor (S suffix)
| Sensor Type | PIR |
|---|---|
| Detection Range | 8 m |
| Switched Output | Yes |
| Switched Output Rating | 300 W |
| Corridor Function | No |
| Lux Adjustment | Yes |
| Manual Override | Yes |
| Dawn Reset | No |
| Dusk Mode | Yes |
| Adjustable Hold Time | No |
| Adjustable Standby Level | No |
| Adjustable Standby Period | No |
| Adjustable Detection Area / Sensitivity | Yes |
| Detection Angle | 120 |
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Item Code | Product Length | Product Width |
|---|---|---|
| AT9135/1LT | 194 mm | 134 mm |
| AT9135/1LT/S | 194 mm | 134 mm |
| AT9135/2LT | 180 mm | 245 mm |
| AT9135/2LT/S | 180 mm | 245 mm |

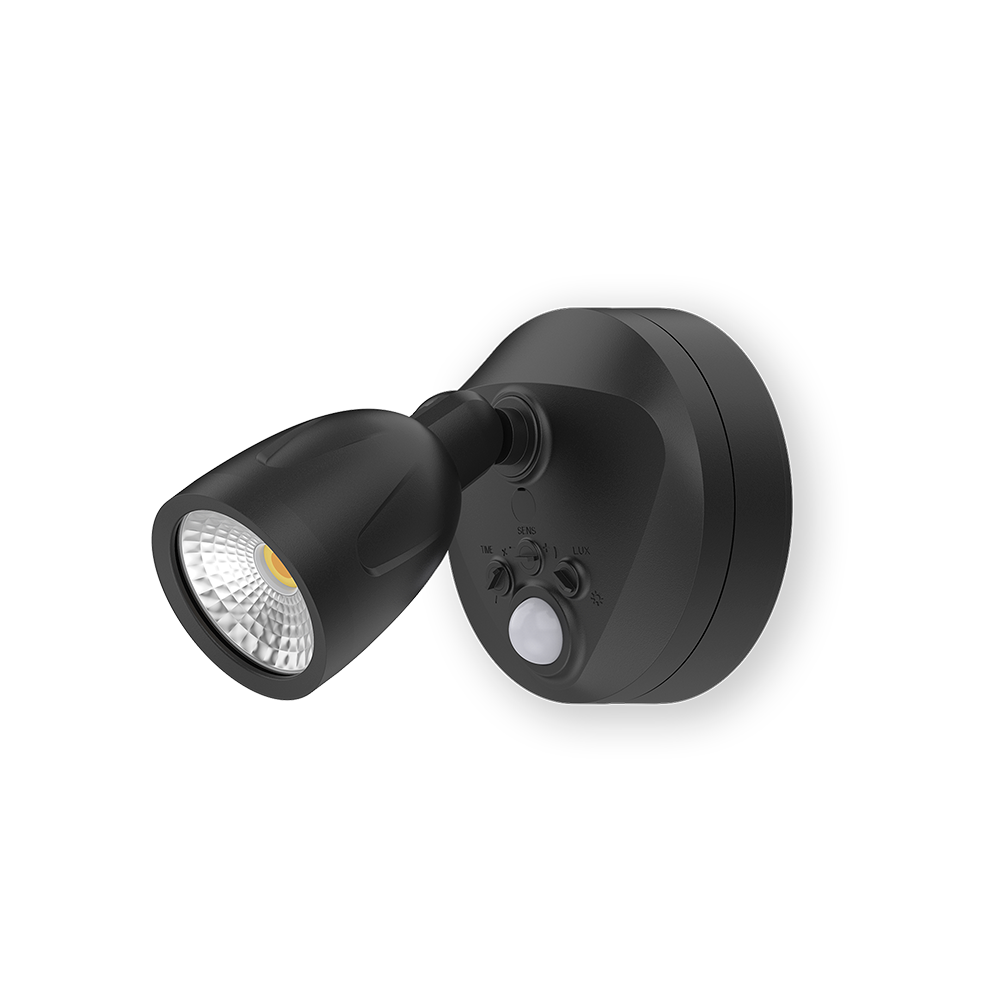

AT9135/1LT/S

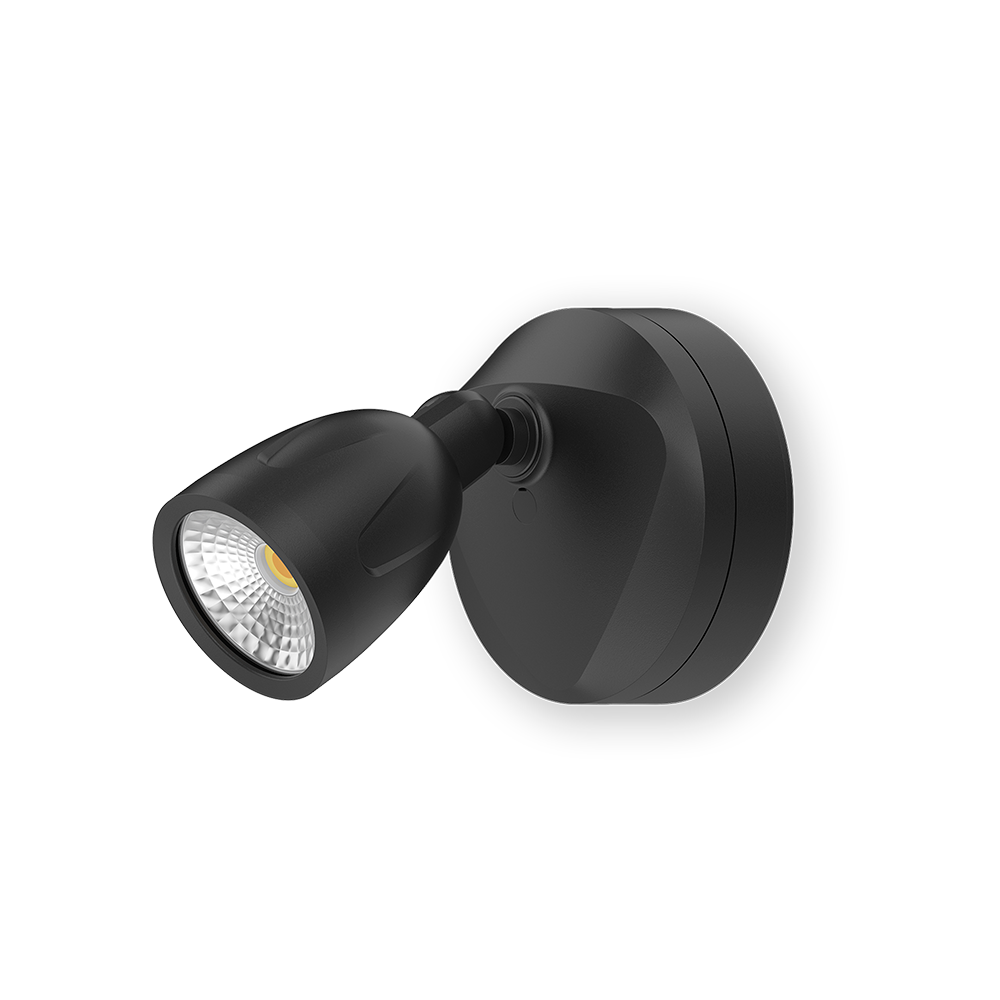

AT9135/1LT

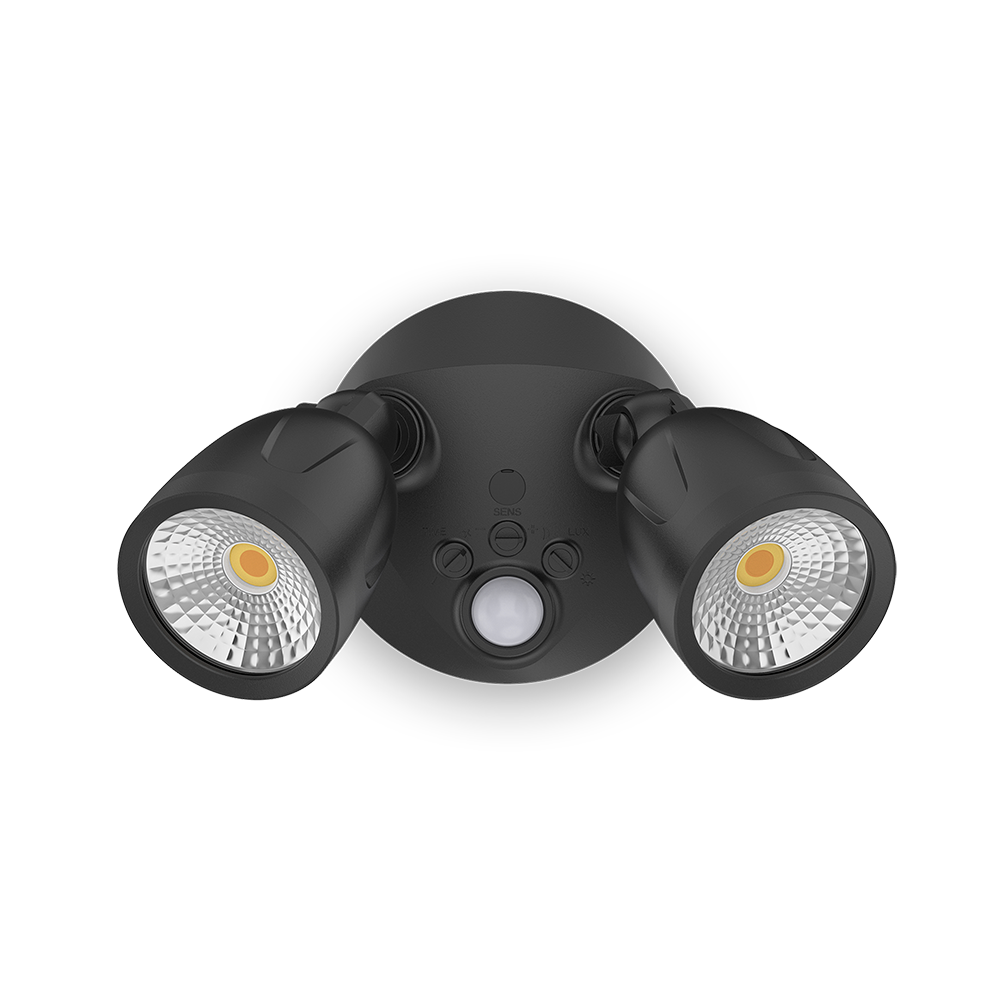

AT9135/2LT/S

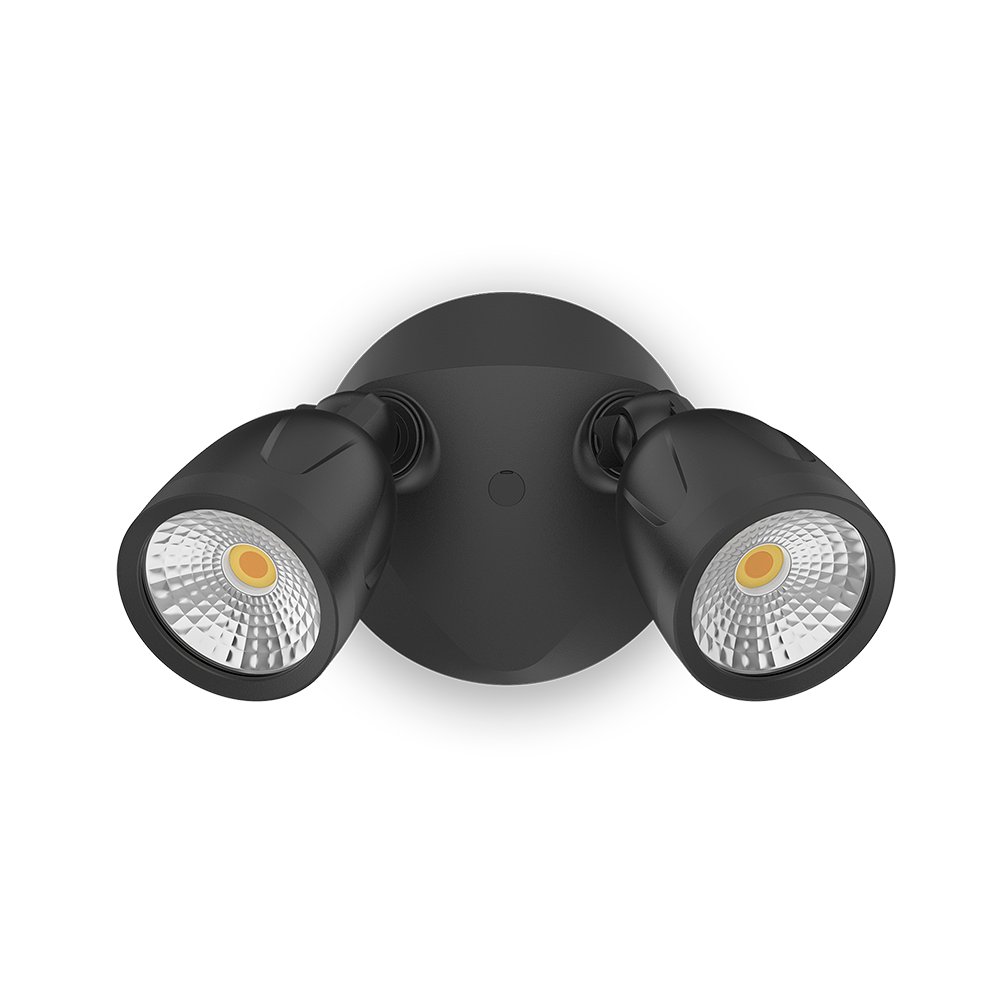

AT9135/2LT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 13807 | AT9135/1LT | Hawk 12W Single LED Security Spotlight - IP65 - Black | |
| 13809 | AT9135/1LT/S | Hawk 12W Single LED Security Spotlight - IP65 - Black - w/PIR Sensor | |
| 13808 | AT9135/2LT | Hawk 12W Twin LED Security Spotlight - IP65 - Black | |
| 13810 | AT9135/2LT/S | Hawk 12W Twin LED Security Spotlight - IP65 - Black - w/PIR Sensor |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
