AT9403
AT9403
Home Lamps GLS / A60 AT9403
AT9420
AT9420 $0.00
Back to products
AT5101
AT5101 $0.00

AT9403

$0.00

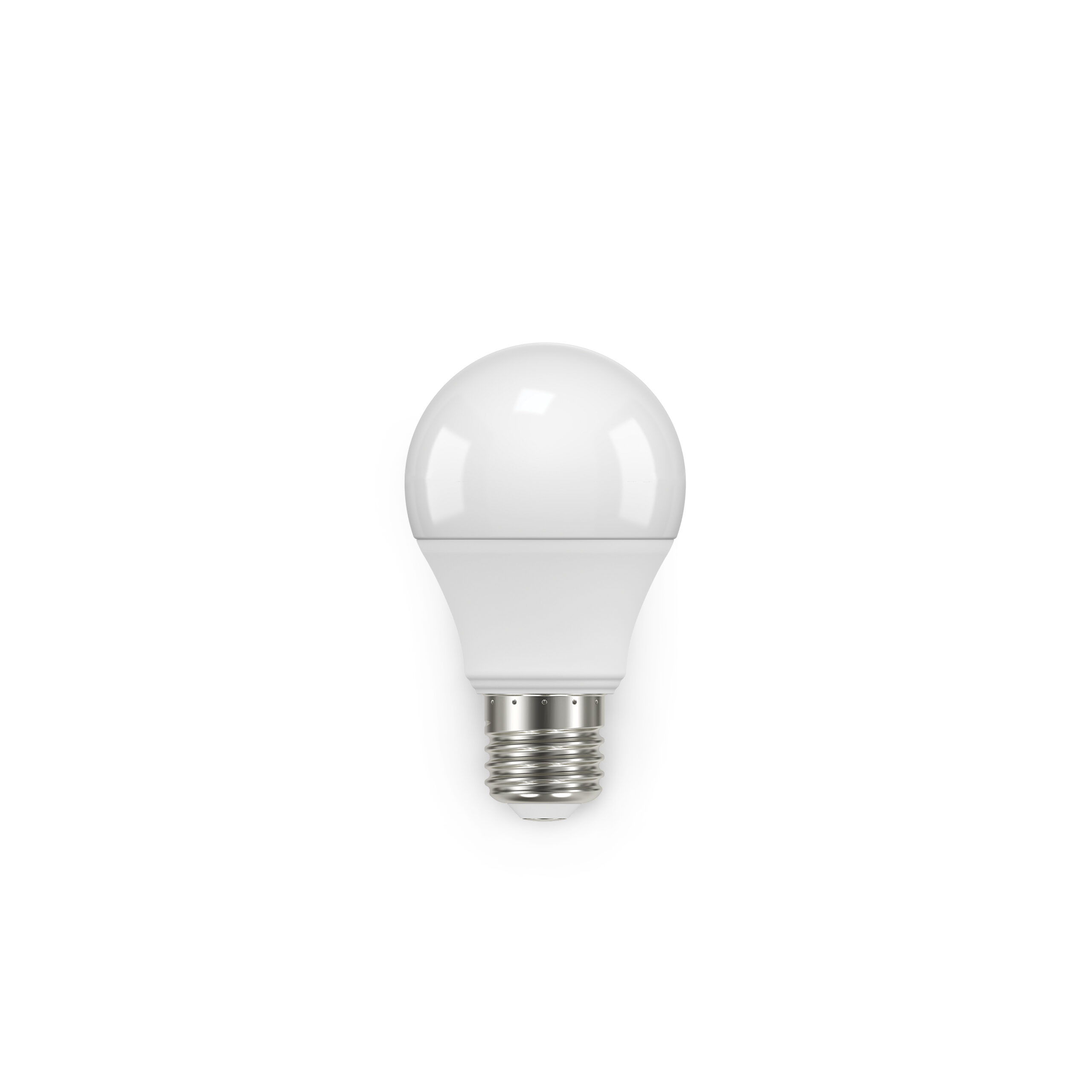

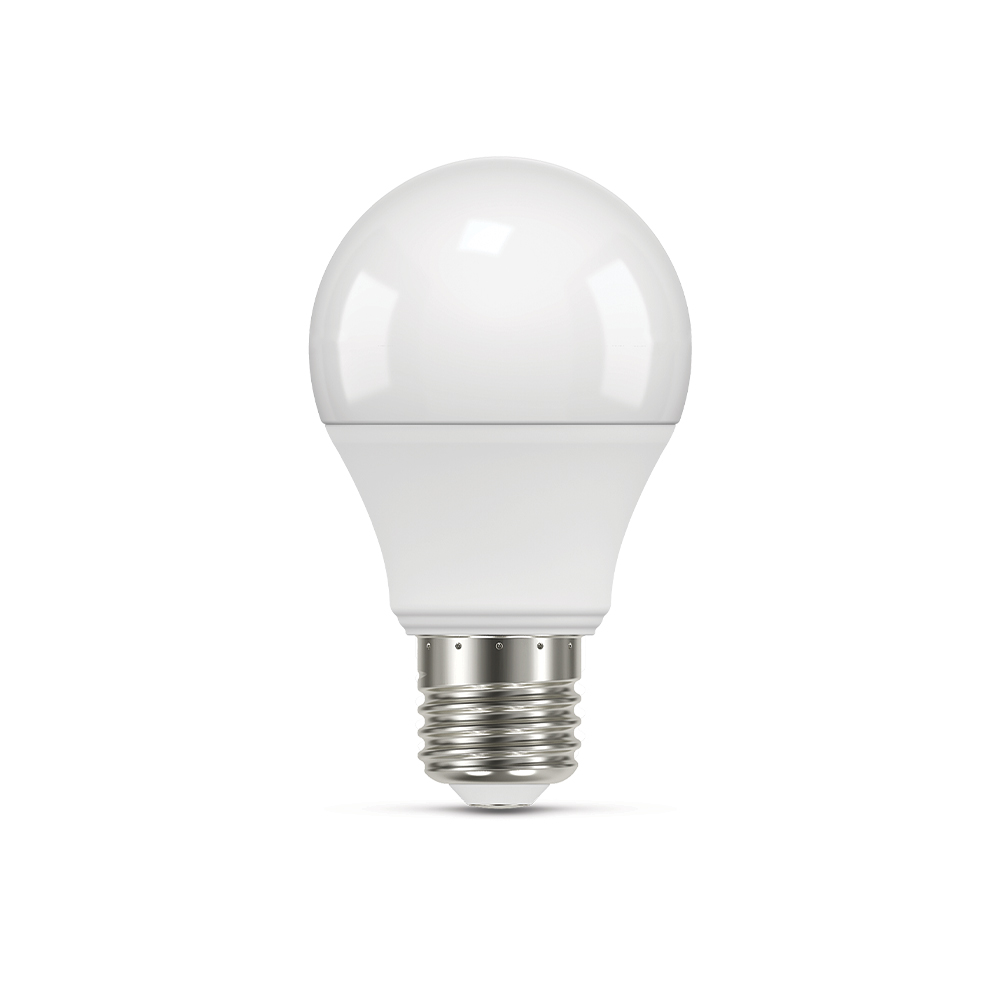

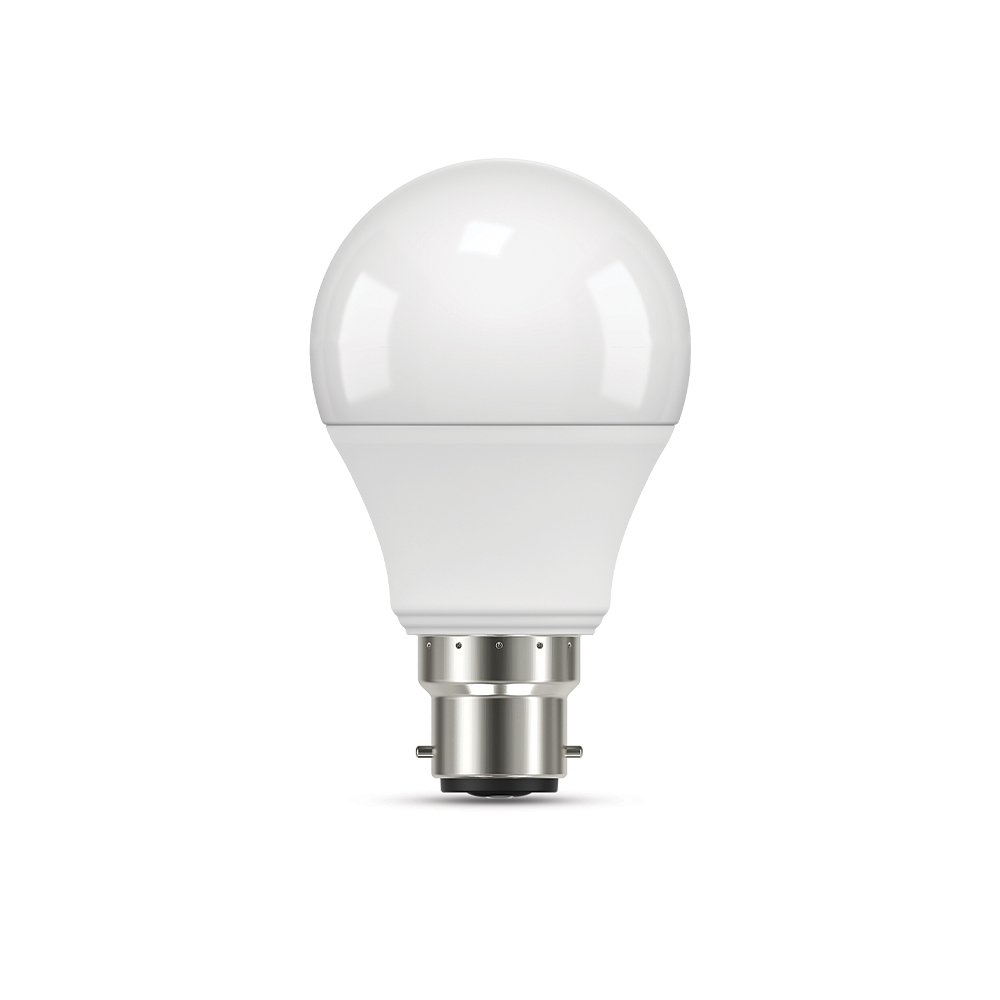

6W A60 LED lamp. Non dimmable. Frosted lens

Features

  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable replacement for halogen and incandescent lamps
SKU: AT9403 Category: GLS / A60 Tags: Bath, Domestic, Bed, Study, Living, Family, Ip20, Office, Shed, Garage, Stairs, Hallway, Toilet, Kitchen, Indoor
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Photometrics
Specifications

Mechanical

AdjustabilityFixed
Diffuser MaterialPolycarbonate
Product FinishFrosted
Fitting ColourWhite
IP RatingIP20

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage6.1 W
Power Factor0.5
Switch TypeInline
System Max Wattage6 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle300 °
Bulb TypeA60
CCT ConfigurationSingle
CRI>80
Globe Base
AT9403/BC/CW
AT9403/BC/WW
B22 / BC
AT9403/ES/CW
AT9403/ES/WW
E27
Globe IncludedYes
Lamp/LED Current16.1 mA
Lamp/LED voltage262 V
Led Package2835
Maximum Bulb Wattage6 W
Number of Lamps1

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT
AT9403/BC/WW
AT9403/ES/WW
3000 K
AT9403/BC/CW
AT9403/ES/CW
4000 K
CCT Colour
AT9403/BC/CW
AT9403/ES/CW
Cool White
AT9403/BC/WW
AT9403/ES/WW
Warm White
LED Wattage4.2 W
System Lumens
AT9403/BC/WW
AT9403/ES/WW
500 lm
AT9403/BC/CW
AT9403/ES/CW
520 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 (Yr) RTB
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Product Diameter60 mm
Product Height102 mm
Product Width60 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
12476AT9403/BC/CWA60 6W LED LAMP B22 CW NON-DIM FROSTED
12475AT9403/BC/WWA60 6W LED LAMP B22 WW NON-DIM FROSTED
12474AT9403/ES/CWA60 6W LED LAMP E27 CW NON-DIM FROSTED
12473AT9403/ES/WWA60 6W LED LAMP E27 WW NON-DIM FROSTED
Documents & Downloads

Datasheet

  • AT9403/BC/CW*
  • AT9403/BC/WW*
  • AT9403/ES/CW*
  • AT9403/ES/WW*
  • AT9403

Compliance

  • AT9403/BC/CW-AU-sdoc*
  • AT9403/BC/WW-AU-sdoc*
  • AT9403/ES/CW-AU-sdoc*
  • AT9403/ES/WW-AU-sdoc*

*Auto generated datasheet (beta)
Photometrics
AT9403/BC/CW
IES File

IES File


Download
AT9403/BC/WW
IES File

IES File


Download
AT9403/ES/CW
IES File

IES File


Download
AT9403/ES/WW
IES File

IES File


Download
