AT9483
AT9483
Home Lamps GLS / A60 AT9483
AT9484
AT9484 $0.00
Back to products
Placeholder
ALTIUS $0.00

AT9483

$0.00

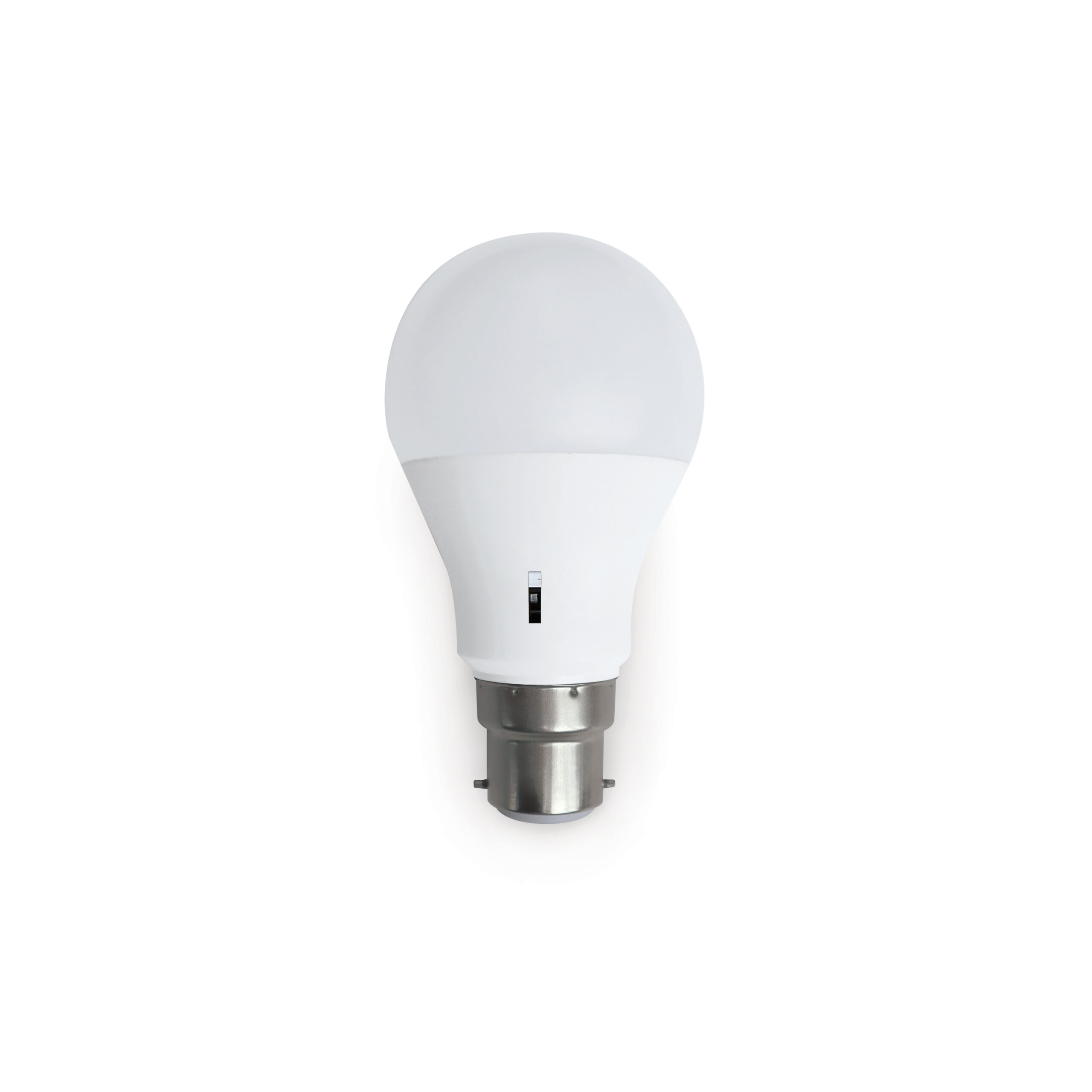

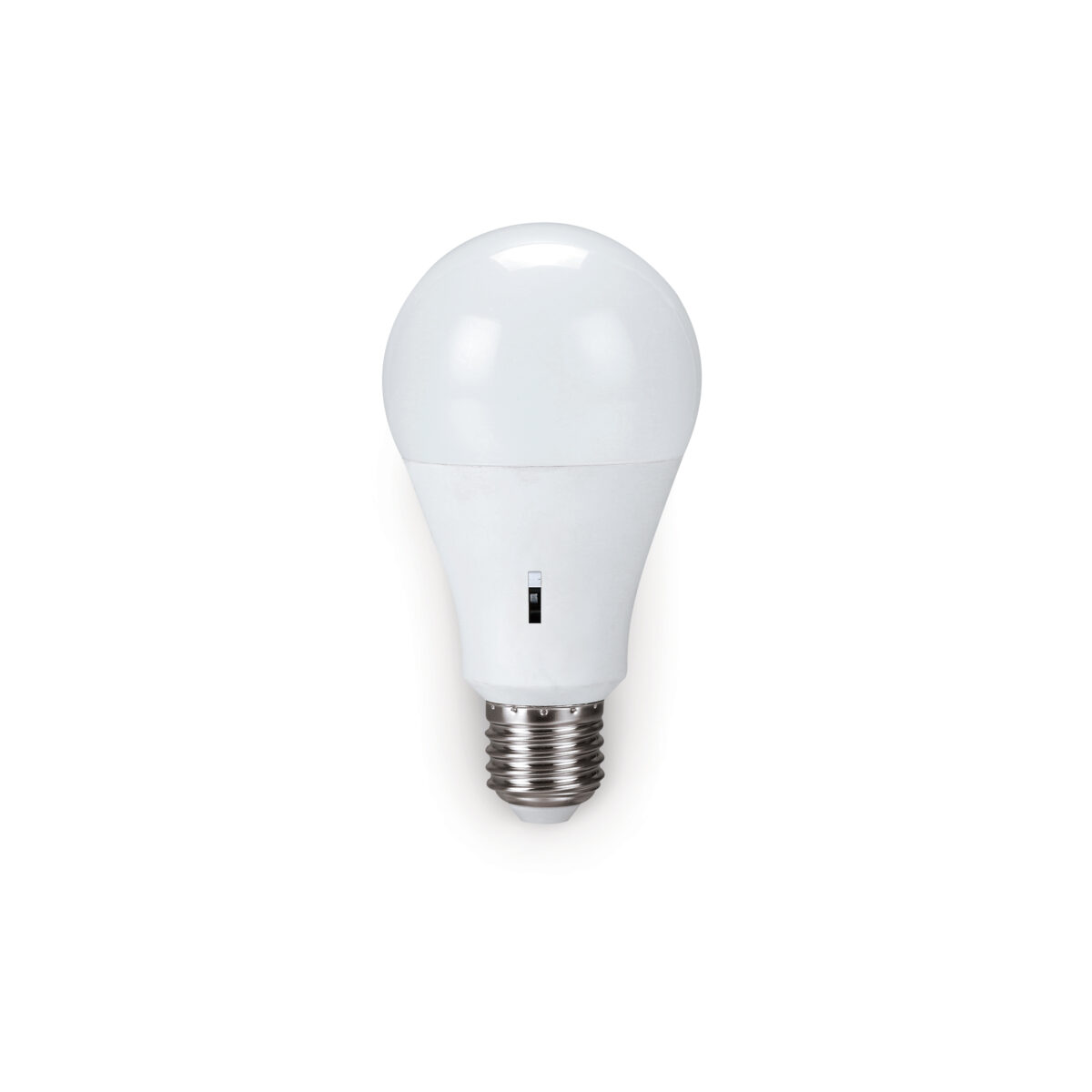

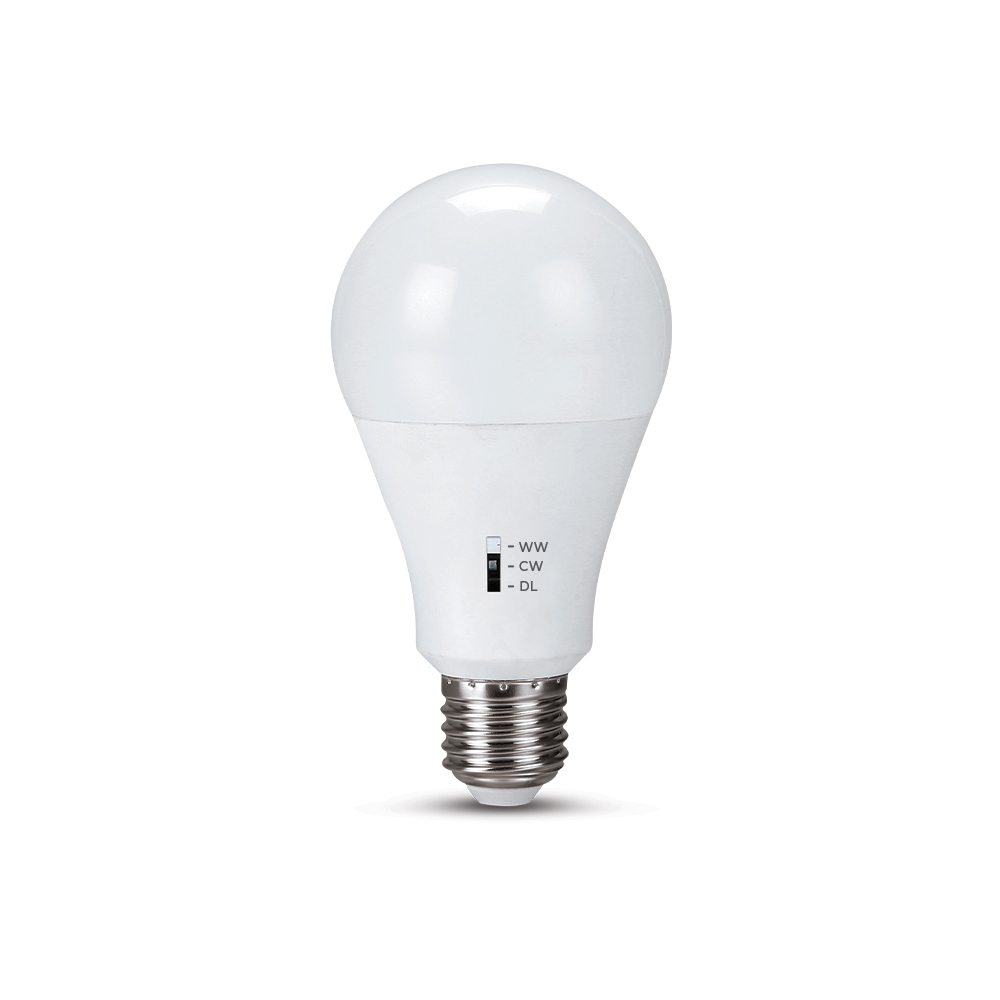

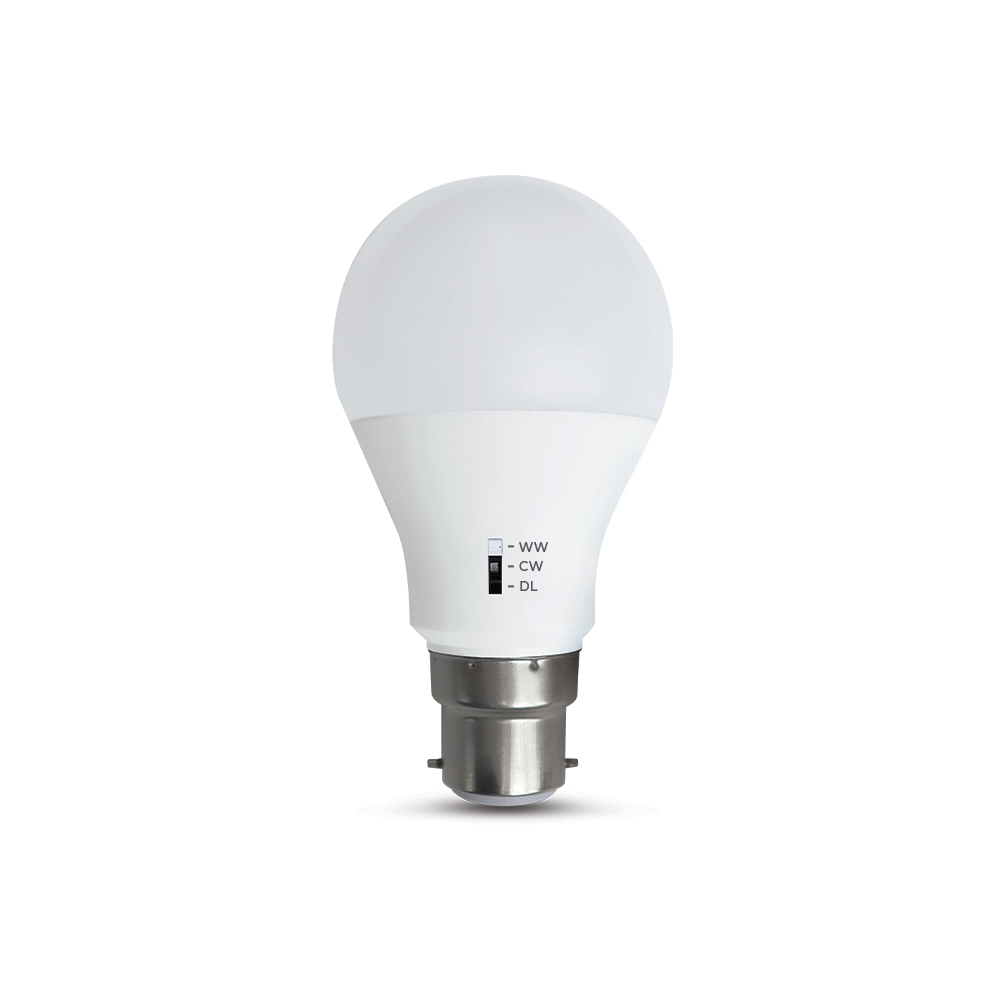

9W A60 Tri-colour LED lamp. Non dimmable. Frosted lens

Features

  • Tri-colour
  • Energy efficient LED lamp
  • Long life
  • No mercury content
  • Suitable replacement for halogen and incandescent lamps
SKU: AT9483 Category: GLS / A60 Tag: TRI-CCT
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Photometrics
Specifications

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage9 W
Power Factor0.6
System Max Wattage9 W

Lamp

Beam Angle180 °
Bulb TypeA60
CCT ConfigurationTRI-CCT
CRI>80
Globe Base
AT9483/BC/TRIB22 / BC
AT9483/ES/TRIE27
Lamp/LED Current87 mA
Lamp/LED voltage90 V

Colour temperature

7 Watts
Warm White (3000)800 lm
Cool White (4000)900 lm
DayLight (6500)850 lm

Compliance

Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15
Dimensions
Product Height110 mm
Product Width60 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
13393AT9483/BC/TRIA60 9W LED LAMP B22 TRI CCT NON-DIM FROST
13394AT9483/ES/TRIA60 9W LED LAMP E27 TRI CCT NON-DIM FROST
Documents & Downloads

Datasheet

  • AT9483/BC/TRI*
  • AT9483/ES/TRI*

Compliance

  • AT9483/BC/TRI-AU-sdoc*
  • AT9483/ES/TRI-AU-sdoc*

*Auto generated datasheet (beta)
Photometrics
AT9483/BC/TRI/CW
IES File

IES File


Download
AT94893/BC/TRI/DL
IES File

IES File


Download
AT9483/ES/TRI/CW
IES File

IES File


Download
AT94893/ES/TRI/DL
IES File

IES File


Download
AT9483/ES/TRI/WW
IES File

IES File


Download
AT9483/BC/TRI/WW
IES File

IES File


Download
