AT9493

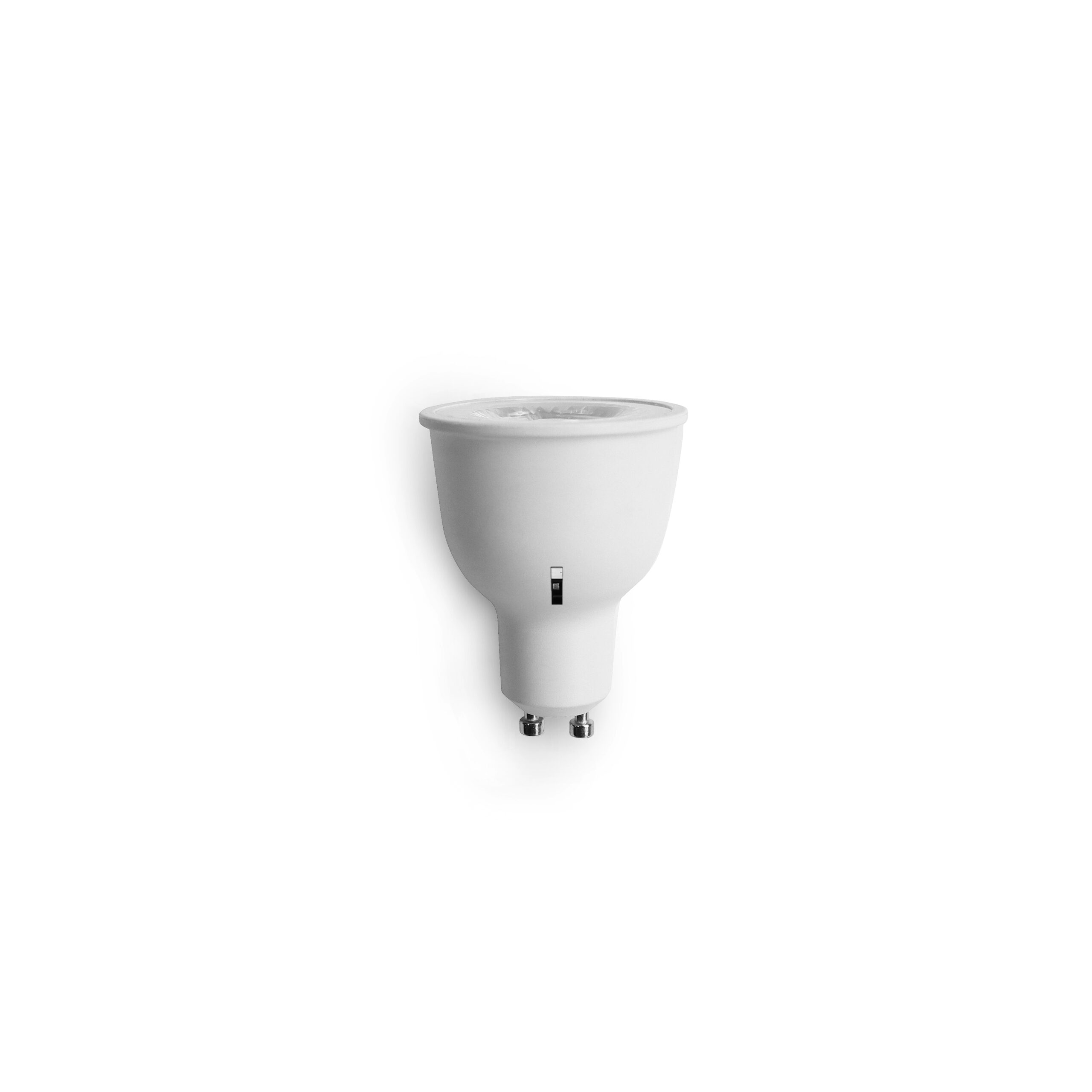

6W G10 Tri-CCT LED lamp – Non-dimmable
- Suitable replacement for halogen lamps
Selected Models
- Tri-colour
- Energy efficient LED lamp
- Long life
- No mercury content
- Energy-efficient, long-life LED lamp
- GU-10 bi-pin lamp

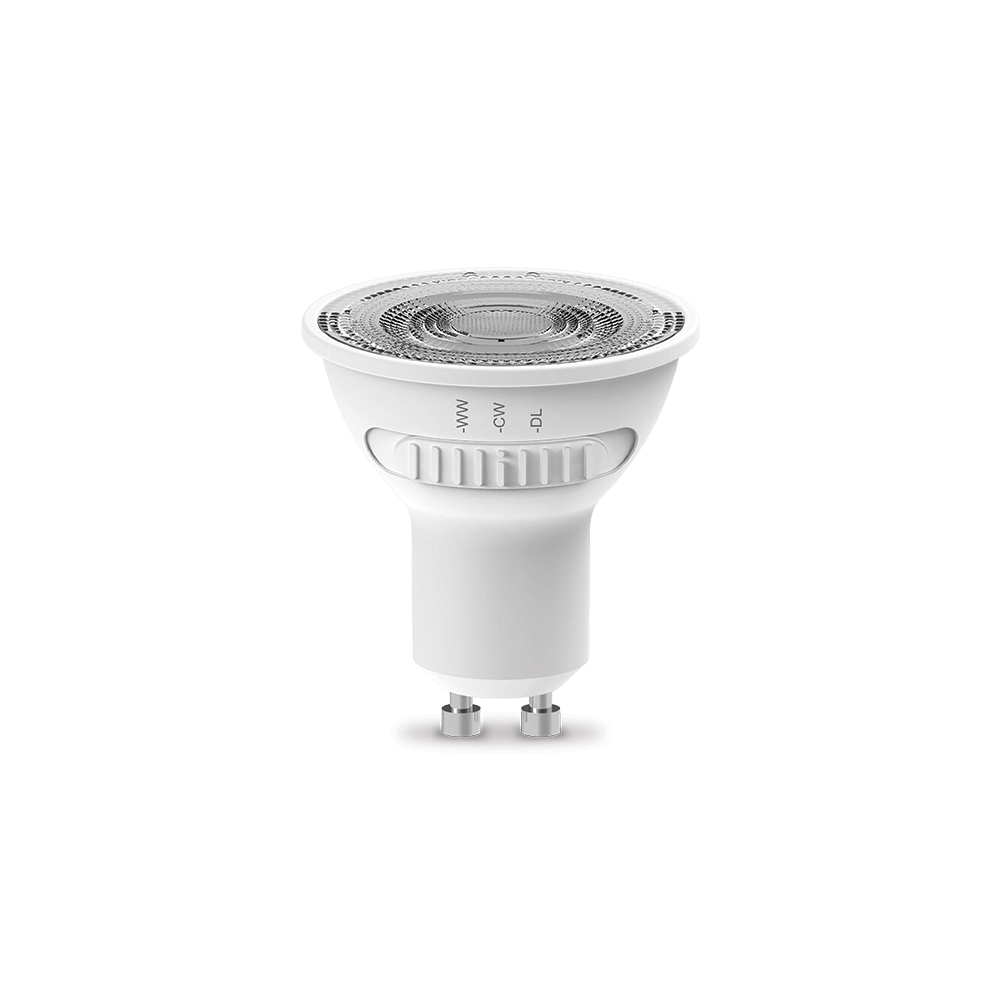

- Tri-colour selectable
Specifications
Efficiencies
| Total System Efficiency | 83 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP20 |
|---|---|
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | Frosted |
| Diffuser Material | Polycarbonate |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Power Factor | 0.5 |
| System Max Wattage | 6 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 6 W |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Bulb Type | GU10 |
| Number of Lamps | 1 |
| Globe Base | GU10 |
| CCT Configuration | TRI-CCT |
| Beam Angle | |
| AT9493/60/TRI | 50 ° |
| AT9493/60/TRI | 60 ° |
| Lamp/LED voltage | 55 V |
| Lamp/LED Current | 92 mA |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||
|---|---|---|---|---|---|
| |||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||
Colour temperature
| 5 Watts | |
|---|---|
| Warm White (2700 K) | 450 lm |
| Warm White (3000 K) | 430 lm |
| Neutral White (4000 K) | |
| Cool White (4000 K) | 500 lm |
| Cool White (6500 K) | |
| DayLight (6500 K) | 460 lm |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | No |
Compliance
| Standards |
|
|---|
Warranty
| Operational Lifetime | 25000 hrs |
|---|---|
| Domestic Use Warranty | 1 RTB (Total 1 Year) |
Dimensions
| Product Height | 65 mm |
|---|---|
| Product Width | 50 mm |
Ordering Information
Fixed output
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 15370 | AT9493/60/TRI | GU10 5.2W LED LAMP 60° TRI-CCT NON-DIM LENS - SERII |
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 13401 | AT9493/60/TRI | GU10 6W LED LAMP TRI CCT NON-DIM 60D |
