Specifications
Efficiencies
| Total System Efficiency | 107 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Steel |
| Diffuser Material | Polycarbonate |
| Product Finish | Powdercoated |
| Fitting Colour | White |
| Installation Type | Surface mount |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 21 W |
| Switch Type | Inline |
| Working Temp Range | -20 to 40 °C |
Lamp
| Beam Angle | 120 ° |
|---|---|
| CCT Configuration | Single |
| Colour Rendering Index (CRI) | >80 |
Colour temperature
| CCT | 4000 K |
|---|---|
| CCT Colour | Cool White |
| Luminaire Lumens | 2250 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Dimmable | No |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Fixed output |
| Wiring Type | Re-wireable terminal block (3 pin) |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
| VEU Approval | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Product Height | 68 mm |
|---|---|
| Product Length | 1230 mm |
| Product Width | 91 mm |
AT9842/CW/O
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|

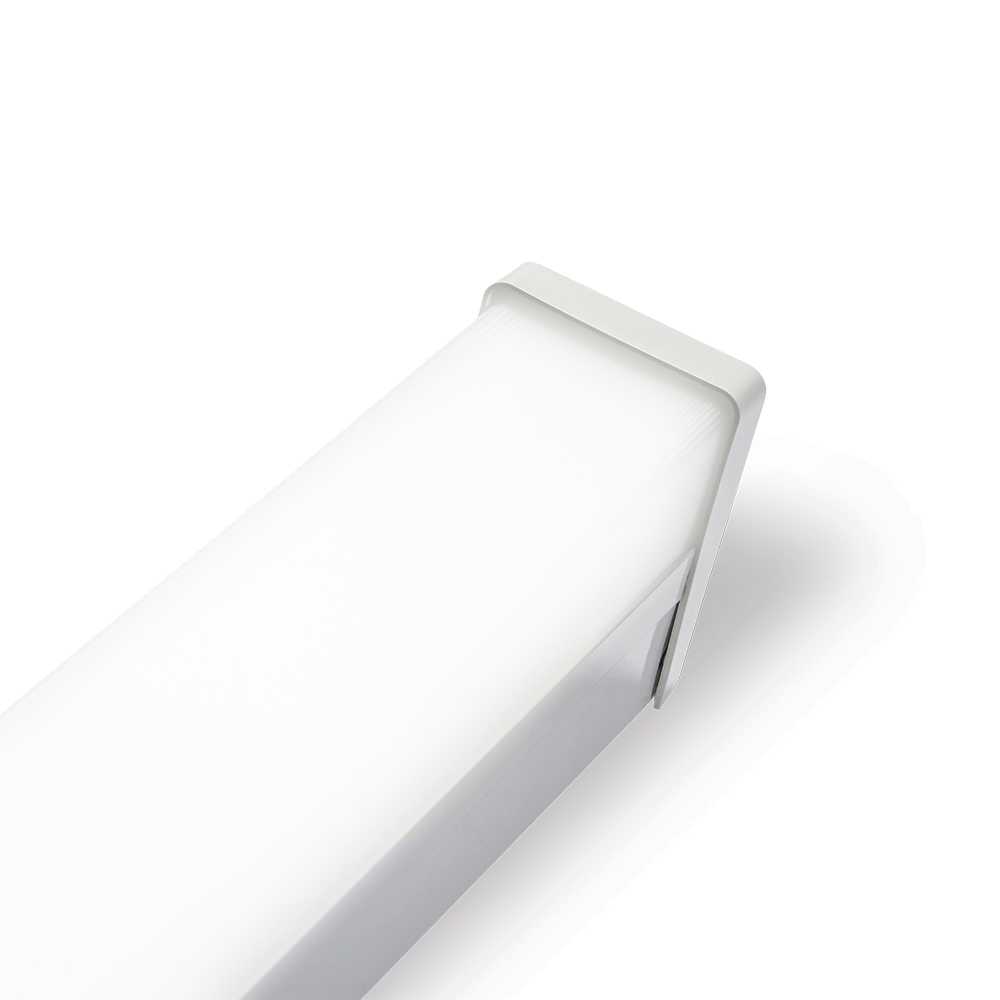

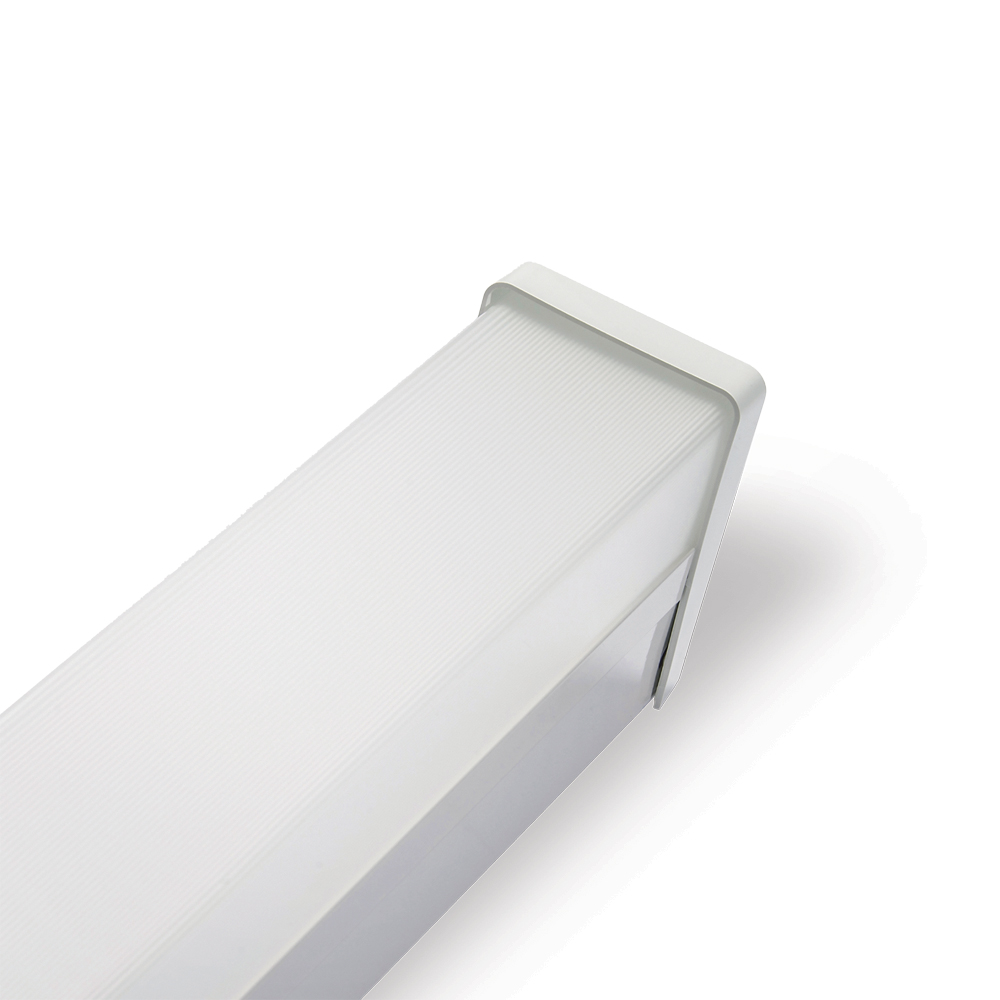

| 11254 | AT9842/CW/O | 21W Single 1200mm Narrow Body Diffused LED Batten - OPAL |
Documents & Downloads
*Auto generated datasheet (beta)
Photometrics
