Sanur
$0.00

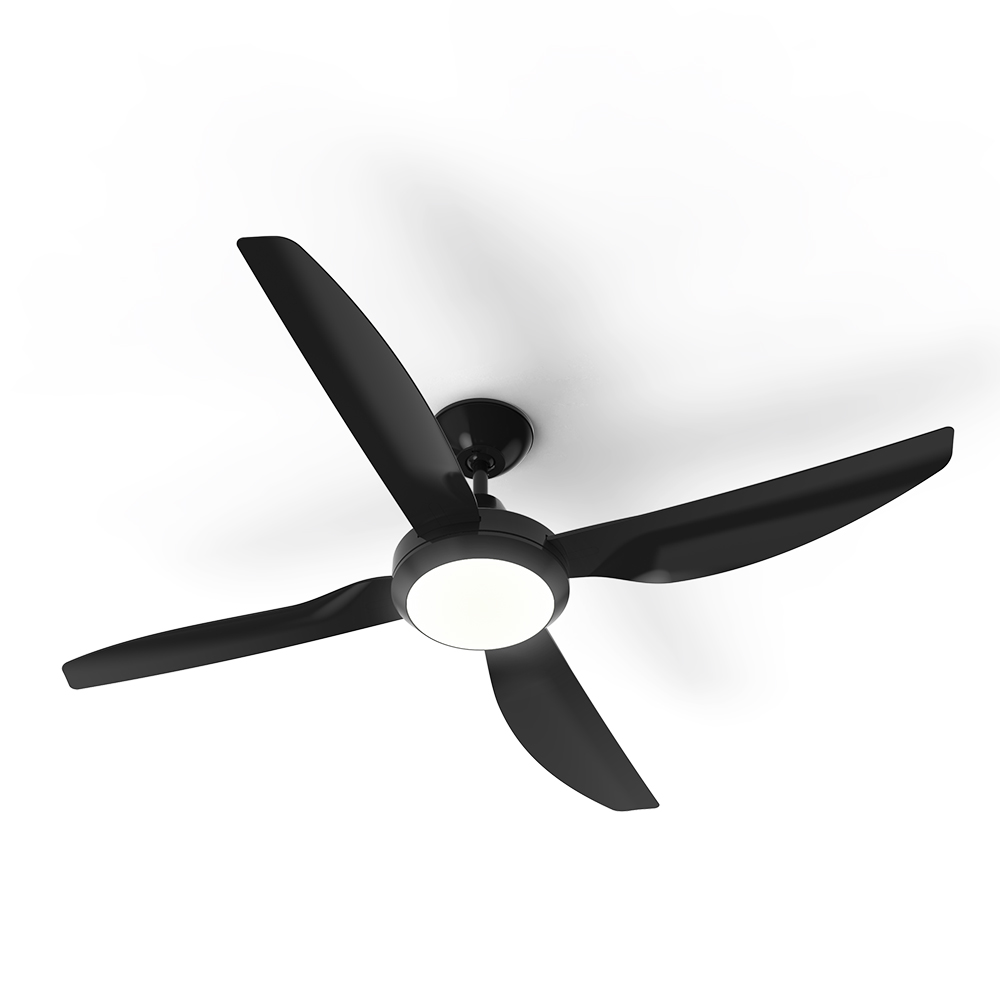

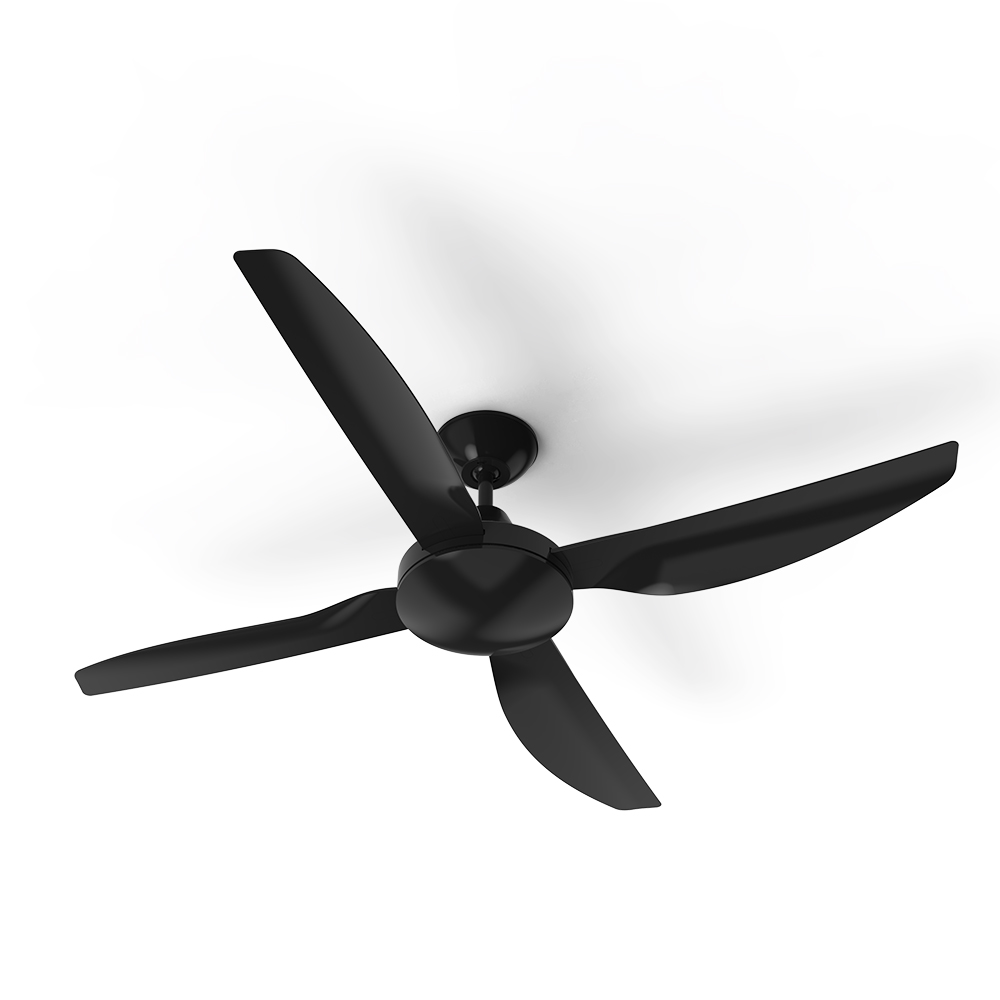

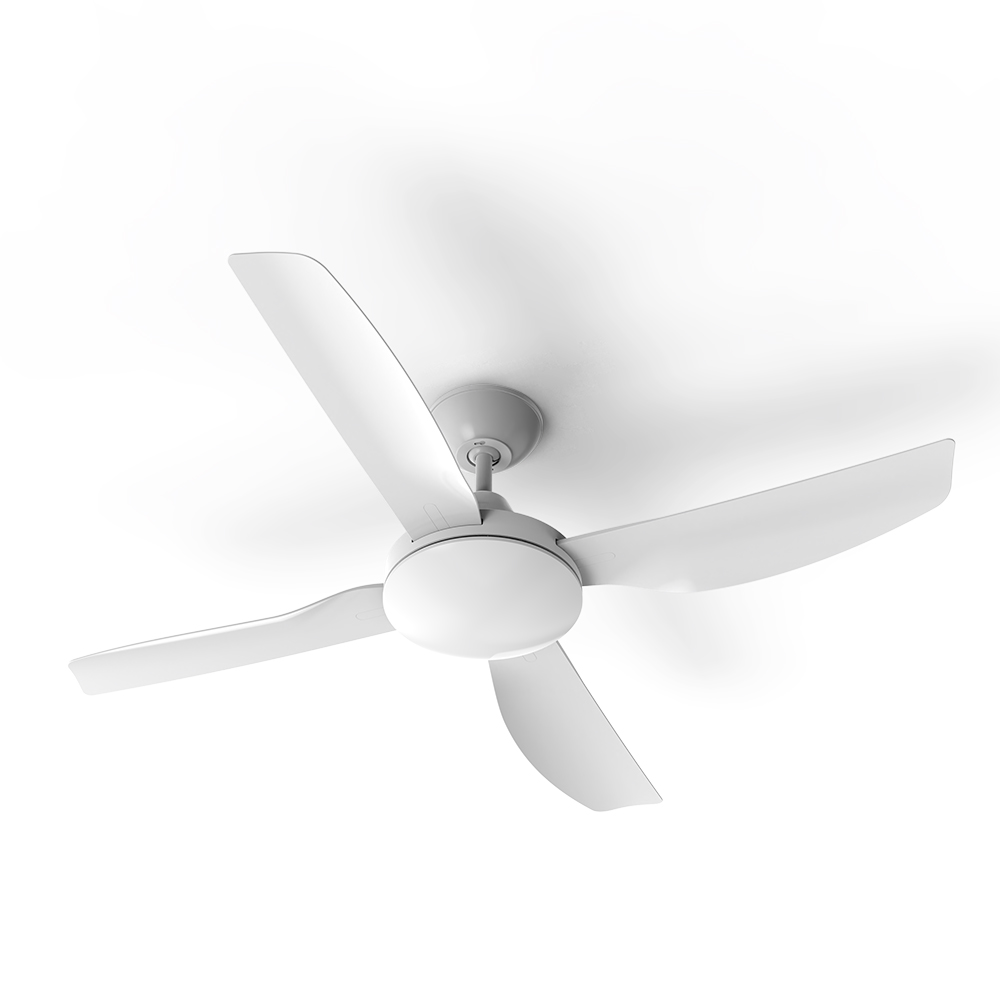

4 blade 40W DC ceiling fan
- Powerful and energy efficient 40W DC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Slimline design ideal for indoor and covered outdoor applications
- ABS body and canopy with 4 reinforced ABS blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use (via remote control)

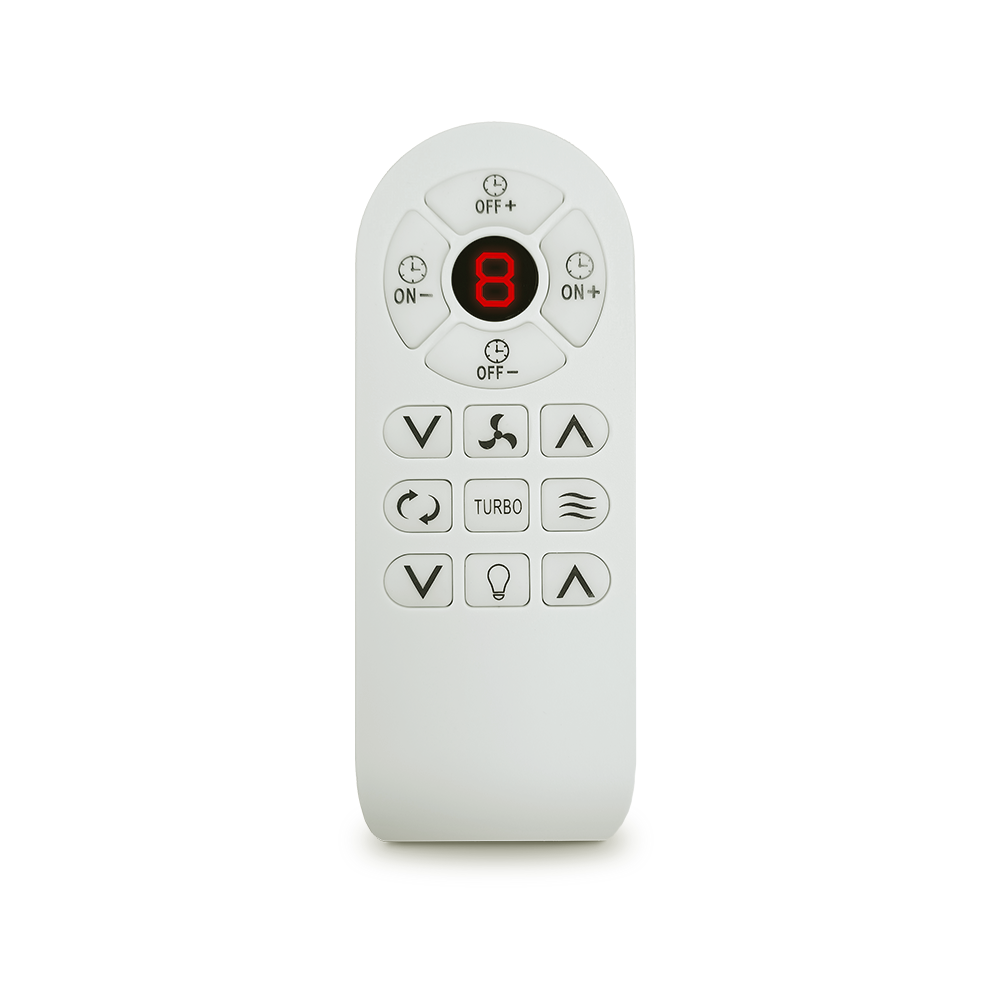

- Supplied with 8 speed remote including turbo speed function and up to 12h timer
Selected Models
- 20W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |

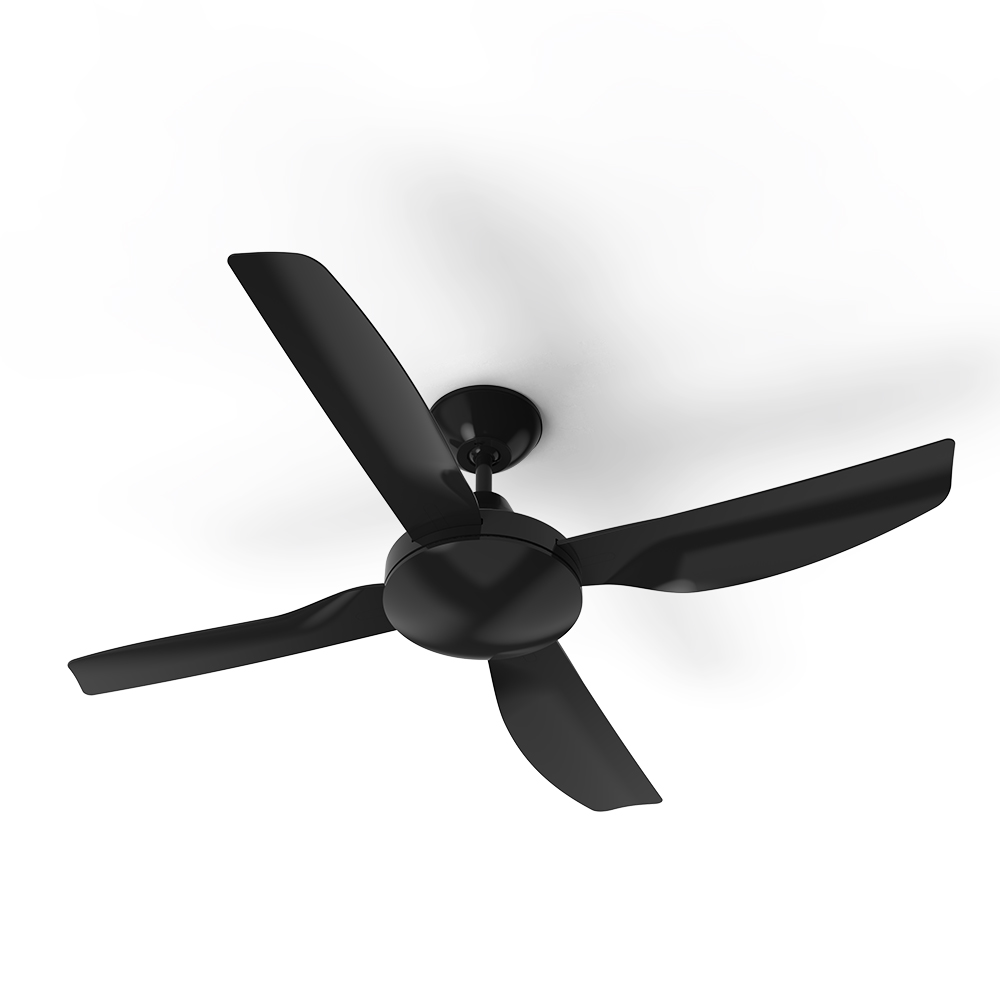

| SANUR/48/BK SANUR/48/LT/BK SANUR/52/BK SANUR/52/LT/BK | Matt Black |

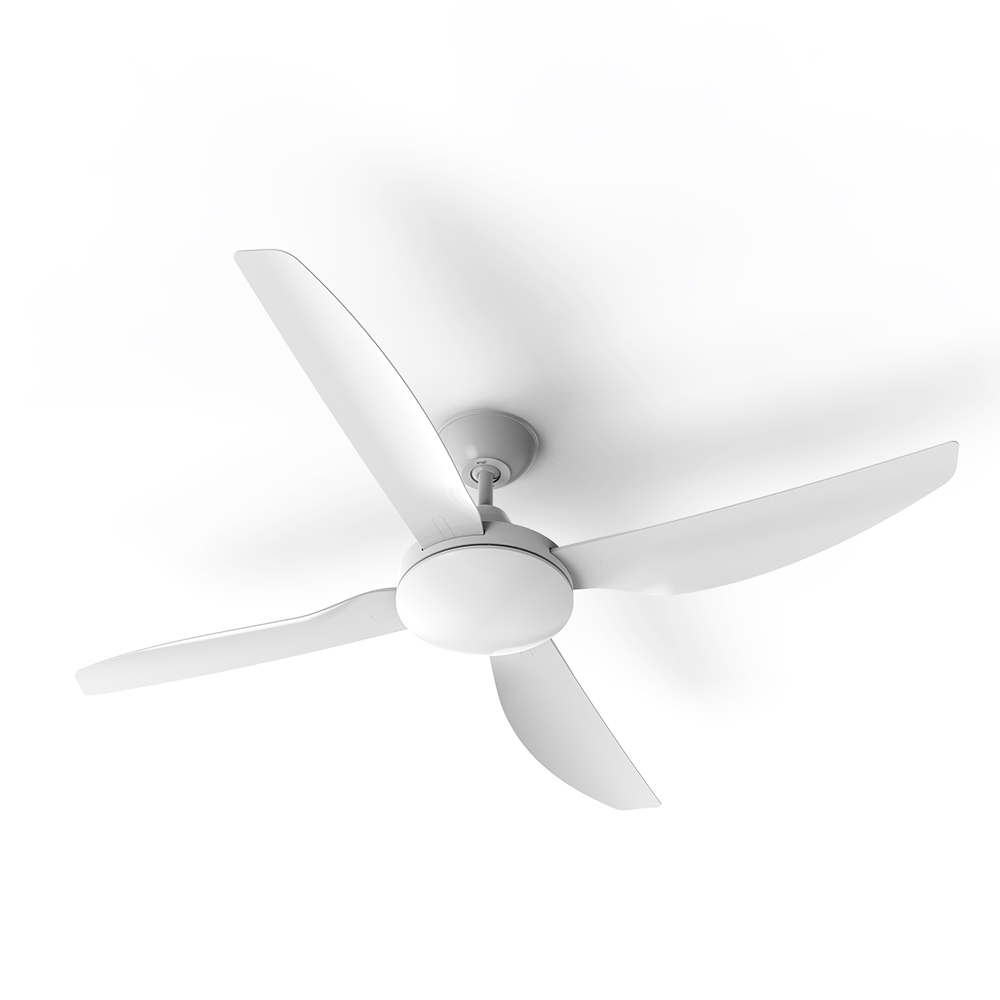

| SANUR/48/LT/WH SANUR/48/WH SANUR/52/LT/WH SANUR/52/WH | Satin White |
| Body Material | ABS |
| Diffuser Material | Polycarbonate |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Air Movement
| Motor Wattage | 40 W |
|---|---|
| Motor Type | DC |
| Fan Wattage | 7;10;15;20;25;30;35;40 W |
| No. Speeds | 8 |
| RPM | |
| SANUR/52/BK SANUR/52/LT/BK SANUR/52/LT/WH SANUR/52/WH | 130;150;170;190;200;210;230;240 |
| SANUR/48/BK SANUR/48/LT/BK SANUR/48/LT/WH SANUR/48/WH | 140;160;180;200;220;230;240;260 |
| Control | Remote control |
| Airflow | |
| SANUR/48/BK SANUR/48/LT/BK SANUR/48/LT/WH SANUR/48/WH | 6600;8160;8760;9360;9960;11160;12360;13000 m3/hr |
| SANUR/52/BK SANUR/52/LT/BK SANUR/52/LT/WH SANUR/52/WH | 7800;8400;10200;11400;12600;13800;15000;15600 m3/hr |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 300 mm |
| Blade Pitch | 13 ° |
| Blade Material | ABS |
| Fan Size | |
| SANUR/48/BK SANUR/48/LT/BK SANUR/48/LT/WH SANUR/48/WH | 1220mm (48inch) |
| SANUR/52/BK SANUR/52/LT/BK SANUR/52/LT/WH SANUR/52/WH | 1320mm (52inch) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Item Code | Product Height | Product Width | Product Weight |
|---|---|---|---|
| SANUR/48/BK | 327 mm | 1220 mm | 4350 g |
| SANUR/48/WH | 327 mm | 1220 mm | 4350 g |
| SANUR/52/BK | 327 mm | 1320 mm | 4470 g |
| SANUR/52/WH | 327 mm | 1320 mm | 4470 g |
| SANUR/48/LT/BK | 324 mm | 1220 mm | 4550 g |
| SANUR/48/LT/WH | 324 mm | 1220 mm | 4550 g |
| SANUR/52/LT/BK | 324 mm | 1320 mm | 4680 g |
| SANUR/52/LT/WH | 324 mm | 1320 mm | 4680 g |
SANUR/48
SANUR/48/LT
SANUR/52
SANUR/52/LT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18454 | SANUR/48/BK | 48 inch (1220mm) 4 blade 40W DC ceiling fan black | |

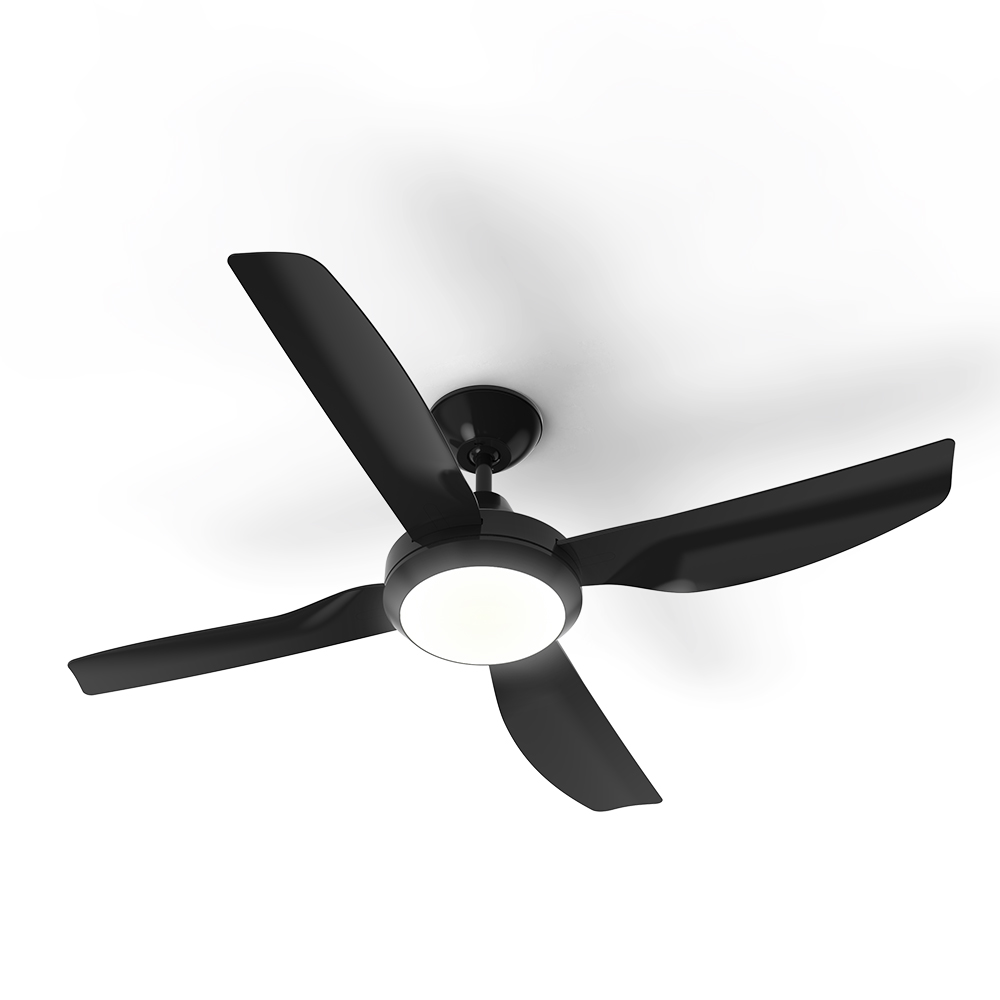

| 18456 | SANUR/48/LT/BK | 48 inch (1220mm) 4 blade 40W DC ceiling fan W/LED Light black | |

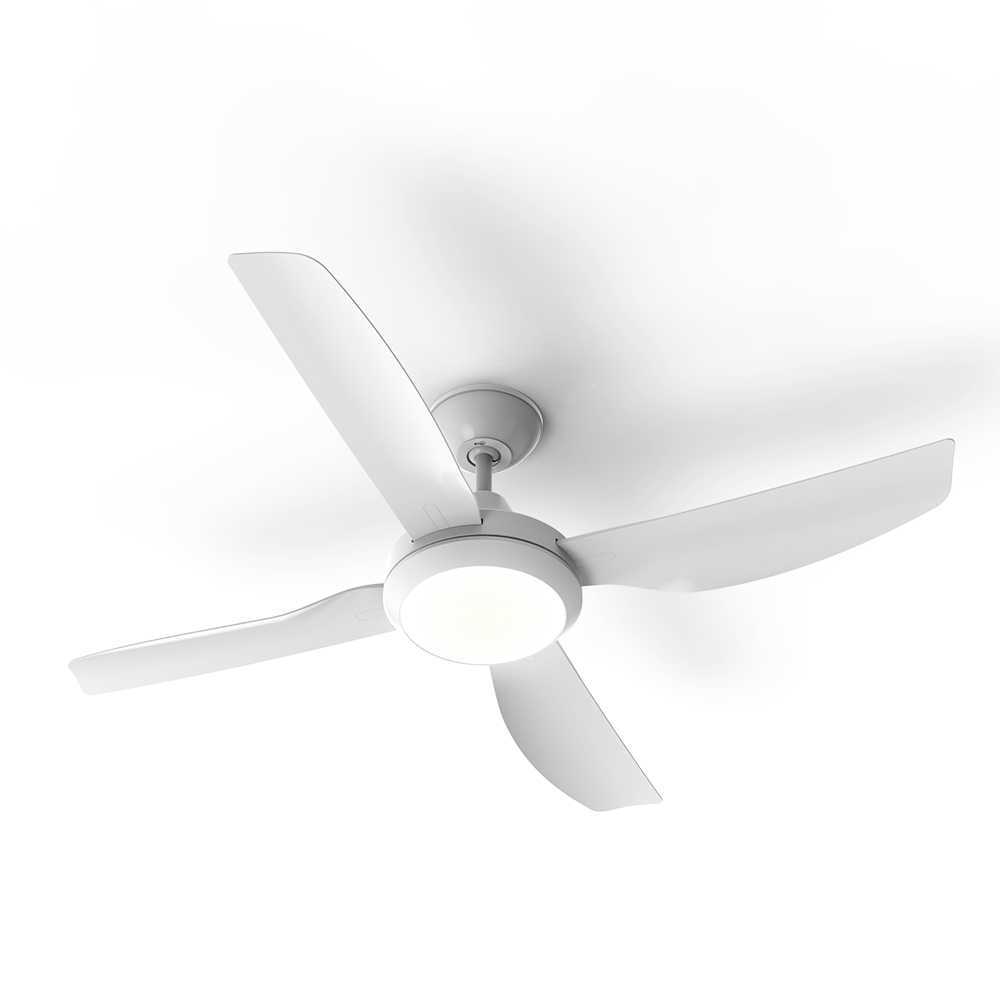

| 18455 | SANUR/48/LT/WH | 48 inch (1220mm) 4 blade 40W DC ceiling fan W/LED Light white | |
| 18453 | SANUR/48/WH | 48 inch (1220mm) 4 blade 40W DC ceiling fan white | |
| 18458 | SANUR/52/BK | 52 inch (1320mm) 4 blade 40W DC ceiling fan black | |
| 18460 | SANUR/52/LT/BK | 52 inch (1320mm) 4 blade 40W DC ceiling fan W/LED Light black | |

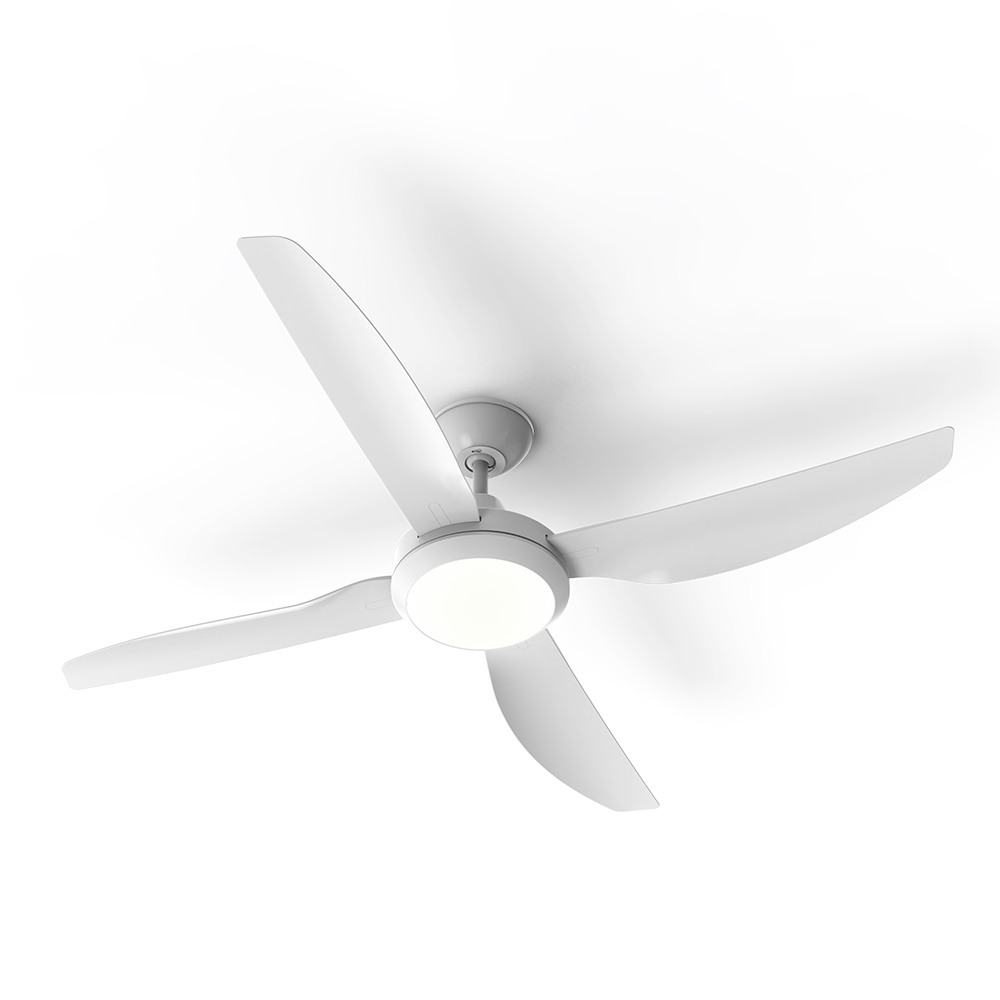

| 18459 | SANUR/52/LT/WH | 52 inch (1320mm) 4 blade 40W DC ceiling fan W/LED Light white | |
| 18457 | SANUR/52/WH | 52 inch (1320mm) 4 blade 40W DC ceiling fan white |
Documents & Downloads
Datasheet
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12508 | DCREMOTE/BK | Remote control for DC ceiling fans - Remote only - Black | |
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
