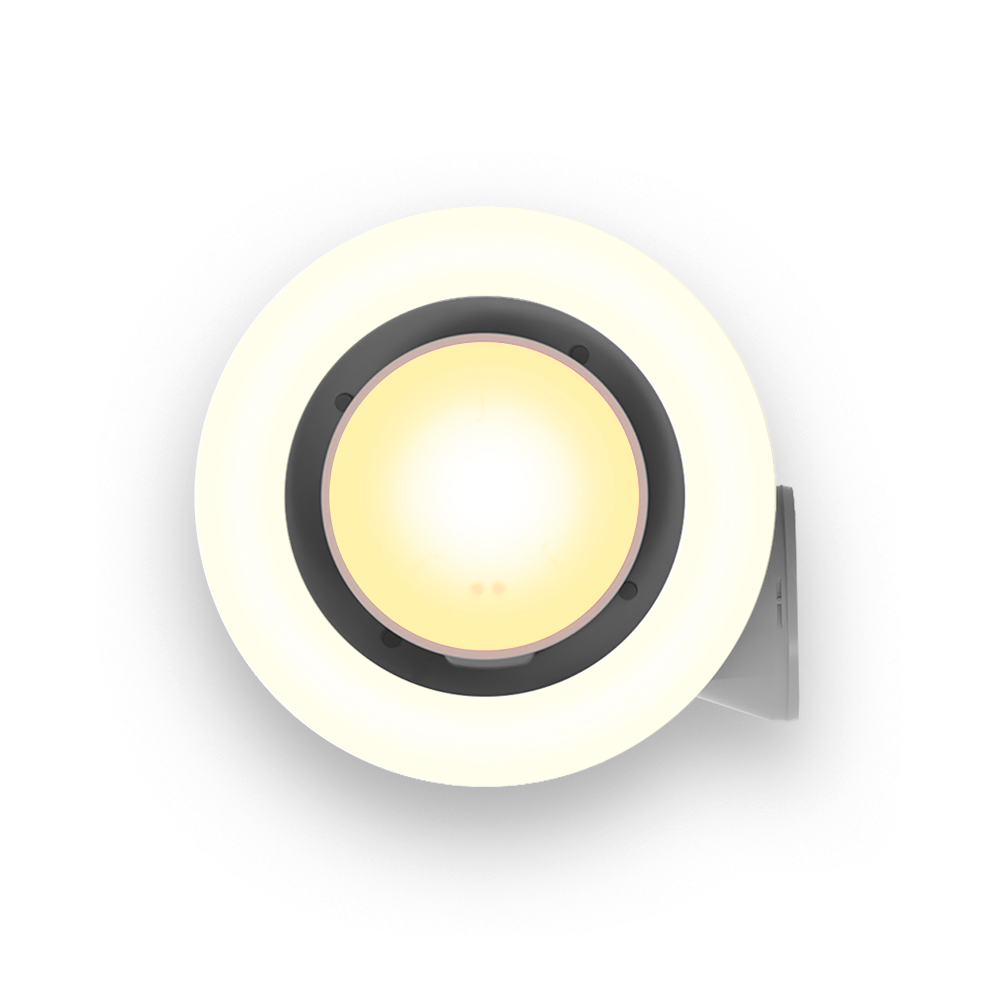

Venus
Round cutout 3-in-1 bathroom heater
- Powerful 65W ball bearing motor for superior reliability
- Built in 80°C thermal cutout switch for added safety
- Infrared tube provides instant heat
- Outlet grill with integrated draught stopper for maximum efficiency
- 3-year in-home warranty for peace of mind
- Includes integrated draught stopper, wall switches, 1.5m duct and grill outlet
Specifications
Mechanical
| IP Rating | IPx2 |
|---|---|
| IC Rating | Do not cover |
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| Warm White (3000 K) | 1400 lm |
| Cool White (4000 K) | 1500 lm |
| DayLight (5000 K) | 1450 lm |
Air Movement
| Outlet | 150 mm |
|---|---|
| Noise level | 45 dB |
| Motor Wattage | 65 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | 550 m3/hr |
Heat
| Heater Type | 800W Infrared Heat Source |
|---|
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty Operating Hours | 2500 hrs |
|---|---|
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
| Domestic Use Warranty | 3 Onsite (Total 3 Years) |
Dimensions
| Product Height | 200 mm |
|---|---|
| Product Length | 400 mm |
| Product Width | 400 mm |
| Minimum Ceiling Depth | 230 mm |
| Cutout | 390 mm |
VENUS/WH
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 16775 | VENUS/WH | 800W Circular Infrared bathroom heater & exhaust w/ LED panels - white - tri-cct |
Documents & Downloads
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 10360 | AT9490/TUBE | 800W Circular IR Heat Tube to suit Venus Bathroom Heater | ||
| 14851 | TIMER/RO | 1-25min run-on exhaust timer - hardwired |
