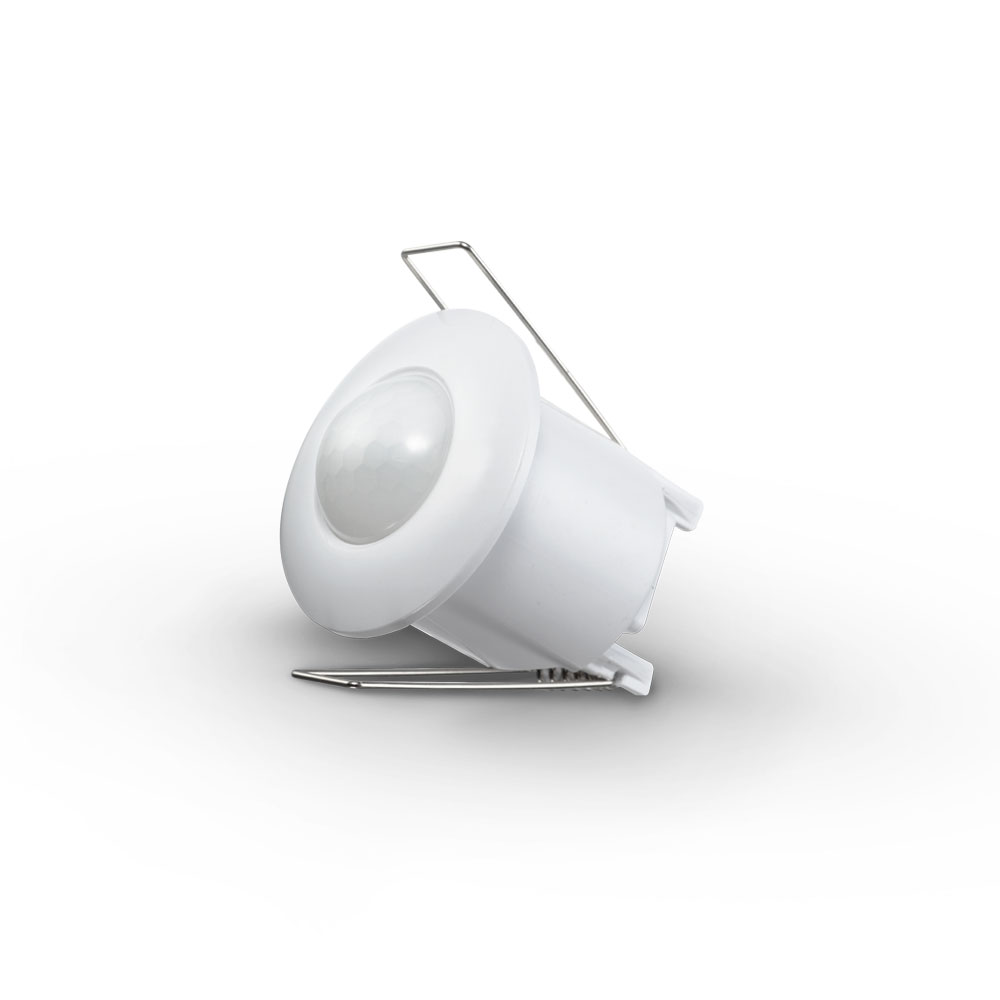

AT4101/PIR
Recessed mount PIR sensor – small form factor – 6m
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | White |
| Body Material | Polycarbonate |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230V~ |
Sensor (S suffix)
| Sensor Type | PIR |
|---|---|
| Lux Range | <3 to 2000 lx |
| Detection Range | 6 m |
| Time Delay | 10s to 15m |
| Switched Output | Yes |
| Switched Output Rating | 800 W |
| Corridor Function | No |
| Lux Adjustment | Yes |
| Manual Override | No |
| Dawn Reset | No |
| Dusk Mode | Yes |
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | No |
| Adjustable Standby Period | No |
| Adjustable Detection Area / Sensitivity | No |
| Detection Angle | 360 |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 70 mm |
|---|---|
| Cutout | 40 mm |
| Product Diameter | 50 mm |
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 13946 | AT4101/PIR/WHT | PIR sensor 6m- recessed mount- small - White |
