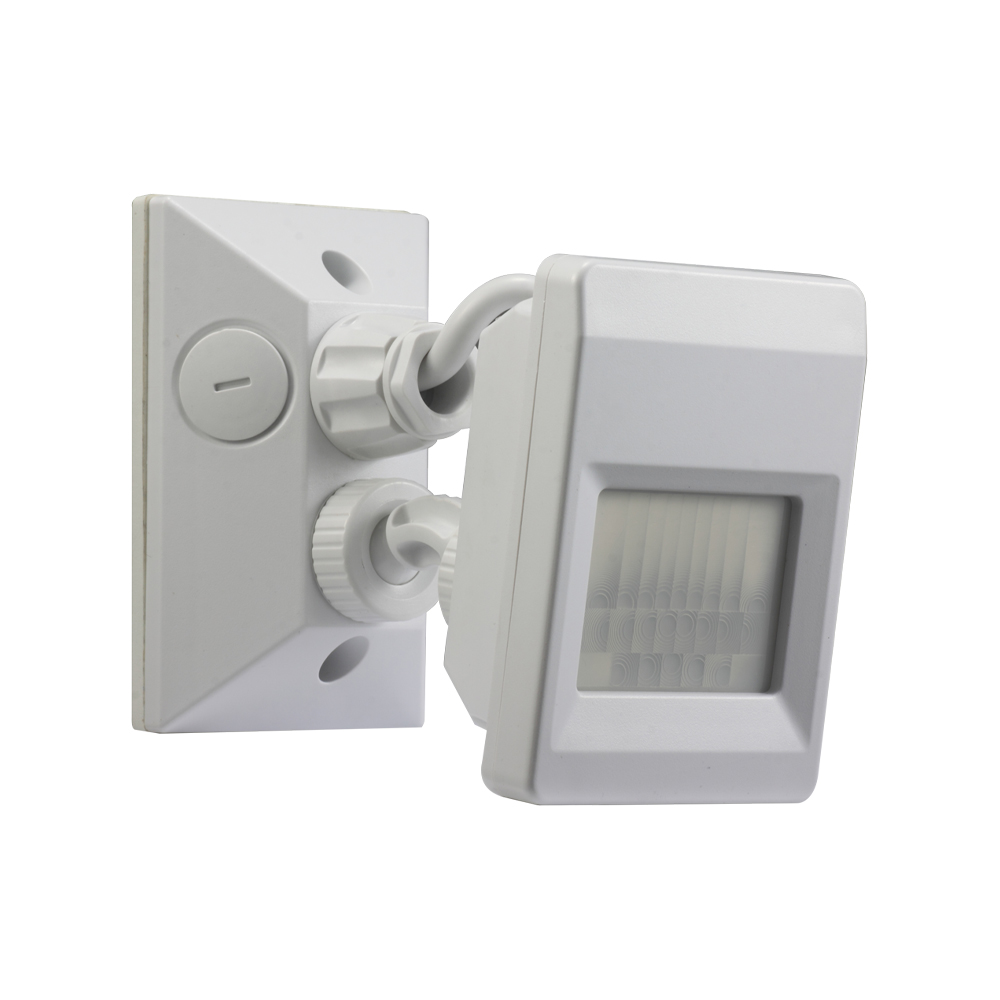

AT4130
Fully Adjustable 2000W PIR Sensor IP66
- IP66 rated for indoor and outdoor use
- Up to 18m detection range
- 120° field of view
- Adjustable time delay, sensitivity and lux level
- Wall or ceiling mount with adjustable head
- Suits LED loads up to 800W
- 5-year warranty (first 2 years onsite)
Specifications
Mechanical
| IP Rating | IP66 |
|---|---|
| Adjustability | Adjustable |
| Fitting Colour | Light Grey |
| Installation Type | Wall or Ceiling |
Electrical
| Working Temp Range | -20 to 25 °C |
|---|---|
| Input Frequency | 50 Hz |
| Max Humidity | 93 % |
| Input voltage | 220-240V |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Wiring Type | Re-wireable terminal block (3 pin) |
|---|
Sensor (S suffix)
| Sensor Type | PIR |
|---|---|
| Lux Range | <3 to 2000 lx |
| Detection Range | 18 m |
| Time Delay | 10s to 30m |
| Switched Output | Yes |
| Switched Output Rating | 2000 W |
| Lux Adjustment | Yes |
| Adjustable Hold Time | Yes |
| Adjustable Detection Area / Sensitivity | Yes |
| Detection Angle | 120 |
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 115 mm |
|---|---|
| Product Length | 135 mm |
| Product Width | 76 mm |
AT4130
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11750 | AT4130 | Fully Adjustable 2000W PIR Sensor |
