Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | White |
| Body Material | Polycarbonate |
| Installation Type | Inbuilt |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Input voltage | 230V~ |
Driver
| Wiring Type | Re-wireable terminal block (4 pin) |
|---|
Sensor (S suffix)
| Sensor Type | Microwave |
|---|---|
| Lux Range | 0-50 lx |
| Detection Range | 16 m |
| Time Delay | 5s - 30min |
| Switched Output | Yes |
| Switched Output Rating | 800 W |
| Corridor Function | No |
| Lux Adjustment | Yes |
| Manual Override | No |
| Dusk Mode | Yes |
| Adjustable Hold Time | Yes |
| Adjustable Detection Area / Sensitivity | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 25 mm |
|---|---|
| Product Length | 70 mm |
| Product Width | 35 mm |
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|

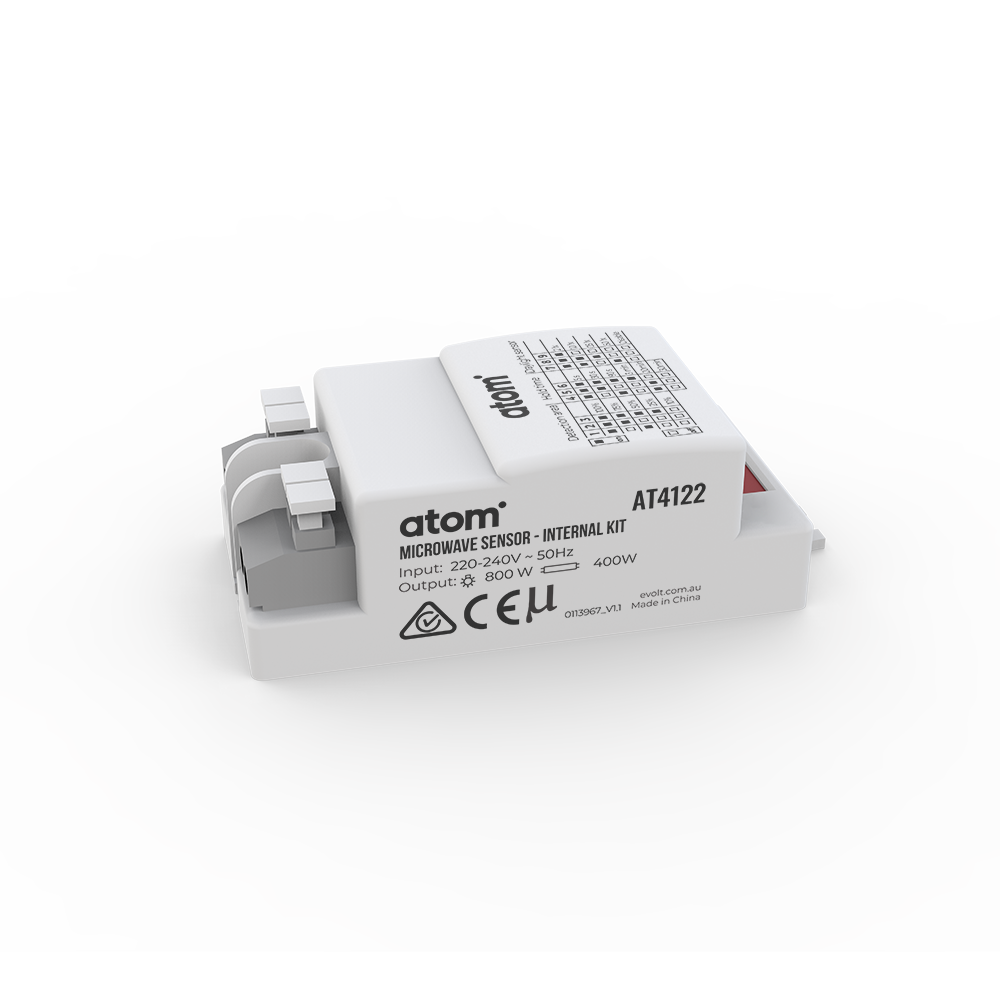

| 13967 | AT4122 | Microwave sensor 16m- internal kit - White |
