Specifications
Mechanical
| Body Material | Polycarbonate |
|---|---|
| Fitting Colour | White |
| Installation Type | Surface mount |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230V~ |
| Working Temp Range | -20 to 40 °C |
Sensor (S suffix)
| Adjustable Detection Area / Sensitivity | No |
|---|---|
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | No |
| Adjustable Standby Period | No |
| Corridor Function | No |
| Dawn Reset | No |
| Detection Range | 6 m |
| Dusk Mode | Yes |
| Lux Adjustment | Yes |
| Lux Range | <3 to 2000 lx |
| Manual Override | No |
| Sensor Type | PIR |
| Switched Output | Yes |
| Switched Output Rating | 2000 W |
| Time Delay | 10s to 15m |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|
Dimensions
| Product Diameter | 115 mm |
|---|---|
| Product Height | 22 mm |

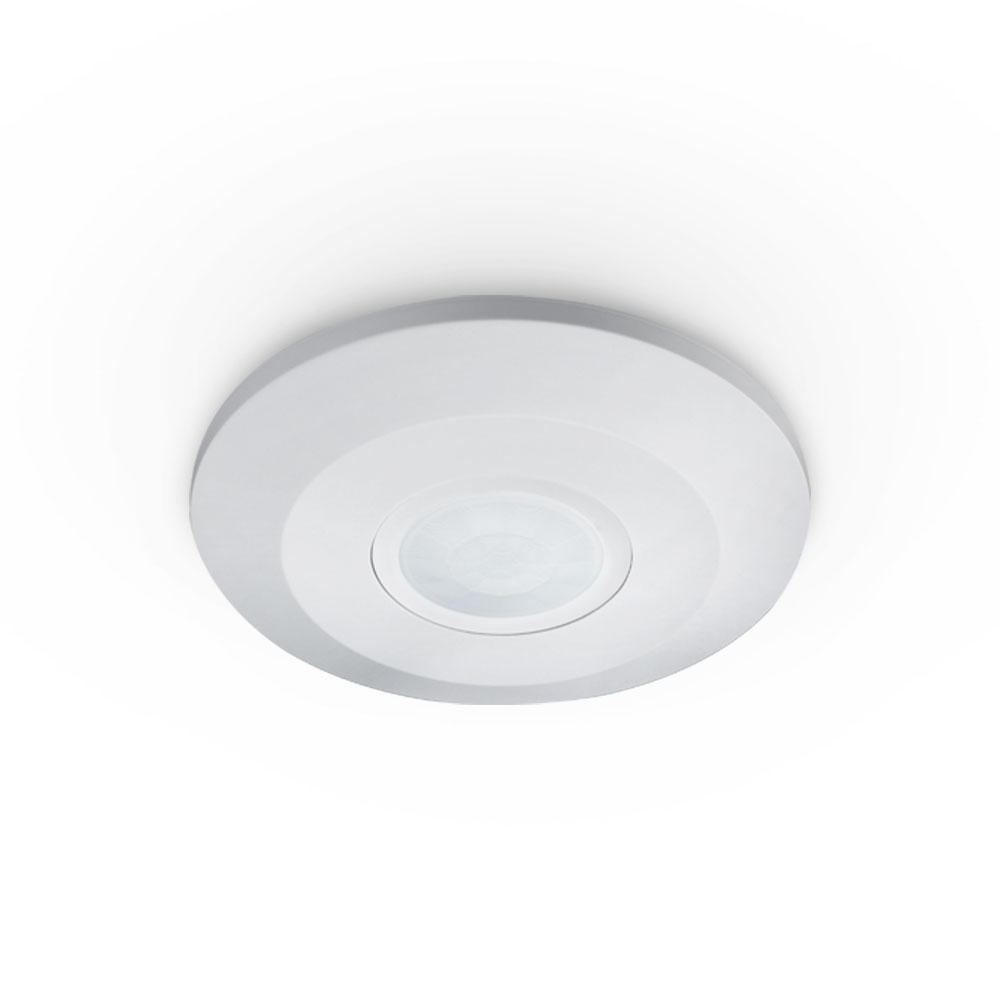

AT4105/PIR/WHT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 13947 | AT4105/PIR/WHT | PIR sensor 6m- surface mount - White |
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
