AT9087 – SER II
$0.00
12-30W Commercial Low Glare LED downlight with dimmable driver – Tri-colour
- Energy efficient LED
- Sophisticated optics for low glare lighting
- Modern reflector design
- Phase-cut dimmable
- Tri-CCT selectable
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9087/16/WH/TRI AT9087/24/WH/TRI | 127 lm/W |
| AT9087/12/WH/TRI AT9087/30/WH/TRI | 137 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Product Finish | Powdercoated |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP44 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | |
| AT9087/12/WH/TRI | 12 W |
| AT9087/16/WH/TRI | 16 W |
| AT9087/24/WH/TRI | 24 W |
| AT9087/30/WH/TRI | 30 W |
| Switch Type | Inline |
| Working Temp Range | -10 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 60 ° |
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | |
| AT9087/12/WH/TRI | 300 mA |
| AT9087/16/WH/TRI | 400 mA |
| AT9087/24/WH/TRI | 600 mA |
| AT9087/30/WH/TRI | 750 mA |
| Lamp/LED voltage | 36 V |
| UGR | |
| AT9087/12/WH/TRI AT9087/16/WH/TRI AT9087/30/WH/TRI | <19 |
| AT9087/24/WH/TRI | <22 |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 9000 hrs |
Colour temperature
AT9087/12/WH/TRI
| |||||||||
AT9087/16/WH/TRI
| |||||||||
AT9087/24/WH/TRI
| |||||||||
AT9087/30/WH/TRI
| |||||||||
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Dimmable ( Phase cut) |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
| VEU Approval | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Cutout | Product Diameter | Product Height |
|---|---|---|---|
| AT9087/12/WH/TRI | 120-130 mm | 145 mm | 55 mm |
| AT9087/16/WH/TRI | 150-157 mm | 181 mm | 61 mm |
| AT9087/24/WH/TRI | 160-170 mm | 190 mm | 61 mm |
| AT9087/30/WH/TRI | 200-210 mm | 228 mm | 61 mm |

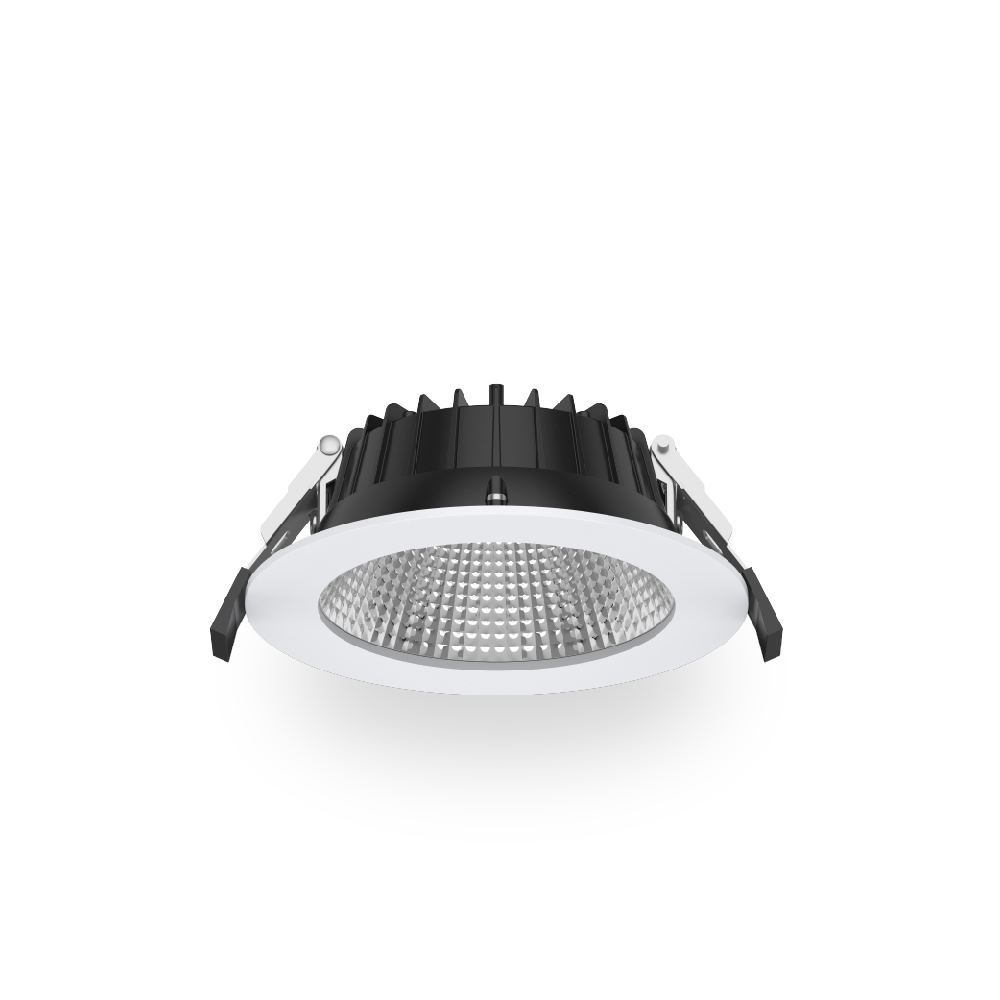

AT9087/12/WH/TRI/2/1

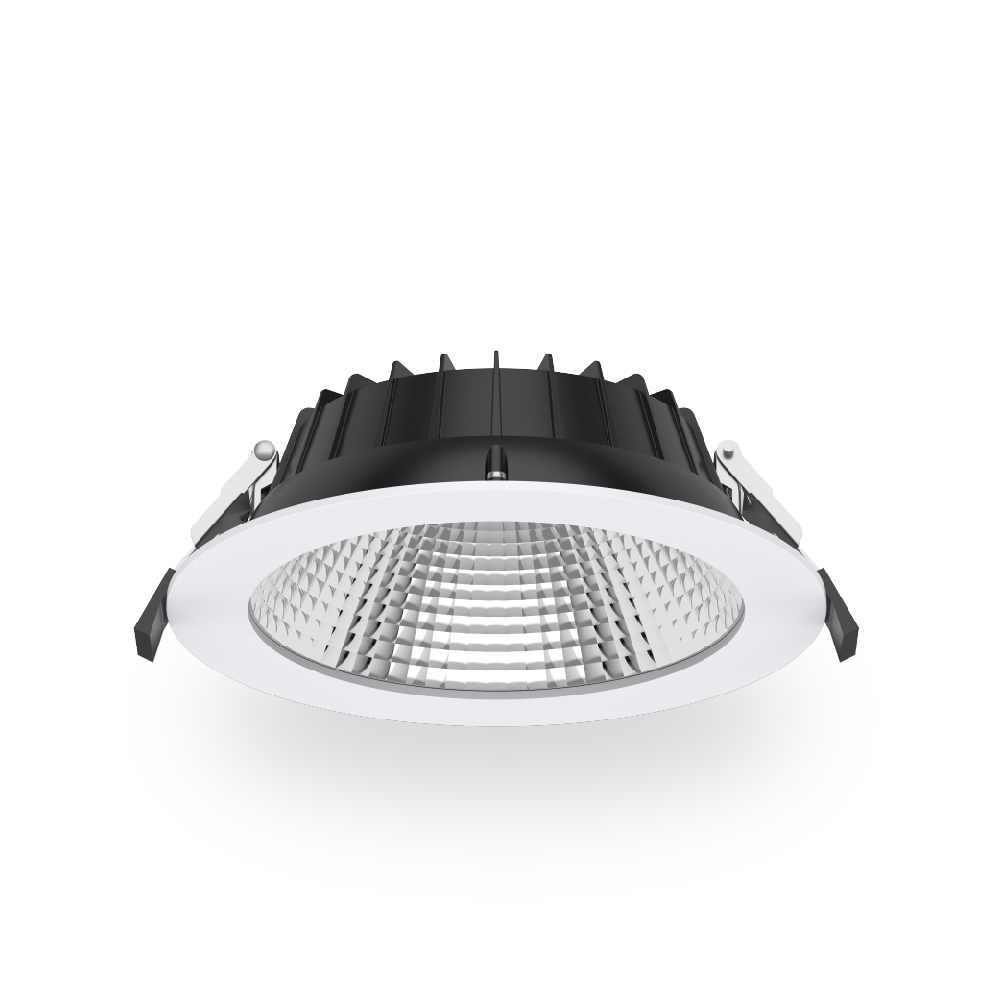

AT9087/16/WH/TRI/2/1

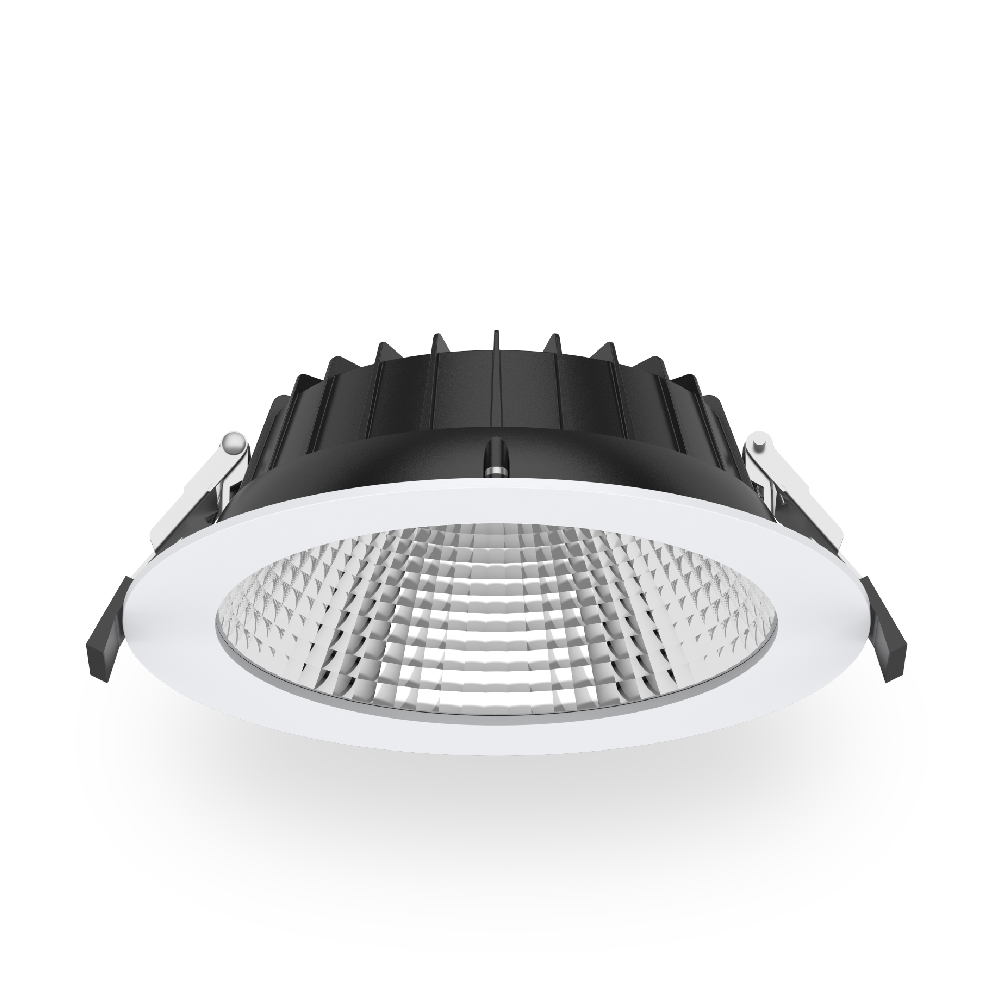

AT9087/24/WH/TRI/2/1

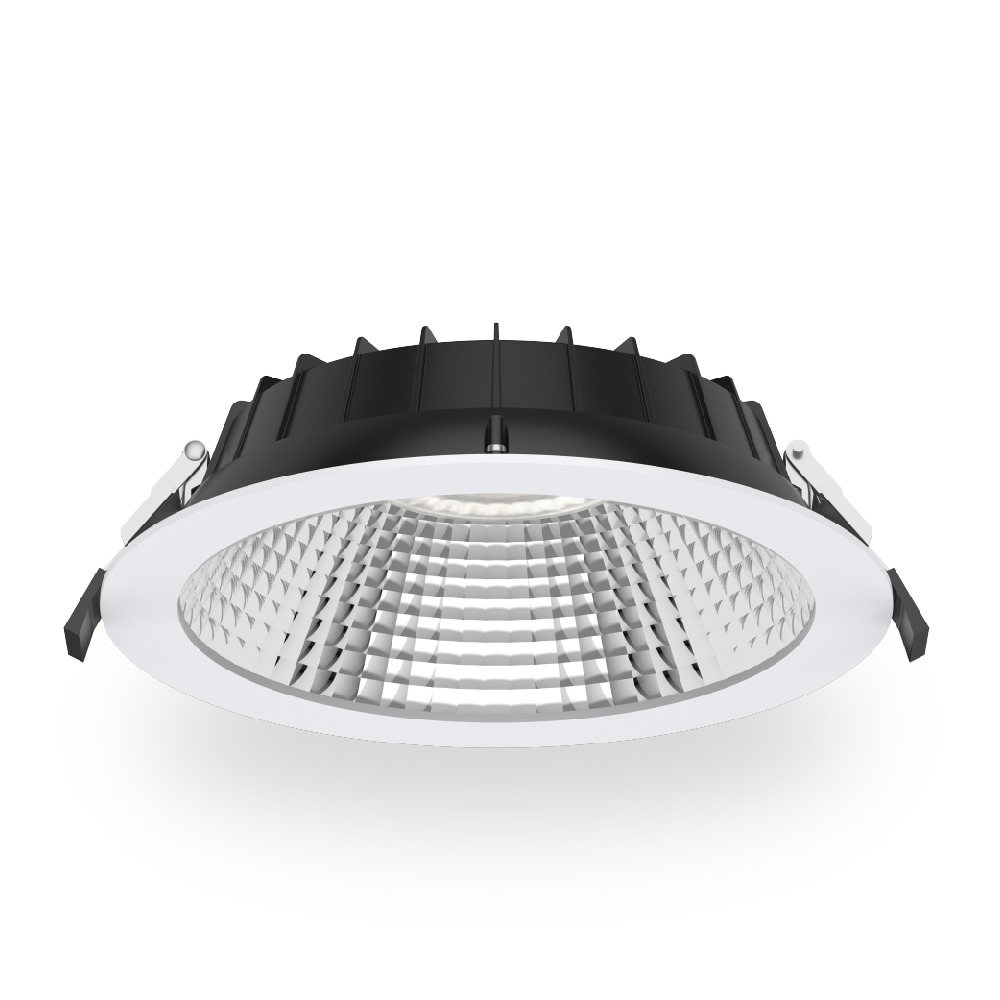

AT9087/30/WH/TRI/2/1
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12323 | AT9087/12/WH/TRI | 12W LED downlight with dimmable driver - Tri-CCT - White - SER II | |
| 12324 | AT9087/16/WH/TRI | 16W LED downlight with dimmable driver - Tri-CCT - White - SER II | |
| 12325 | AT9087/24/WH/TRI | 24W LED downlight with dimmable driver - Tri-CCT - White - SER II | |
| 12326 | AT9087/30/WH/TRI | 30W LED downlight with dimmable driver - Tri-CCT - White - SER II |
