AT9455
AT9455
Home Lamps GU10 / MR16 AT9455
AT9500
AT9500 $0.00
Back to products
AT6020
AT6020 $0.00

AT9455

$0.00

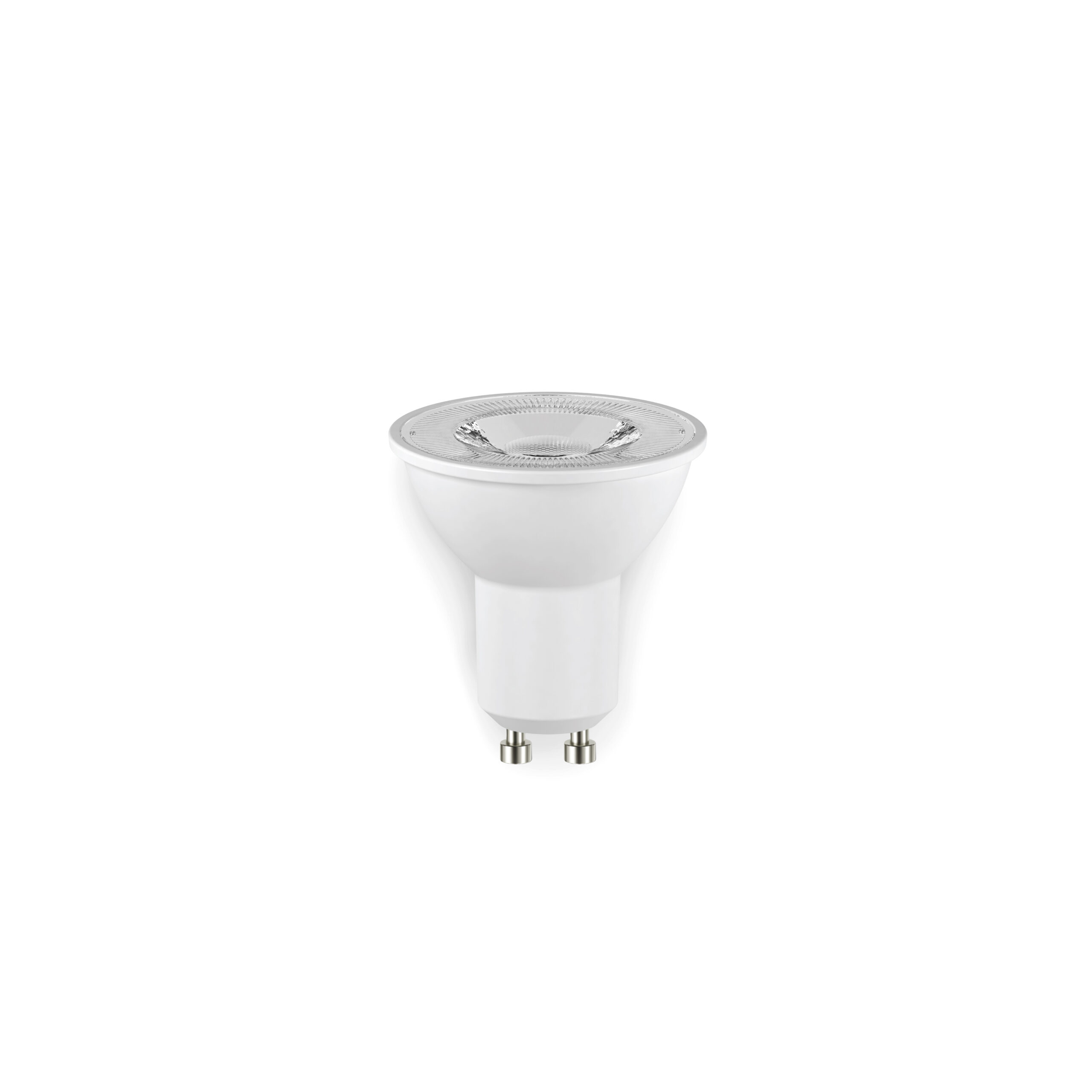

6W GU10 LED Lamp. Non Dimmable with Lens

Features

  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable replacement for halogen and incandescent lamps
SKU: AT9455 Category: GU10 / MR16 Tags: Bed, Study, Living, Family, Ip20, Office, Shed, Garage, Stairs, Hallway, Toilet, Kitchen, Indoor, Bath, Domestic
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Photometrics
Specifications

Mechanical

AdjustabilityFixed
Diffuser MaterialPolycarbonate
Product FinishFrosted
Fitting ColourWhite
IP RatingIP20

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage6 W
Power Factor0.5
Switch TypeInline
System Max Wattage6 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle
AT9455/36/CW
AT9455/36/DL
AT9455/36/WW
36 °
AT9455/60/CW
AT9455/60/DL
AT9455/60/WW
60 °
Bulb TypeGU10
CCT ConfigurationSingle
CRI>80
Globe BaseGU10
Globe IncludedYes
Led Package2835
Number of Lamps1

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT
AT9455/36/WW
AT9455/60/WW
3000 K
AT9455/36/CW
AT9455/60/CW
4000 K
AT9455/36/DL
AT9455/60/DL
5700 K
CCT Colour
AT9455/36/CW
AT9455/60/CW
Cool White
AT9455/36/DL
AT9455/60/DL
Daylight
AT9455/36/WW
AT9455/60/WW
Warm White
System Lumens500 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 (Yr) RTB
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Product Height54 mm
Product Width50 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
18639AT9455/36/CW6W GU10 LED LAMP 36° CW NON-DIM
18640AT9455/36/DL6W GU10 LED LAMP 36° DL NON-DIM
18638AT9455/36/WW6W GU10 LED LAMP 36° WW NON-DIM
18642AT9455/60/CW6W GU10 LED LAMP 60° CW NON-DIM
18643AT9455/60/DL6W GU10 LED LAMP 60° DL NON-DIM
18641AT9455/60/WW6W GU10 LED LAMP 60° WW NON-DIM
Documents & Downloads

Datasheet

  • AT9455/36/CW*
  • AT9455/36/DL*
  • AT9455/36/WW*
  • AT9455/60/CW*
  • AT9455/60/DL*
  • AT9455/60/WW*

Compliance

  • AT9455/36/CW-AU-sdoc*
  • AT9455/36/DL-AU-sdoc*
  • AT9455/36/WW-AU-sdoc*
  • AT9455/60/CW-AU-sdoc*
  • AT9455/60/DL-AU-sdoc*
  • AT9455/60/WW-AU-sdoc*

*Auto generated datasheet (beta)
Photometrics
AT9455/36/DL
IES File

IES File


Download
AT9455/36/WW
IES File

IES File


Download
AT9455/60/CW
IES File

IES File


Download
AT9455/60/DL
IES File

IES File


Download
AT9455/60/WW
IES File

IES File


Download
