Coolum
$0.00

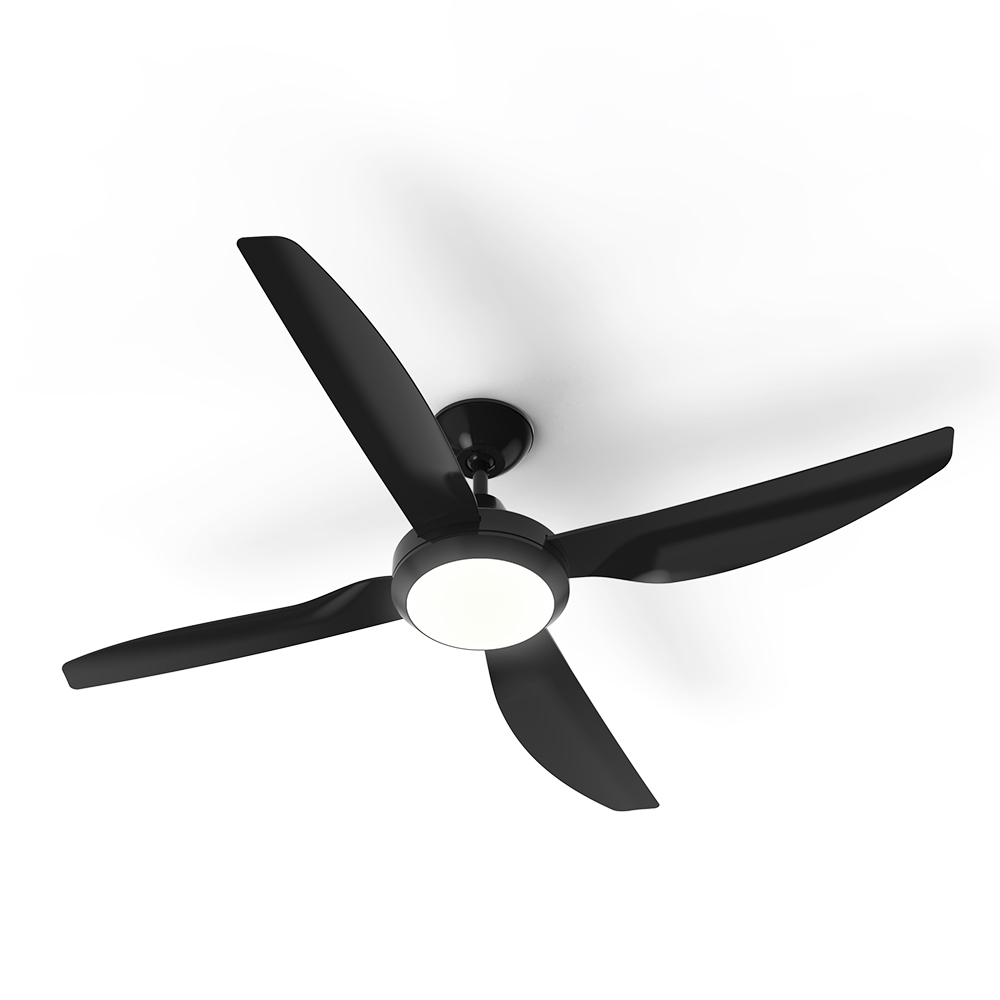

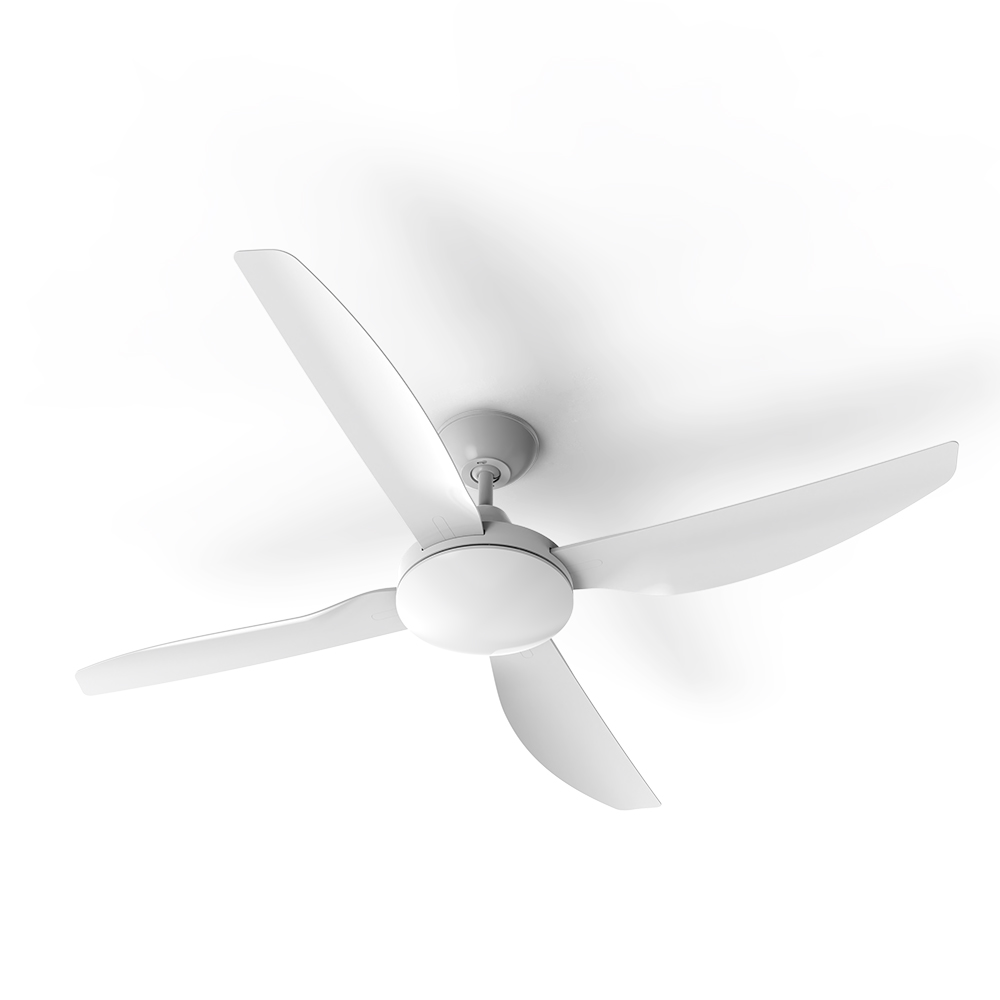

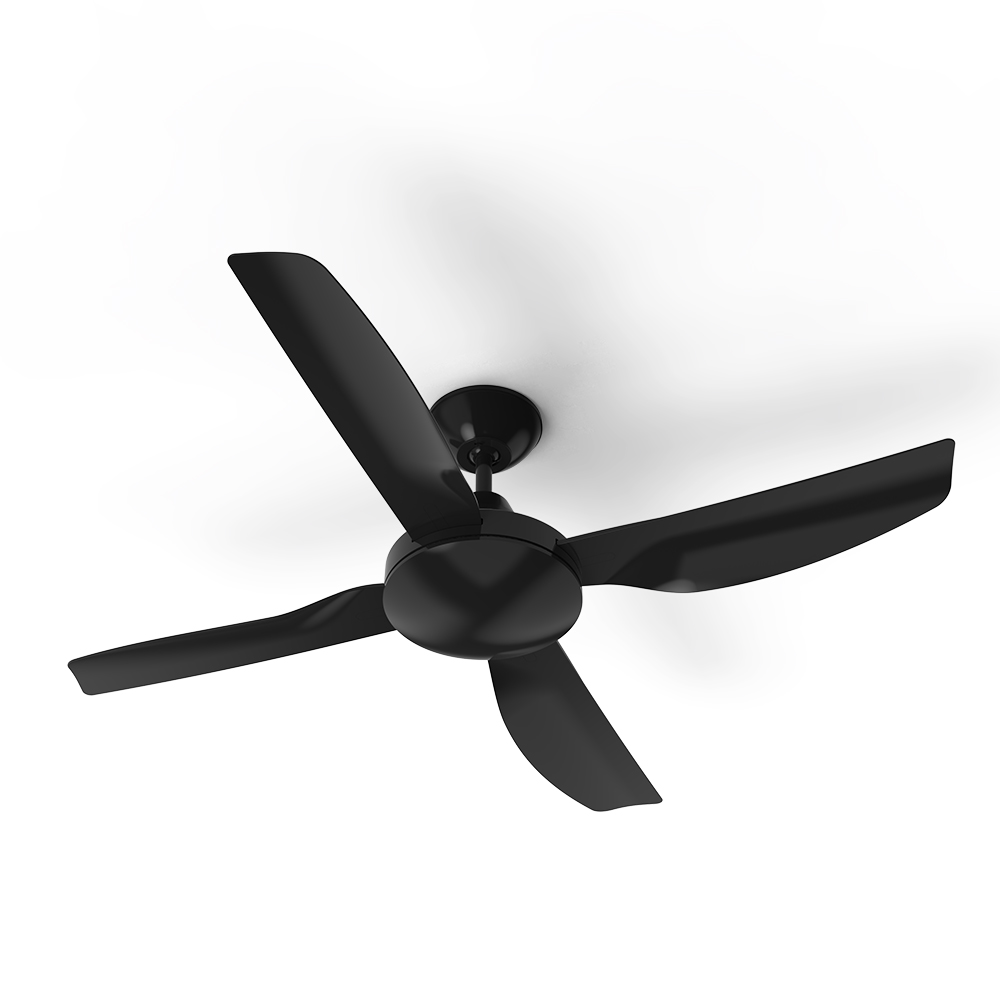

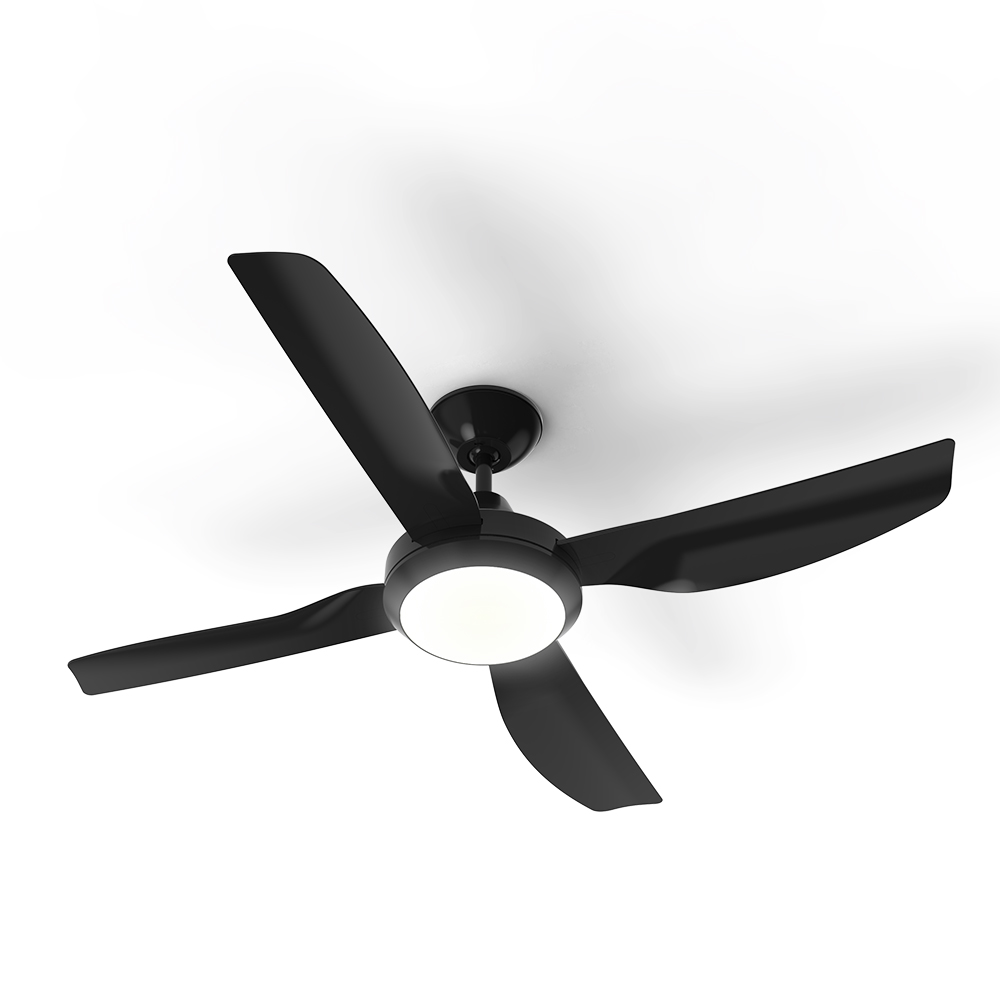

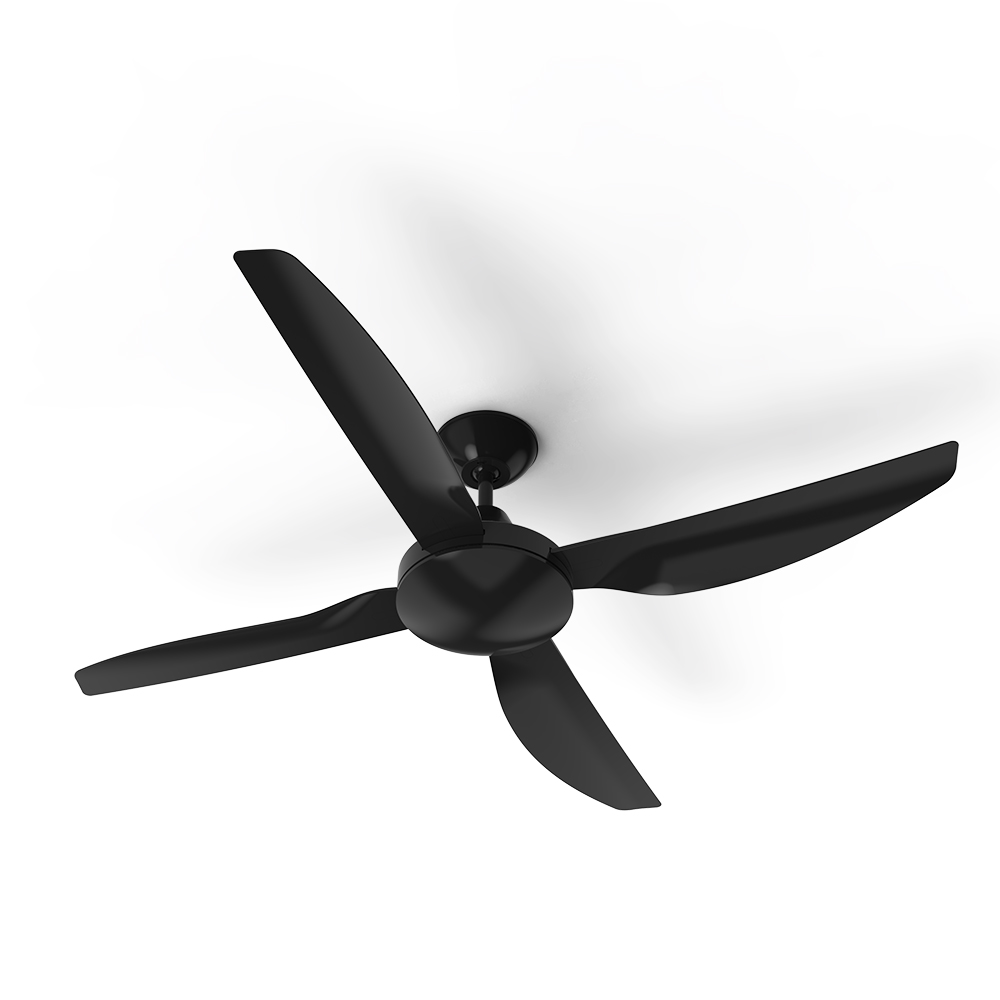

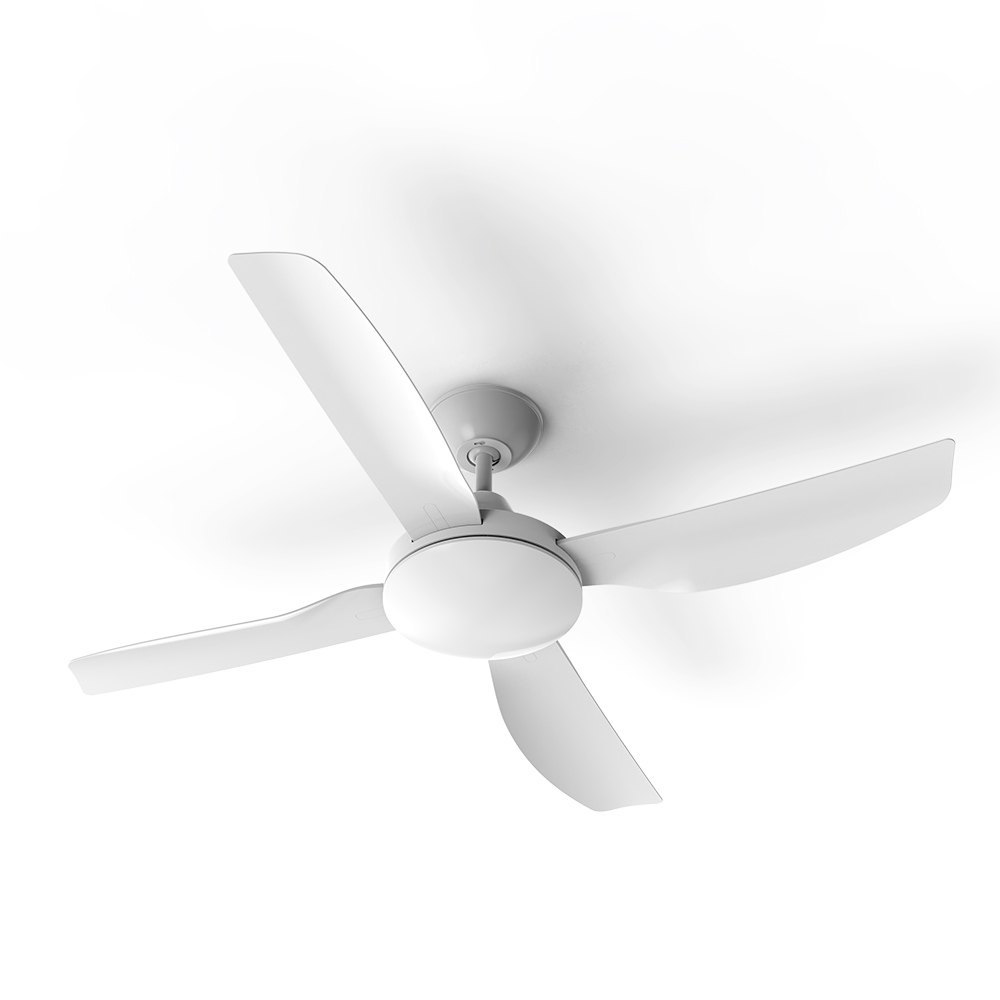

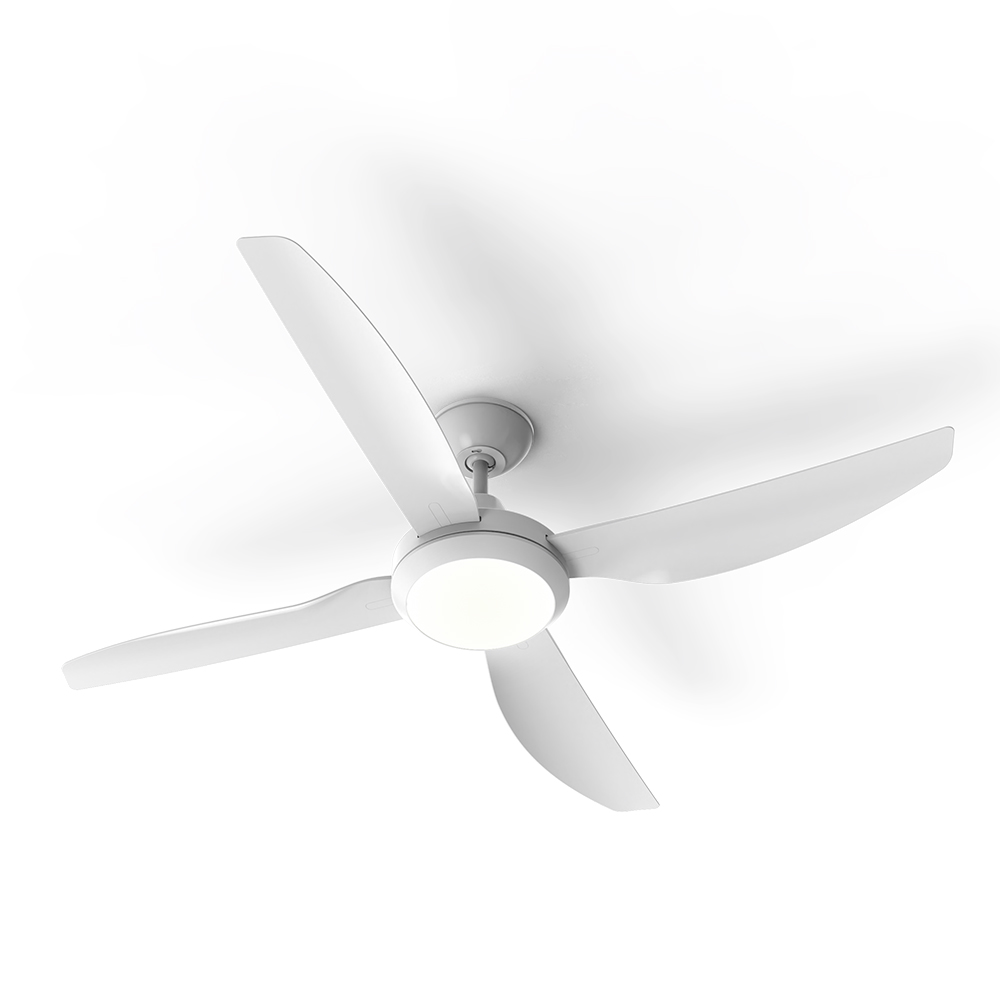

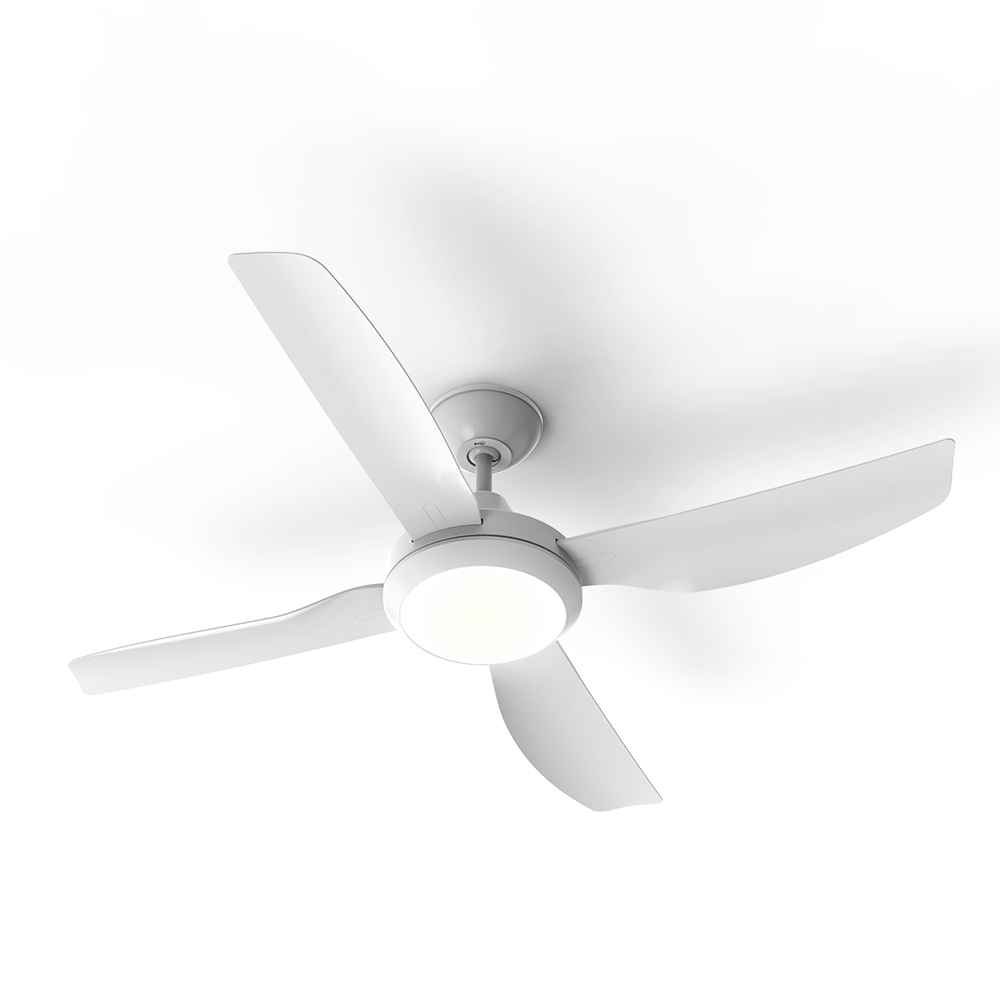

4 blade 75W AC ceiling fan
- Powerful and efficient 75W AC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Slimline design ideal for indoor and covered outdoor applications
- ABS body and canopy with 4 reinforced ABS blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use
- Compatible with Atom Air ceiling fan remote control ACREMOTE/KIT (sold separately)
- 3 speed wall controller
Selected Models
- 20W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |
| COOLUM/48/LT/BK COOLUM/52/BK COOLUM/52/LT/BK | Matt Black |
| COOLUM/48/LT/WH COOLUM/48/WH COOLUM/52/LT/WH COOLUM/52/WH COOLUM/56/WH | Satin White |
| Body Material | ABS |
| Diffuser Material | Polycarbonate |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50Hz Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| COOLUM/48/LT/BK COOLUM/48/LT/WH COOLUM/52/LT/BK COOLUM/52/LT/WH
| |||||||||
| COOLUM/48/WH COOLUM/52/BK COOLUM/52/WH COOLUM/56/WH | |||||||||
Air Movement
| Motor Wattage | 75 W |
|---|---|
| Motor Type | AC |
| Fan Wattage | |
| COOLUM/48/LT/BK COOLUM/48/LT/WH COOLUM/48/WH COOLUM/52/BK COOLUM/52/LT/BK COOLUM/52/LT/WH COOLUM/52/WH | 75;37;20 W |
| COOLUM/56/WH | 83;34;18 W |
| No. Speeds | 3 |
| RPM | |
| COOLUM/56/WH | 220;133;93 |
| COOLUM/52/BK COOLUM/52/LT/BK COOLUM/52/LT/WH COOLUM/52/WH | 257;170;120 |
| COOLUM/48/LT/BK COOLUM/48/LT/WH COOLUM/48/WH | 270;190;130 |
| Control | |
| COOLUM/56/WH | Wall Control |
| COOLUM/48/LT/BK COOLUM/48/LT/WH COOLUM/48/WH COOLUM/52/BK COOLUM/52/LT/BK COOLUM/52/LT/WH COOLUM/52/WH | Wall control |
| Airflow | |
| COOLUM/48/LT/BK COOLUM/48/LT/WH COOLUM/48/WH | 13800;10000;7800 m3/hr |
| COOLUM/52/BK COOLUM/52/LT/BK COOLUM/52/LT/WH COOLUM/52/WH | 16200;12000;8300 m3/hr |
| COOLUM/56/WH | 16300;9654;6185 m3/hr |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 300 mm |
| Blade Pitch | 13 ° |
| Blade Material | ABS |
| U_FS_BLADE_COLOUR | White |
| Fan Size | |
| COOLUM/48/LT/BK COOLUM/48/LT/WH COOLUM/48/WH | 1220mm (48inch) |
| COOLUM/52/BK COOLUM/52/LT/BK COOLUM/52/LT/WH COOLUM/52/WH | 1320mm (52inch) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Item Code | Product Height | Product Width | Product Weight |
|---|---|---|---|
| COOLUM/48/LT/BK | 327 mm | 1220 mm | 6430 g |
| COOLUM/48/LT/WH | 327 mm | 1220 mm | 6430 g |
| COOLUM/48/WH | 327 mm | 1220 mm | 6230 g |
| COOLUM/52/BK | 327 mm | 1320 mm | 6360 g |
| COOLUM/52/LT/BK | 327 mm | 1320 mm | 6560 g |
| COOLUM/52/LT/WH | 327 mm | 1320 mm | 6560 g |
| COOLUM/52/WH | 327 mm | 1320 mm | 6360 g |
| COOLUM/56/WH | 327 mm | 1420 mm |
COOLUM/48/LT
COOLUM/48
COOLUM/52
COOLUM/52/LT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|

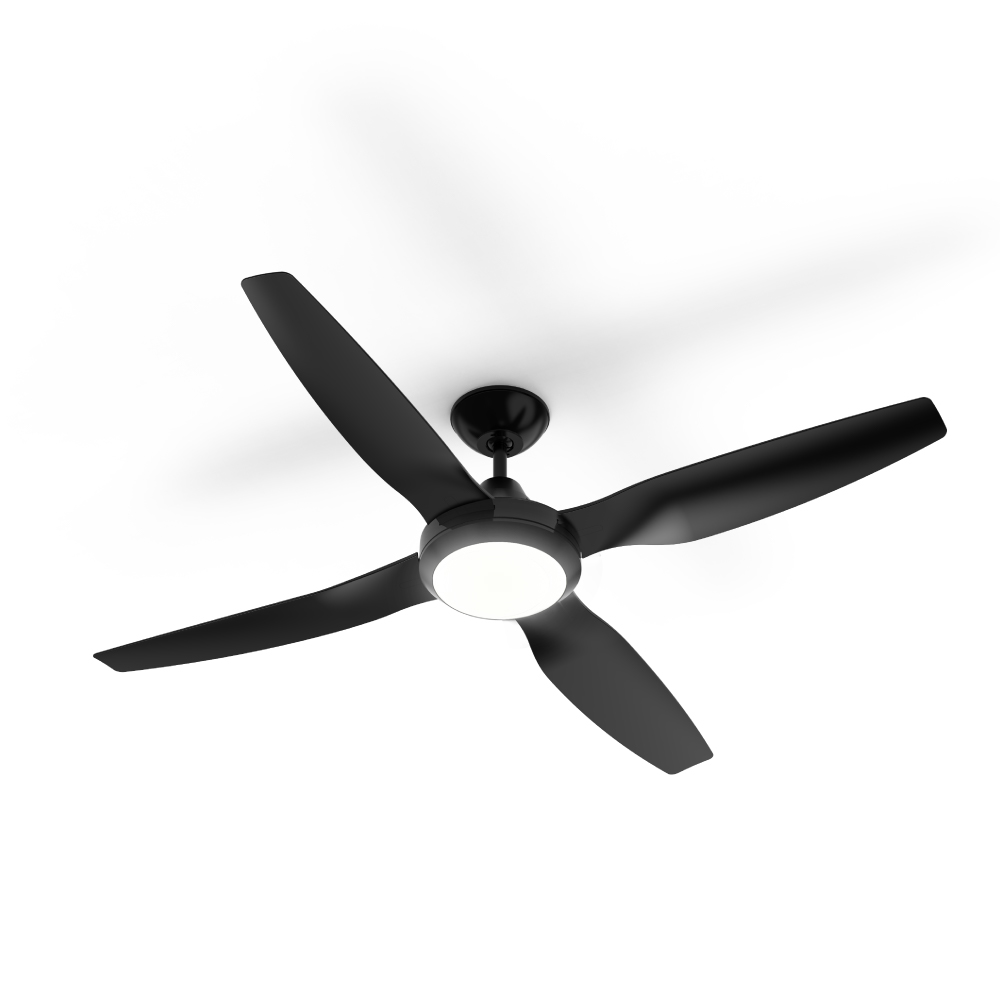

| 18448 | COOLUM/48/LT/BK | 48 inch (1220mm) 4 blade 75W AC ceiling fan W/LED Light black | |

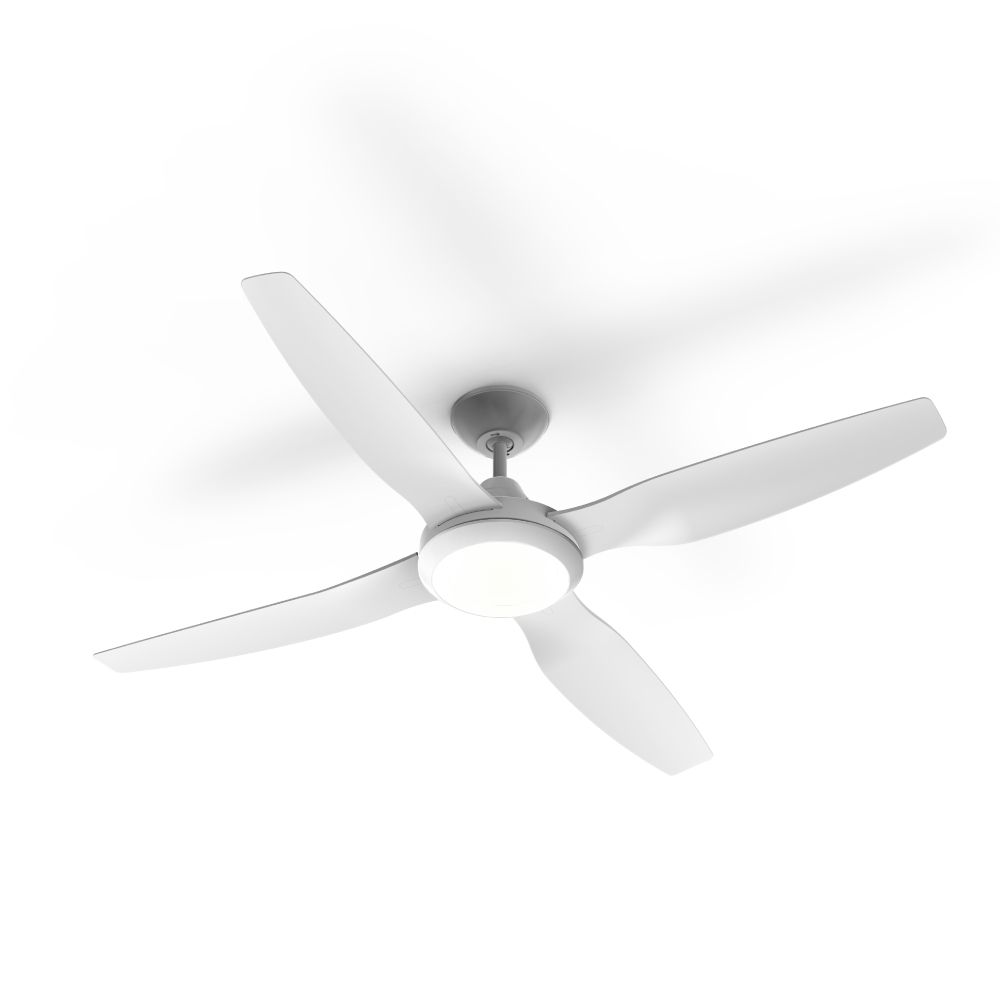

| 18447 | COOLUM/48/LT/WH | 48 inch (1220mm) 4 blade 75W AC ceiling fan W/LED Light white | |

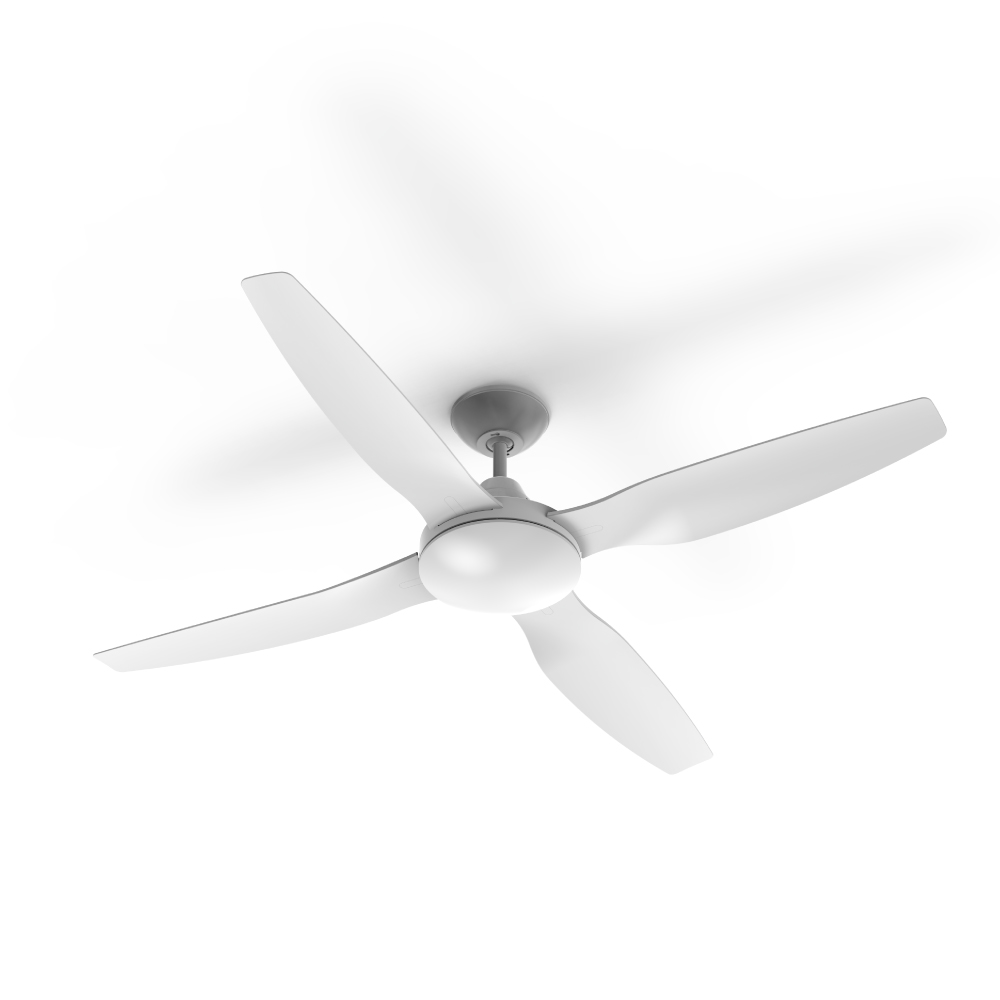

| 18445 | COOLUM/48/WH | 48 inch (1220mm) 4 blade 75W AC ceiling fan white | |

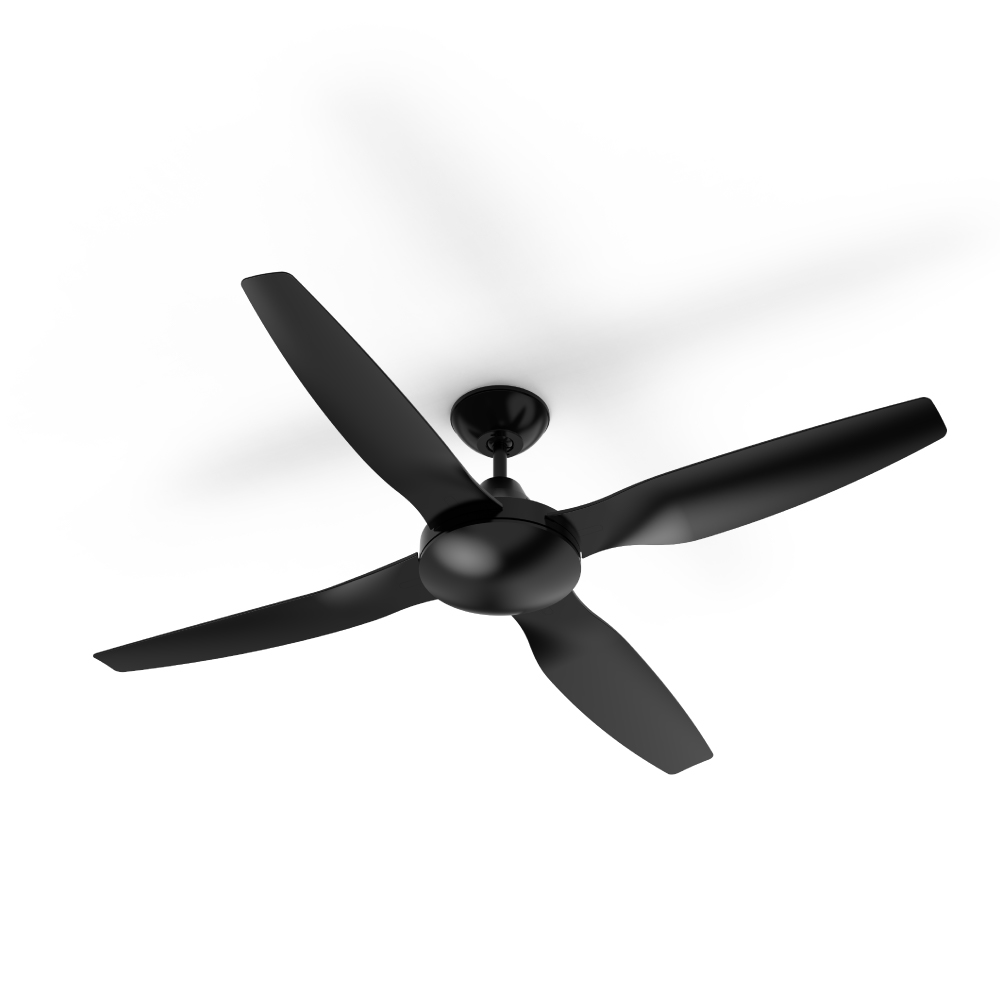

| 18450 | COOLUM/52/BK | 52 inch (1320mm) 4 blade 75W AC ceiling fan black | |
| 18452 | COOLUM/52/LT/BK | 52 inch (1320mm) 4 blade 75W AC ceiling fan W/LED Light black | |
| 18451 | COOLUM/52/LT/WH | 52 inch (1320mm) 4 blade 75W AC ceiling fan W/LED Light white | |
| 18449 | COOLUM/52/WH | 52 inch (1320mm) 4 blade 75W AC ceiling fan white | |
| 15239 | COOLUM/56/WH | 56 inch (1400mm) 4 blade 75W AC ceiling fan white |
Documents & Downloads
Datasheet
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12509 | ACREMOTE/KIT/WH | Remote control receiver and remote kit for AC ceiling fans - White | |
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
