Alta
$0.00

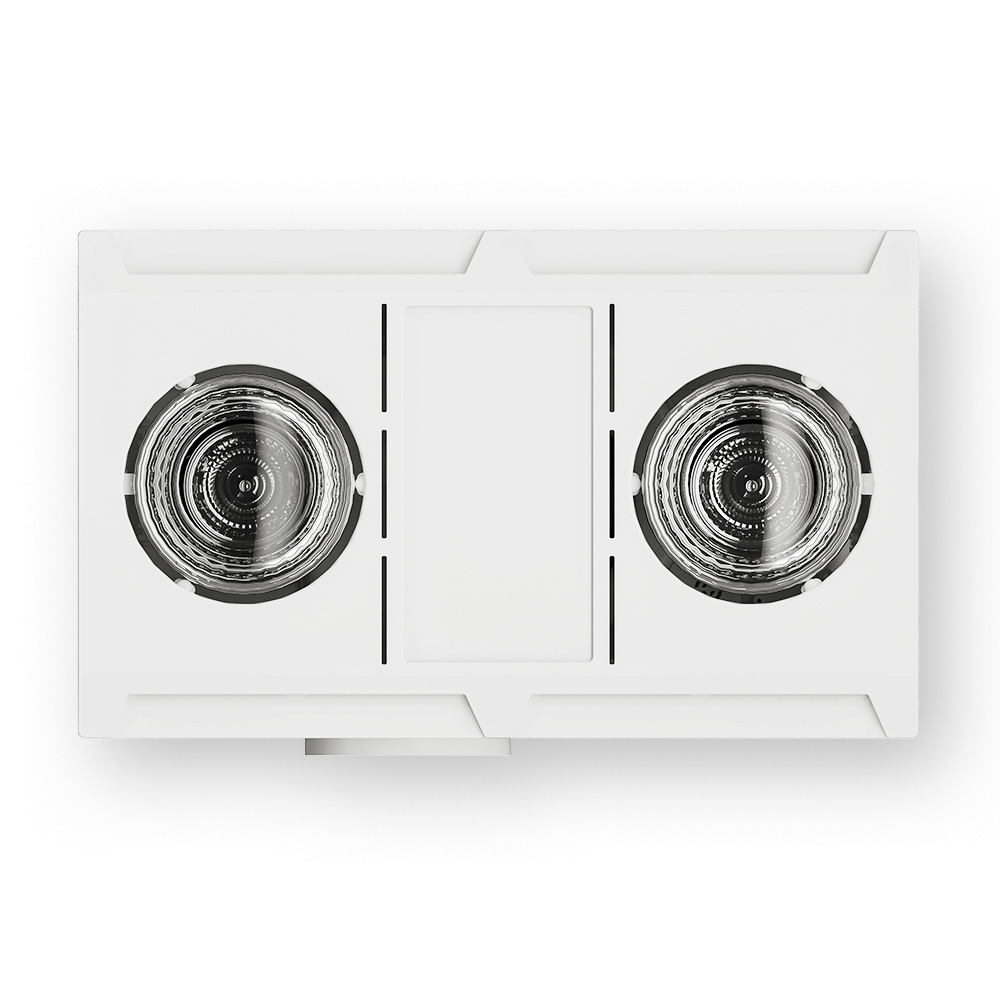

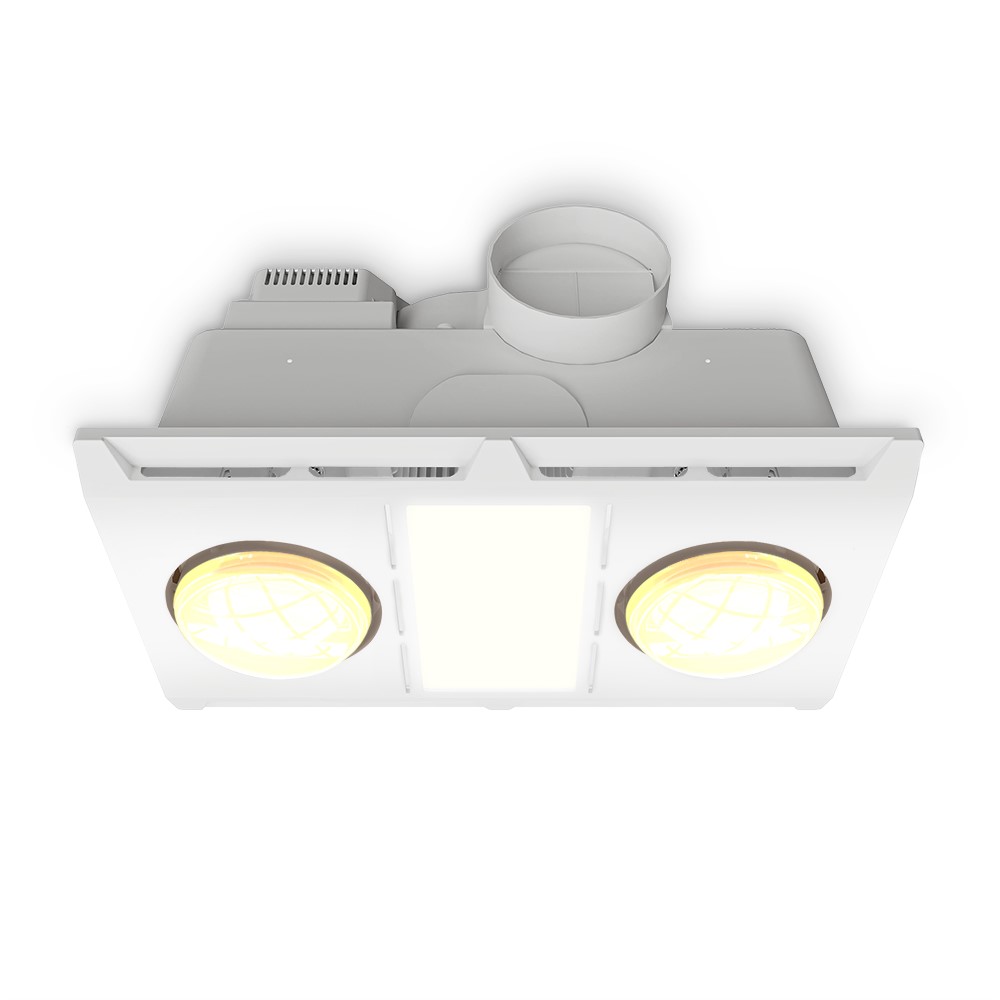

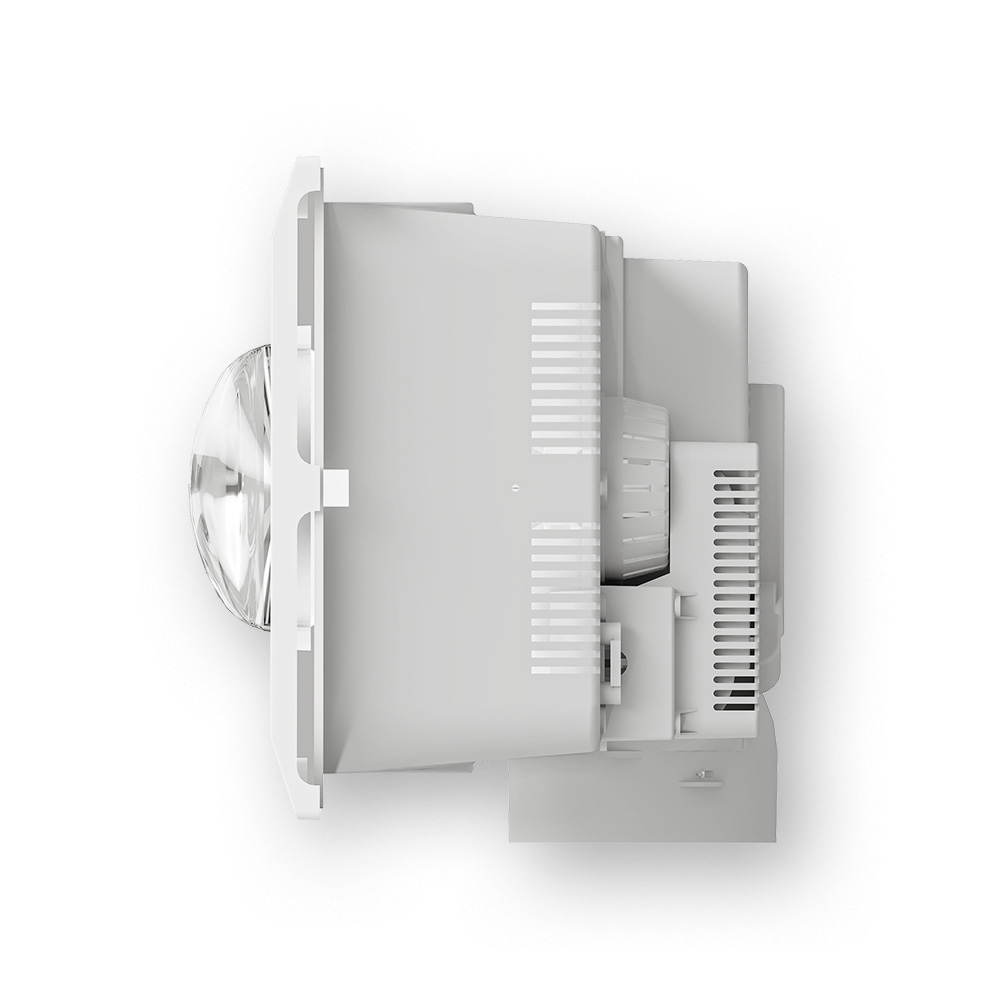

High velocity 3-in-1 bathroom heater
- 40W ball bearing motor for superior reliability
- Tri-CCT colour selectable LED panel provides efficient illumination
- Two infrared heat lamps provide instant heat
- IPX2 rated – safe for use in damp environments
- 3-year in-home warranty for peace of mind
- Built in thermostat switch turns fan on automatically if temperature exceeds 80°C
Specifications
Efficiencies
| Total System Efficiency | 90 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IPx2 |
|---|---|
| IC Rating | Do not cover |
| Fitting Colour | White |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| 10 Watts | |
|---|---|
| Warm White (3000 K) | 810 lm |
| Cool White (4000 K) | 900 lm |
| DayLight (5000 K) | 880 lm |
Air Movement
| Outlet | 125 mm |
|---|---|
| Noise level | 47 dB |
| Motor Wattage | 40 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | 400 m3/hr |
Heat
| Heater Type | 2x 275W IR Heat Lamp (E27) |
|---|
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty Operating Hours | 2500 hrs |
|---|---|
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
| Domestic Use Warranty | 3 Onsite (Total 3 Years) |
Dimensions
| Product Height | 253 mm |
|---|---|
| Product Length | 480 mm |
| Product Width | 290 mm |
| Minimum Ceiling Depth | 220 mm |
| Cutout | 435x255 mm |
ALTA/2LT/WH/1
ALTA/2LT/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14841 | ALTA/2LT/WH | 2-Light high-velocity bathroom heater & exhaust w/LED panel - white - Tri-cct |
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18716 | AT9709/ES/HEAT/275 | 275W R125 INFRARED HEAT LAMP E27 |
