AT4120/PIR

$0.00

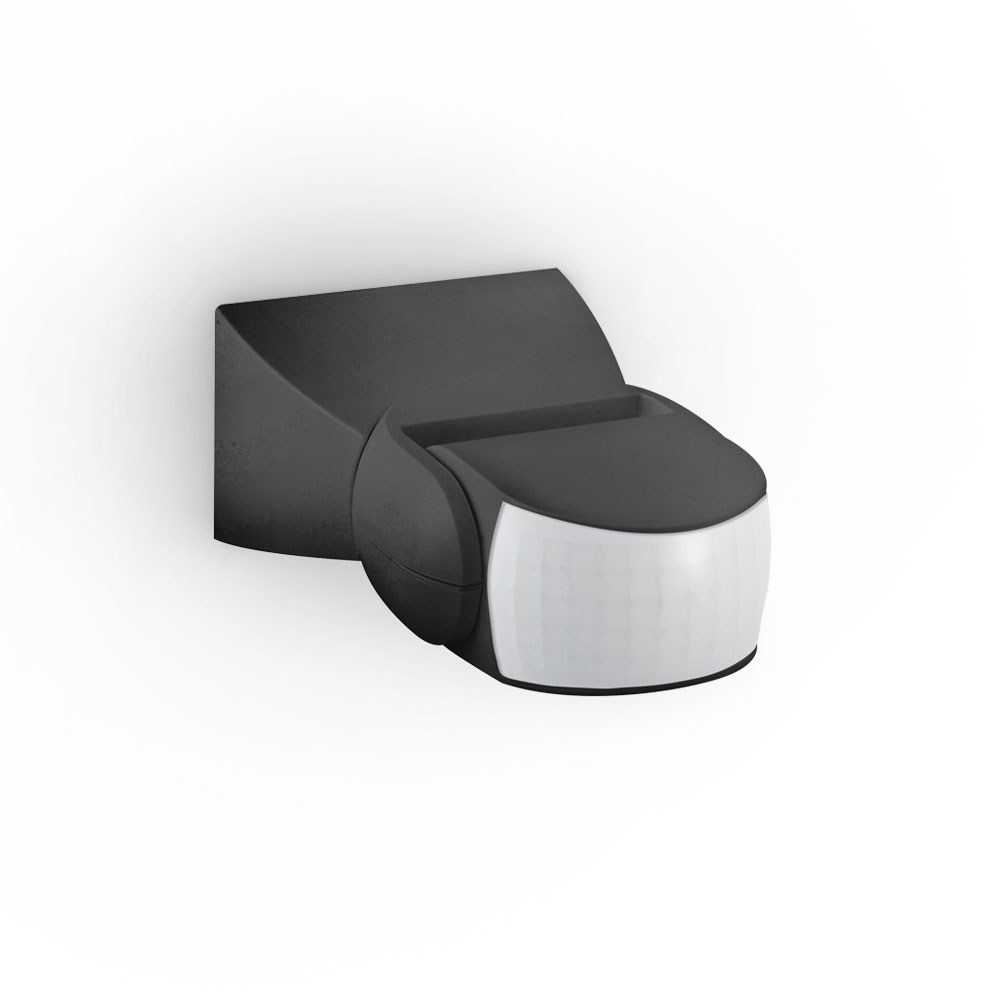

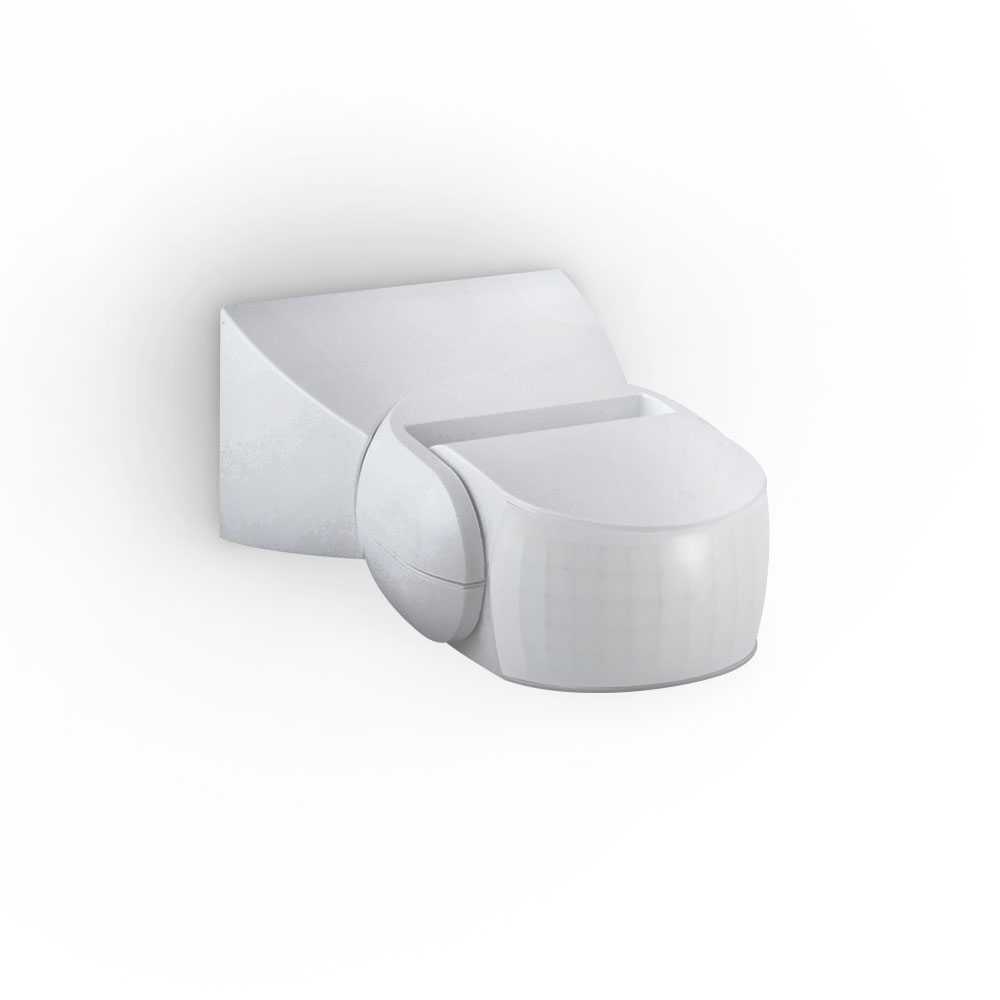

Wall mount PIR sensor – IP65 – 12m

SKU: AT4120/PIR Category: Sensors Tag: Ip65
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
Specifications

Mechanical

AdjustabilityAdjustable
Body MaterialPolycarbonate
Fitting Colour
AT4120/PIR/BLKBlack
AT4120/PIR/WHTWhite
Installation TypeWall mount
IP RatingIP65

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230V~
Working Temp Range-20 to 40 °C

Sensor (S suffix)

Adjustable Detection Area / SensitivityNo
Adjustable Hold TimeYes
Adjustable Standby LevelNo
Adjustable Standby PeriodNo
Corridor FunctionNo
Dawn ResetNo
Detection Range12 m
Detection Angle180
Dusk ModeYes
Lux AdjustmentYes
Lux Range<3 to 2000 lx
Manual OverrideNo
Sensor TypePIR
Switched OutputYes
Switched Output Rating1200 W
Time Delay10s to 15m

Compliance

Standards
  • AS/NZS 60669.1
  • AS/NZS 60669.2.1
  • EN/IEC 55015
  • IEC 61000.3
  • IEC 61000.4
Dimensions
Product Height51 mm
Product Length117 mm
Product Width80 mm
AT4120/PIR
Ordering Information
Ordering codeItem codeDescriptionAvailability
13951AT4120/PIR/BLKPIR sensor 12m- wall mount- IP65- black
13950AT4120/PIR/WHTPIR sensor 12m- wall mount- IP65- white
Documents & Downloads

Instruction Manual

  • 13950/ATOM/AT4120-PIR-WHT/Sensor/Instruction-Manual/WEB.pdf
  • 13951/ATOM/AT4120-PIR-BLK/Sensor/Instruction-Manual/WEB.pdf

Datasheet

  • AT4120/PIR/BLK*
  • AT4120/PIR/WHT*

Compliance

  • AT4120/PIR/BLK-AU-sdoc*
  • AT4120/PIR/WHT-AU-sdoc*

*Auto generated datasheet (beta)
