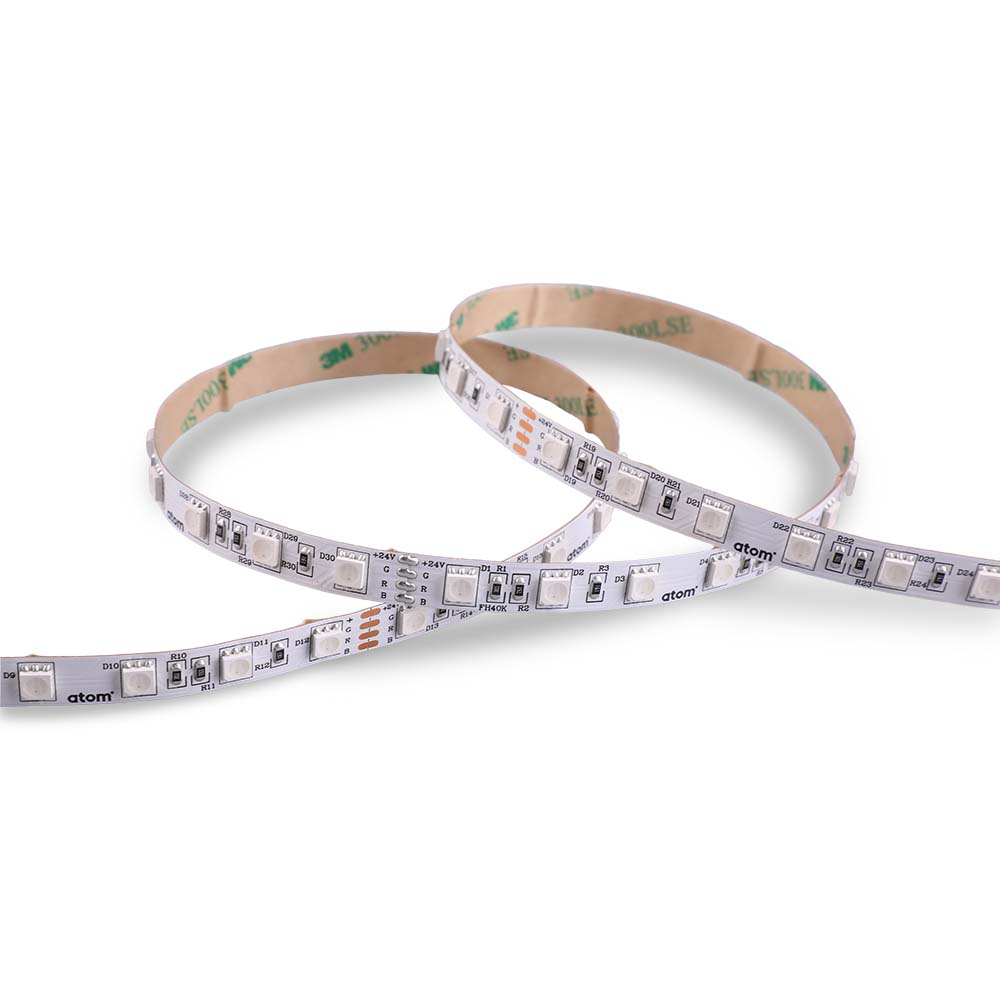

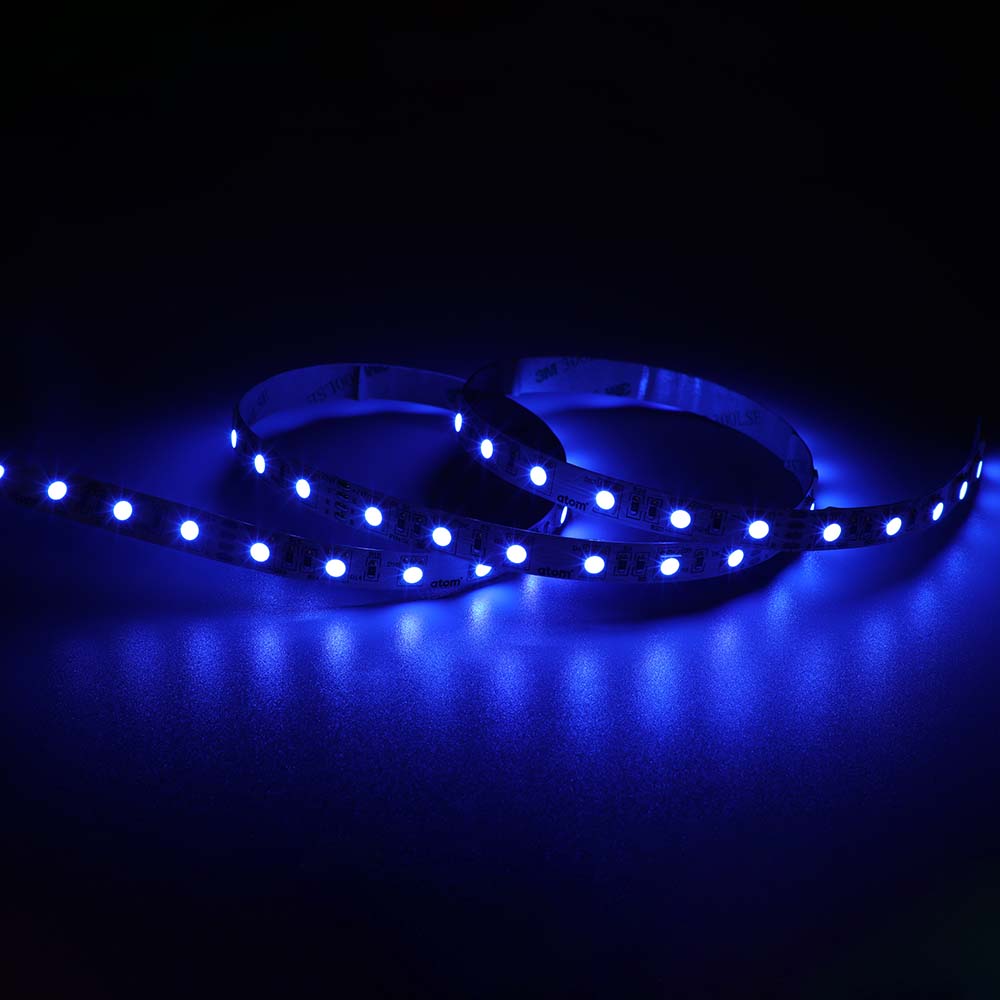

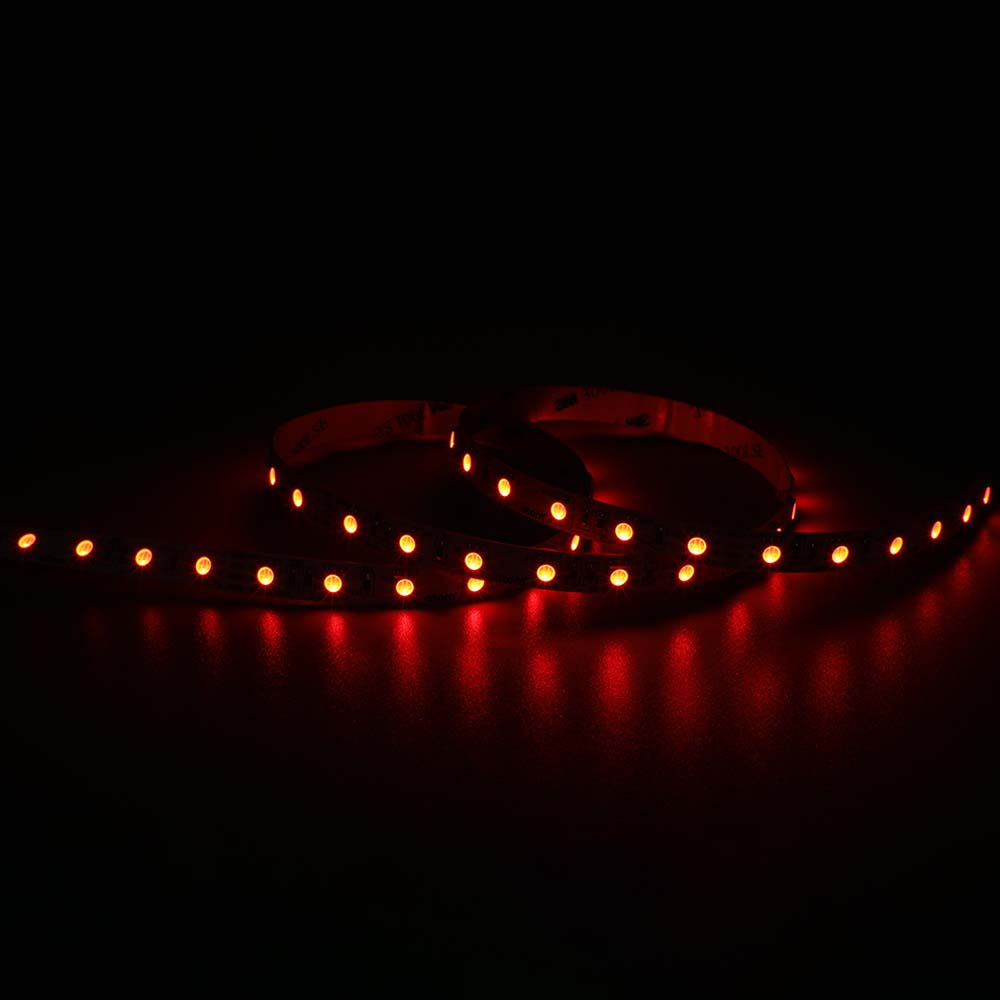

RGB LED Strip with cable – IP20 – 14.4W/m

Features

  • Superior 24V design
  • Flexible, quality LED housing
  • Superior efficacy
  • Large range of accessories and extrusions
  • Supplied with 3M adhesive tape
  • Heatsinking required to meet the products service life
SKU: AT9253 IP20 Category: Led Strips Tag: Ip20
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Accessories
Specifications

Mechanical

IP RatingIP20

Electrical

Electrical RatingClass III
Input voltage24Vdc
Watts Per Meter (W/m)14.4
Working Temp Range40 °C

Lamp

Macadam Steps (SDCM)3-step MacAdam Ellipse
Beam Angle120 °
CCT ConfigurationRGB
Lamp/LED voltage24 V
LED's per meter60
Lumens /m
AT9253/RGB/IP20/5M340 lm/m
AT9253/RGB/IP20/1M360 lm/m

LED Lifetime

LED Lifetime>48000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)40 °C25 °C
L70B50>48000 hrs>48000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours8000 hrs

Colour temperature

LED Wattage
AT9253/RGB/IP20/1M14.4 W
AT9253/RGB/IP20/5M72 W
System Lumens
AT9253/RGB/IP20/1M360 lm
AT9253/RGB/IP20/5M1700 lm
All photometric data has a tolerance of ±10%.

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • IEC 62031

Warranty

Commercial Use Warranty2 RTB (Total 2 Years)
Domestic Use Warranty3 (Yr) RTB
Warranty Operating Hours13000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Item CodeCutting IntervalProduct HeightProduct LengthMaximum End to End LengthProduct Width
AT9253/RGB/IP20/1M10 mm2 mm1000 mm5000 mm10 mm
AT9253/RGB/IP20/5M10 mm2 mm5000 mm5000 mm10 mm
AT9253/IP20
Ordering Information
Ordering codeItem codeDescriptionAvailability
16520AT9253/RGB/IP20/1M14.4W/m RGB IP20 1m LED Strip with cable
16538AT9253/RGB/IP20/5M14.4W/m RGB IP20 5m LED Strip with cable
Documents & Downloads

Instruction Manual

  • AT9253/IP20/RGB/LED-Strip

Datasheet

  • AT9253/RGB/IP20/1M*
  • AT9253/RGB/IP20/5M*

Compliance

  • AT9253/RGB/IP20/1M-AU-sdoc*
  • AT9253/RGB/IP20/5M-AU-sdoc*

*Auto generated datasheet (beta)
Accessories

Accessories

Ordering codeItem codeDescriptionAvailability
16678AT9220/1MSquare Shallow Extrusion KIT - 1M (Clip in Diffuser)
16679AT9220/2MSquare Shallow Extrusion KIT - 2M
16682AT9228/2MSquare Deep Recessed Extrusion KIT - 2M
16681AT9232/2MSquare Shallow Recessed Extrusion KIT - 2M
16683AT9234/2MRound Corner Extrusion KIT - 2M
16684AT9235/2MSquare Deep Extrusion KIT - 2M
16581AT9253/L/IP20AT9253/IP20 connectors
16751AT9253/QCAT9253/IP20 connectors - End to end Quick Connect
16754AT9253/QCWAT9253/IP20 connectors - Wire to end Quick Connect
16582AT9253/T/IP20AT9253/IP20 connector - T-joiner
16586AT9253/WIRE/IP20AT9253/IP20 connector - 15cm Lead-in wire and connector
16647AT9260/RGBRGB RF Controller for LED Strip
16648AT9261/RGB4-Channel Amplifier/Repeater for LED Strip

Recommended Drivers

Ordering codeItem codeDescriptionPowering†WiringAvailability
11337AT9643/2020W 24V Constant Voltage Driver IP20 with Flex and Plug1 mtrs Parallel
11370AT9643/6060W 24V Constant Voltage Driver IP20 with Flex and Plug4 mtrs Parallel
11404AT9644/6060W 24V Constant Voltage Dimmable Driver IP20 with Flex and Plug4 mtrs
16091EV-DRIVER-24V-100W-ND100W 24V Constant Voltage Driver IP67 with 1m Flex and plug6 mtrs Parallel
16089EV-DRIVER-24V-40W-ND40W 24V Constant Voltage Driver IP67 with 1m Flex and plug2 mtrs Parallel
16090EV-DRIVER-24V-75W-ND75W 24V Constant Voltage Driver IP67 with 1m Flex and plug5 mtrs Parallel
† Powering value is calculated off the max power for this family and divided into the driver's power output. This does not consider other variances such as voltage drop, etc.
