Total System Efficiency
AT9488/ES/TRI	93 lm/W
AT9488/BC/TRI	97 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Input Frequency	50 Hz
Power Factor	0.6
Maximum Wattage	7 W
System Max Wattage	7 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

VIP Warranty	2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base.
Domestic Use Warranty	1 RTB (Total 1 Year)

Order code	Item code	Description	Availability

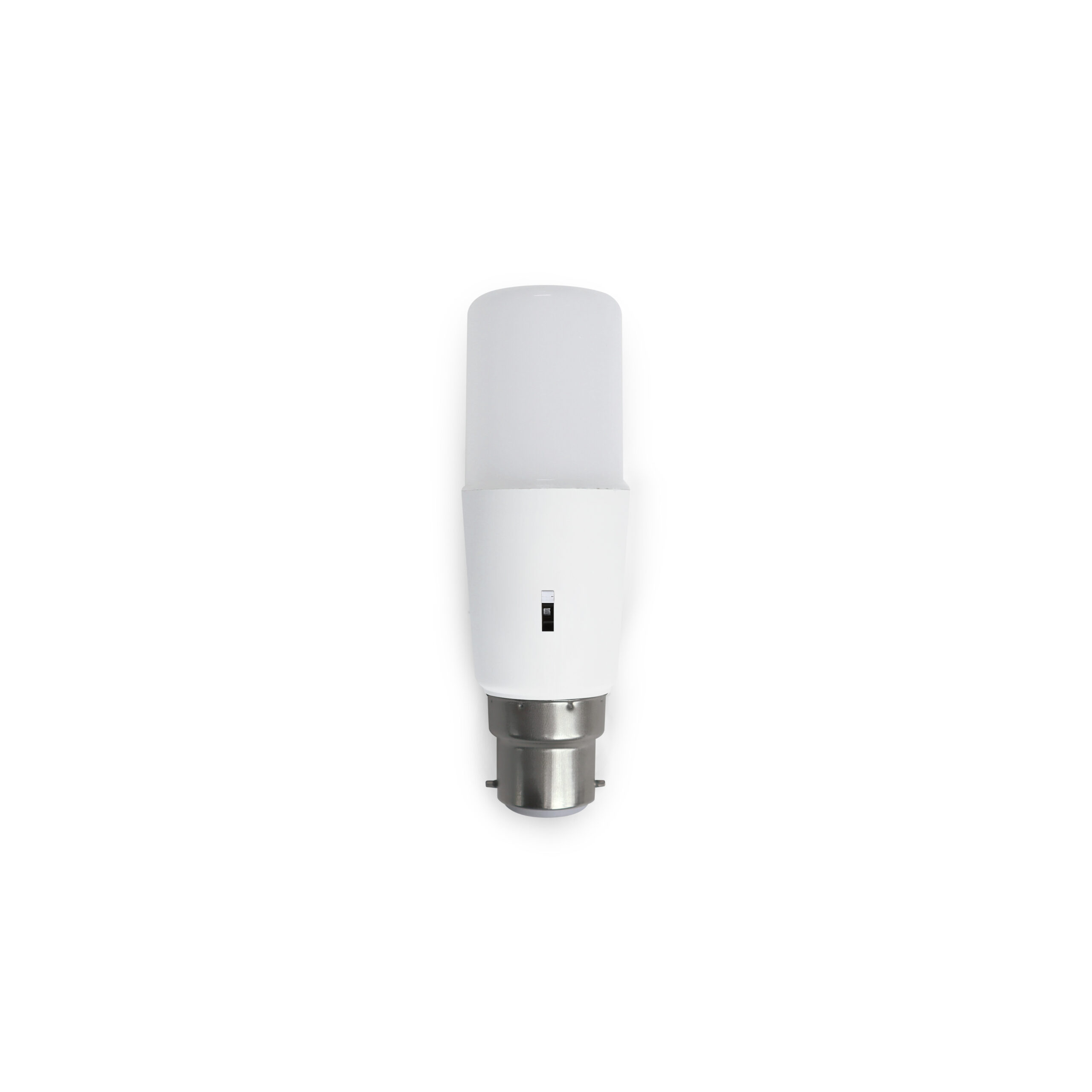

13397	AT9488/BC/TRI	T38 7W LED LAMP B22 TRI CCT NON-DIM FROST

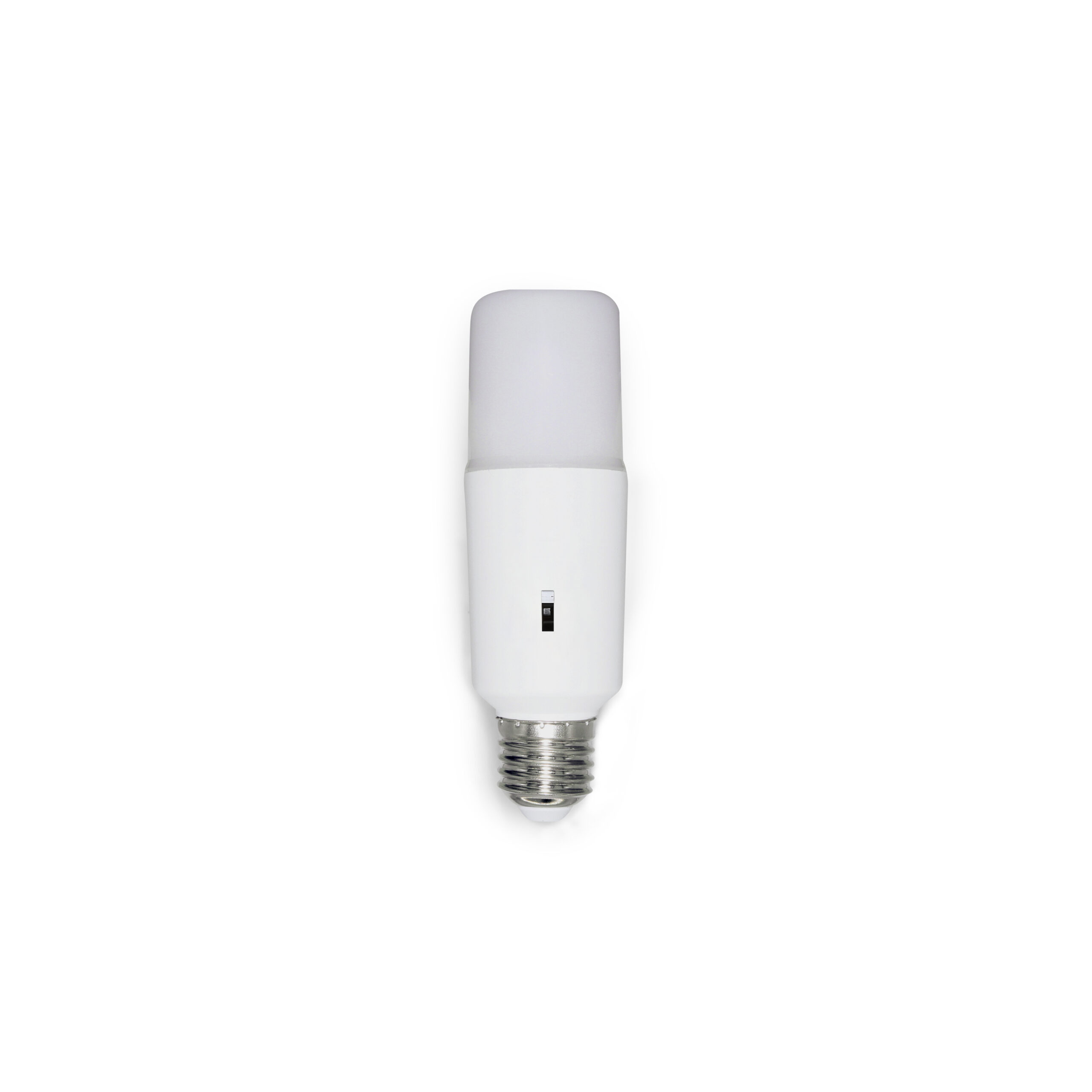

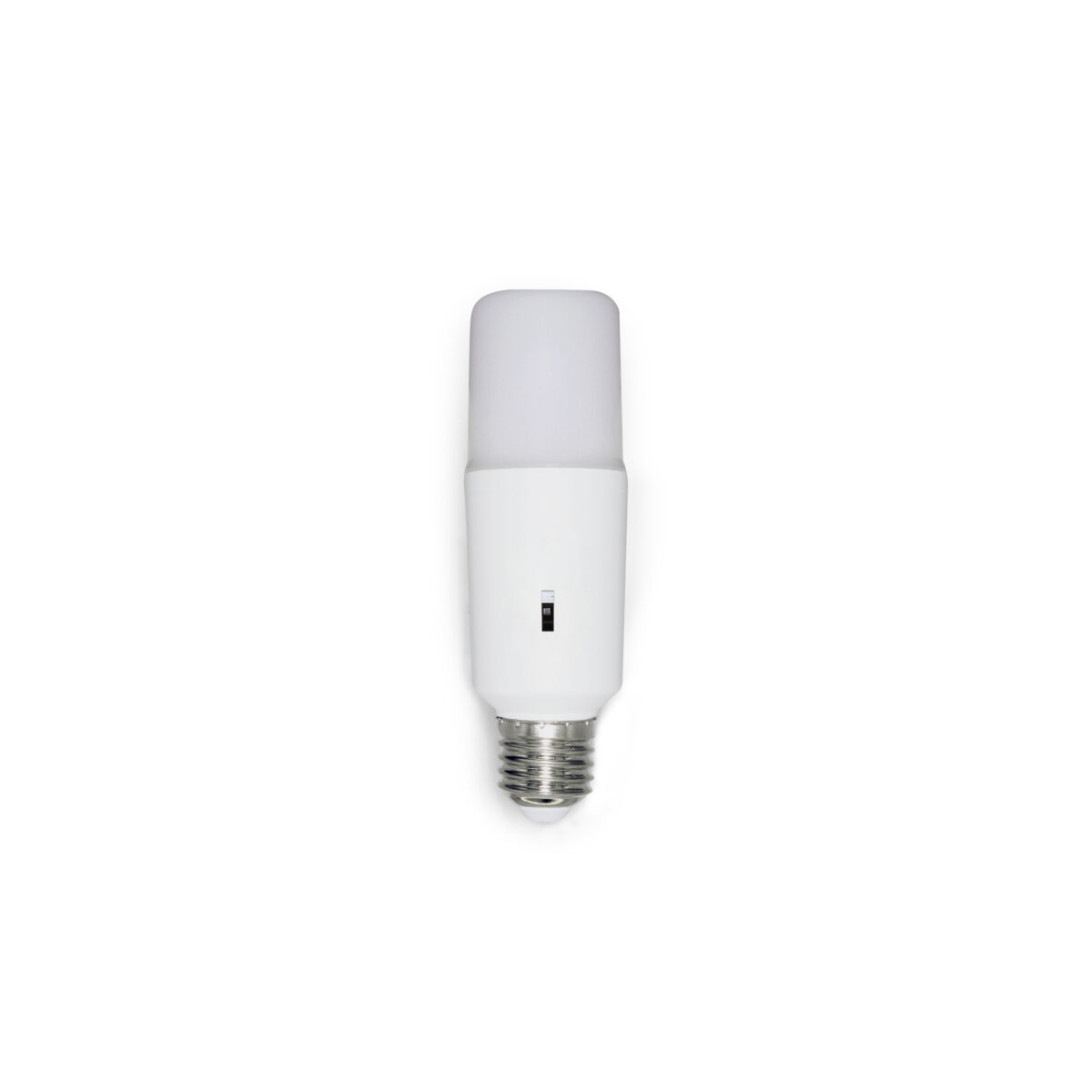

13398	AT9488/ES/TRI	T38 7W LED LAMP E27 TRI CCT NON-DIM FROST

Product Height	115 mm
Product Width	37 mm

AT9488

Efficiencies
