Efficiencies

Total System Efficiency

144 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP Rating	IP66
IK Rating	IK08
Adjustability	Adjustable
Fitting Colour	Black
Product Finish	Powdercoated
Body Material	Aluminium
Diffuser Material	Glass
Installation Type	Surface mount

Electrical

Working Temp Range	-30 to 45 °C
Input Frequency	50 Hz
Switch Type	Inline
Power Factor	0.94
Inrush Current	80 A
Inrush Duration	160uS (50%) uS
Maximum Wattage	100 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Surge Protection L-N	4kV
Surge Protection L/N-PE	4kV
Earth Leakage	0.75 mA

Lamp

Colour Rendering Index (CRI)	>70
CCT Configuration	Single
Macadam Steps (SDCM)	5-step MacAdam Ellipse
Beam Angle	120 °

LED Lifetime

LED Lifetime	54000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Rating	L70 B10 (9K)
TM-21 Test Hours	9000 hrs

Colour temperature

CCT Colour	Daylight
LED Wattage	93 W
Luminaire Lumens	14410 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.
CCT	5000 K

Driver

Driver Type	Fixed output
Driver Included	Yes
Integrated Driver	No
Dimmable	No
Flex & Plug or Lead Length	1500 mm
Wiring Type	Flying leads (3 wire)
Driver Mode	Constant Current
Driver Current	790 mA

Energy Savings Scheme

Ipart Approval	Yes
REES Approval	Yes
VEU Approval	Yes

Compliance

Daily Use	10 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards	AS/NZS 60598.1 AS/NZS 60598.2.5 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15

Warranty

VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to our Warranty page.
Operational Lifetime	50000 hrs
Domestic Use Warranty	3 RTB (Total 3 Years)

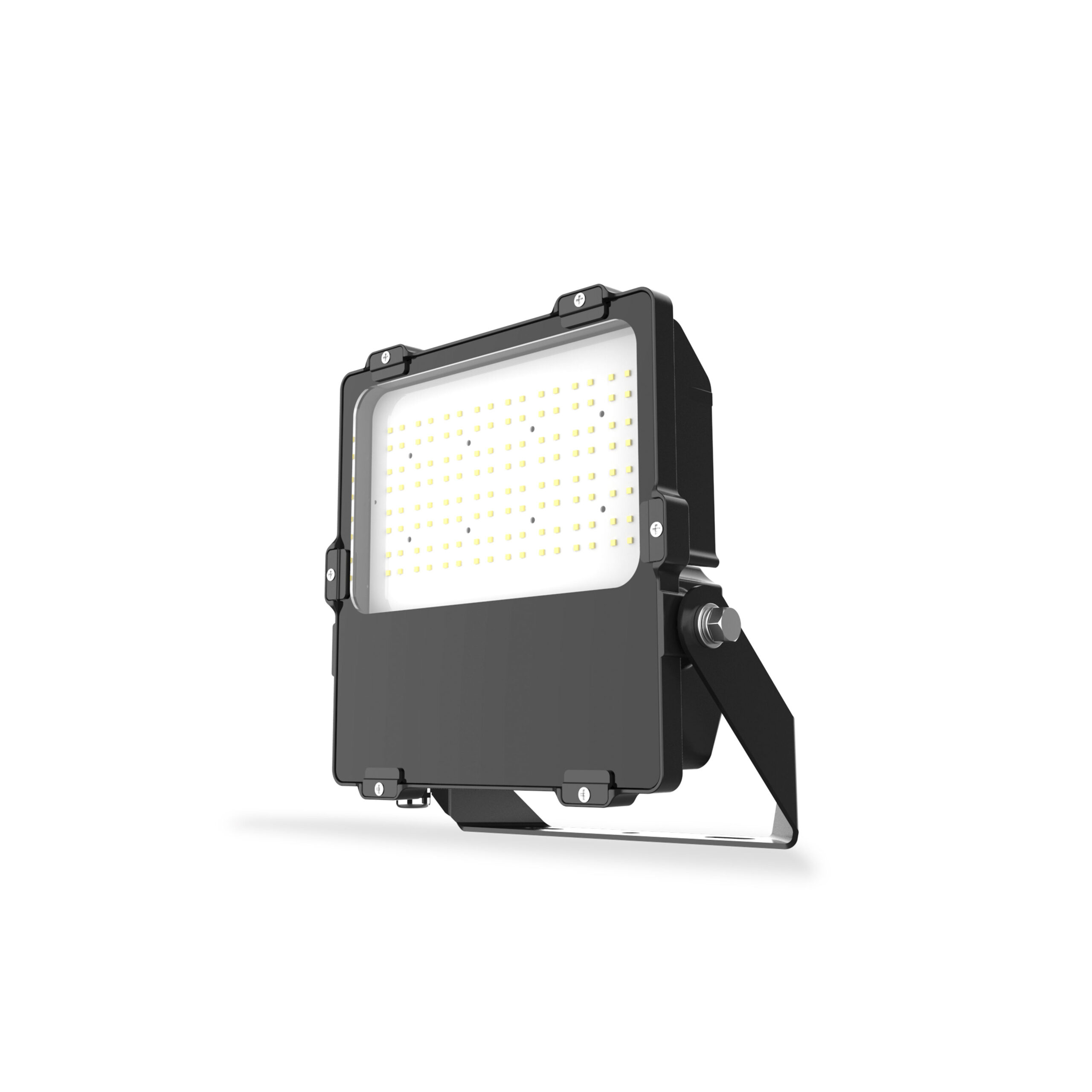

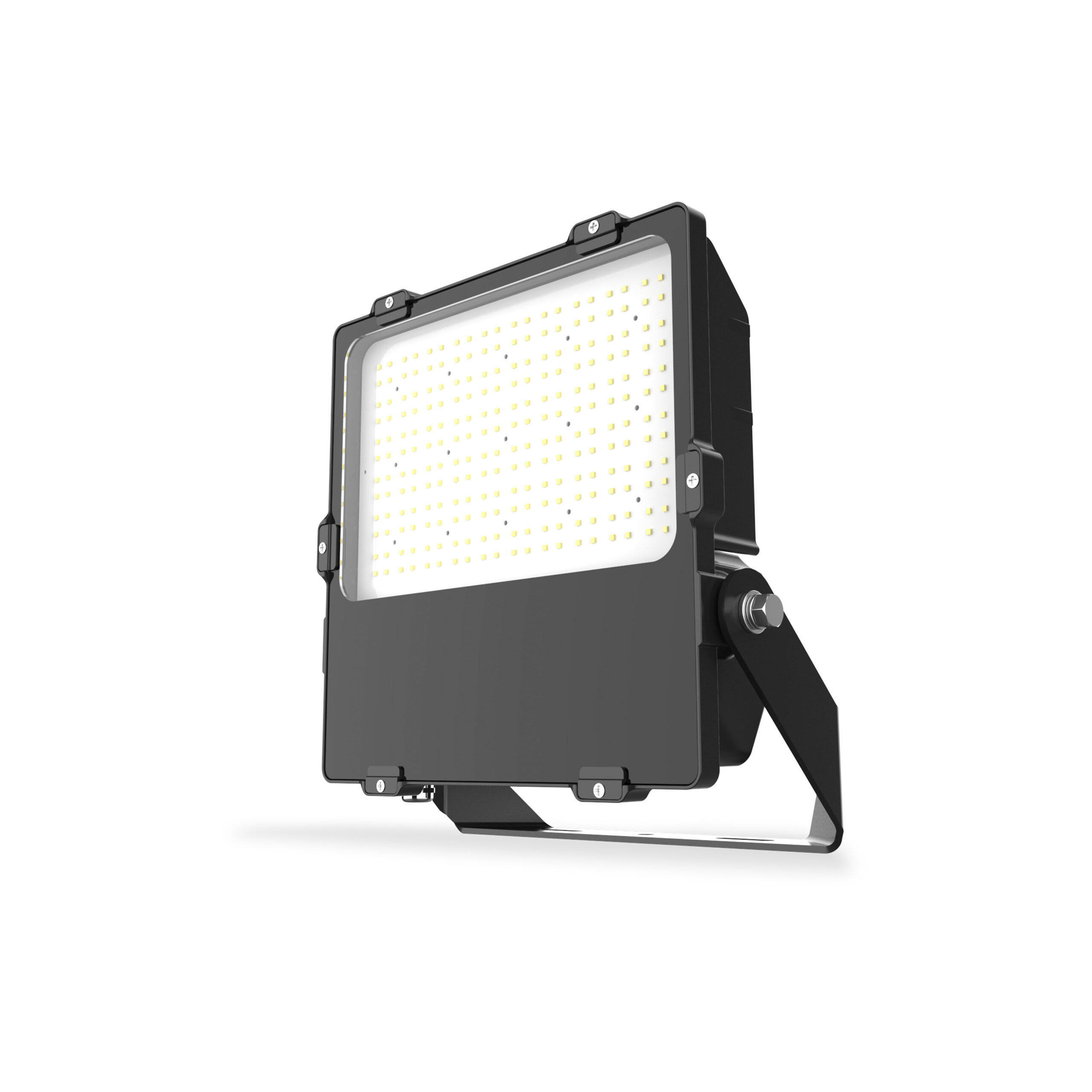

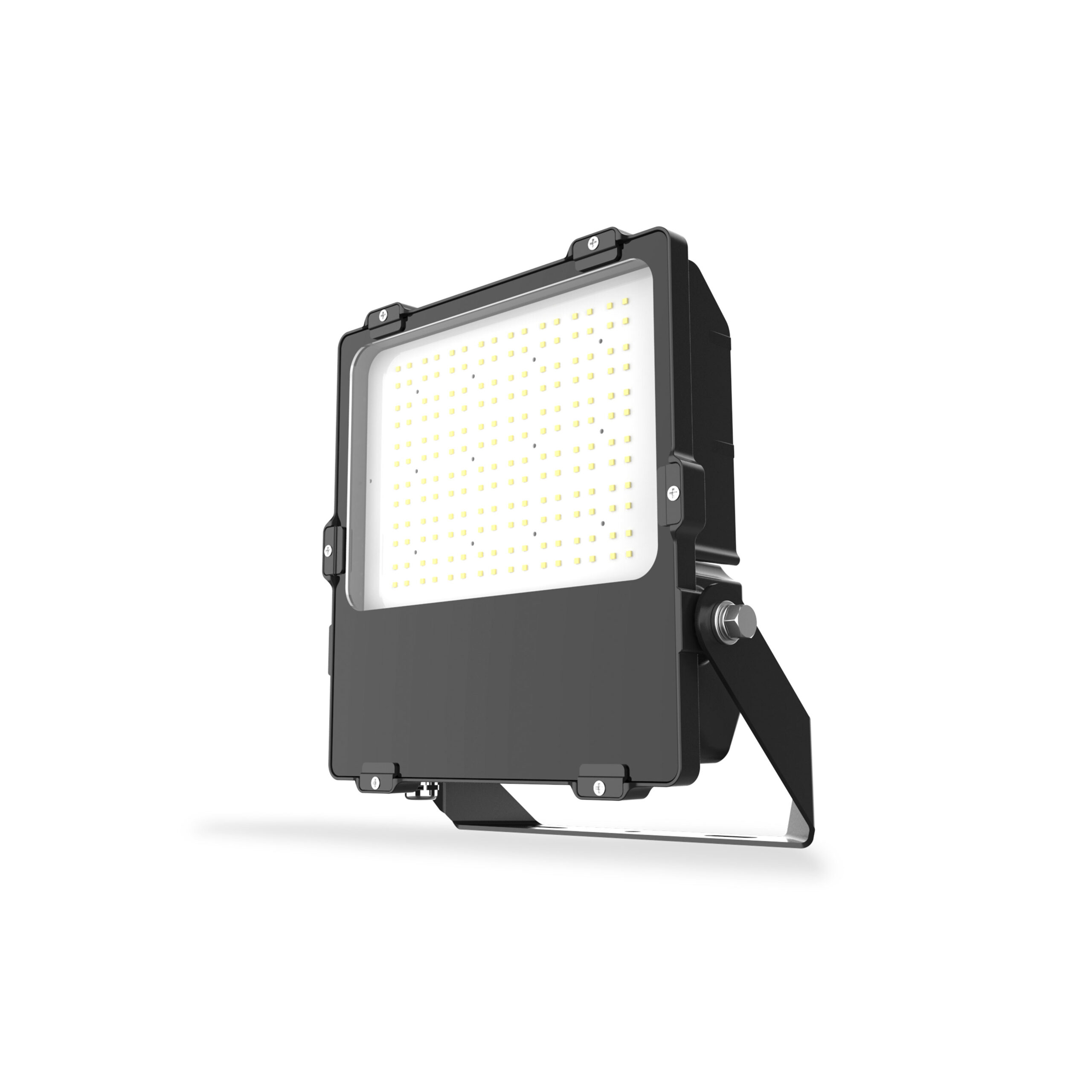

AT9814

Commercial LED Floodlight

Ideal for sport venues, car parks and outdoor applications
Tempered Glass diffuser – stronger and safer
Quick installation
Symmetrical light distibution
LEDs wired with matrix connections
Aluminium cast body with high-quality powder-coated black finish
IK08 Rating – resistant to the hard knocks of weather and impact
Reduced tolerance between the PCBA and aluminium heatsink ensuring better lifetime

SKU: AT9814 Category: Floodlights

Specifications

IP Rating	IP66
IK Rating	IK08
Adjustability	Adjustable
Fitting Colour	Black
Product Finish	Powdercoated
Body Material	Aluminium
Diffuser Material	Glass
Installation Type	Surface mount

Working Temp Range	-30 to 45 °C
Input Frequency	50 Hz
Switch Type	Inline
Power Factor	0.94
Inrush Current	80 A
Inrush Duration	160uS (50%) uS
Maximum Wattage	100 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Surge Protection L-N	4kV
Surge Protection L/N-PE	4kV
Earth Leakage	0.75 mA

Colour Rendering Index (CRI)	>70
CCT Configuration	Single
Macadam Steps (SDCM)	5-step MacAdam Ellipse
Beam Angle	120 °

LED Lifetime	54000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Rating	L70 B10 (9K)
TM-21 Test Hours	9000 hrs

CCT Colour	Daylight
LED Wattage	93 W
Luminaire Lumens	14410 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.
CCT	5000 K

Driver Type	Fixed output
Driver Included	Yes
Integrated Driver	No
Dimmable	No
Flex & Plug or Lead Length	1500 mm
Wiring Type	Flying leads (3 wire)
Driver Mode	Constant Current
Driver Current	790 mA

Ipart Approval	Yes
REES Approval	Yes
VEU Approval	Yes

Daily Use	10 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards	AS/NZS 60598.1 AS/NZS 60598.2.5 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15

VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to our Warranty page.
Operational Lifetime	50000 hrs
Domestic Use Warranty	3 RTB (Total 3 Years)

Dimensions

Product Height	335 mm
Product Length	295 mm
Product Width	71 mm
Product Weight	3700 g

AT9814/100

Ordering Information

Order code	Item code	Description	Availability
18105	AT9814/100	100W LED IP66 Floodlight - Series III - 5000K
