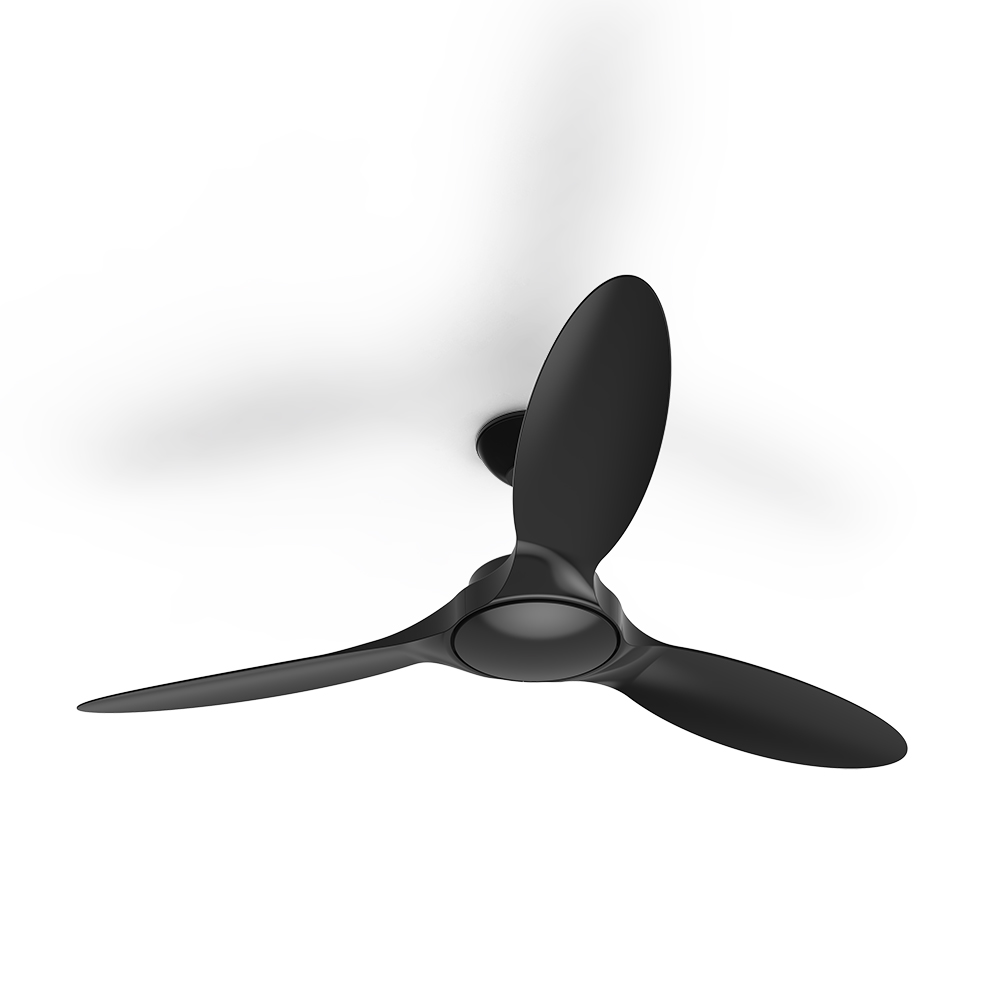

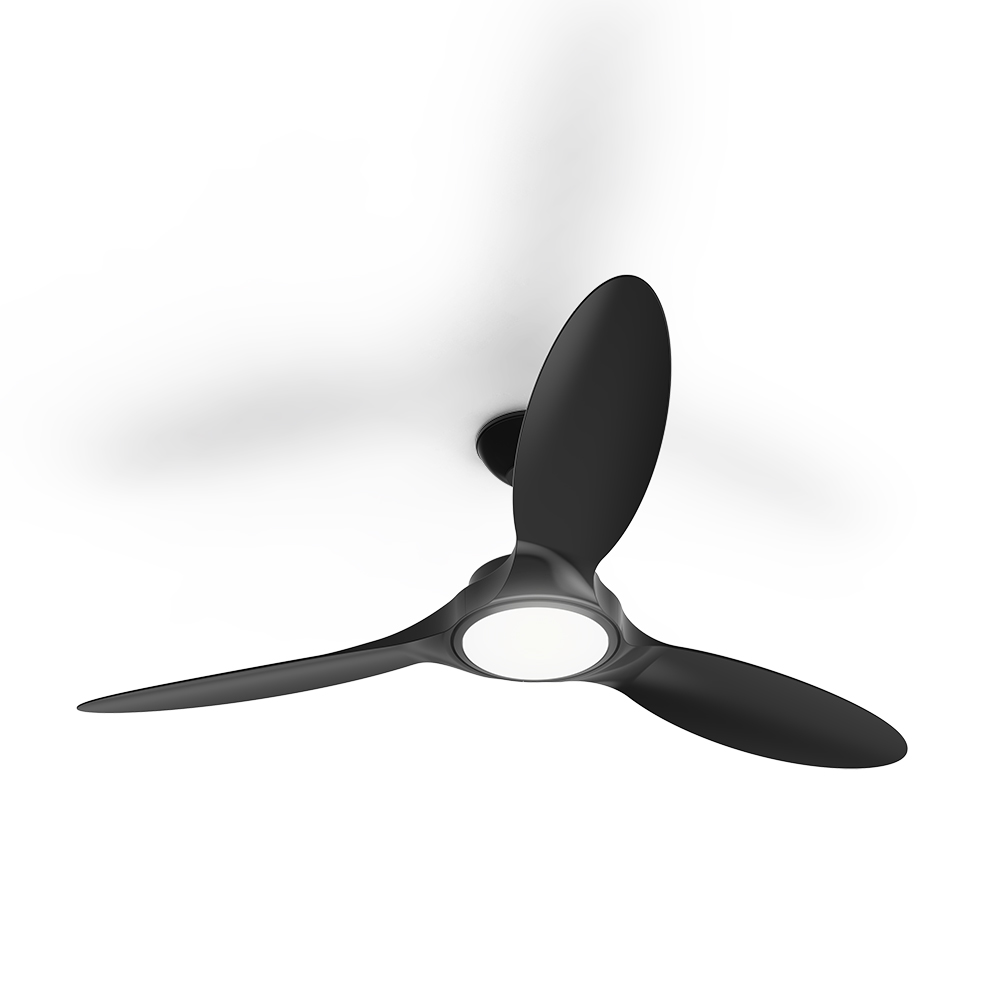

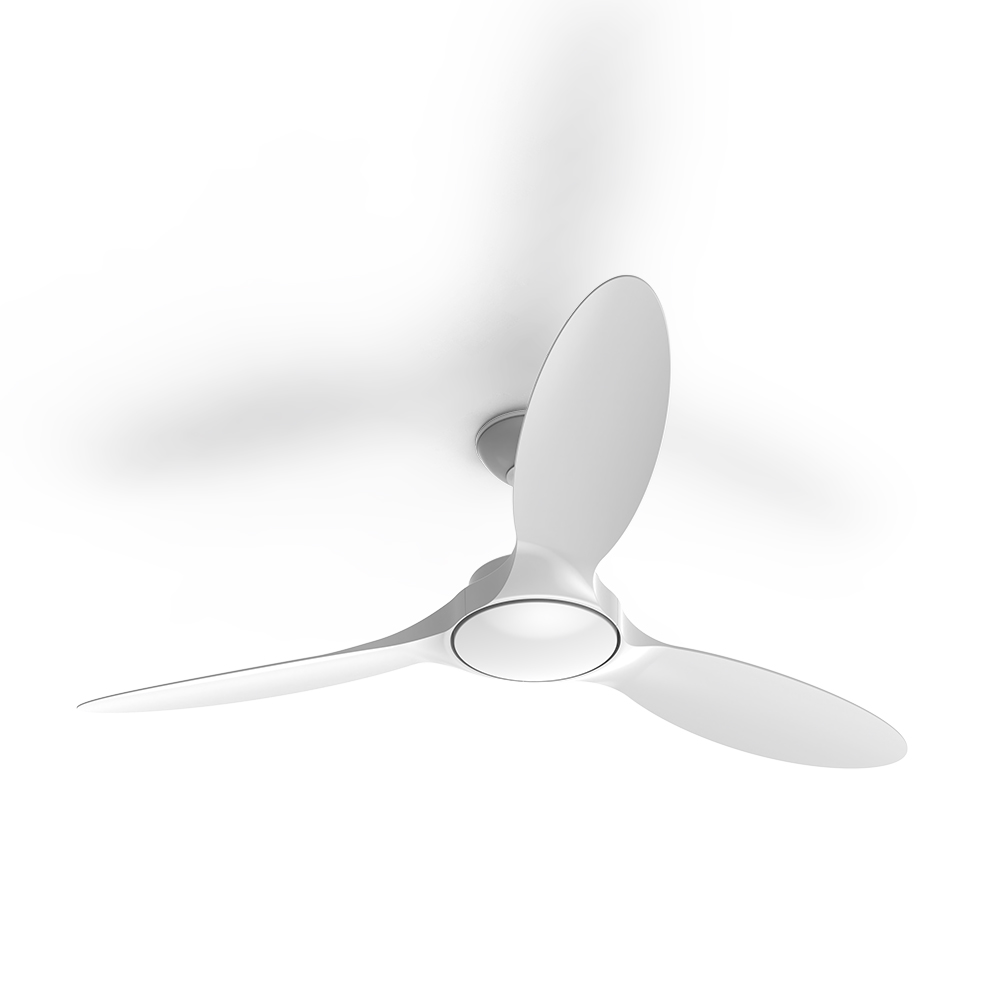

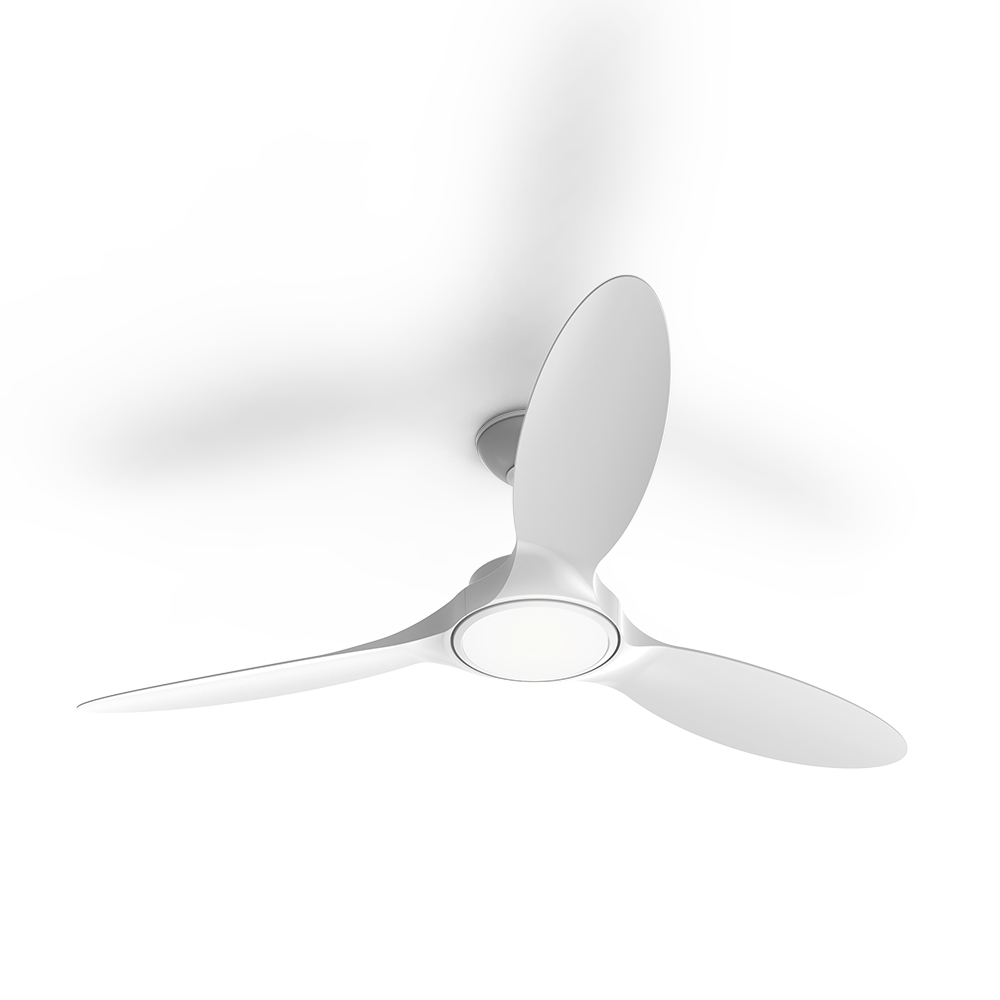

Bronte
3 blade 40W DC ceiling fan
- Brushless quiet and efficient 40W DC motor
- Slimline design ideal for indoor and covered outdoor applications
- ABS body and ABS canopy
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use (via remote control)

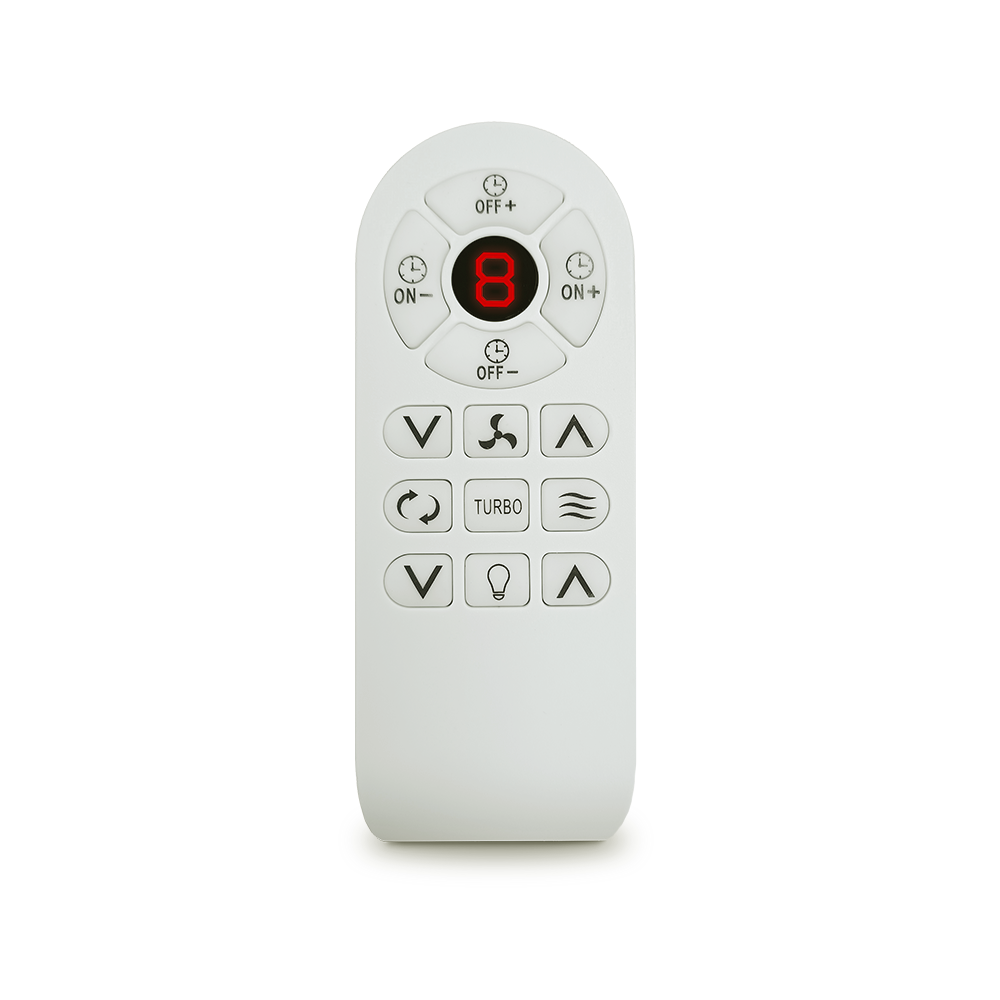

- Supplied with 8 speed remote with turbo speed function and up to 12h timer
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |
| BRONTE/54/BK | Matt Black |
| BRONTE/54/WH | Satin White |
| Body Material | ABS |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Air Movement
| Motor Wattage | 40 W |
|---|---|
| Motor Type | DC |
| No. Speeds | 8 |
| Control | Remote control |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 300 mm |
| Blade Pitch | 15 ° |
| Blade Material | ABS |
| Fan Size | 1370mm (54inch) |
| Fan Speed 1 | 7 W, 110 rpm, 9600 m³/h |
| Fan Speed 2 | 11 W, 130 rpm, 10800 m³/h |
| Fan Speed 3 | 15 W, 150 rpm, 12000 m³/h |
| Fan Speed 4 | 20 W, 170 rpm, 13200 m³/h |
| Fan Speed 5 | 25 W, 180 rpm, 13800 m³/h |
| Fan Speed 6 | 30 W, 190 rpm, 14400 m³/h |
| Fan Speed 7 | 35 W, 200 rpm, 15000 m³/h |
| Fan Speed 8 | 40 W, 210 rpm, 16200 m³/h |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Product Height | 321 mm |
|---|---|
| Product Width | 1370 mm |
| Product Weight | 4800 g |
BRONTE/54
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18479 | BRONTE/54/BK | 54 inch (1370mm) 3 blade 40W DC ceiling fan black | |
| 18478 | BRONTE/54/WH | 54 inch (1370mm) 3 blade 40W DC ceiling fan white |
Documents & Downloads
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12508 | DCREMOTE/BK | Remote control for DC ceiling fans - Remote only - Black | |
| 11346 | DCREMOTE/WALL/WH | Wall-mount remote controller for DC Ceiling fans - White | |
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
