Efficiencies

Total System Efficiency

107 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP Rating	IP44 Front Face Only
IC Rating	IC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Adjustability	Fixed
Fitting Colour	White
Product Finish	Powdercoated
Body Material	Aluminium
Installation Type	Recessed

Electrical

Working Temp Range	-20 to 40 °C
Input Frequency	50 Hz
Switch Type	Inline
Maximum Wattage	7 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Lamp

Colour Rendering Index (CRI)	>80
CCT Configuration	Single
Macadam Steps (SDCM)	5-step MacAdam Ellipse
Lamp/LED voltage	36 V
Lamp/LED Current	200 mA

LED Lifetime

LED Lifetime	>54,000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
TM-21 Test Hours	9000 hrs

Colour temperature

Warm White (3000 K)	710 lm
Cool White (4000 K)	750 lm
DayLight (5700 K)	720 lm

Driver

Driver Type	Dimmable ( Phase cut)
Driver Included	Yes
Integrated Driver	No
Dimmable	Yes
Wiring Type	Re-wireable Flex & Plug (2 pin)
Driver Current	160 mA

Compliance

Standards	AS/NZS 60598.1 AS/NZS 60598.2.2 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15

Warranty

Domestic Use Warranty	3 (Yr) RTB
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page.

Product Height

35 mm

Cutout

70 mm

Product Diameter

86 mm

Order code

Item code

Description

Availability

12420

AT9036/WH/TRI

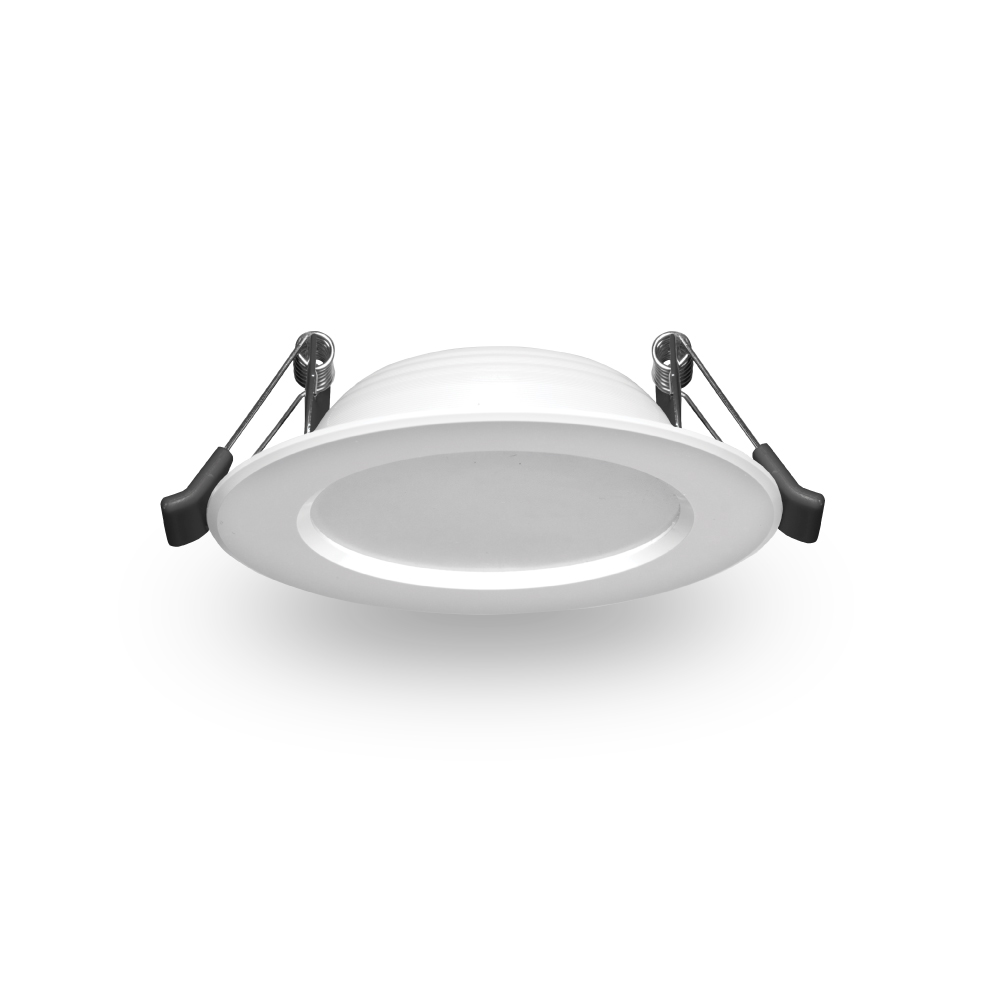

7W LED Downlight w/Dimm Driver - 120Deg beam - White - TRI-CCT

SKU: AT9036 TRI Category: Recessed Tags: Indoor, Domestic, IC-4, Ip44 front face only

Specifications

IP Rating	IP44 Front Face Only
IC Rating	IC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Adjustability	Fixed
Fitting Colour	White
Product Finish	Powdercoated
Body Material	Aluminium
Installation Type	Recessed

Working Temp Range	-20 to 40 °C
Input Frequency	50 Hz
Switch Type	Inline
Maximum Wattage	7 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Colour Rendering Index (CRI)	>80
CCT Configuration	Single
Macadam Steps (SDCM)	5-step MacAdam Ellipse
Lamp/LED voltage	36 V
Lamp/LED Current	200 mA

LED Lifetime	>54,000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
TM-21 Test Hours	9000 hrs

Warm White (3000 K)	710 lm
Cool White (4000 K)	750 lm
DayLight (5700 K)	720 lm

Driver Type	Dimmable ( Phase cut)
Driver Included	Yes
Integrated Driver	No
Dimmable	Yes
Wiring Type	Re-wireable Flex & Plug (2 pin)
Driver Current	160 mA

Standards	AS/NZS 60598.1 AS/NZS 60598.2.2 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15

Domestic Use Warranty	3 (Yr) RTB
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page.
