Azzure
$0.00

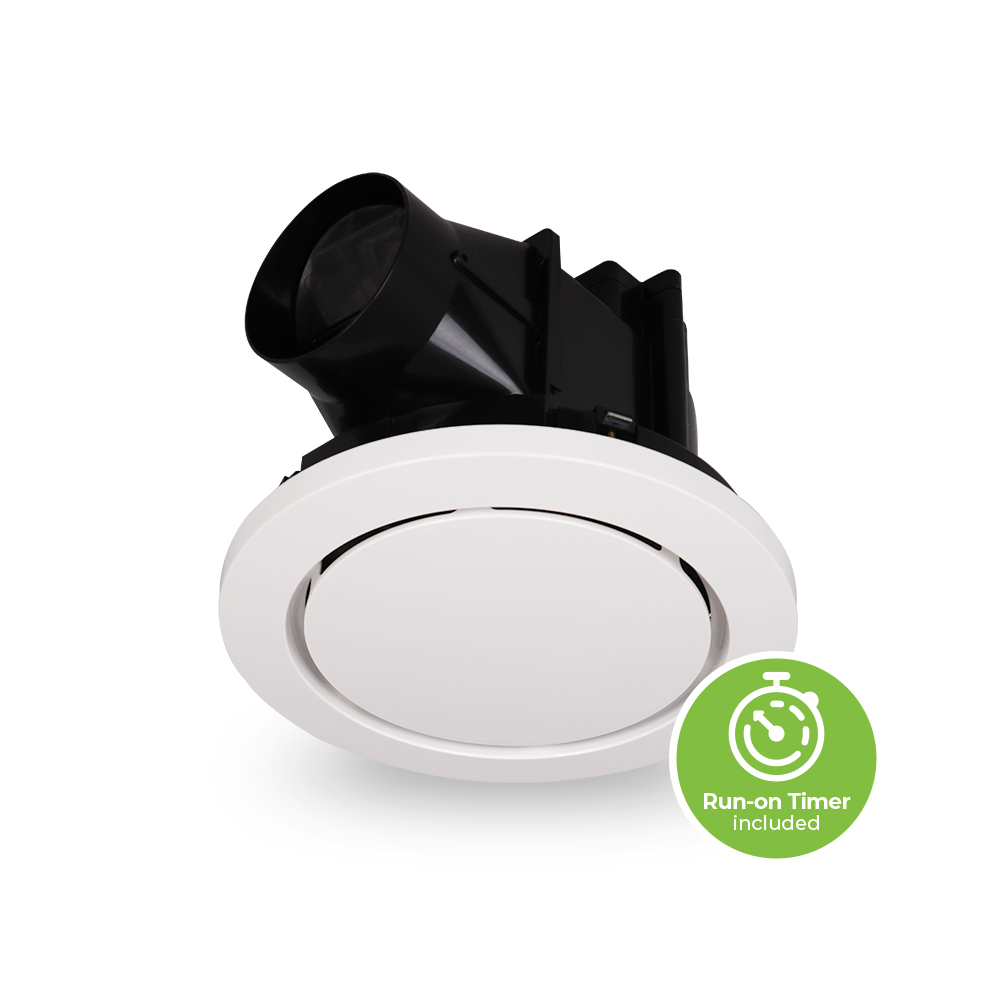

Ducted exhaust fan with run-on timer
- Supplied with run-on timer adjustable from 1 to 25 minutes
- Powerful ball bearing motor for superior reliability
- Enjoy quiet operation
- 3-year return to base warranty for peace of mind
- Draught stopper for improved energy efficiency
Specifications
Mechanical
| IP Rating | IPx4 |
|---|---|
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Air Movement
| Outlet | 100 mm |
|---|---|
| Noise level | 42 dB |
| Motor Wattage | 30 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Fan Size | 240 |
| Air extraction | 270 m3/hr |
Driver
| Wiring Type | Re-wireable terminal block (4 pin) |
|---|
Compliance
| Product Design Life | 10 Years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty Operating Hours | 2500 hrs |
|---|---|
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 195 mm |
|---|---|
| Product Length | 270 mm |
| Product Width | 270 mm |
| Minimum Ceiling Depth | 220 mm |
| Cutout | 240 mm |
AZZURE/240/WH/RD
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14843 | AZZURE/240/WH/RD | 240mm 30W Ducted exhaust fan with round white fascia and run-on timer |
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12677 | AT9492 | 125mm Duct Adapter to suit Small Eclipse | |
| 16776 | ECLIPSE/TRIM/240/B/RD | 240mm round exhaust fan fascia - matt black | |
| 16780 | ECLIPSE/TRIM/240/B/SQ | 240mm square exhaust fan fascia - matt black | |
| 16778 | ECLIPSE/TRIM/240/WH/SQ | 240mm square exhaust fan fascia - matt white |
