Proton
$0.00
Axial exhaust fan
- Powerful motor providing high velocity extraction
- Includes vent flaps for improved energy efficiency
- Supplied with flex and plug for easy DIY installation
- 3-year return to base warranty for peace of mind
Specifications
Mechanical
| Product Finish | Gloss |
|---|---|
| Fitting Colour | White |
| Installation Type | Recessed |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Air Movement
| Noise level | |
|---|---|
| PROTON/200/WH | 34 dB |
| PROTON/250/WH | 36 dB |
| Motor Wattage | |
| PROTON/200/WH | 25 W |
| PROTON/250/WH | 32 W |
| Motor Type | Ball bearing |
| Fan Type | Axial |
| Fan Size | |
| PROTON/200/WH | 200 |
| PROTON/250/WH | 250 |
| Air extraction | |
| PROTON/200/WH | 500 m3/hr |
| PROTON/250/WH | 750 m3/hr |
Driver
| Flex & Plug or Lead Length | 900 mm |
|---|---|
| Wiring Type | Re-wireable Flex & Plug (3 pin) |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| Warranty Operating Hours | 2500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Item Code | Minimum Ceiling Depth | Cutout | Product Height | Product Length | Product Width |
|---|---|---|---|---|---|
| PROTON/200/WH | 215 mm | 240 mm | 128 mm | 290 mm | 290 mm |
| PROTON/250/WH | 260 mm | 295 mm | 135 mm | 345 mm | 345 mm |

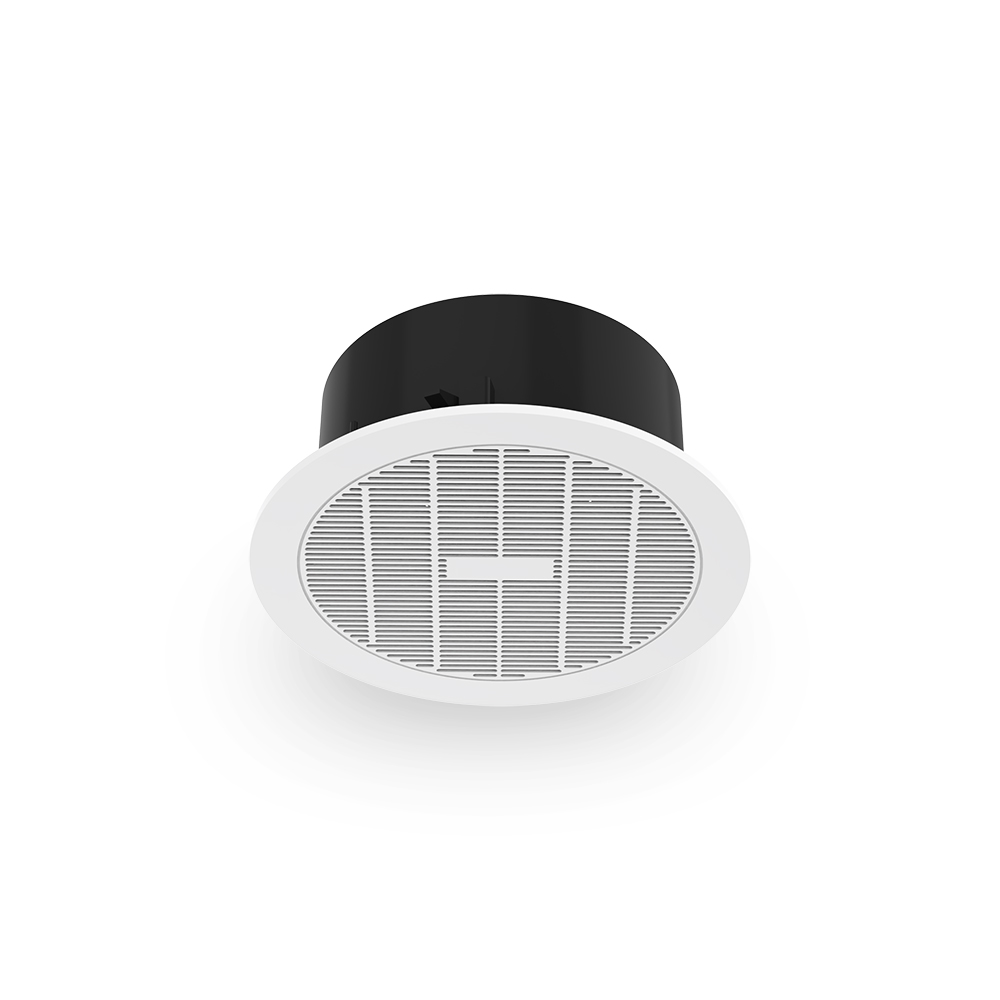

PROTON/200/WH

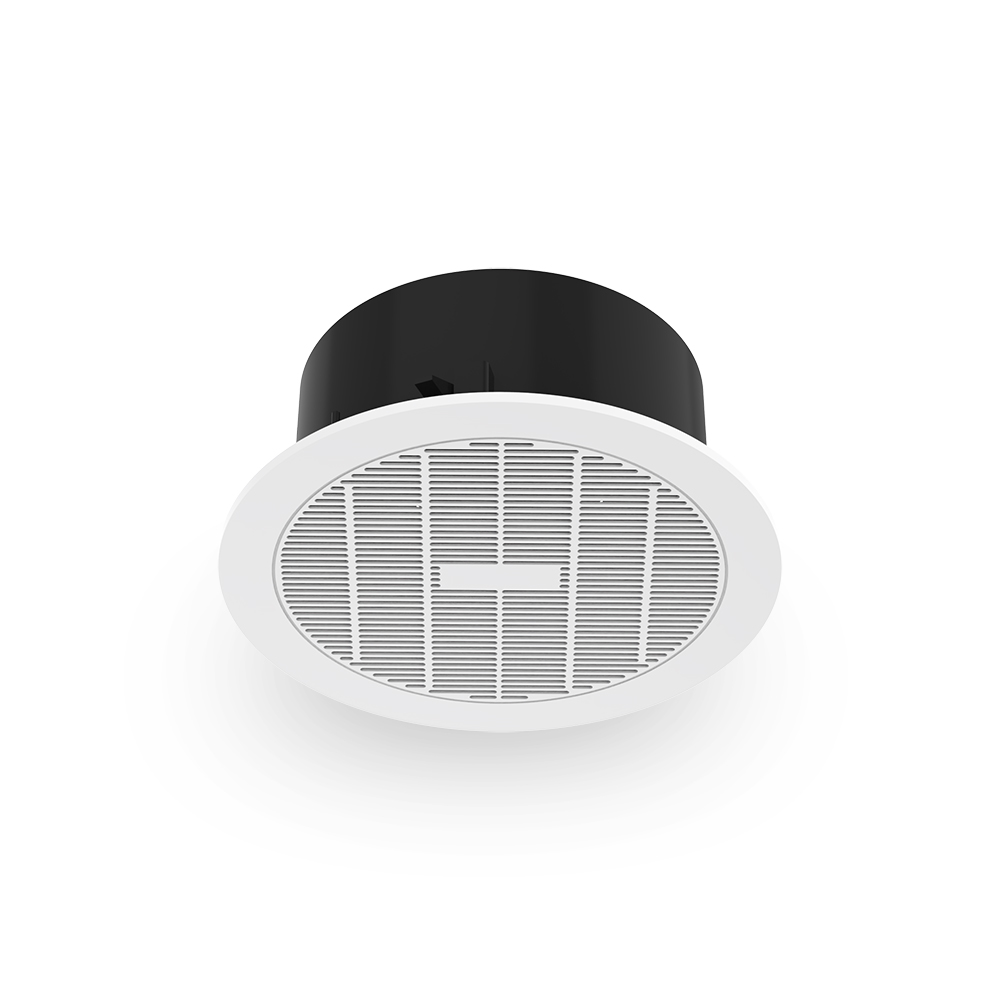

PROTON/250/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 16765 | PROTON/200/WH | 200mm 25W high velocity exhaust fan - white | |
| 16766 | PROTON/250/WH | 250mm 32W high velocity exhaust fan - white |
