Mooloolah Mini
$0.00

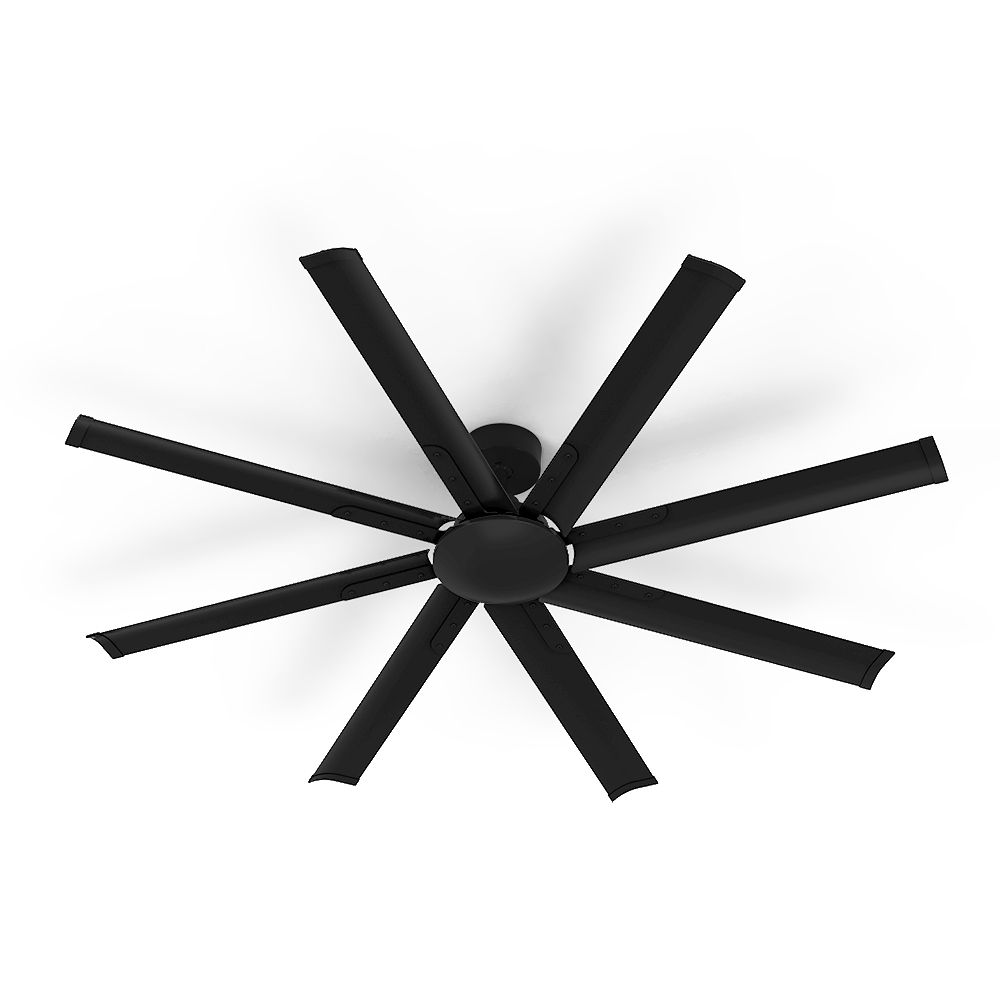

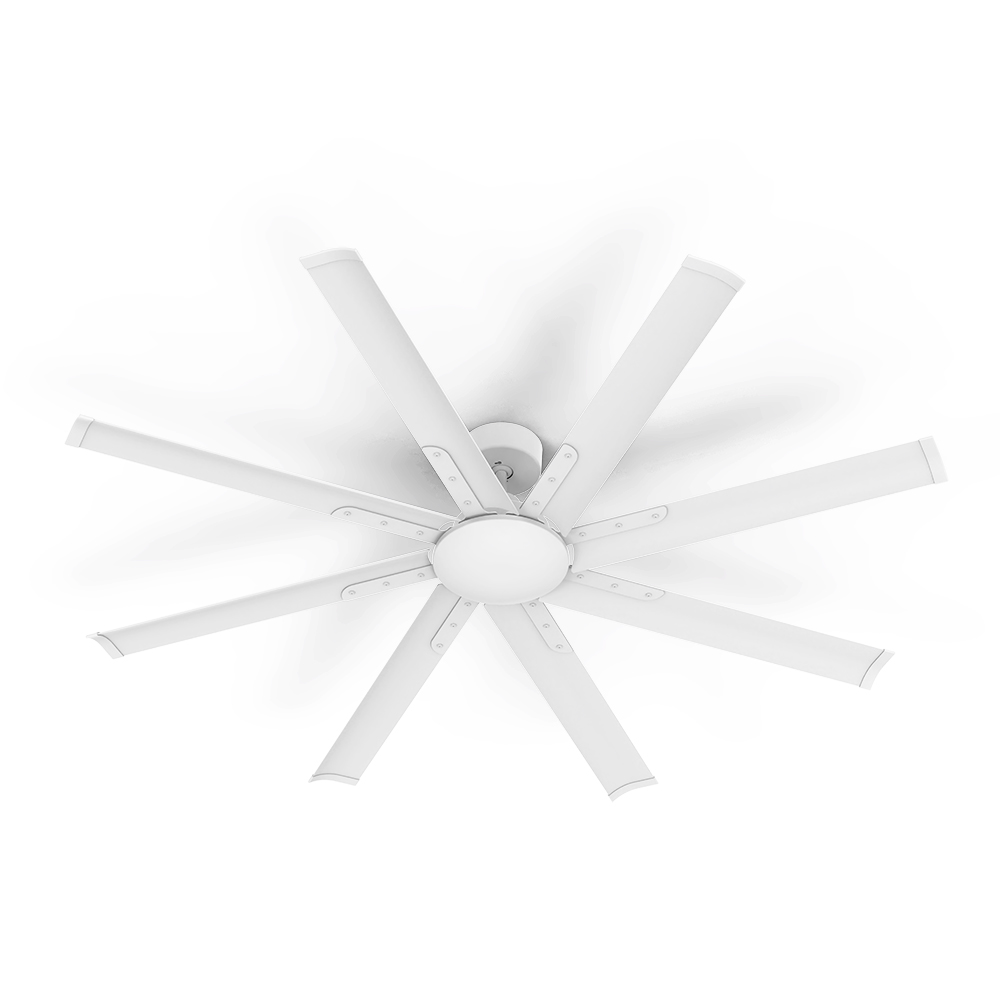

8 blade 55W DC ceiling fan
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Fitted with 8 corrosion-resistant anodised aluminium blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use (via remote control)
Selected Models
- Our most powerful and energy efficient 55W DC motor
- Suitable for indoor and covered outdoor applications

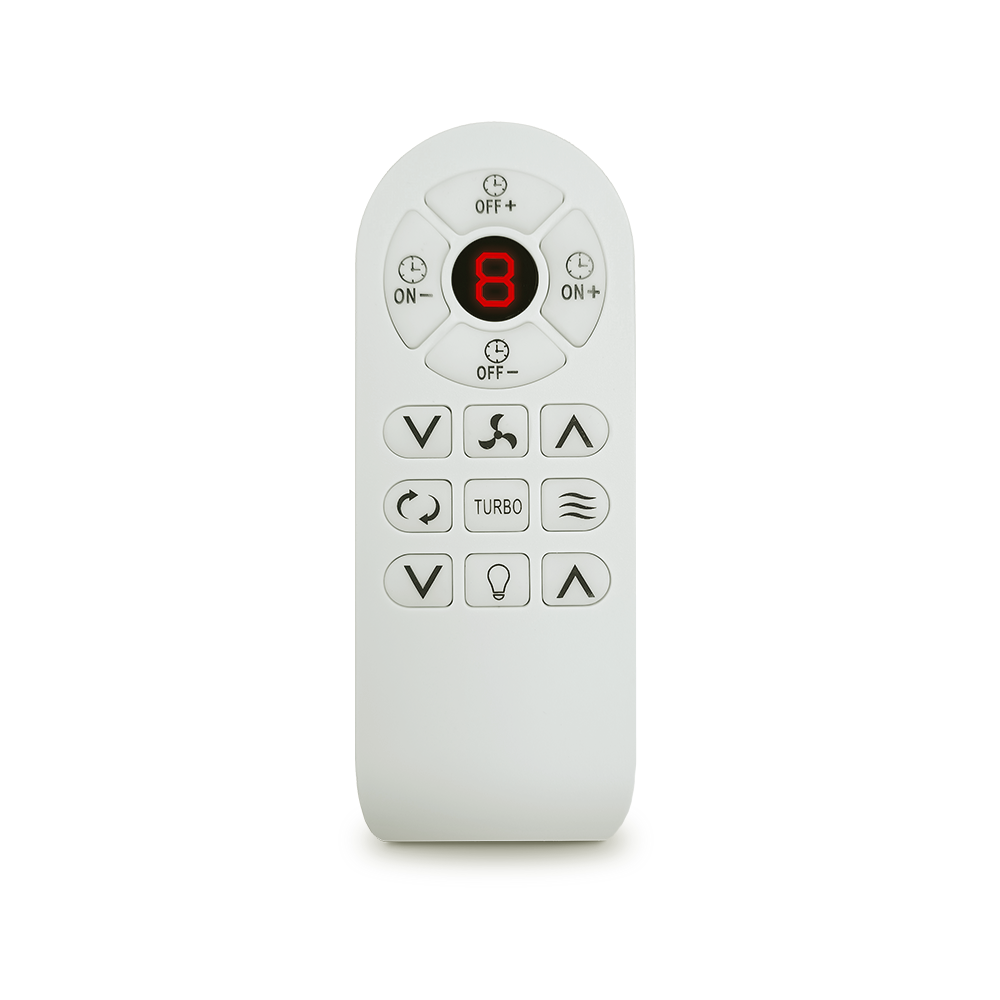

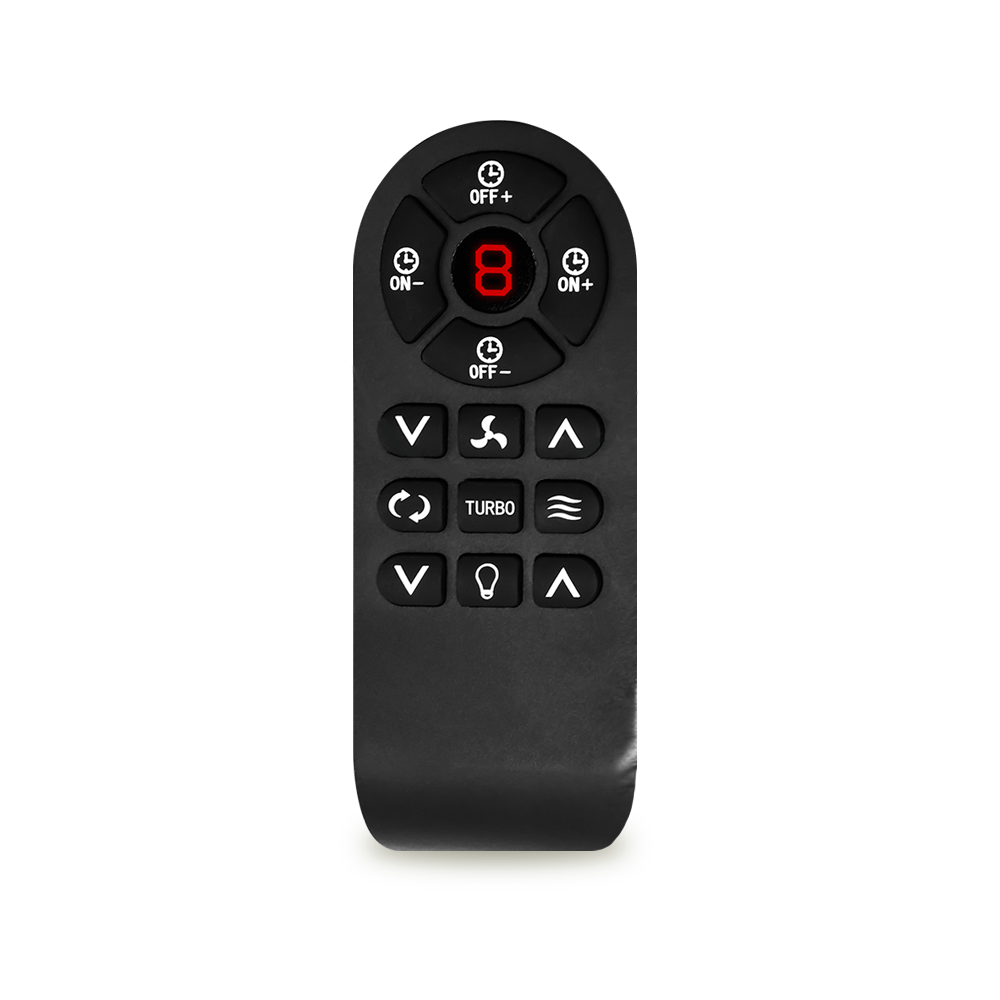

- Supplied with 8 speed remote with turbo speed function and up to 12h timer
- Powerful and energy efficient 55W DC motor
- Modern design ideal for indoor and covered outdoor applications
- Supplied with 8 speed remote including turbo speed function and up to 12h timer

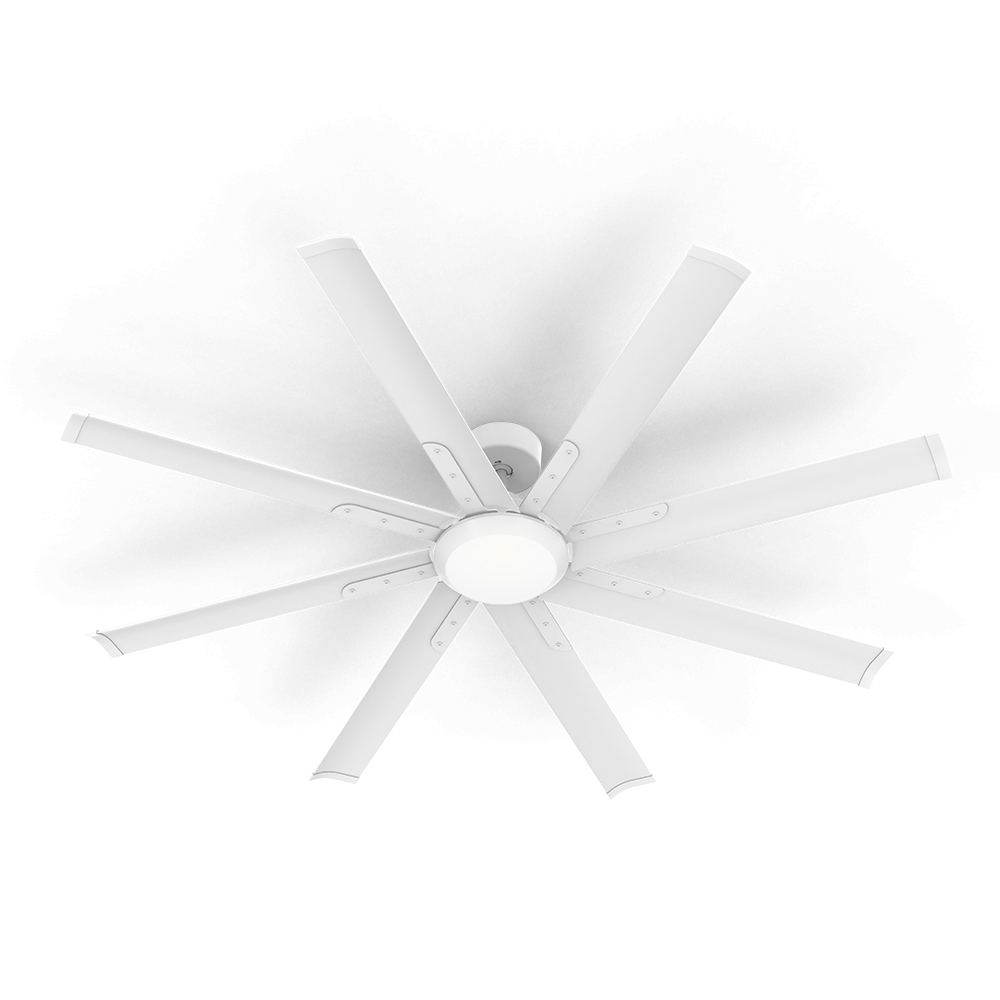

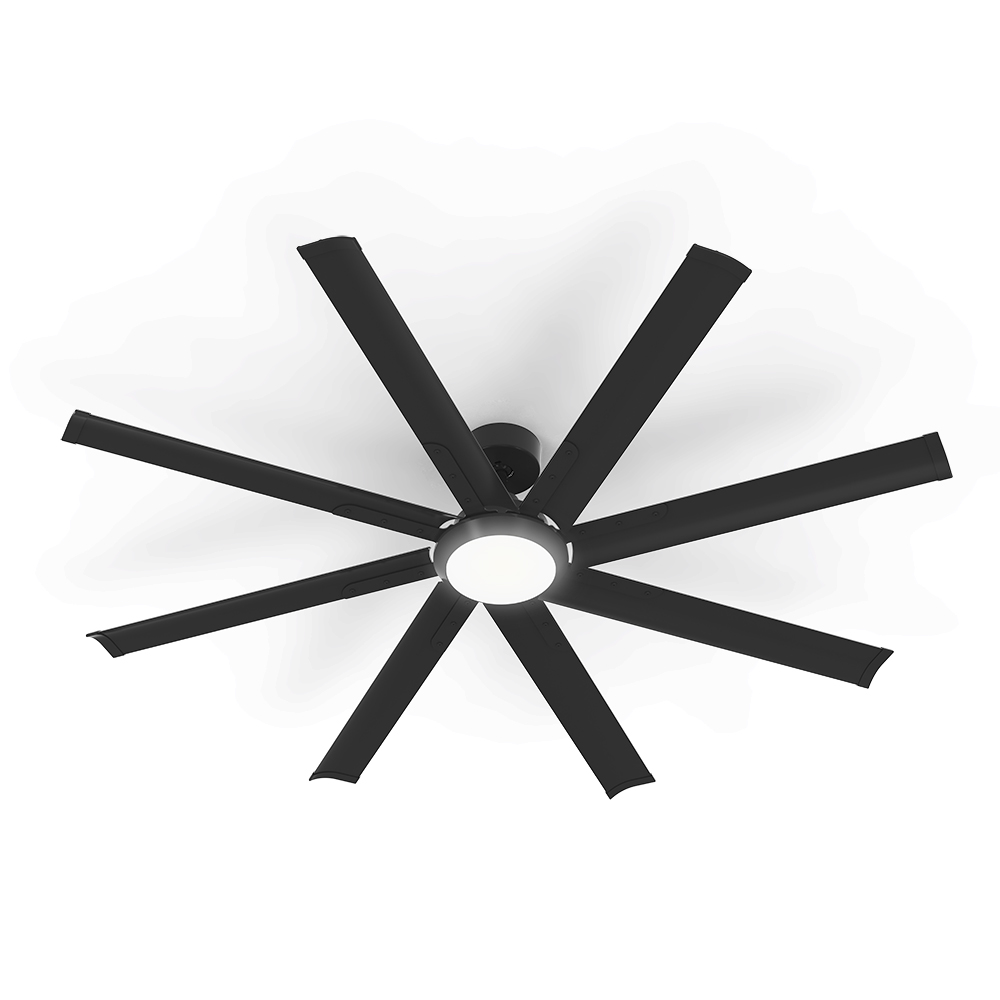

- 20W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K (via remote control)
Specifications
Mechanical
| Body Material | Metal |
|---|---|
| Fitting Colour | |
| MOOLOOLAH/MINI/65/BK MOOLOOLAH/MINI/65/LT/BK | Matt Black |
| MOOLOOLAH/MINI/65/LT/WH MOOLOOLAH/MINI/65/WH | Satin White |
| IP Rating | IP20 |
| Diffuser Material | Polycarbonate |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Lamp
| Beam Angle | 100 ° |
|---|---|
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
Air Movement
| Motor Wattage | 55 W |
|---|---|
| Motor Type | DC |
| No. Speeds | 8 |
| Control | Remote control |
| Ceiling Rake | 15 ° |
| Ceiling Drop | |
| MOOLOOLAH/MINI/65/BK MOOLOOLAH/MINI/65/WH | 270 mm |
| MOOLOOLAH/MINI/65/LT/BK MOOLOOLAH/MINI/65/LT/WH | 300 mm |
| Blade Pitch | 11 ° |
| Blade Material | Aluminium |
| Fan Size | 1650mm (65inch) |
| Fan Speed 1 | 13 W, 70 rpm, 10800 m³/h |
| Fan Speed 2 | 19 W, 80 rpm, 11800 m³/h |
| Fan Speed 3 | 25 W, 90 rpm, 12800 m³/h |
| Fan Speed 4 | 31 W, 97 rpm, 13800 m³/h |
| Fan Speed 5 | 37 W, 104 rpm, 14800 m³/h |
| Fan Speed 6 | 43 W, 109 rpm, 15800 m³/h |
| Fan Speed 7 | 49 W, 112 rpm, 16800 m³/h |
| Fan Speed 8 | 55 W, 120 rpm, 18000 m³/h |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Item Code | Product Height | Product Weight | Product Width |
|---|---|---|---|
| MOOLOOLAH/MINI/65/BK | 303 mm | 8450 g | 1650 mm |
| MOOLOOLAH/MINI/65/WH | 303 mm | 8450 g | 1650 mm |
| MOOLOOLAH/MINI/65/LT/BK | 300 mm | 9600 g | 1650 mm |
| MOOLOOLAH/MINI/65/LT/WH | 300 mm | 9600 g | 1650 mm |
MOOLOOLAH/MINI/65
MOOLOOLAH/MINI/65/LT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18485 | MOOLOOLAH/MINI/65/BK | 65 inch (1650mm) 8 blade 55W DC ceiling fan Matt black | |
| 15616 | MOOLOOLAH/MINI/65/LT/BK | 65 inch (1650mm) 8 Blade 55W DC ceiling fan W/LED Light black | |
| 15615 | MOOLOOLAH/MINI/65/LT/WH | 65 inch (1650mm) 8 Blade 55W DC ceiling fan W/LED Light white | |
| 18484 | MOOLOOLAH/MINI/65/WH | 65 inch (1650mm) 8 blade 55W DC ceiling fan white |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12508 | DCREMOTE/BK | Remote control for DC ceiling fans - Remote only - Black | |
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
