Splash
$0.00

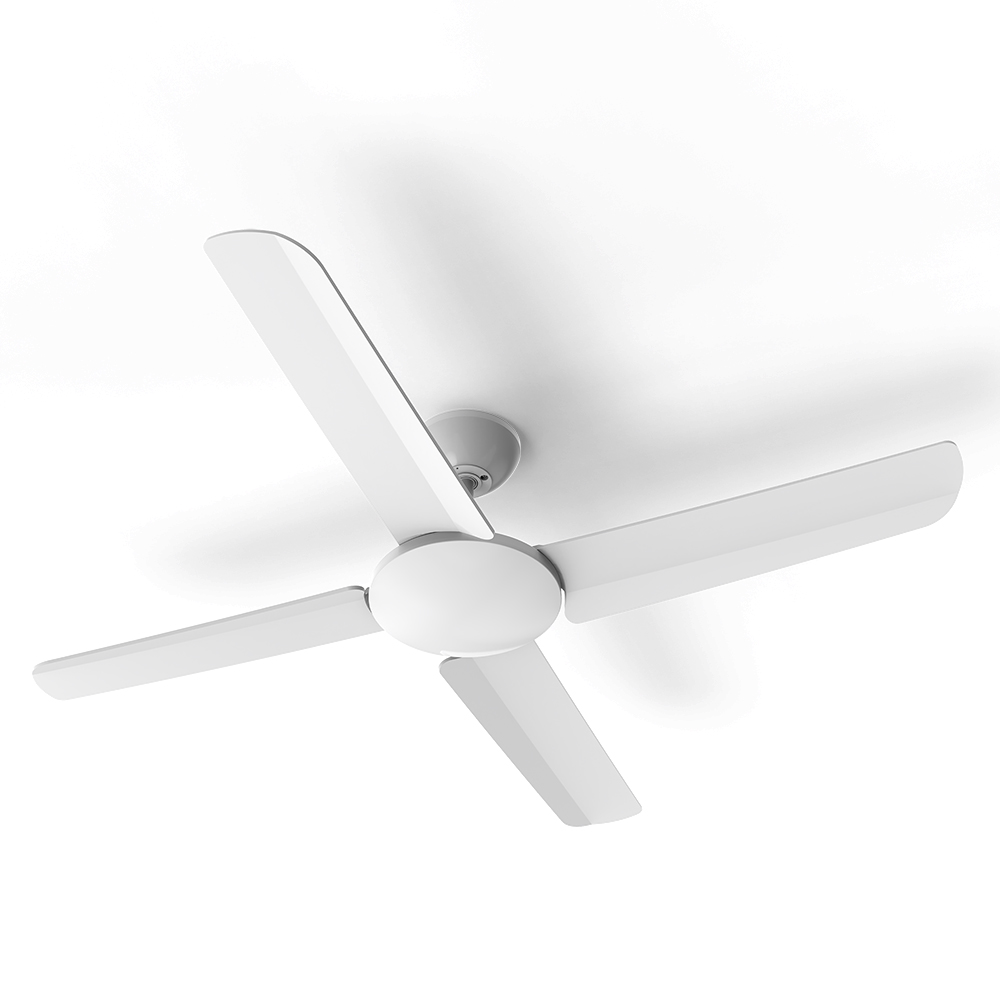

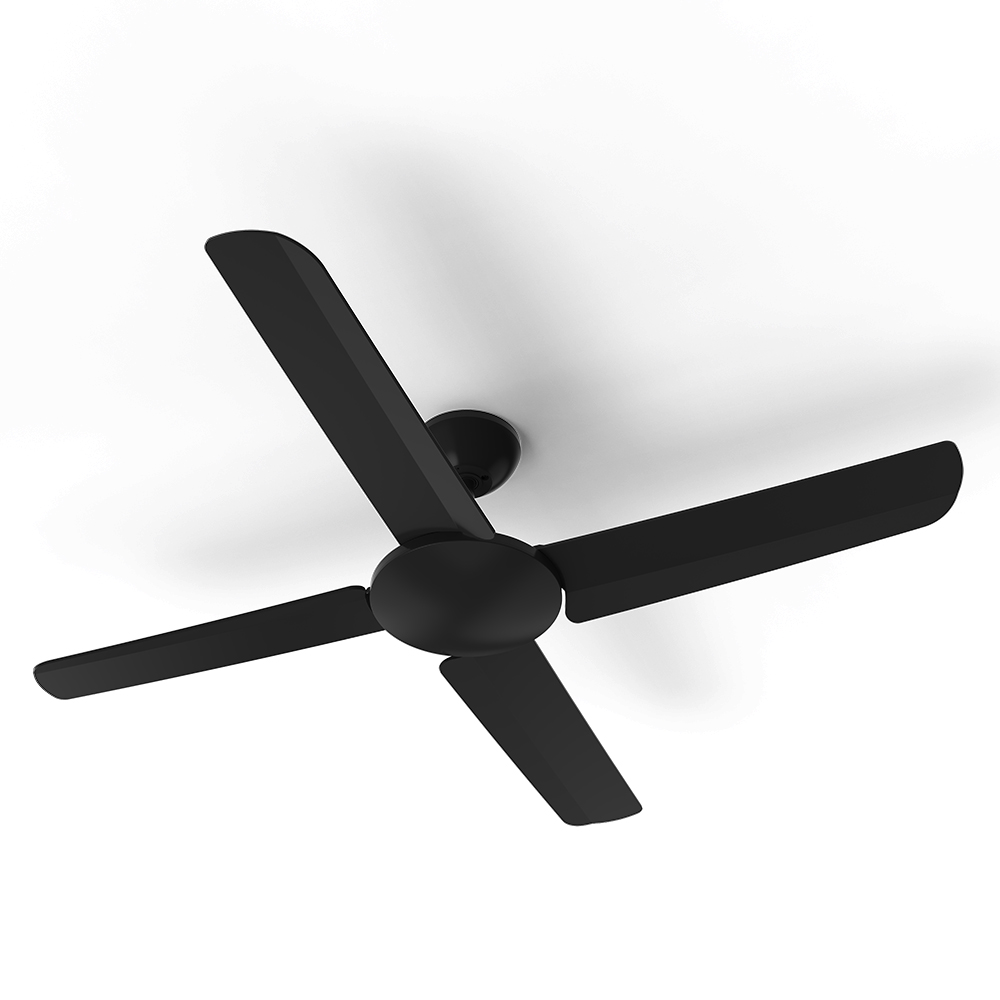

4 blade 40W IP66 DC ceiling fan
- IP66 weatherproof rating (must be installed on a horizontal ceiling)
- Powerful and energy efficient 40W DC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Slimline design ideal for indoor and covered outdoor applications
- ABS body and canopy with 4 reinforced ABS blades
- Reversible for summer and winter use (via remote control)

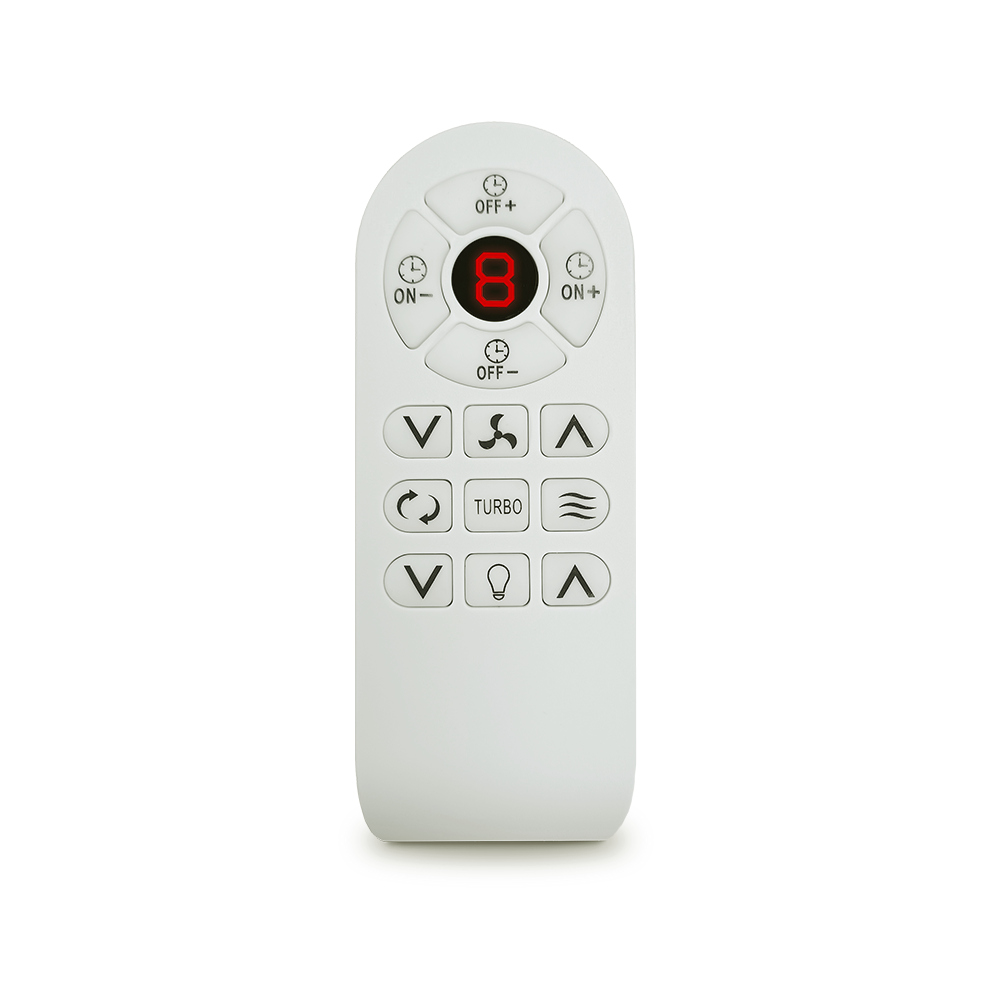

- Supplied with 8 speed remote including turbo speed function and up to 12h timer
Specifications
Mechanical
| IP Rating | IP66 |
|---|---|
| Fitting Colour | |
| SPLASH/52/BK | Matt Black |
| SPLASH/52/WH | Satin White |
| Body Material | ABS |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Air Movement
| Motor Wattage | 40 W |
|---|---|
| Motor Type | DC |
| No. Speeds | 8 |
| Control | Remote control |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 310 mm |
| Blade Pitch | 12 ° |
| Blade Material | ABS |
| Fan Size | 1320mm (52inch) |
| Fan Speed 1 | 3 W, 75 rpm, 4800 m³/h |
| Fan Speed 2 | 6 W, 115 rpm, 6700 m³/h |
| Fan Speed 3 | 15 W, 165 rpm, 8200 m³/h |
| Fan Speed 4 | 20 W, 190 rpm, 9200 m³/h |
| Fan Speed 5 | 25 W, 205 rpm, 9400 m³/h |
| Fan Speed 6 | 30 W, 220 rpm, 10000 m³/h |
| Fan Speed 7 | 35 W, 230 rpm, 11400 m³/h |
| Fan Speed 8 | 40 W, 240 rpm, 12600 m³/h |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Product Height | 310 mm |
|---|---|
| Product Width | 1320 mm |
| Product Weight | 6100 g |
SPLASH/52
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 15610 | SPLASH/52/BK | 52 inch (1320mm) 4 Blade IP66 40W DC Ceiiling Fan black | |
| 15609 | SPLASH/52/WH | 52 inch (1320mm) 4 Blade IP66 40W DC Ceiiling Fan white |
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12508 | DCREMOTE/BK | Remote control for DC ceiling fans - Remote only - Black | |
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
