Airboost
Inline exhaust fan
- Powerful ball bearing motor for superior reliability
- Single speed wall switch
- Supplied with flex and plug for easy installation
- 3-year return to base warranty for peace of mind
Selected Models

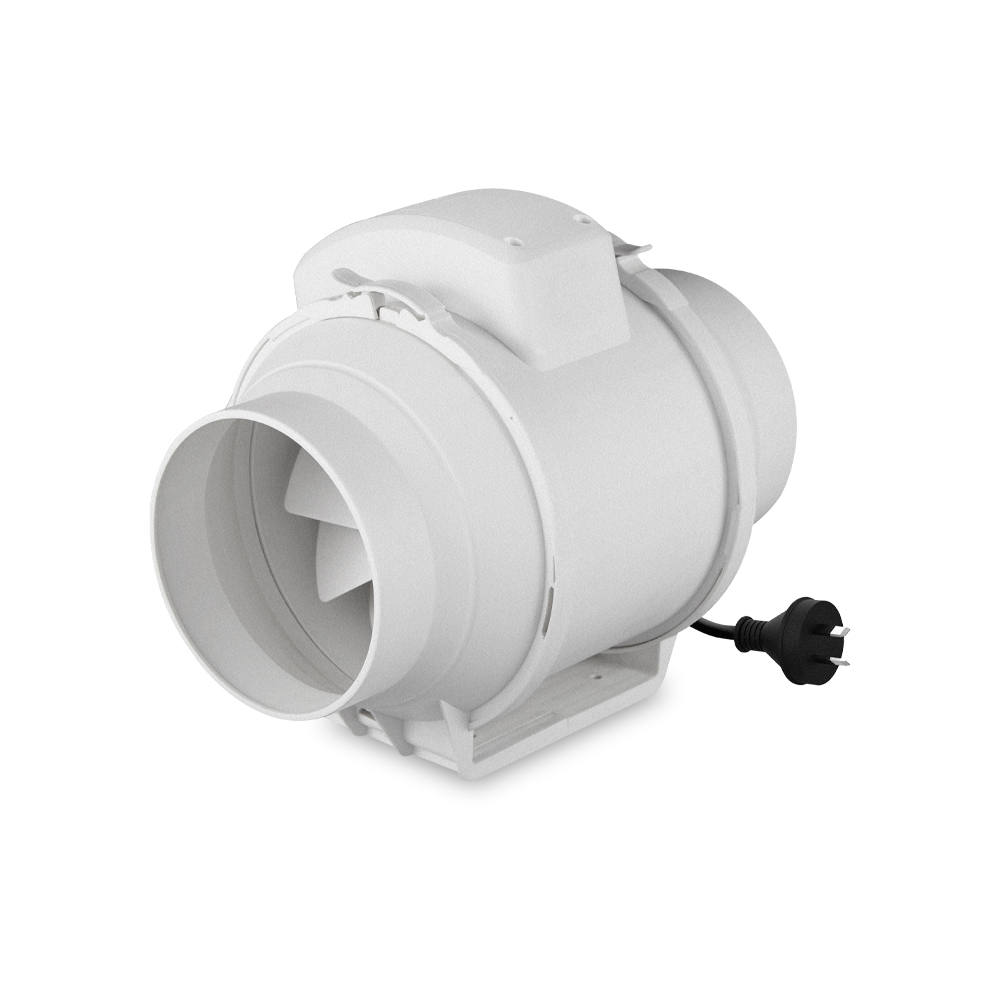

- 150mm high-velocity inline exhaust fan
- 55W motor with 450m3/hr of air extraction

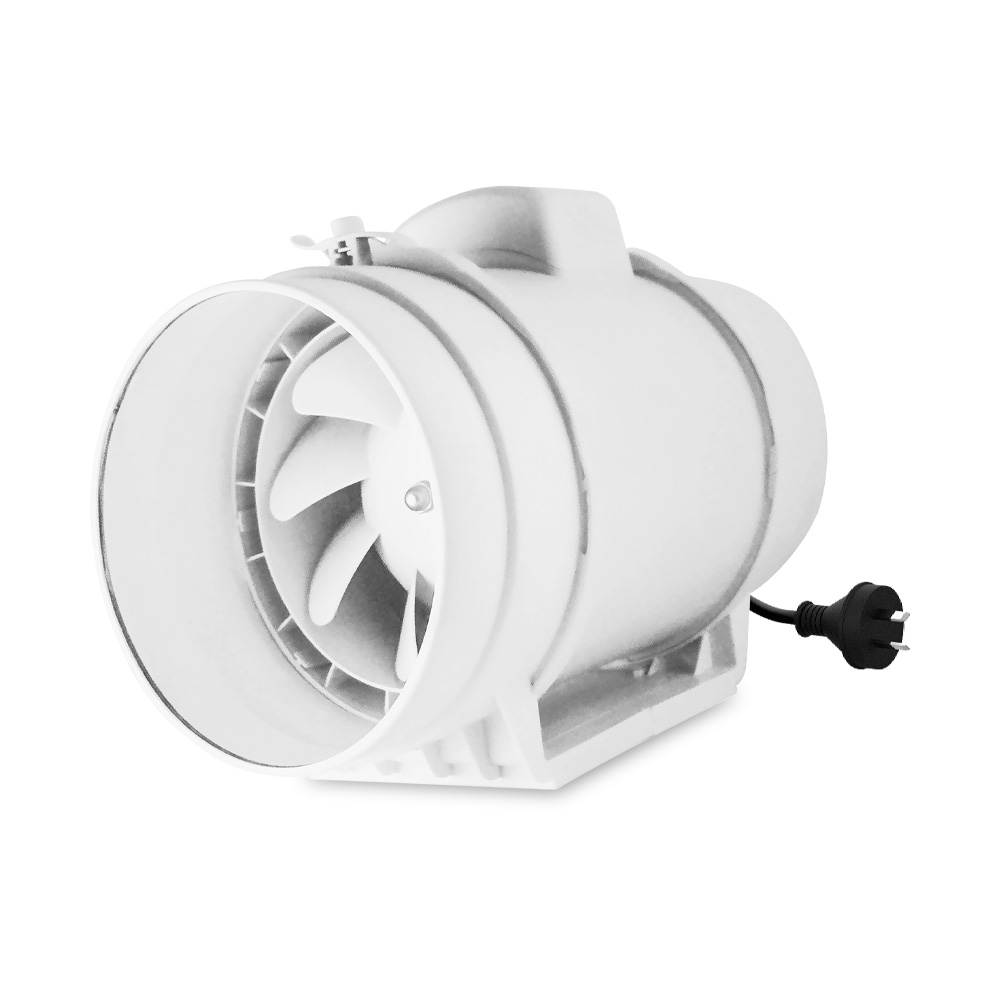

- 200mm high-velocity inline exhaust fan
- 135W motor with 870m3/hr of air extraction
Specifications
Mechanical
| IP Rating | IPx2 |
|---|---|
| Fitting Colour | White |
| Product Finish | Matt |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Air Movement
| Outlet | |
|---|---|
| AIRBOOST/150 | 150 mm |
| AIRBOOST/200 | 200 mm |
| Noise level | |
| AIRBOOST/150 | 63 dB |
| AIRBOOST/200 | 68 dB |
| Motor Wattage | |
| AIRBOOST/150 | 55 W |
| AIRBOOST/200 | 135 W |
| Motor Type | Ball Bearing |
| Fan Type | Centrifugal |
| Air extraction | |
| AIRBOOST/150 | 450 m3/hr |
| AIRBOOST/200 | 870 m3/hr |
Driver
| Flex & Plug or Lead Length | 1000 mm |
|---|
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|
Dimensions
AIRBOOST/150
AIRBOOST/200
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14846 | AIRBOOST/150 | 56W 150mm High-velocity inline exhaust fan - w/F&P | |
| 14847 | AIRBOOST/200 | 68W 200mm High-velocity inline exhaust fan - w/F&P |
