AT3013/SLIM
Slim opal acrylic LED oyster – Tri-CCT
- Versatile surface-mount design with slim 70mm profile
- Provides energy-efficient illumination of up to 111 lm/W
- Tri-CCT selectable, allowing for customisation of colour temperature to suit the application
- Three power settings to tailor brightness
- Easy to install and maintain
- Insect-resistant seal helps to maintain cleanliness of the fitting
- IP54 rated, making it suitable for kitchens, bathrooms and laundries
Selected Models
- In-built motion sensor turns off light when not in use for optimal energy efficiency
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT3013/SLIM/25/TRI/S | 98 lm/W |
| AT3013/SLIM/25/TRI | 103 lm/W |
| AT3013/SLIM/18/TRI | 110 lm/W |
| AT3013/SLIM/14/TRI | 111 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 |
|---|---|
| Fitting Colour | White |
| Body Material | Steel |
| Diffuser Material | Acrylic |
| Installation Type | Wall or Ceiling |
Electrical
| Maximum Wattage | |
|---|---|
| AT3013/SLIM/14/TRI | 14 W |
| AT3013/SLIM/18/TRI | 18 W |
| AT3013/SLIM/25/TRI AT3013/SLIM/25/TRI/S | 25 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
LED Lifetime
| LED Lifetime | 102000 hrs | ||||||
|---|---|---|---|---|---|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |||||||
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
AT3013/SLIM/14/TRI |
| ||||||
AT3013/SLIM/18/TRI |
| ||||||
AT3013/SLIM/25/TRI |
| ||||||
AT3013/SLIM/25/TRI/S |
| ||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
| TM-21 Test Hours | 17000 hrs | ||||||
Colour temperature
AT3013/SLIM/14/TRI
| |||||||||
AT3013/SLIM/18/TRI
| |||||||||
AT3013/SLIM/25/TRI
| |||||||||
AT3013/SLIM/25/TRI/S
| |||||||||
Driver
| Driver Included | Yes |
|---|---|
| Wiring Type | Re-wireable terminal block (3 pin) |
| U_DS_FLICKER_FREE | Yes |
| PSTLM | |
| AT3013/SLIM/25/TRI/S | 0.02 |
| AT3013/SLIM/25/TRI | 0.06 |
| AT3013/SLIM/14/TRI AT3013/SLIM/18/TRI | 0.1 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | |
| AT3013/SLIM/25/TRI | 0.01 |
| AT3013/SLIM/14/TRI AT3013/SLIM/18/TRI AT3013/SLIM/25/TRI/S | 0.04 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Sensor (S suffix)
| Sensor Type | Microwave |
|---|---|
| Lux Range | 2/10/50/- lx |
| Detection Range | 8 m |
| Time Delay | 5s/0.5/1/5 |
Compliance
| Standards |
|
|---|
Dimensions
| Item Code | Product Height | Product Diameter |
|---|---|---|
| AT3013/SLIM/14/TRI | 70 mm | 300 mm |
| AT3013/SLIM/18/TRI | 70 mm | 350 mm |
| AT3013/SLIM/25/TRI | 70 mm | 400 mm |
| AT3013/SLIM/25/TRI/S | 70 mm | 400 mm |
AT3013/SLIM/14/TRI
AT3013/SLIM/18/TRI
AT3013/SLIM/25/TRI/S
AT3013/SLIM/25/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|

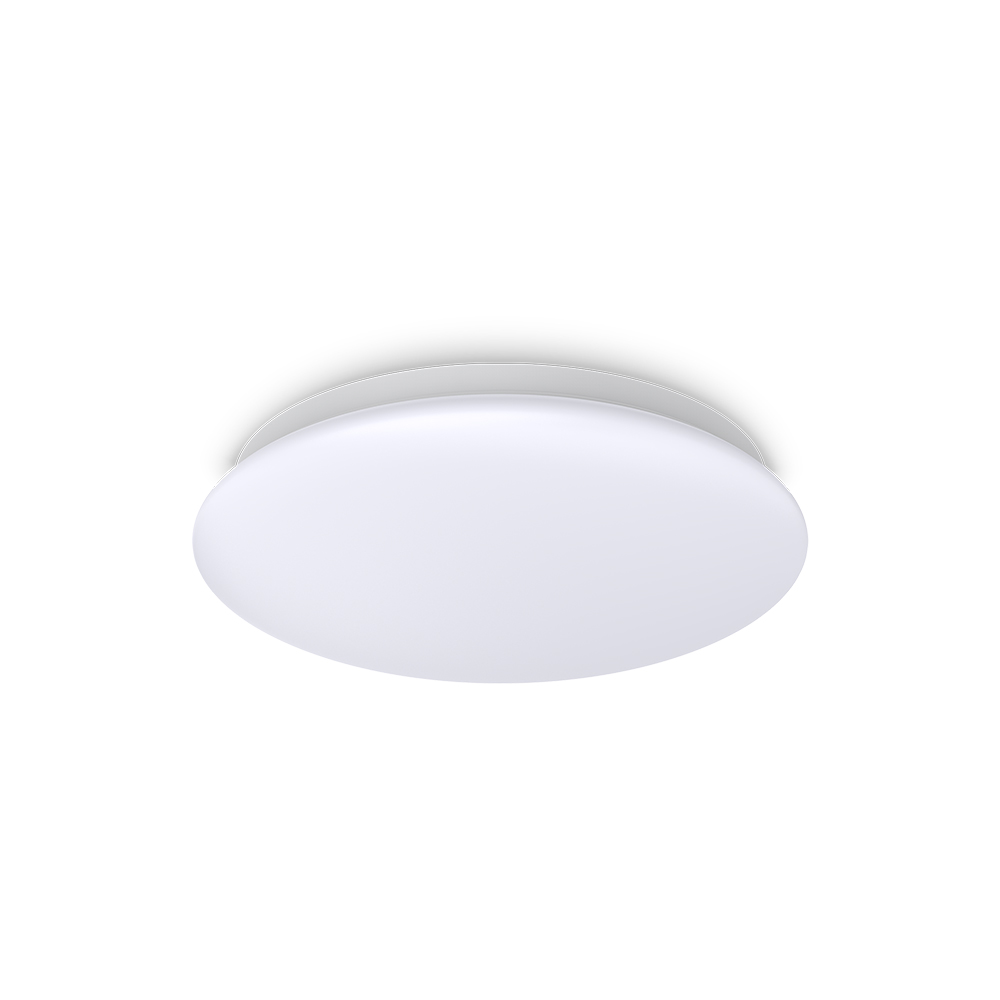

| 12332 | AT3013/SLIM/14/TRI | SLIM 14W 300mm Dia Oyster - Tri CCT - SERIES II | |

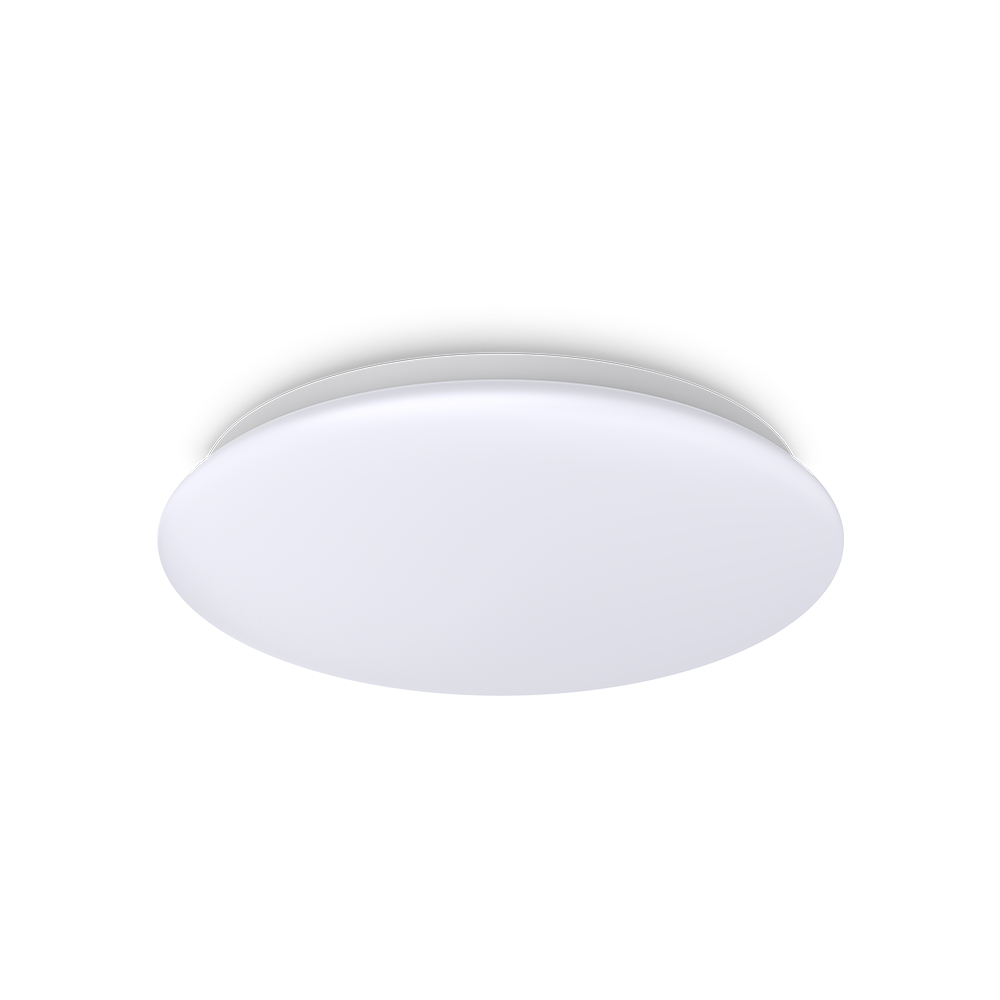

| 12333 | AT3013/SLIM/18/TRI | SLIM 18W 350mm Dia Oyster - Tri CCT - SERIES II | |

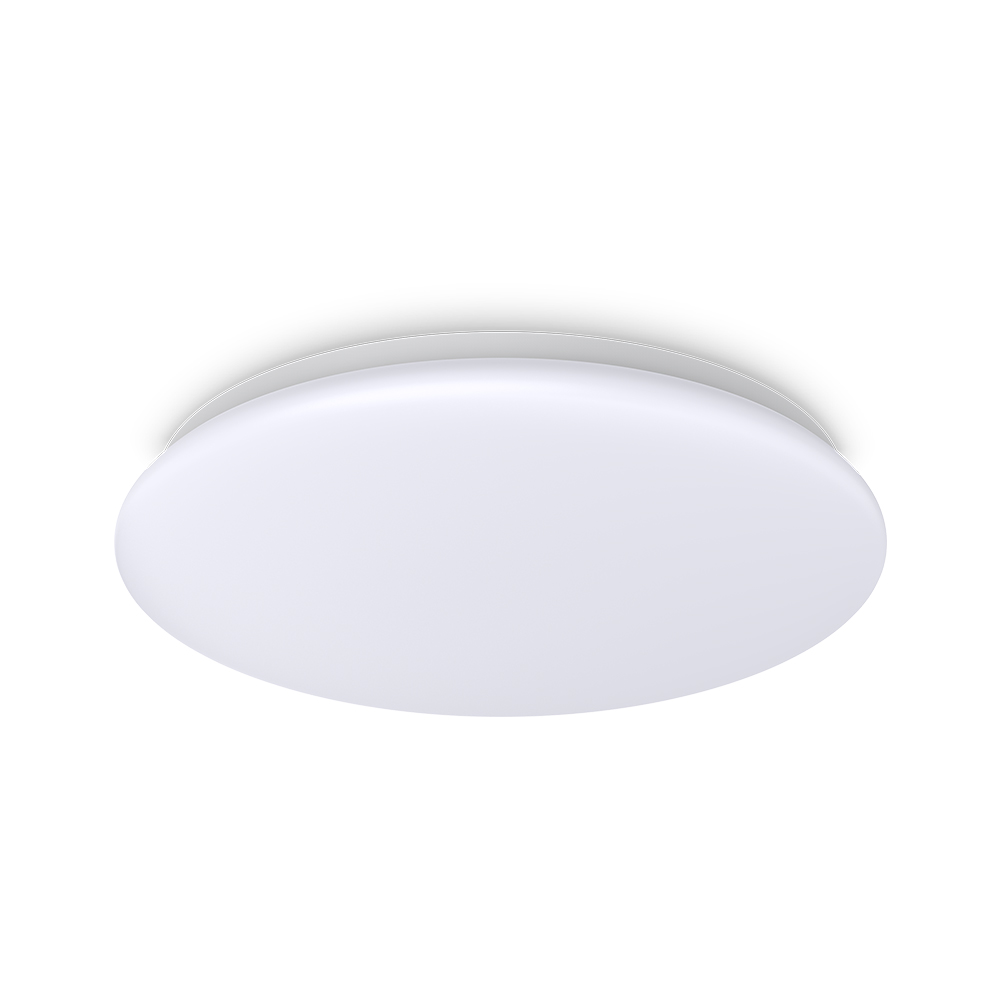

| 12334 | AT3013/SLIM/25/TRI | SLIM 25W 400mm Dia Oyster - Tri CCT - SERIES II | |

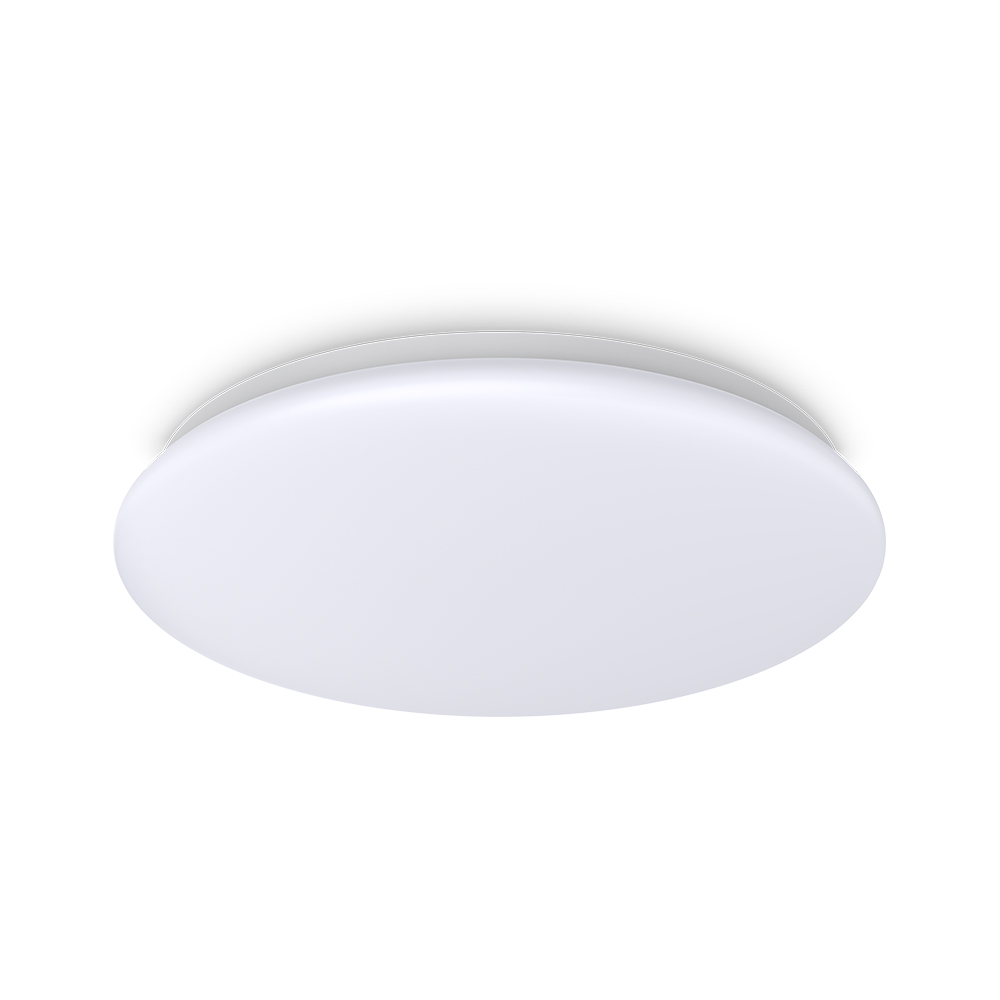

| 12335 | AT3013/SLIM/25/TRI/S | SLIM 25W 400mm Dia Oyster - Tri CCT - SERIES II - with sensor |
Documents & Downloads
Instruction Manual
