Efficiencies

Total System Efficiency

110 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP Rating	IP20
IC Rating	Do not cover
Adjustability	Adjustable
Fitting Colour	White
Product Finish	Powder coated
Body Material	Aluminium
Diffuser Material	Frosted Polycarbonate
Installation Type	Recessed

Electrical

Working Temp Range	0 to 40 °C
Input Frequency	50 Hz
Switch Type	Inline
Power Factor	0.9
Maximum Wattage	35 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Input Current	0.15 A

Lamp

Colour Rendering Index (CRI)	>80
CCT Configuration	TRI-CCT
Macadam Steps (SDCM)	5-step MacAdam Ellipse
Beam Angle	110 °
Lamp/LED voltage	36 V
Lamp/LED Current	800 mA

Colour temperature

Warm White (3000 K)	3380 lm
Cool White (4000 K)	3870 lm
DayLight (5700 K)	3540 lm

Driver

Driver Type	Dimmable ( Phase cut)
Driver Included	Yes
Integrated Driver	No
Dimmable	Yes
Flex & Plug or Lead Length	600 mm
Wiring Type	Re-wireable Flex & Plug (2 pin)
Driver Mode	Constant Current
Driver Current	180 mA

Compliance

Standards	AS/NZS 60598.1 AS/NZS 60598.2.2 AS/NZS 61347.1 AS/NZS 61347/2/13 AS CISPR 15

Warranty

Domestic Use Warranty	3 (Yr) RTB
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.

Product Height

118 mm

Product Length

235 mm

Product Width

145 mm

Cutout

220x130 mm

Order code

Item code

Description

Availability

11522

AT9043/WH/TRI

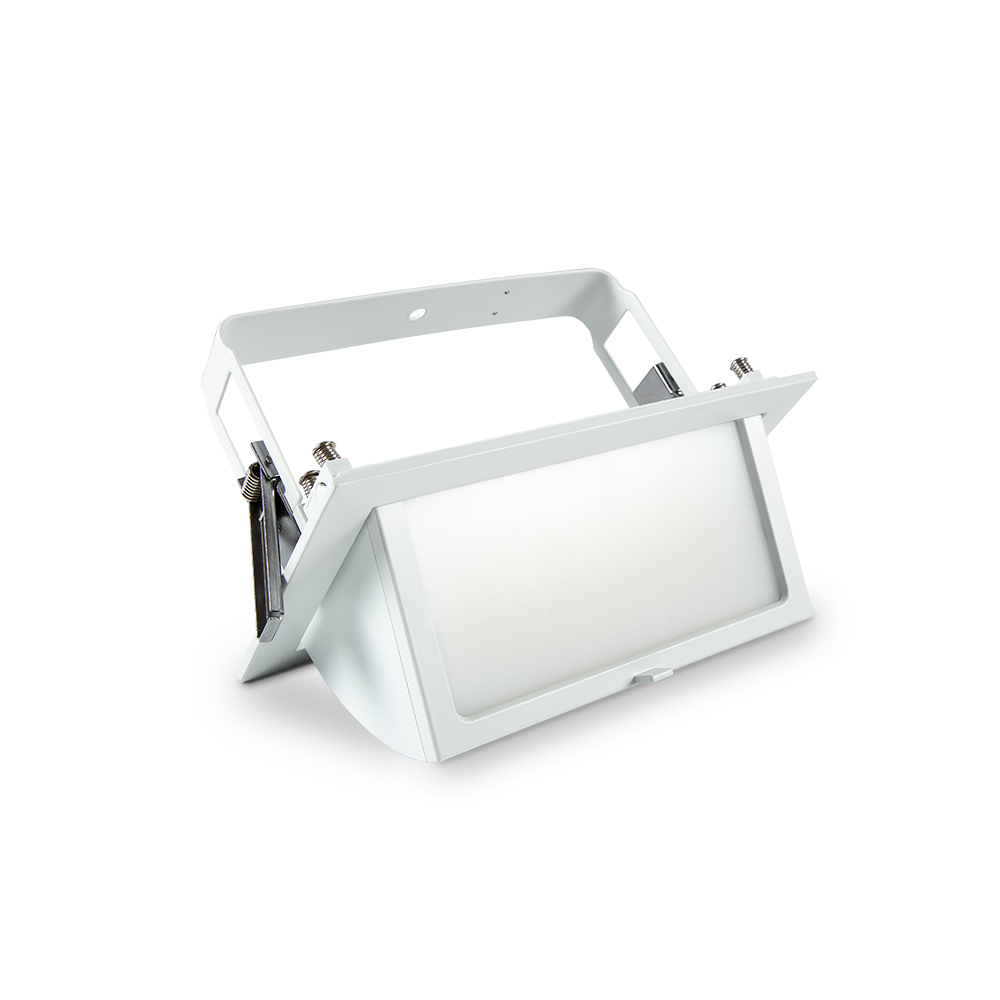

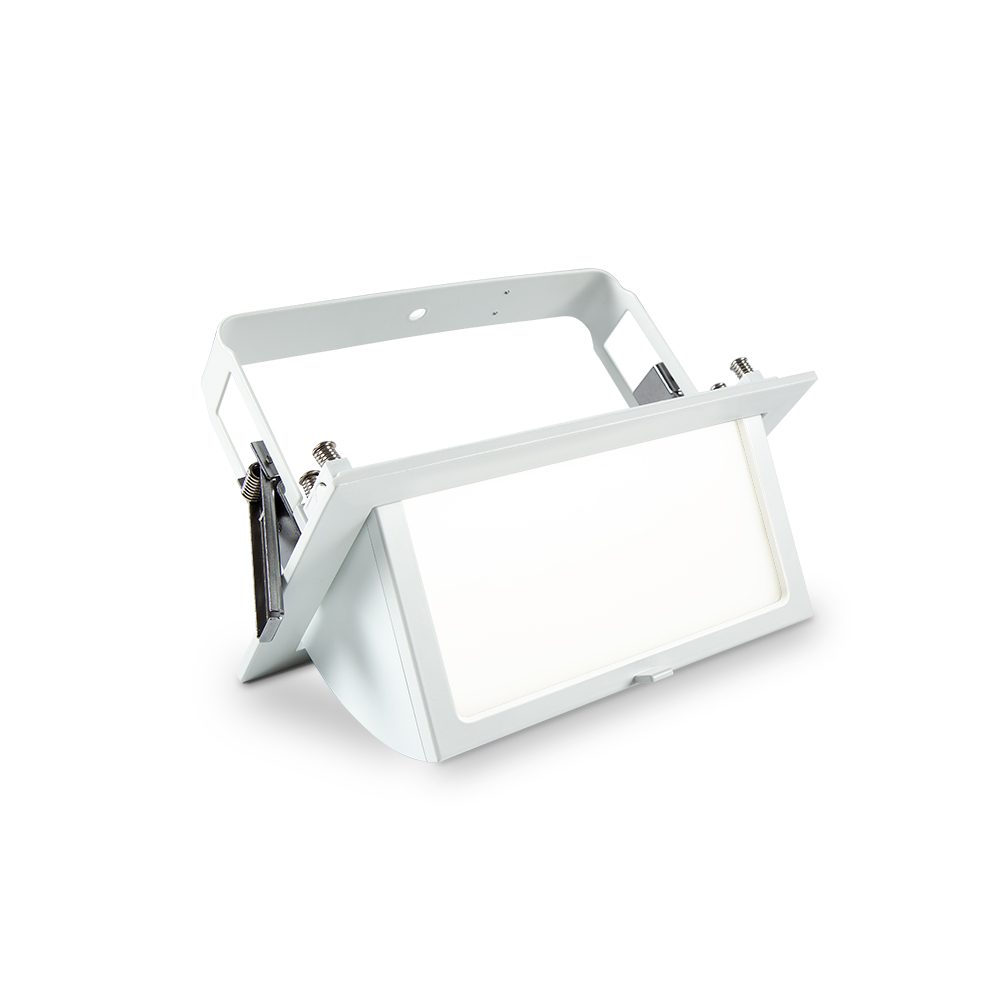

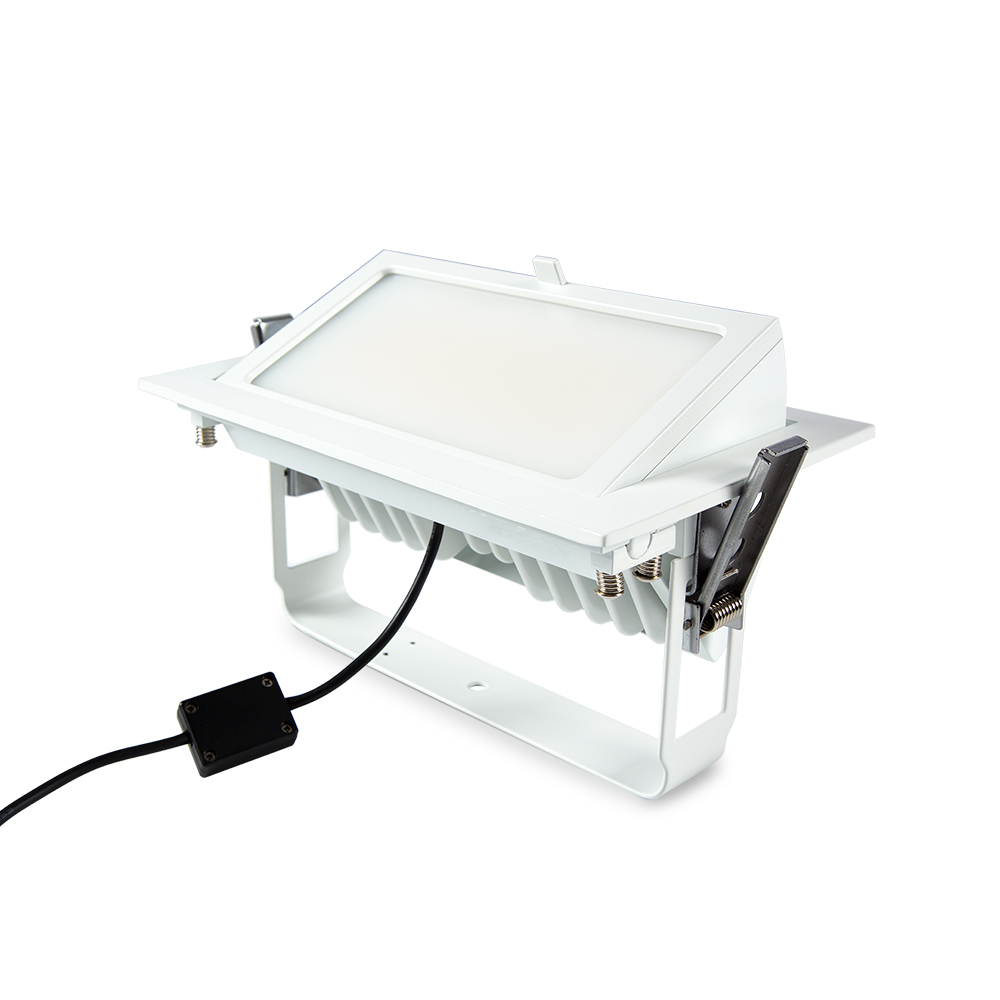

35W Tilt Adjustable LED Rectangular downlight w/ dimmable driver - Tri-CCT - White

SKU: AT9043 TRI Category: Recessed Tags: Commercial, Indoor, TRI-CCT, Ip20

Specifications

IP Rating	IP20
IC Rating	Do not cover
Adjustability	Adjustable
Fitting Colour	White
Product Finish	Powder coated
Body Material	Aluminium
Diffuser Material	Frosted Polycarbonate
Installation Type	Recessed

Working Temp Range	0 to 40 °C
Input Frequency	50 Hz
Switch Type	Inline
Power Factor	0.9
Maximum Wattage	35 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Input Current	0.15 A

Colour Rendering Index (CRI)	>80
CCT Configuration	TRI-CCT
Macadam Steps (SDCM)	5-step MacAdam Ellipse
Beam Angle	110 °
Lamp/LED voltage	36 V
Lamp/LED Current	800 mA

Warm White (3000 K)	3380 lm
Cool White (4000 K)	3870 lm
DayLight (5700 K)	3540 lm

Driver Type	Dimmable ( Phase cut)
Driver Included	Yes
Integrated Driver	No
Dimmable	Yes
Flex & Plug or Lead Length	600 mm
Wiring Type	Re-wireable Flex & Plug (2 pin)
Driver Mode	Constant Current
Driver Current	180 mA

Standards	AS/NZS 60598.1 AS/NZS 60598.2.2 AS/NZS 61347.1 AS/NZS 61347/2/13 AS CISPR 15

Domestic Use Warranty	3 (Yr) RTB
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.

Dimensions
