Mechanical

Body Material	Aluminium
Diffuser Material	PMMA
Fitting Colour	Silver
Installation Type	Recessed
IP Rating	IP20

Electrical

Maximum Wattage
Electrical Rating	Class II
Input Frequency	50 Hz
Input voltage	180-240
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9253/RGB/IP20 AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	20 W
AT9232/2M/AT9253/RGB/IP20	60 W

Power Factor	0.95
Switch Type	Inline
Watts Per Meter (W/m)
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/LFIP20-4.8-W2780	4.8
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	7
AT9232/1M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-8DF-W2790	8
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/LFIP20-9.6-W2780	9.6
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	14.4

Working Temp Range	0 to 40 °C

Lamp

Beam Angle
Macadam Steps (SDCM)	3-step MacAdam Ellipse
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9253/RGB/IP20 AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9253/RGB/IP20 AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	120 °
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	140 °

CCT Configuration
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	RGB
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	Single

CRI
AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-4.8-W2780	>80
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	>90

Lamp/LED voltage	24 V
LED's per meter
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	60
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20	64
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20	128
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	336

Lumens /m
AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-4.8-W2780	354 lm/m
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	360 lm/m
AT9232/1M/AT9251/WW/IP20 AT9232/2M/AT9251/WW/IP20	550 lm/m
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20	580 lm/m
AT9232/1M/AT9256/WW AT9232/2M/AT9256/WW	600 lm/m
AT9232/1M/AT9256/CW AT9232/1M/LFIP20-8DF-W2790 AT9232/2M/AT9256/CW AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	630 lm/m
AT9232/1M/LFIP20-9.6-W2780	701 lm/m
AT9232/1M/AT9252/WW/IP20 AT9232/2M/AT9252/WW/IP20	1120 lm/m
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20	1180 lm/m

System Efficiency
AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-4.8-W2780	74 lm/W
AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	79 lm/W
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	90 lm/W
AT9232/1M/AT9251/WW/IP20 AT9232/2M/AT9251/WW/IP20	114 lm/W
AT9232/1M/AT9252/WW/IP20 AT9232/2M/AT9252/WW/IP20	116 lm/W
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20	120 lm/W
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20	122 lm/W

LED Lifetime

AT9232/1M/LFIP20-4.8-W2780
AT9232/1M/LFIP20-8DF-W2790
AT9232/1M/LFIP20-9.6-W2780
AT9232/2M/LFIP20-4.8-W2780
AT9232/2M/LFIP20-8DF-W2790
AT9232/2M/LFIP20-9.6-W2780

>30000 hrs

AT9232/1M/AT9253/RGB/IP20
AT9232/2M/AT9253/RGB/IP20

>48000 hrs

AT9232/1M/AT9256/CW
AT9232/1M/AT9256/WW
AT9232/2M/AT9256/CW
AT9232/2M/AT9256/WW

>54000 hrs

AT9232/1M/AT9251/CW/IP20
AT9232/1M/AT9251/DL/IP20
AT9232/1M/AT9251/WW/IP20
AT9232/1M/AT9252/CW/IP20
AT9232/1M/AT9252/DL/IP20
AT9232/1M/AT9252/WW/IP20
AT9232/2M/AT9251/CW/IP20
AT9232/2M/AT9251/DL/IP20
AT9232/2M/AT9251/WW/IP20
AT9232/2M/AT9252/CW/IP20
AT9232/2M/AT9252/DL/IP20
AT9232/2M/AT9252/WW/IP20

>60000 hrs

This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

LED Lifetime Ratings (Failure rate & lumen depreciation)

Ambient Temp (°C)	25 °C	40 °C
L80B10	52000 hrs	52000 hrs
L70B50	>60000 hrs	>60000 hrs

AT9232/1M/AT9253/RGB/IP20
AT9232/2M/AT9253/RGB/IP20

Ambient Temp (°C)	25 °C	40 °C
L70B50	>48000 hrs	>48000 hrs

AT9232/1M/AT9256/CW
AT9232/1M/AT9256/WW
AT9232/2M/AT9256/CW
AT9232/2M/AT9256/WW

Ambient Temp (°C)	25 °C	40 °C
L70B50	>54000 hrs	>54000 hrs

AT9232/1M/LFIP20-4.8-W2780
AT9232/1M/LFIP20-8DF-W2790
AT9232/1M/LFIP20-9.6-W2780
AT9232/2M/LFIP20-4.8-W2780
AT9232/2M/LFIP20-8DF-W2790
AT9232/2M/LFIP20-9.6-W2780

Ambient Temp (°C)	25 °C	40 °C
L70B50	>30000 hrs	>30000 hrs

This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.

TM-21 Test Hours

AT9232/1M/AT9253/RGB/IP20
AT9232/2M/AT9253/RGB/IP20

8000 hrs

AT9232/1M/AT9256/CW
AT9232/1M/AT9256/WW
AT9232/2M/AT9256/CW
AT9232/2M/AT9256/WW

9000 hrs

10000 hrs

Colour temperature

CCT
AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	2700 K
AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/WW AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/WW	3000 K
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9256/CW AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9256/CW	4000 K
AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9252/DL/IP20	5000 K

CCT Colour
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9256/CW AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9256/CW	Cool White
AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9252/DL/IP20	Daylight
AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/WW AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/WW AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	Warm White

LED Wattage
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/LFIP20-4.8-W2780	4.8 W
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW	7 W
AT9232/1M/LFIP20-8DF-W2790	8 W
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/LFIP20-4.8-W2780	9.6 W
AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	14 W
AT9232/1M/AT9253/RGB/IP20	14.4 W
AT9232/2M/LFIP20-8DF-W2790	16 W
AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/LFIP20-9.6-W2780	19.2 W
AT9232/2M/AT9253/RGB/IP20	28.2 W

System Lumens
AT9232/1M/LFIP20-4.8-W2780	354 lm
AT9232/1M/AT9253/RGB/IP20	360 lm
AT9232/1M/AT9251/WW/IP20	550 lm
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20	580 lm
AT9232/1M/AT9256/WW	600 lm
AT9232/1M/AT9256/CW AT9232/1M/LFIP20-8DF-W2790	630 lm
AT9232/1M/LFIP20-9.6-W2780	701 lm
AT9232/2M/LFIP20-4.8-W2780	708 lm
AT9232/2M/AT9253/RGB/IP20	720 lm
AT9232/2M/AT9251/WW/IP20	1100 lm
AT9232/1M/AT9252/WW/IP20	1120 lm
AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20	1160 lm
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20	1180 lm
AT9232/2M/AT9256/WW	1200 lm
AT9232/2M/AT9256/CW AT9232/2M/LFIP20-8DF-W2790	1260 lm
AT9232/2M/LFIP20-9.6-W2780	1402 lm
AT9232/2M/AT9252/WW/IP20	2240 lm
AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20	2360 lm

All photometric data has a tolerance of ±10%.

Driver

Dimmable	No
Driver Included	Yes
Integrated Driver	No
Driver Mode	Constant Voltage
Driver Type	Fixed output
Flex & Plug or Lead Length	1200 mm
Wiring Type	Re-wireable Flex & Plug (2 pin)

Compliance

Product Design Life	8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use	12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards	AS/NZS 61347.1 AS/NZS 61347.2.13

Warranty

Commercial Use Warranty	2 RTB (Total 2 Years)
Warranty Operating Hours	13000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

Ordering code	Item code	Description
20713	AT9232/1M/AT9251/CW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 4000K / 90CRI / 1M
20715	AT9232/1M/AT9251/DL/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 5000K / 90CRI / 1M
20714	AT9232/1M/AT9251/WW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 3000K / 90CRI / 1M
20718	AT9232/1M/AT9252/CW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 3000K / 90CRI / 1M
20719	AT9232/1M/AT9252/DL/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 5000K / 90CRI / 1M
20717	AT9232/1M/AT9252/WW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 4000K / 90CRI / 1M
20720	AT9232/1M/AT9253/RGB/IP20	Square Shallow Recessed Assembly 14.4W/m IP20 LED Strip and driver / RGB / 1M
20722	AT9232/1M/AT9256/CW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 4000K / 90CRI / 1M
20723	AT9232/1M/AT9256/WW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 3000K / 90CRI / 1M
20712	AT9232/1M/LFIP20-4.8-W2780	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 2700K / 80CRI / 1M
20721	AT9232/1M/LFIP20-8DF-W2790	Square Shallow Recessed Assembly DotFree 8W/m IP20 LED Strip and driver / 2700K / 90CRI / 1M
20716	AT9232/1M/LFIP20-9.6-W2780	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 2700K / 80CRI / 1M
20725	AT9232/2M/AT9251/CW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 4000K / 90CRI / 2M
20727	AT9232/2M/AT9251/DL/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 5000K / 90CRI / 2M
20726	AT9232/2M/AT9251/WW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 3000K / 90CRI / 2M
20730	AT9232/2M/AT9252/CW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 4000K / 90CRI / 2M
20731	AT9232/2M/AT9252/DL/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 5000K / 90CRI / 2M
20729	AT9232/2M/AT9252/WW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 3000K / 90CRI / 2M
20732	AT9232/2M/AT9253/RGB/IP20	Square Shallow Recessed Assembly 14.4W/m IP20 LED Strip and driver / RGB / 2M
20734	AT9232/2M/AT9256/CW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 4000K / 90CRI / 2M
20735	AT9232/2M/AT9256/WW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 3000K / 90CRI / 2M
20724	AT9232/2M/LFIP20-4.8-W2780	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 2700K / 80CRI / 2M
20733	AT9232/2M/LFIP20-8DF-W2790	Square Shallow Recessed Assembly DotFree 8W/m IP20 LED Strip and driver / 2700K / 90CRI / 2M
20728	AT9232/2M/LFIP20-9.6-W2780	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 2700K / 80CRI / 2M

Back to products

AT9232 Assembly

Name: AT9232 Assembly
SKU: AT9232 Assembly
Availability: InStock

$0.00

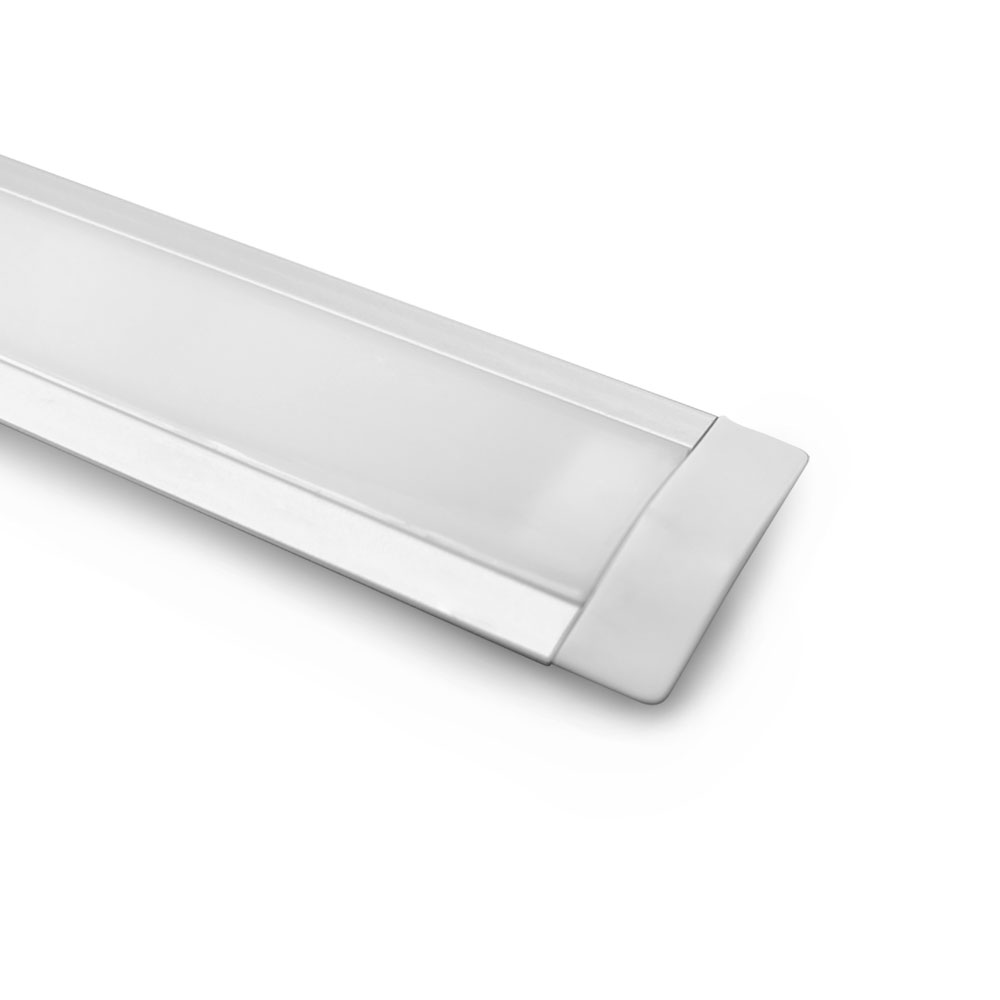

Custom LED Assembly – Square Shallow Recessed Extrusion.

Features

Superior 24V design
Long operating lifetime
Square Shallow Extrusion with front clip in Diffuser
Includes IP20 Rated 24V constant Voltage Driver with Flex and Plug
Supplied with mounting Clips
2m Tails for easy wiring to remote driver
Custom extrusion Length ( Must be specified before delivery)
Cut measurements are from end-to-end including the endcaps, but not the reccessed lip
Cable entry is from the end of the extrusion unless specified with the cut lengths.
Cut length does not always match LED Strip cutting intervals. LED strip will be placed centre on the Extrusion

Selected Models

Superior efficacy and Colour Rendering Index (90CRI+)
Continuous light source giving uninterrupted lines of light, without the dots

SKU: AT9232 Assembly Category: Led Custom Assembly Tag: Ip20

Specifications

Body Material	Aluminium
Diffuser Material	PMMA
Fitting Colour	Silver
Installation Type	Recessed
IP Rating	IP20

Maximum Wattage
Electrical Rating	Class II
Input Frequency	50 Hz
Input voltage	180-240
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9253/RGB/IP20 AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	20 W
AT9232/2M/AT9253/RGB/IP20	60 W

Power Factor	0.95
Switch Type	Inline
Watts Per Meter (W/m)
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/LFIP20-4.8-W2780	4.8
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	7
AT9232/1M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-8DF-W2790	8
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/LFIP20-9.6-W2780	9.6
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	14.4

Working Temp Range	0 to 40 °C

Beam Angle
Macadam Steps (SDCM)	3-step MacAdam Ellipse
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9253/RGB/IP20 AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9253/RGB/IP20 AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	120 °
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	140 °

CCT Configuration
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	RGB
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	Single

CRI
AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-4.8-W2780	>80
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	>90

Lamp/LED voltage	24 V
LED's per meter
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	60
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20	64
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20	128
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	336

Lumens /m
AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-4.8-W2780	354 lm/m
AT9232/1M/AT9253/RGB/IP20 AT9232/2M/AT9253/RGB/IP20	360 lm/m
AT9232/1M/AT9251/WW/IP20 AT9232/2M/AT9251/WW/IP20	550 lm/m
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20	580 lm/m
AT9232/1M/AT9256/WW AT9232/2M/AT9256/WW	600 lm/m
AT9232/1M/AT9256/CW AT9232/1M/LFIP20-8DF-W2790 AT9232/2M/AT9256/CW AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	630 lm/m
AT9232/1M/LFIP20-9.6-W2780	701 lm/m
AT9232/1M/AT9252/WW/IP20 AT9232/2M/AT9252/WW/IP20	1120 lm/m
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20	1180 lm/m

System Efficiency
AT9232/1M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-4.8-W2780	74 lm/W
AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	79 lm/W
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	90 lm/W
AT9232/1M/AT9251/WW/IP20 AT9232/2M/AT9251/WW/IP20	114 lm/W
AT9232/1M/AT9252/WW/IP20 AT9232/2M/AT9252/WW/IP20	116 lm/W
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20	120 lm/W
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20	122 lm/W

Ambient Temp (°C)	25 °C	40 °C
L80B10	52000 hrs	52000 hrs
L70B50	>60000 hrs	>60000 hrs

Ambient Temp (°C)	25 °C	40 °C
L70B50	>48000 hrs	>48000 hrs

Ambient Temp (°C)	25 °C	40 °C
L70B50	>54000 hrs	>54000 hrs

Ambient Temp (°C)	25 °C	40 °C
L70B50	>30000 hrs	>30000 hrs

CCT
AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	2700 K
AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/WW AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/WW	3000 K
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9256/CW AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9256/CW	4000 K
AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9252/DL/IP20	5000 K

CCT Colour
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9256/CW AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9256/CW	Cool White
AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9252/DL/IP20	Daylight
AT9232/1M/AT9251/WW/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/AT9256/WW AT9232/1M/LFIP20-4.8-W2780 AT9232/1M/LFIP20-8DF-W2790 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/WW/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/AT9256/WW AT9232/2M/LFIP20-4.8-W2780 AT9232/2M/LFIP20-8DF-W2790 AT9232/2M/LFIP20-9.6-W2780	Warm White

LED Wattage
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20 AT9232/1M/AT9251/WW/IP20 AT9232/1M/LFIP20-4.8-W2780	4.8 W
AT9232/1M/AT9256/CW AT9232/1M/AT9256/WW	7 W
AT9232/1M/LFIP20-8DF-W2790	8 W
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20 AT9232/1M/AT9252/WW/IP20 AT9232/1M/LFIP20-9.6-W2780 AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20 AT9232/2M/AT9251/WW/IP20 AT9232/2M/LFIP20-4.8-W2780	9.6 W
AT9232/2M/AT9256/CW AT9232/2M/AT9256/WW	14 W
AT9232/1M/AT9253/RGB/IP20	14.4 W
AT9232/2M/LFIP20-8DF-W2790	16 W
AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20 AT9232/2M/AT9252/WW/IP20 AT9232/2M/LFIP20-9.6-W2780	19.2 W
AT9232/2M/AT9253/RGB/IP20	28.2 W

System Lumens
AT9232/1M/LFIP20-4.8-W2780	354 lm
AT9232/1M/AT9253/RGB/IP20	360 lm
AT9232/1M/AT9251/WW/IP20	550 lm
AT9232/1M/AT9251/CW/IP20 AT9232/1M/AT9251/DL/IP20	580 lm
AT9232/1M/AT9256/WW	600 lm
AT9232/1M/AT9256/CW AT9232/1M/LFIP20-8DF-W2790	630 lm
AT9232/1M/LFIP20-9.6-W2780	701 lm
AT9232/2M/LFIP20-4.8-W2780	708 lm
AT9232/2M/AT9253/RGB/IP20	720 lm
AT9232/2M/AT9251/WW/IP20	1100 lm
AT9232/1M/AT9252/WW/IP20	1120 lm
AT9232/2M/AT9251/CW/IP20 AT9232/2M/AT9251/DL/IP20	1160 lm
AT9232/1M/AT9252/CW/IP20 AT9232/1M/AT9252/DL/IP20	1180 lm
AT9232/2M/AT9256/WW	1200 lm
AT9232/2M/AT9256/CW AT9232/2M/LFIP20-8DF-W2790	1260 lm
AT9232/2M/LFIP20-9.6-W2780	1402 lm
AT9232/2M/AT9252/WW/IP20	2240 lm
AT9232/2M/AT9252/CW/IP20 AT9232/2M/AT9252/DL/IP20	2360 lm

All photometric data has a tolerance of ±10%.

Dimmable	No
Driver Included	Yes
Integrated Driver	No
Driver Mode	Constant Voltage
Driver Type	Fixed output
Flex & Plug or Lead Length	1200 mm
Wiring Type	Re-wireable Flex & Plug (2 pin)

Product Design Life	8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use	12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards	AS/NZS 61347.1 AS/NZS 61347.2.13

Commercial Use Warranty	2 RTB (Total 2 Years)
Warranty Operating Hours	13000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

Dimensions

Item Code	Cutting Interval	Product Height	Product Length	Product Width
AT9232/1M/AT9251/CW/IP20	125 mm	7 mm	1000 mm	17 mm
AT9232/1M/AT9251/DL/IP20	125 mm	7 mm	1000 mm	17 mm
AT9232/1M/AT9251/WW/IP20	125 mm	7 mm	1000 mm	17 mm
AT9232/2M/AT9251/CW/IP20	125 mm	7 mm	2000 mm	17 mm
AT9232/2M/AT9251/DL/IP20	125 mm	7 mm	2000 mm	17 mm
AT9232/2M/AT9251/WW/IP20	125 mm	7 mm	2000 mm	17 mm
AT9232/1M/AT9252/CW/IP20	100 mm	7 mm	1000 mm	17 mm
AT9232/1M/AT9252/DL/IP20	100 mm	7 mm	1000 mm	17 mm
AT9232/1M/AT9252/WW/IP20	100 mm	7 mm	1000 mm	17 mm
AT9232/1M/AT9253/RGB/IP20	100 mm	7 mm	1000 mm	17 mm
AT9232/1M/LFIP20-4.8-W2780	100 mm	7 mm	1000 mm	17 mm
AT9232/2M/AT9252/CW/IP20	100 mm	7 mm	2000 mm	17 mm
AT9232/2M/AT9252/DL/IP20	100 mm	7 mm	2000 mm	17 mm
AT9232/2M/AT9252/WW/IP20	100 mm	7 mm	2000 mm	17 mm
AT9232/2M/AT9253/RGB/IP20	100 mm	7 mm	2000 mm	17 mm
AT9232/2M/LFIP20-4.8-W2780	100 mm	7 mm	2000 mm	17 mm
AT9232/1M/AT9256/CW	40 mm	7 mm	1000 mm	17 mm
AT9232/1M/AT9256/WW	40 mm	7 mm	1000 mm	17 mm
AT9232/2M/AT9256/CW	40 mm	7 mm	2000 mm	17 mm
AT9232/2M/AT9256/WW	40 mm	7 mm	2000 mm	17 mm
AT9232/1M/LFIP20-8DF-W2790	55 mm	7 mm	1000 mm	17 mm
AT9232/2M/LFIP20-8DF-W2790	55 mm	7 mm	2000 mm	17 mm
AT9232/1M/LFIP20-9.6-W2780	50 mm	7 mm	1000 mm	17 mm
AT9232/2M/LFIP20-9.6-W2780	50 mm	7 mm	2000 mm	17 mm

AT9232/assembly

Ordering Information

Ordering code	Item code	Description
20713	AT9232/1M/AT9251/CW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 4000K / 90CRI / 1M
20715	AT9232/1M/AT9251/DL/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 5000K / 90CRI / 1M
20714	AT9232/1M/AT9251/WW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 3000K / 90CRI / 1M
20718	AT9232/1M/AT9252/CW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 3000K / 90CRI / 1M
20719	AT9232/1M/AT9252/DL/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 5000K / 90CRI / 1M
20717	AT9232/1M/AT9252/WW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 4000K / 90CRI / 1M
20720	AT9232/1M/AT9253/RGB/IP20	Square Shallow Recessed Assembly 14.4W/m IP20 LED Strip and driver / RGB / 1M
20722	AT9232/1M/AT9256/CW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 4000K / 90CRI / 1M
20723	AT9232/1M/AT9256/WW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 3000K / 90CRI / 1M
20712	AT9232/1M/LFIP20-4.8-W2780	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 2700K / 80CRI / 1M
20721	AT9232/1M/LFIP20-8DF-W2790	Square Shallow Recessed Assembly DotFree 8W/m IP20 LED Strip and driver / 2700K / 90CRI / 1M
20716	AT9232/1M/LFIP20-9.6-W2780	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 2700K / 80CRI / 1M
20725	AT9232/2M/AT9251/CW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 4000K / 90CRI / 2M
20727	AT9232/2M/AT9251/DL/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 5000K / 90CRI / 2M
20726	AT9232/2M/AT9251/WW/IP20	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 3000K / 90CRI / 2M
20730	AT9232/2M/AT9252/CW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 4000K / 90CRI / 2M
20731	AT9232/2M/AT9252/DL/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 5000K / 90CRI / 2M
20729	AT9232/2M/AT9252/WW/IP20	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 3000K / 90CRI / 2M
20732	AT9232/2M/AT9253/RGB/IP20	Square Shallow Recessed Assembly 14.4W/m IP20 LED Strip and driver / RGB / 2M
20734	AT9232/2M/AT9256/CW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 4000K / 90CRI / 2M
20735	AT9232/2M/AT9256/WW	Square Shallow Recessed Assembly Pureline 7W/m IP20 LED Strip and driver / 3000K / 90CRI / 2M
20724	AT9232/2M/LFIP20-4.8-W2780	Square Shallow Recessed Assembly 4.8W/m IP20 LED Strip and driver / 2700K / 80CRI / 2M
20733	AT9232/2M/LFIP20-8DF-W2790	Square Shallow Recessed Assembly DotFree 8W/m IP20 LED Strip and driver / 2700K / 90CRI / 2M
20728	AT9232/2M/LFIP20-9.6-W2780	Square Shallow Recessed Assembly 9.6W/m IP20 LED Strip and driver / 2700K / 80CRI / 2M

Documents & Downloads

^*Auto generated datasheet (beta)

Accessories

Ordering code	Item code	Description	Availability
16648	AT9261/RGB	4-Channel Amplifier/Repeater for LED Strip

AT9232 Assembly

Features

Selected Models

Mechanical

Electrical

Lamp

LED Lifetime

Colour temperature

Driver

Compliance

Warranty

Datasheet

Compliance

Related products
