AT9260
Home Strip Lights Controllers AT9260
AT9234
AT9234 $0.00
Back to products
AT9017
AT9017 $0.00

AT9260

$0.00

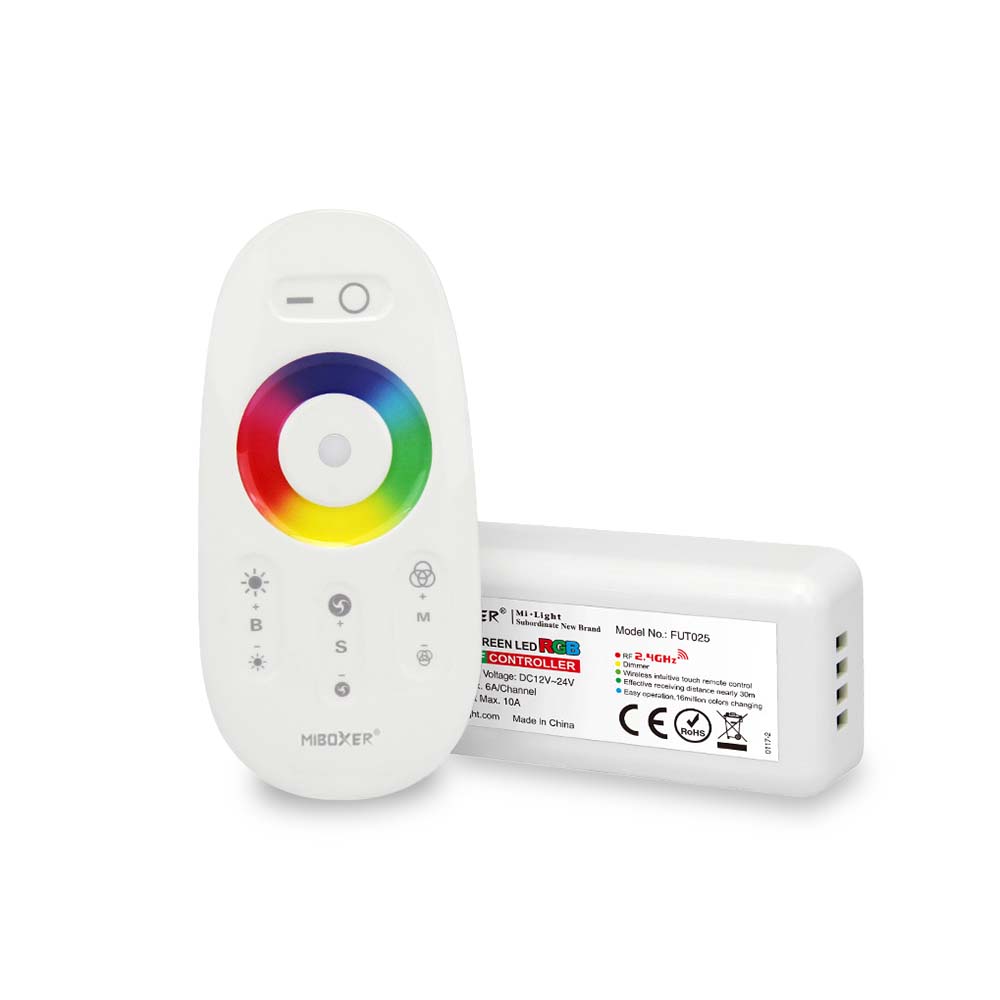

RGB RF Controller for LED Strip

Features

  • 2.4GHz wireless touch controller
  • Control up to 30m
  • 16 million colours
  • 6A per channel
  • 10A max total ouput
  • Requires 2xAAA batteries (not included)
SKU: AT9260 Category: Controllers Tag: Ip20
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
Specifications

Mechanical

Body MaterialPolycarbonate
Fitting ColourWhite
IP RatingIP20

Electrical

Input voltage12-24
Working Temp Range0 to 40 °C

Driver

DimmableYes
Wiring TypeRe-wireable terminal block (2 pin)

Compliance

Standards
  • IEC 61347.1
  • IEC 61347.2.11
  • EN 55015
  • EN 61000.3.2
  • EN 61000.3.3
  • EN 61547
  • ETSI EN 301 489.1
  • ETSI EN 301 489.3
Dimensions
Product Height22 mm
Product Length85 mm
Product Width45 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
16647AT9260/RGBRGB RF Controller for LED Strip
Documents & Downloads

Datasheet

  • AT9260/RGB*

Compliance

  • AT9260/RGB-AU-sdoc*

*Auto generated datasheet (beta)
