Nimbus
$0.00
3-in-1 bathroom heater
- 3-in-1 heater, light and exhaust fan combo
- Twin 275W heat lamps for instant warmth
- Powerful fan clears steam fast
- Quiet operation for a more peaceful bathroom
- Bright 10W tri-CCT LED downlight
- Includes wall switch, 1.5m flexible ducting and grille kit
- Built-in thermal cut-out for added safety
- 3-year in-home warranty for homeowners
Specifications
Mechanical
| IP Rating | IPx4 |
|---|---|
| IC Rating | Do not cover |
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| 10 Watts | |
|---|---|
| Warm White (3000 K) | 880 lm |
| Cool White (4000 K) | 1000 lm |
| DayLight (5000 K) | 900 lm |
Air Movement
| Outlet | 125 mm |
|---|---|
| Noise level | 42 dB |
| Motor Wattage | 35 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | 305 m3/hr |
Driver
| Dimmable | No |
|---|
Compliance
| Standards |
|
|---|
Dimensions
| Item Code | Product Height | Product Length | Product Width | Cutout |
|---|---|---|---|---|
| NIMBUS/2LT/WH | 261 mm | 419 mm | 244 mm | 375x202 mm |
| NIMBUS/4LT/WH | 270 mm | 370 mm | 370 mm | 320x320 mm |

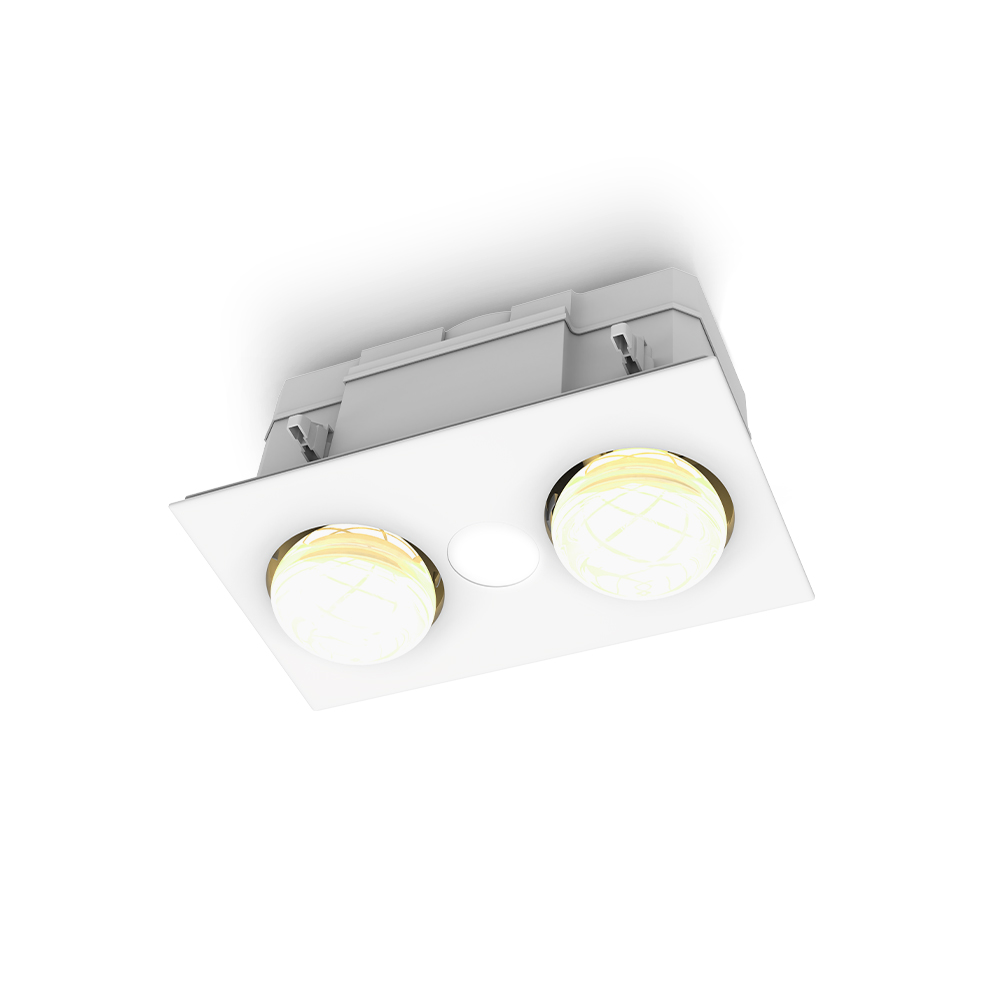

NIMBUS/2LT/WH

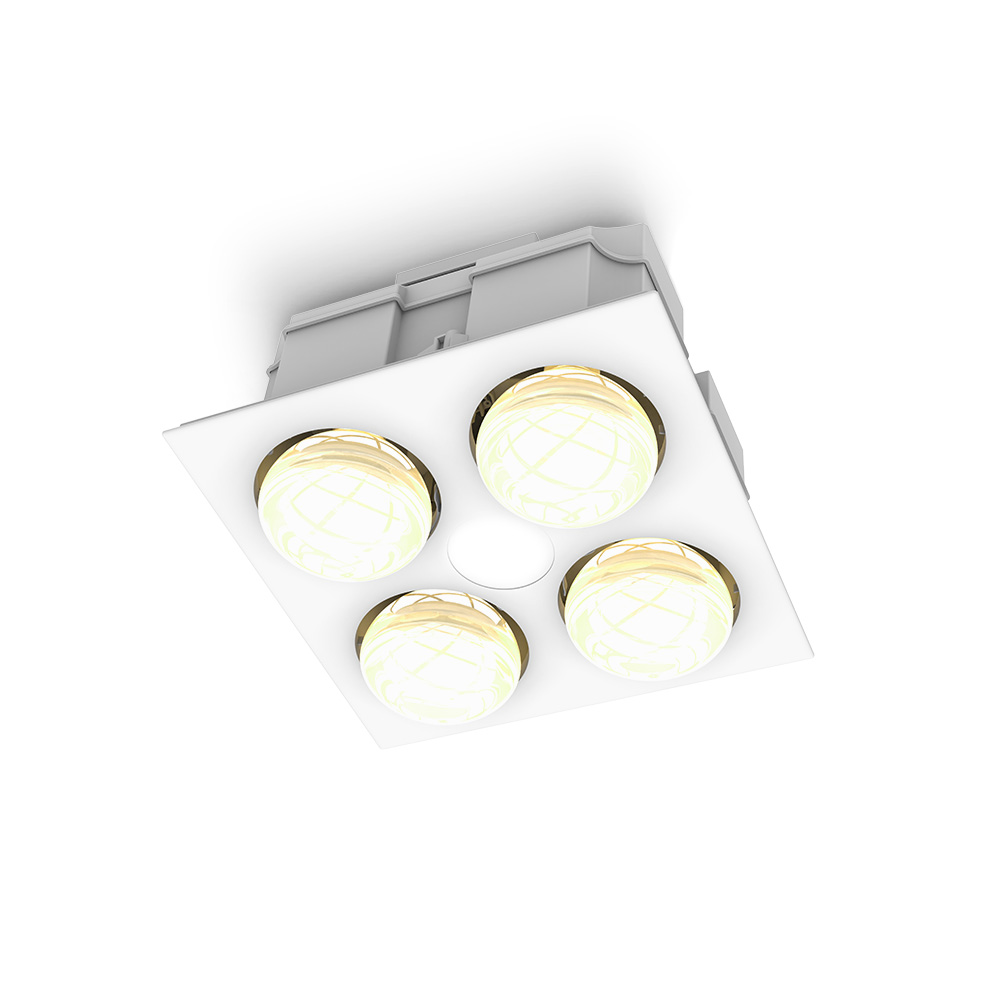

NIMBUS/4LT/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 13520 | NIMBUS/2LT/WH | 2-Light 3in1 bathroom heater & exhaust w/led downlight - white - Tri-CCT | |
| 13521 | NIMBUS/4LT/WH | 4-Light 3in1 bathroom heater & exhaust w/led downlight - white - Tri-CCT |
