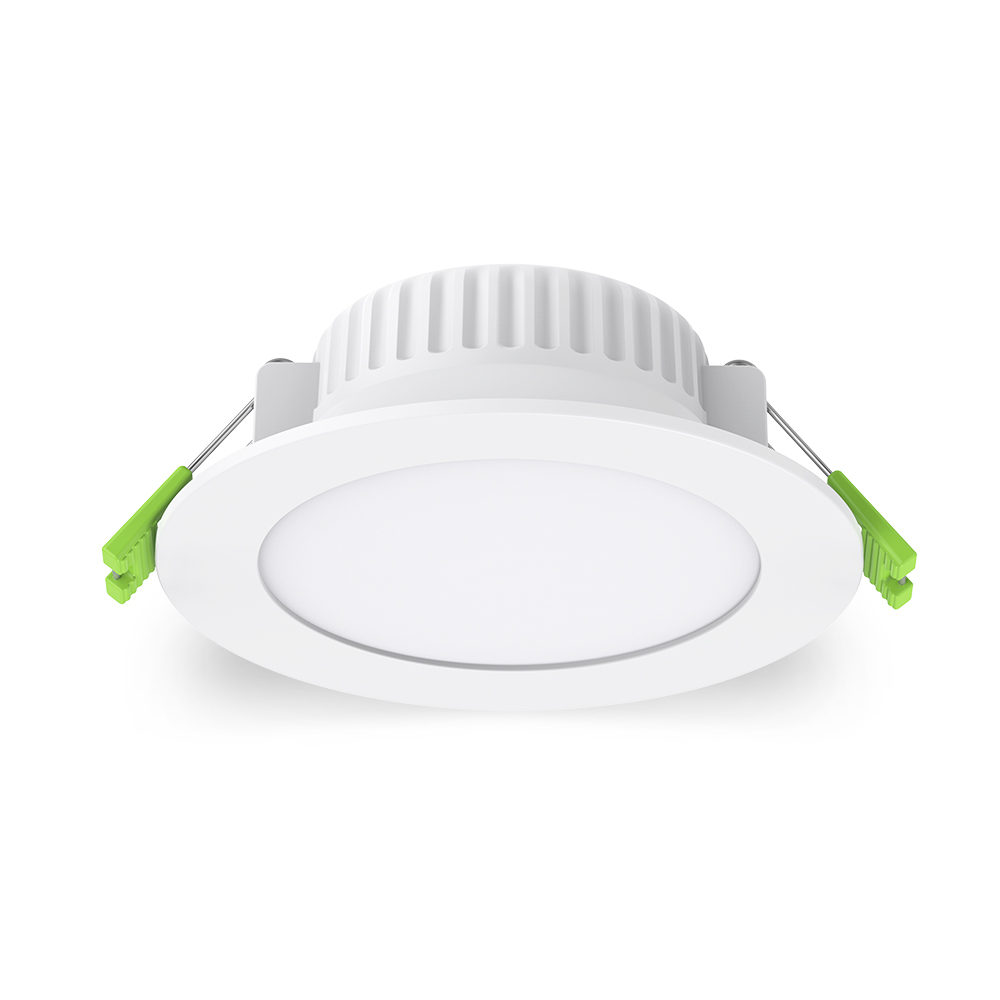

AT9039 Slim
$0.00
7W LED Low Profile Downlight With Dimmable Integral Driver – Tri Colour
- Slimmer body with a height of 38mm or 44mm (down from 60mm)
- Increased efficacy, offering higher lumen output compared to the regular AT9039
- Built-in dimmable driver
- Ideal for residential, retail, showroom, and decorative applications
- IC-4 Rated – compliant with AS/NZS 60598.2.2:2016
- Seamless design for a clean look
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9039/SLIM/WH/TRI | 118 lm/W |
| AT9039/SLIM/WH/F/TRI | 122 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Plastic |
| Product Finish | Matt |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| IP Rating | IP54 Front Face Only |
| Installation Type | Recessed |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 7 W |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Beam Angle | 100 ° |
|---|---|
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
| LED Type | Diffused |
| Number of Lamps | 1 |
Colour temperature
AT9039/SLIM/WH/F/TRI
| |||||||||
AT9039/SLIM/WH/TRI
| |||||||||
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Driver Type | Dimmable ( Phase cut) |
| Wiring Type | Non rewireable Flex & Plug |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Cutout | Product Diameter | Product Height |
|---|---|---|---|
| AT9039/SLIM/WH/F/TRI | 90 mm | 110 mm | 40 mm |
| AT9039/SLIM/WH/TRI | 90 mm | 110 mm | 45 mm |
AT9039/SLIM/WH/F/TRI
AT9039/SLIM/WH/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18443 | AT9039/SLIM/WH/F/TRI | 7W Low Profile LED Downlight Dimmable - 100deg - w/F&P - White - Flush Lens - Tri Colour | |
| 18442 | AT9039/SLIM/WH/TRI | 7W Low Profile LED Downlight Dimmable - 100deg - w/F&P - White - Recessed Lens - Tri Colour |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11096 | AT9039/BC/F/RING | Brushed Chrome trim to suit AT9039 Flush | |
| 12405 | AT9039/BC/RING | Brushed Chrome trim to suit AT9039 | |
| 16745 | AT9039/BLK/F/RING | Matt Black trim to suit AT9039 Flush | |
| 16756 | AT9039/BLK/RING | Matt Black trim to suit AT9039 Recessed |
