Santorini
$0.00
4-in-1 thermal bathroom unit
- 2000W PTC heater that efficiently heats the air
- 45W ball bearing motor for excellent reliability
- High-velocity 535m³ per hour air extraction
- Fan function for warm weather cooling
- Quality integrated tri-CCT (non-dimmable) LED panel provides efficient illumination
- Ideal for medium to large bathrooms
- 3-year in-home warranty for peace of mind
- Includes integrated draught stopper, wall switches, 1.5m duct and grill outlet
Specifications
Efficiencies
| Total System Efficiency | 72 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IPx2 |
|---|---|
| Fitting Colour | |
| SANTORINI/B | Black |
| SANTORINI/WH | White |
| Installation Type | Recessed |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| 20 Watts | |
|---|---|
| Warm White (3000 K) | 1300 lm |
| Cool White (4000 K) | 1450 lm |
| DayLight (5000 K) | 1350 lm |
Air Movement
| Outlet | 125 mm |
|---|---|
| Noise level | 52 dB |
| Motor Wattage | 45 W |
| Motor Type | Ball bearing |
Heat
| Heater Type | PTC heater |
|---|
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 Onsite (Total 3 Years) |
|---|
Dimensions
| Product Height | 125 mm |
|---|---|
| Product Length | 610 mm |
| Product Width | 339 mm |
| Minimum Ceiling Depth | 220 mm |
| Cutout | 310x580 mm |

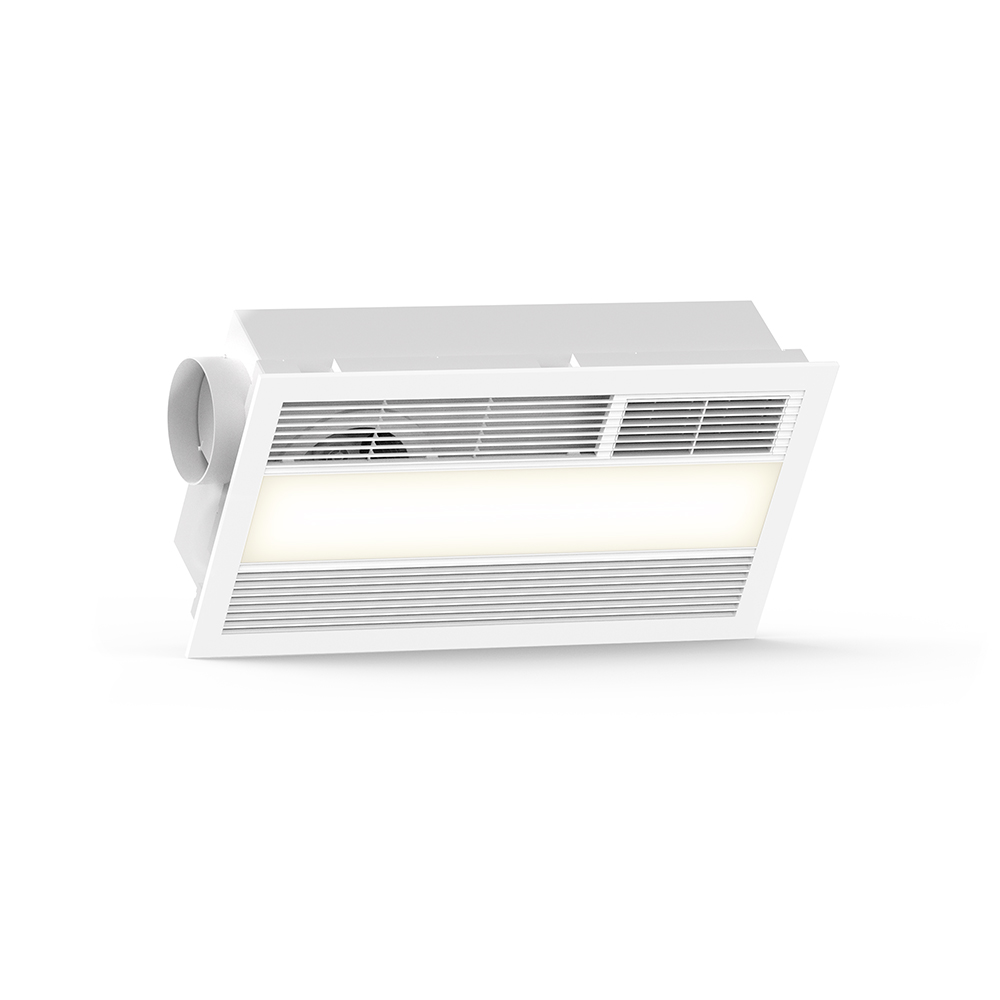

SANTORINI/WH

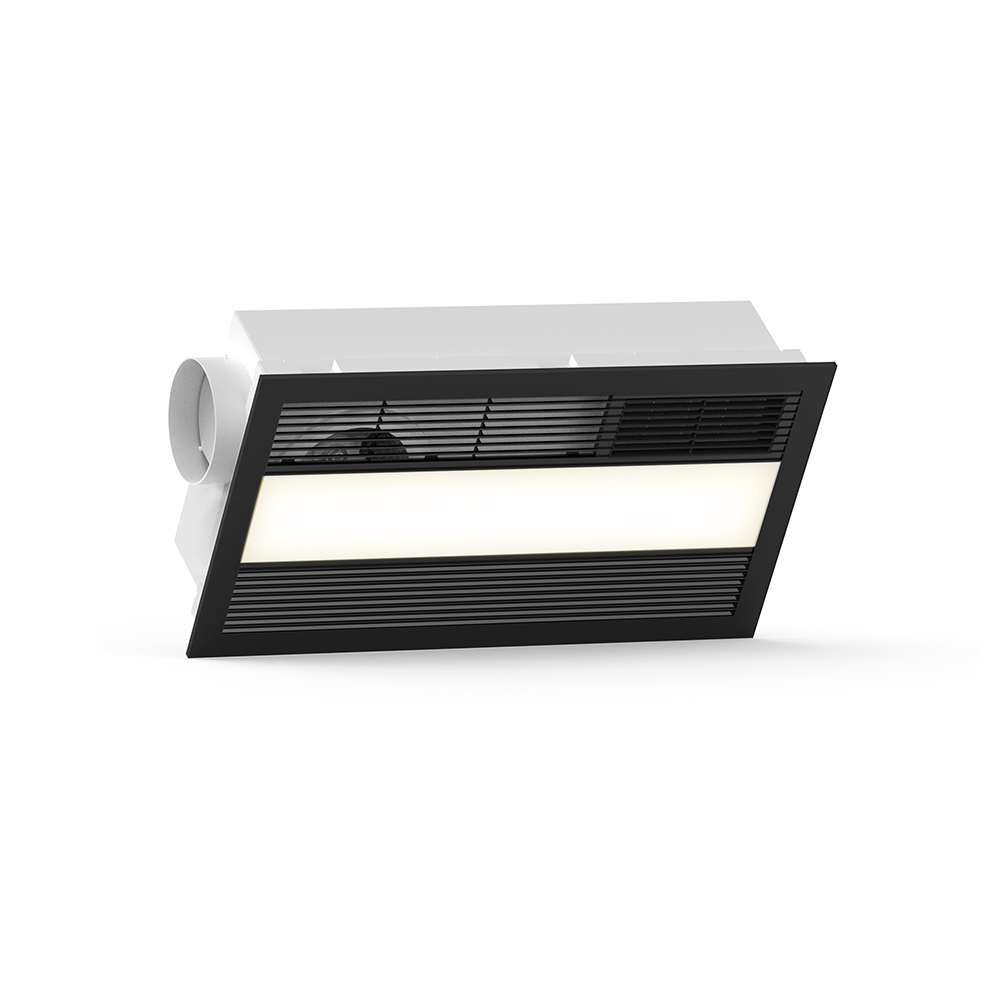

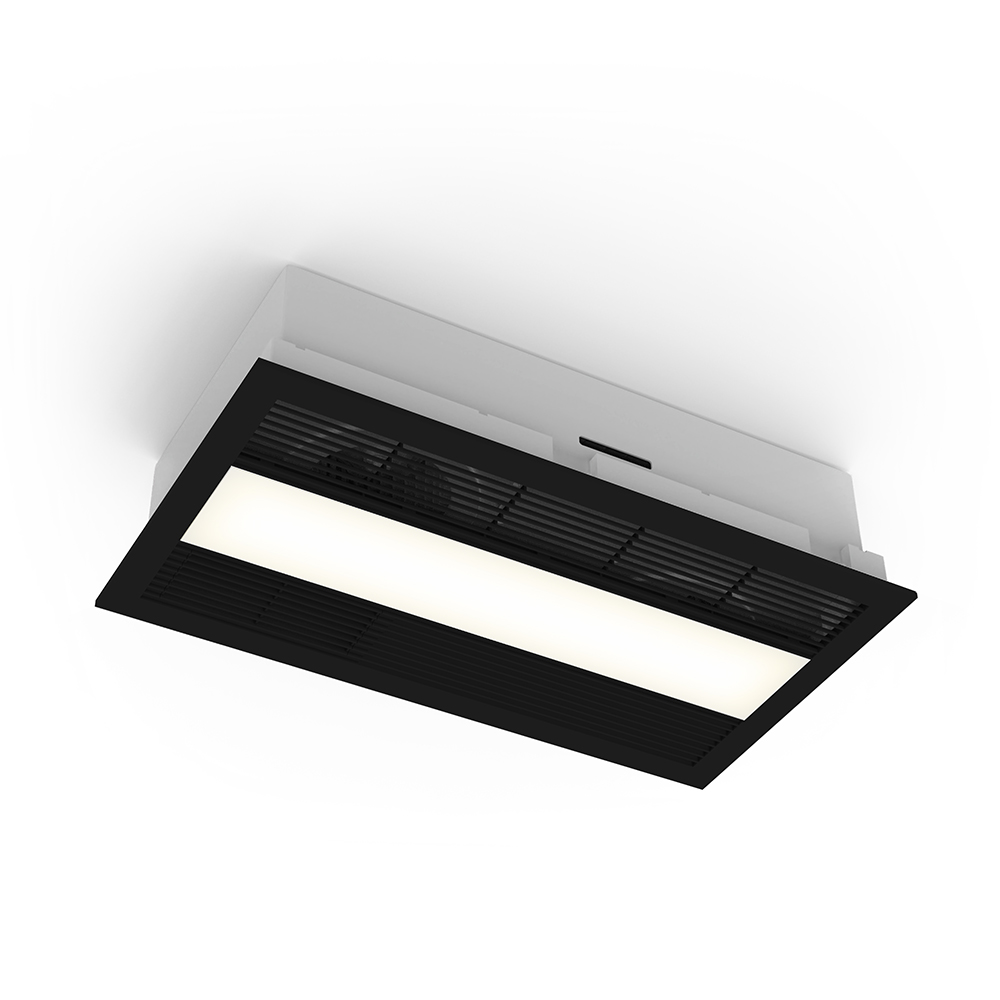

SANTORINI/B
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14835 | SANTORINI/B | 2000W PTC high velocity bathroom heater & exhaust w/LED panel - Black - tri-cct | |
| 14834 | SANTORINI/WH | 2000W PTC high velocity bathroom heater & exhaust w/LED panel - White - tri-cct |
