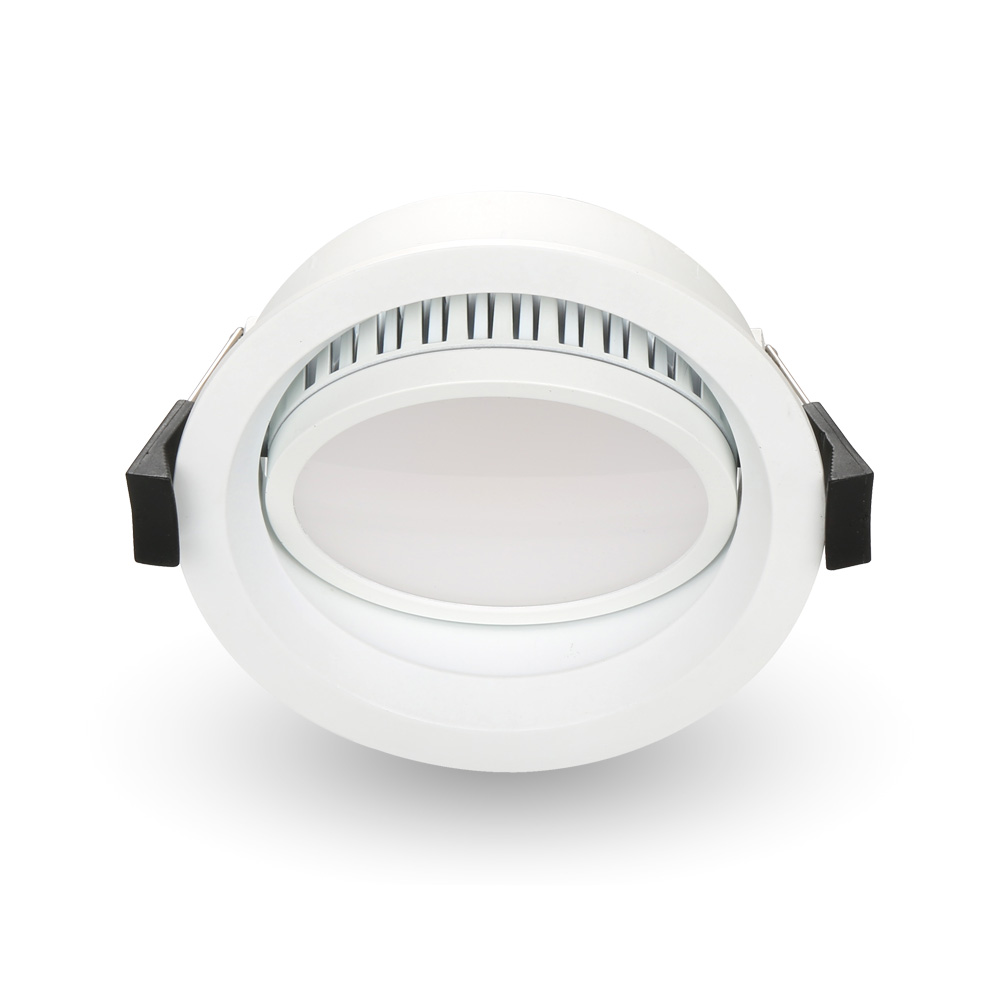

AT9020 TRI
$0.00
10W LED Adjustable downlight with dimmable driver – Tri-colour
- Energy efficient LED
- Adjustable Gimbal tilt design
- Easy to install
- Phase-cut dimmable
- Tri-CCT selectable
Specifications
Efficiencies
| Total System Efficiency | 104 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Adjustable |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Product Finish | Powdercoated |
| Fitting Colour | White |
| IC Rating | IC |
| Installation Type | Recessed |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 10 W |
| Power Factor | 0.9 |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 90 ° |
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | 250 mA |
| Lamp/LED voltage | 36 V |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 9000 hrs |
Colour temperature
| Warm White (3000 K) | 950 lm |
| Cool White (4000 K) | 1050 lm |
| DayLight (5700 K) | 1000 lm |
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Dimmable ( Phase cut) |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Current | 230 mA |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Cutout | 95-100 mm |
|---|---|
| Product Diameter | 110 mm |
| Product Height | 40 mm |
AT9020/WH/TRI/2/1
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11833 | AT9020/WH/TRI | 10W Tilt Adjustable LED downlight with dimmable driver - Tri-CCT - White |
Documents & Downloads
*Auto generated datasheet (beta)
Accessories
Recommended Drivers
Wireless (IEC62386-104) with DT6
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14927 | DK1-0AABBHZX00025 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 250mA |
DALI DT6 LED Driver
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14909 | DK1-0AADADZX00025 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 250mA |
