AT9034 TRI
$0.00
8W LED Downlight supplied with dimmable driver – Tri-colour
- Standard or large trim models
- Low profile design for installation into ceilings with low clearances
- Semi-flush metal fasia
- Supplied with dimmable LED driver
- Tri-CCT selectable
Specifications
Efficiencies
| Total System Efficiency | 117 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Product Finish | |
| AT9034/SC/TRI | Anodised |
| AT9034/LT/WH/TRI AT9034/WH/TRI | Powdercoated |
| Fitting Colour | |
| AT9034/SC/TRI | Satin Chrome |
| AT9034/LT/WH/TRI AT9034/WH/TRI | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP44 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 8 W |
| Switch Type | Inline |
| Working Temp Range | -20 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| CCT Configuration | Single |
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | 280 mA |
| Lamp/LED voltage | 36 V |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 9000 hrs |
Colour temperature
| Warm White (3000 K) | 875 lm |
| Cool White (4000 K) | 930 lm |
| DayLight (5700 K) | 940 lm |
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Type | Dimmable ( Phase cut) |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Cutout | Product Diameter | Product Height |
|---|---|---|---|
| AT9034/LT/WH/TRI | 90 mm | 125 mm | 38 mm |
| AT9034/SC/TRI | 90 mm | 110 mm | 38 mm |
| AT9034/WH/TRI | 90 mm | 110 mm | 38 mm |
AT9034/LT/TRI
AT9034/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|

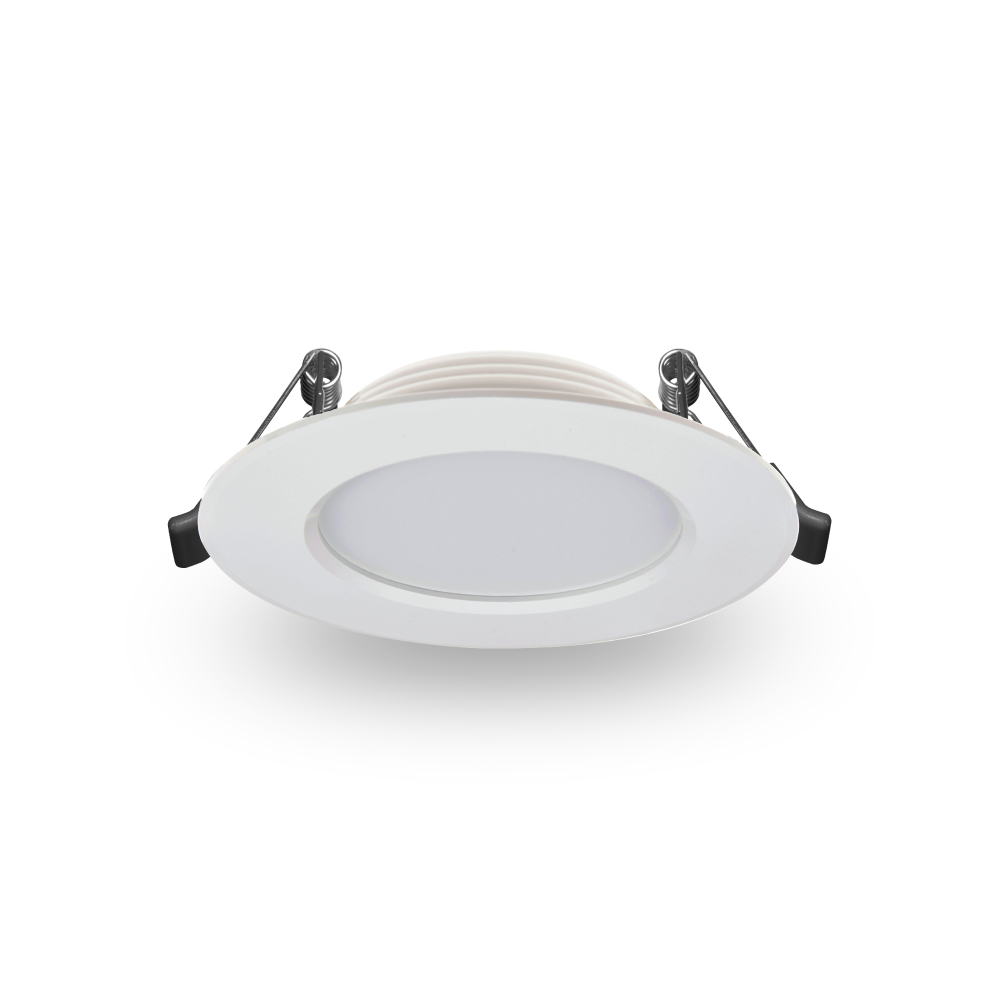

| 12423 | AT9034/LT/WH/TRI | 8W LED Downlight w/Dimm Driver - 110Deg Beam - Large Trim 125mm - White - Tri-CCT | |

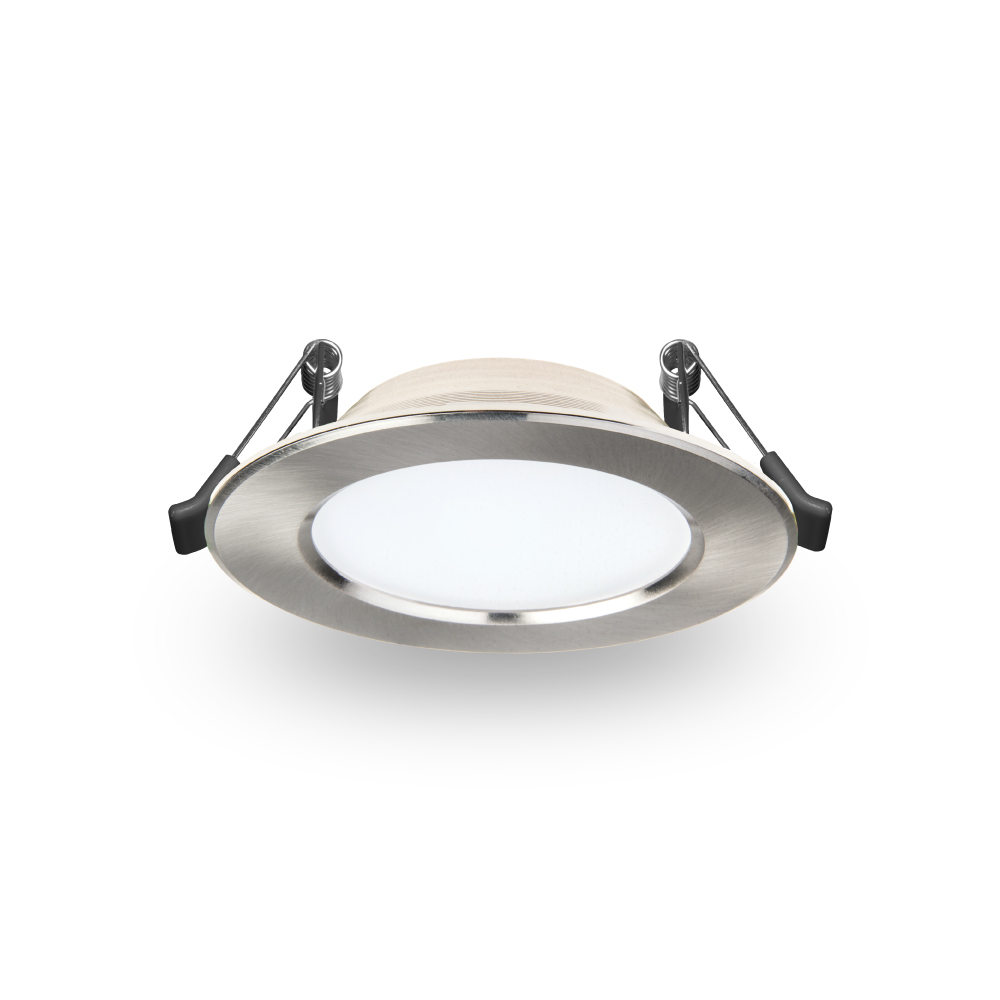

| 12422 | AT9034/SC/TRI | 8W LED Downlight w/Dimm Driver - 110Deg beam - Satin Chrome - TRI-CCT | |

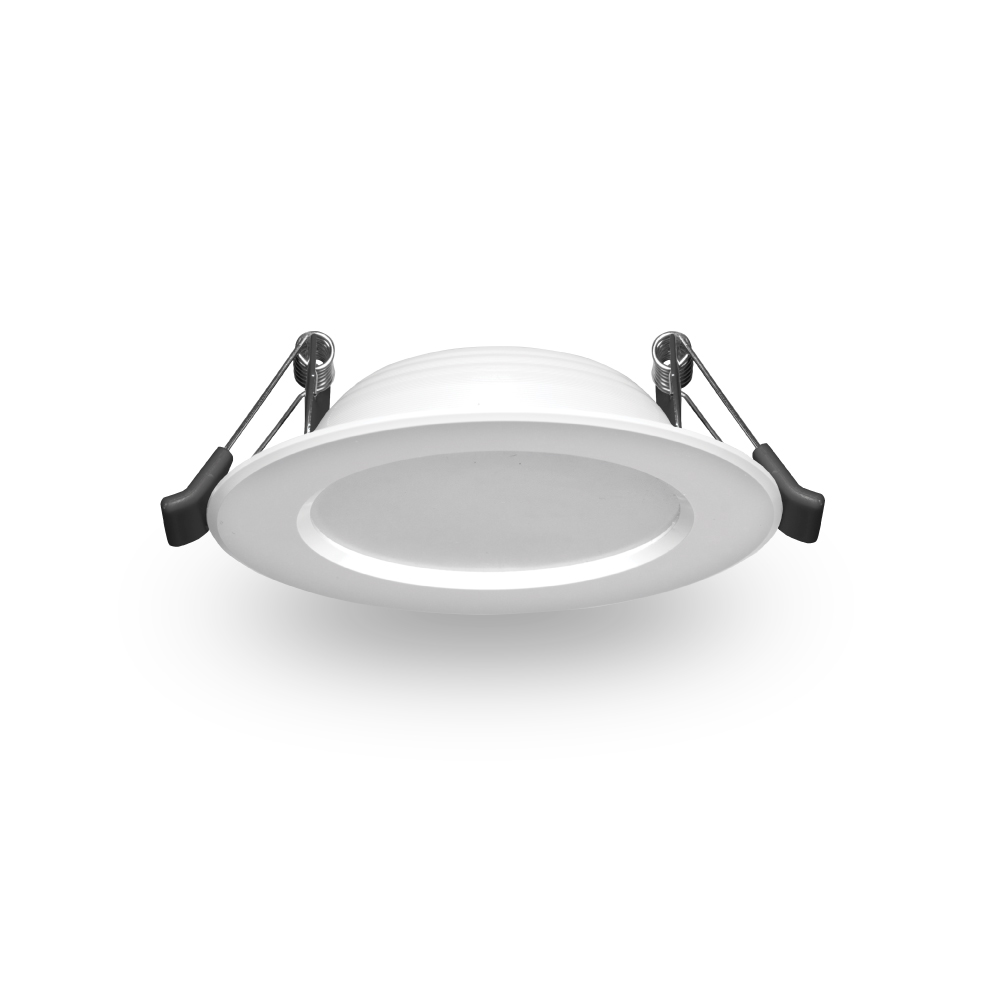

| 12421 | AT9034/WH/TRI | 8W LED Downlight w/Dimm Driver - 110Deg beam - White - TRI-CCT |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
