AT9090 TRI
$0.00
8W Low-profile LED Tri-colour downlight with dimmable driver
- Low profile design makes it ideal for apartments and other tight ceiling spaces
- IC-4 rated at 40 degree ambient provides high level of protection
- Supplied with dimmable LED driver for control and flexibility
- Tri-CCT selectable switch for customising colour temperature to suit the environment
- Highly energy efficient at up to 127 lm/w
- IP54 rated front face, making it suitable for use in any room
- Backed by 5-year VIP warranty for peace of mind
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9090/WH/TRI | 127 lm/W |
| AT9090/F/WH/TRI | 130 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | PA6 |
| Diffuser Material | Polycarbonate |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP54 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Current | 0.05 A |
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 8 W |
| Power Factor | 0.9 |
| Working Temp Range | -20 to 40 °C |
| System Max Wattage | 8 W |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 100 ° |
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
LED Lifetime
| LED Lifetime | >60000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 10000 hrs |
Colour temperature
AT9090/F/WH/TRI
| |||||||||
AT9090/WH/TRI
| |||||||||
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Dimmable ( Phase cut) |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
| VEU Approval | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Cutout | Product Diameter | Product Height |
|---|---|---|---|
| AT9090/F/WH/TRI | 90 mm | 110 mm | 30 mm |
| AT9090/WH/TRI | 90 mm | 110 mm | 36 mm |

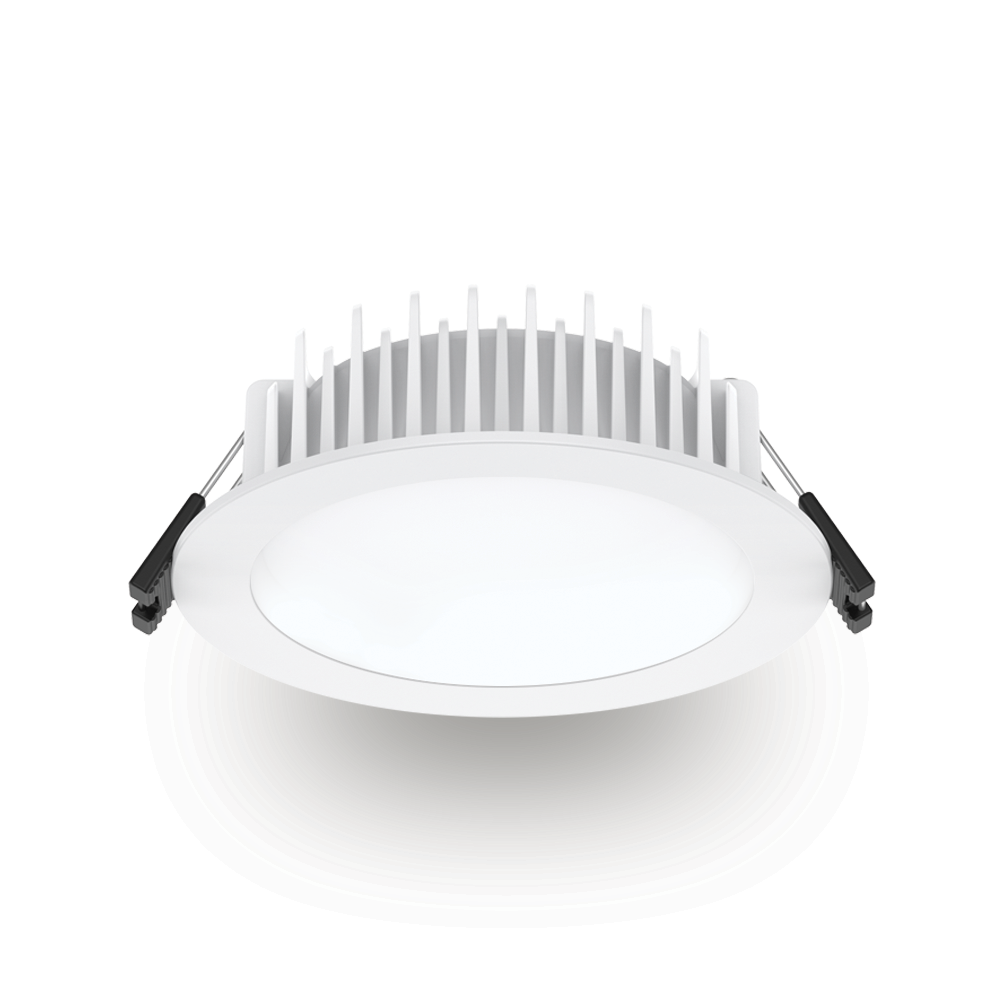

AT9090/F/WH/TRI

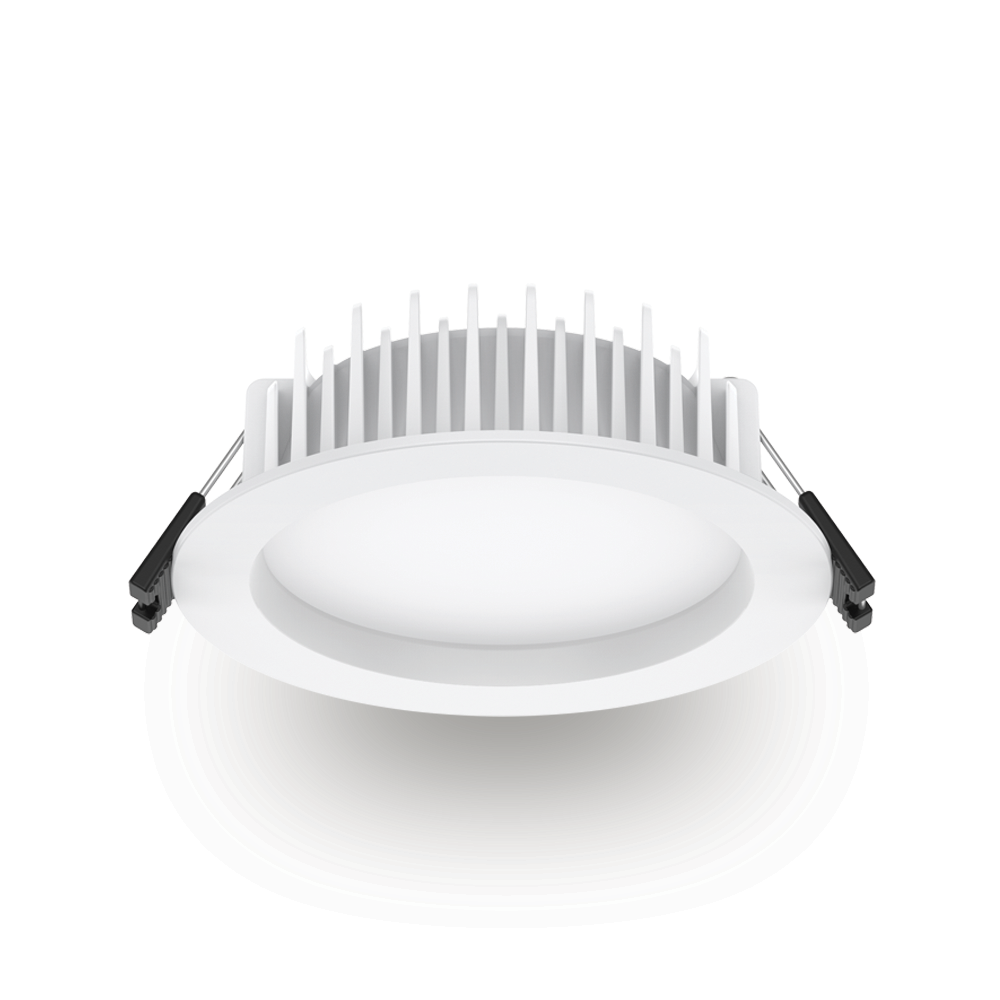

AT9090/WH/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 16597 | AT9090/F/WH/TRI | 8W flush lens low-profile LED downlight with dimmable driver - tri-CCT - white | |
| 16598 | AT9090/WH/TRI | 8W low-profile LED tri-colour downlight with dimmable driver |
Documents & Downloads
Instruction Manual
Datasheet
*Auto generated datasheet (beta)
