AT9452

$0.00

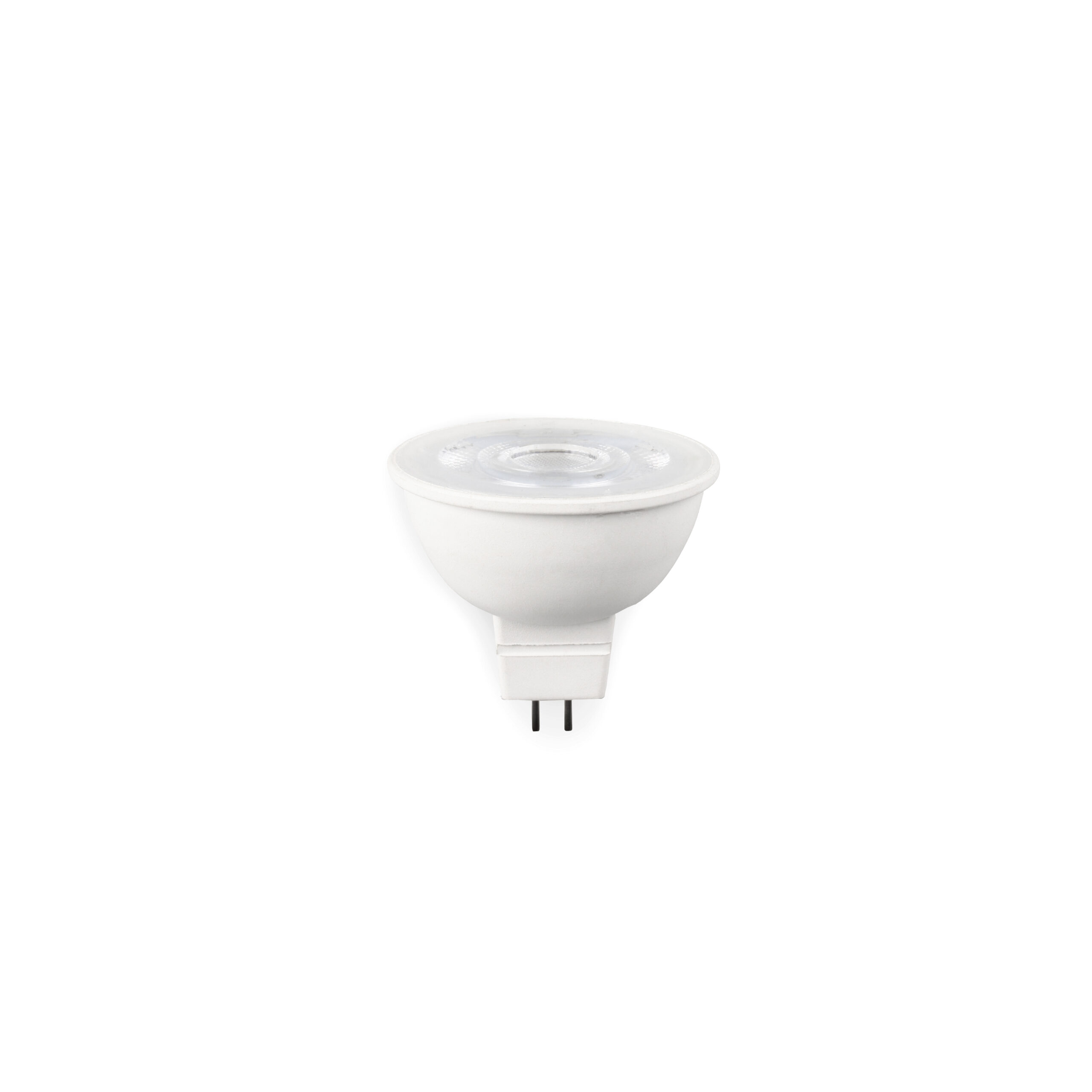

3W MR16 LED Lamp. Non Dimmable with Lens

  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable replacement for halogen and incandescent lamps
Specifications

Mechanical

IP RatingIP20
AdjustabilityFixed
Fitting ColourWhite
Product FinishFrosted
Diffuser MaterialPolycarbonate
IC RatingNon-IC

Electrical

Working Temp Range-20 to 40 °C
Switch TypeInline
Power Factor0.5
Maximum Wattage3 W
System Max Wattage3 W
Input voltage12V AC/DC

Lamp

Colour Rendering Index (CRI)>80
Bulb TypeMR16
Number of Lamps1
Globe BaseGU5.3
Globe IncludedYes
Led Package2835
CCT ConfigurationSingle
Beam Angle36 °

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT Colour
AT9452/36/CWCool White
AT9452/36/DLDaylight
AT9452/36/WWWarm White
Luminaire Lumens300 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.
CCT
AT9452/36/WW3000 K
AT9452/36/CW4000 K
AT9452/36/DL5700 K

Driver

Driver TypeFixed output
Driver IncludedNo
Integrated DriverNo
DimmableNo

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Domestic Use Warranty1 RTB (Total 1 Year)
Dimensions
Product Height46 mm
Product Width50 mm
Ordering Information
Order codeItem codeDescriptionAvailability
18629AT9452/36/CW3W MR16 LED LAMP 36° CW NON-DIM
18630AT9452/36/DL3W MR16 LED LAMP 36° DL NON-DIM
18628AT9452/36/WW3W MR16 LED LAMP 36° WW NON-DIM
Documents & Downloads

*Auto generated datasheet (beta)
