Helios – AT9095
$0.00
7W LED low glare UGR<19 downlight -Tri-Colour
- Faceted reflector for low glare (<UGR19) and eye comfort
- High-end design for modern, stylish applications
- 90mm and 120mm cutout options
- Tri-colour selectable to suit the installation and room
- Integrated dimmable LED driver
- Superior light distribution and control
- Easy to install with flex and plug
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9095/7/BK/TRI AT9095/7/WH/TRI | 115 lm/W |
| AT9095/9/WH/TRI | 116 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Plastic |
| Product Finish | Matt |
| Fitting Colour | |
| AT9095/7/BK/TRI | Black |
| AT9095/7/WH/TRI AT9095/9/WH/TRI | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP54 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | |
| AT9095/7/BK/TRI AT9095/7/WH/TRI | 7 W |
| AT9095/9/WH/TRI | 9 W |
| Switch Type | Inline |
| Working Temp Range | 40 °C |
Lamp
| Beam Angle | 60 ° |
|---|---|
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
| LED Type | Diffused |
| Number of Lamps | 1 |
| UGR | <19 |
Colour temperature
| AT9095/7/BK/TRI AT9095/7/WH/TRI
| |||||||||
AT9095/9/WH/TRI
| |||||||||
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Driver Type | Dimmable ( Phase cut) |
| Wiring Type | Non rewireable Flex & Plug |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 10 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| Warranty Operating Hours | 13000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Item Code | Cutout | Product Diameter | Product Height |
|---|---|---|---|
| AT9095/7/BK/TRI | 90 mm | 115 mm | 62 mm |
| AT9095/7/WH/TRI | 90 mm | 115 mm | 62 mm |
| AT9095/9/WH/TRI | 120 mm | 145 mm | 65 mm |

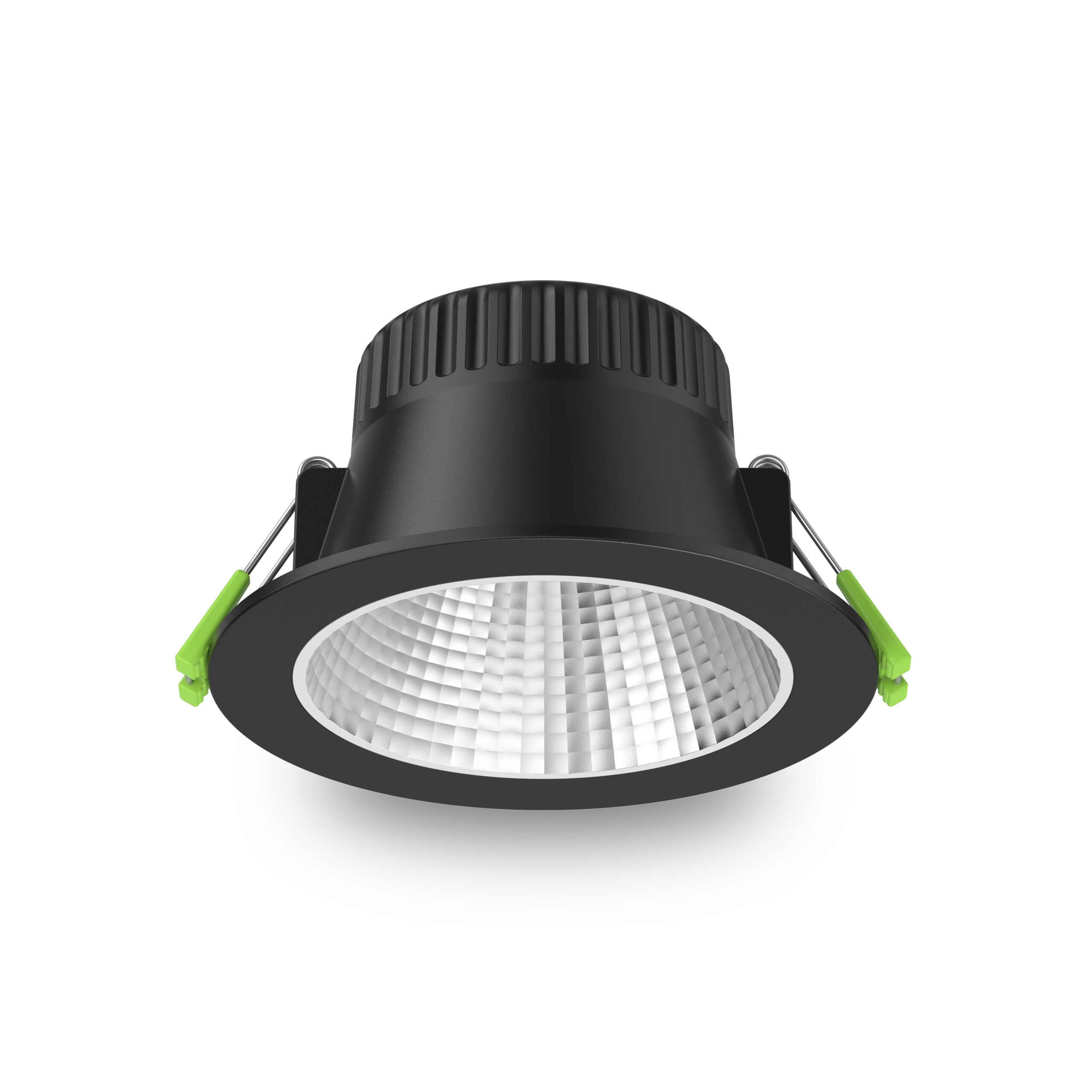

AT9095/7/TRI

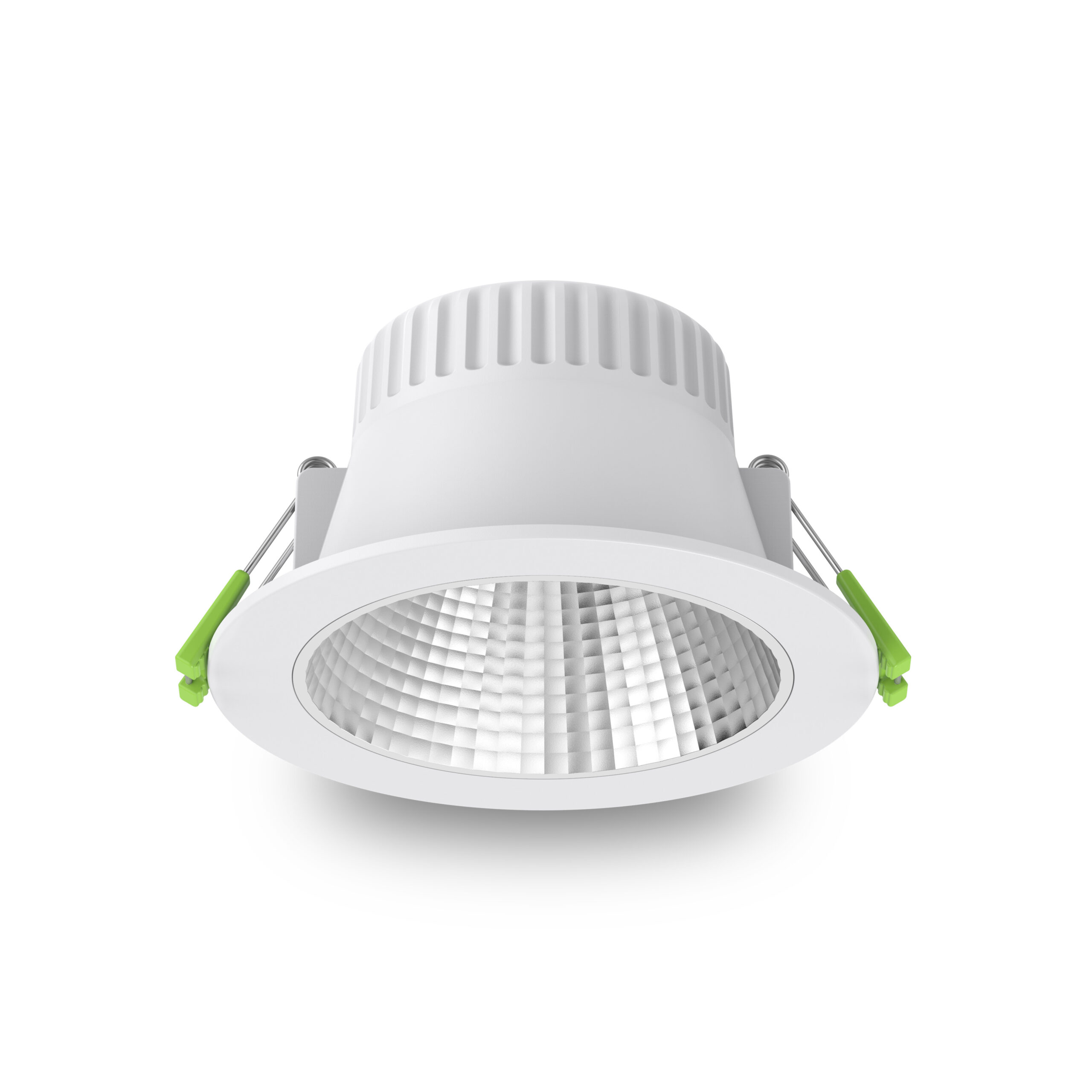

AT9095/7/WH/TRI

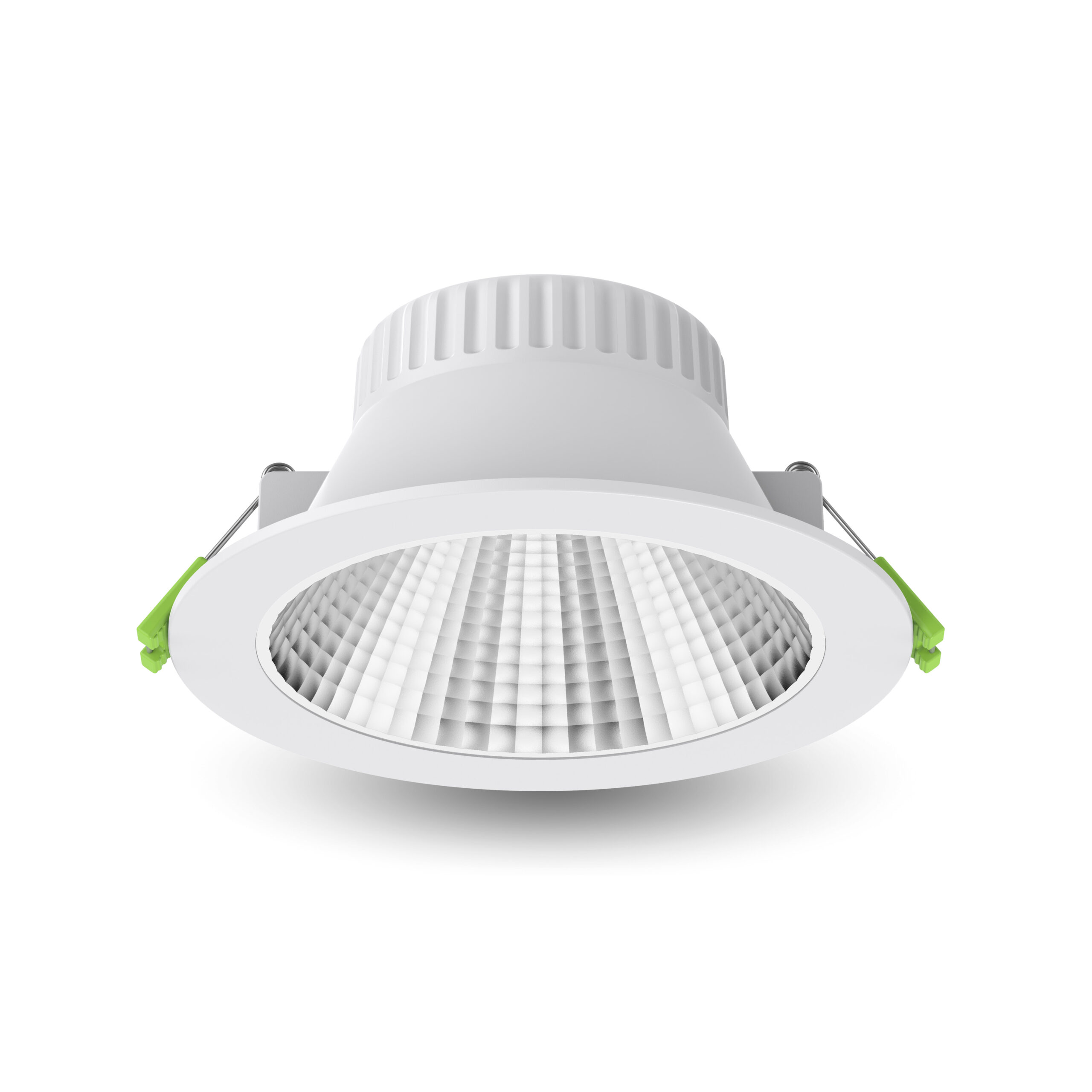

AT9095/9/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14550 | AT9095/7/BK/TRI | Helios 7W LED low glare UGR<19 downlight - Black w/silver reflector - 90mm cutout - Tri-CCT | |
| 14549 | AT9095/7/WH/TRI | Helios 7W LED low glare UGR<19 downlight - white w/silver reflector - 90mm cutout - Tri-CCT | |
| 14552 | AT9095/9/WH/TRI | Helios 9W LED low glare UGR<19 downlight - white w/silver reflector - 120mm cutout - Tri-CCT |
