Zurich
$0.00

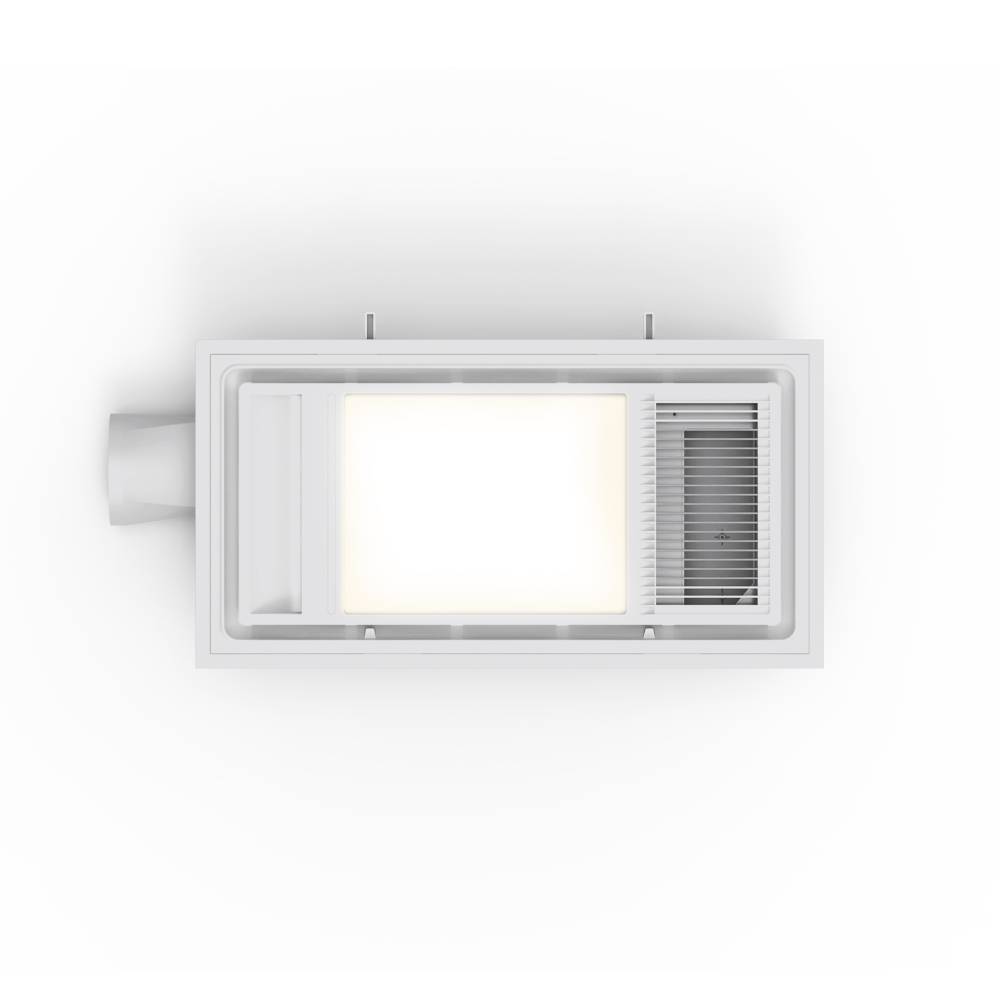

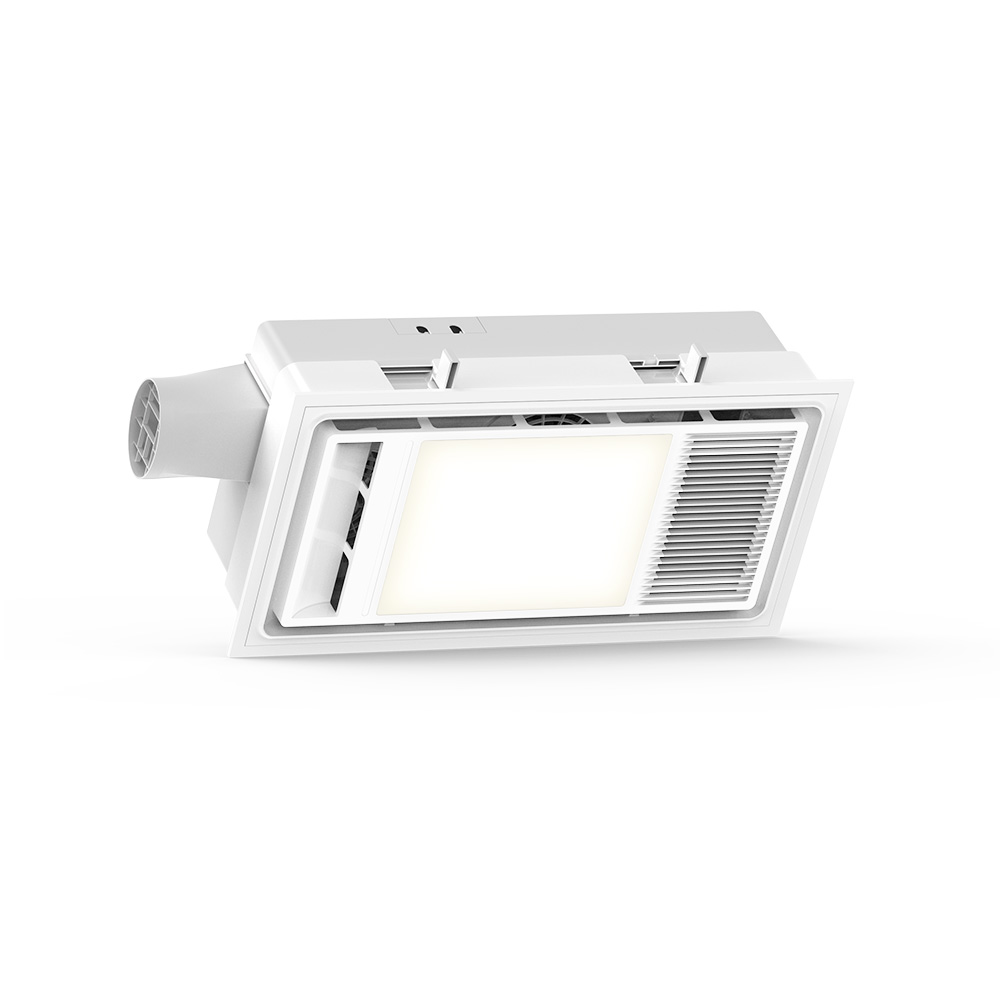

4-in-1 thermal bathroom unit
- 2000W PTC heater that efficiently heats the air
- 35W ball bearing motor for excellent reliability
- Cooling fan function for warm weather
- Quality integrated tri-CCT (non-dimmable) LED panel provides efficient illumination
- Ideal for small to medium bathrooms
- 3-year in-home warranty for peace of mind
- Includes integrated draught stopper, 5-gang wall switch, 1.5m duct and grill outlet
Specifications
Efficiencies
| Total System Efficiency | 65 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IPx2 |
|---|---|
| Fitting Colour | White |
| Installation Type | Recessed |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Input voltage | 230 |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| 20 Watts | |
|---|---|
| Warm White (3000 K) | 1200 lm |
| Cool White (4000 K) | 1300 lm |
| DayLight (5000 K) | 1200 lm |
Air Movement
| Outlet | 100 mm |
|---|---|
| Noise level | 38 dB |
| Motor Wattage | 35 W |
| Air extraction | 310 m3/hr |
Heat
| Heater Type | PTC heater |
|---|
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 Onsite (Total 3 Years) |
|---|
Dimensions
| Product Height | 167 mm |
|---|---|
| Product Length | 530 mm |
| Product Width | 330 mm |
| Minimum Ceiling Depth | 200 mm |
| Cutout | 310x610 mm |
ZURICH/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14836 | ZURICH/WH | 2000W PTC bathroom heater & exhaust w/LED panel - White - tri-cct |
Documents & Downloads
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 10361 | AT9491 | 1000W RJ7S IR Heat Tube to suit St Moritz bathroom Heater |
