AT9038
7W LED downlight with dimmable integrated driver – Tri-CCT
- Built in Driver
- Ideal for Residential, retail, showroom and decorative
- Seamless Look
Specifications
Efficiencies
| Total System Efficiency | 93 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|

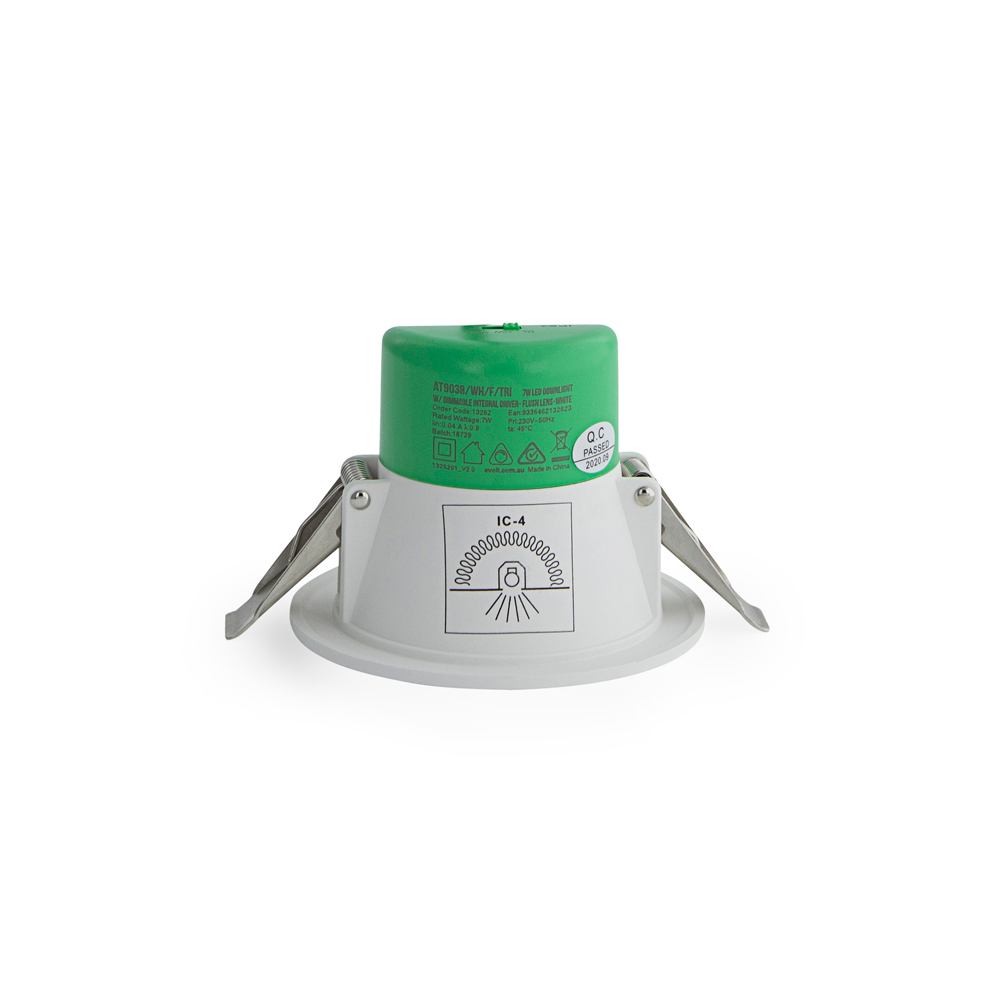

| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | Powdercoated |
| Body Material | Aluminium |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 7 W |
| System Max Wattage | 7 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Number of Lamps | 1 |
| LED Type | Diffused |

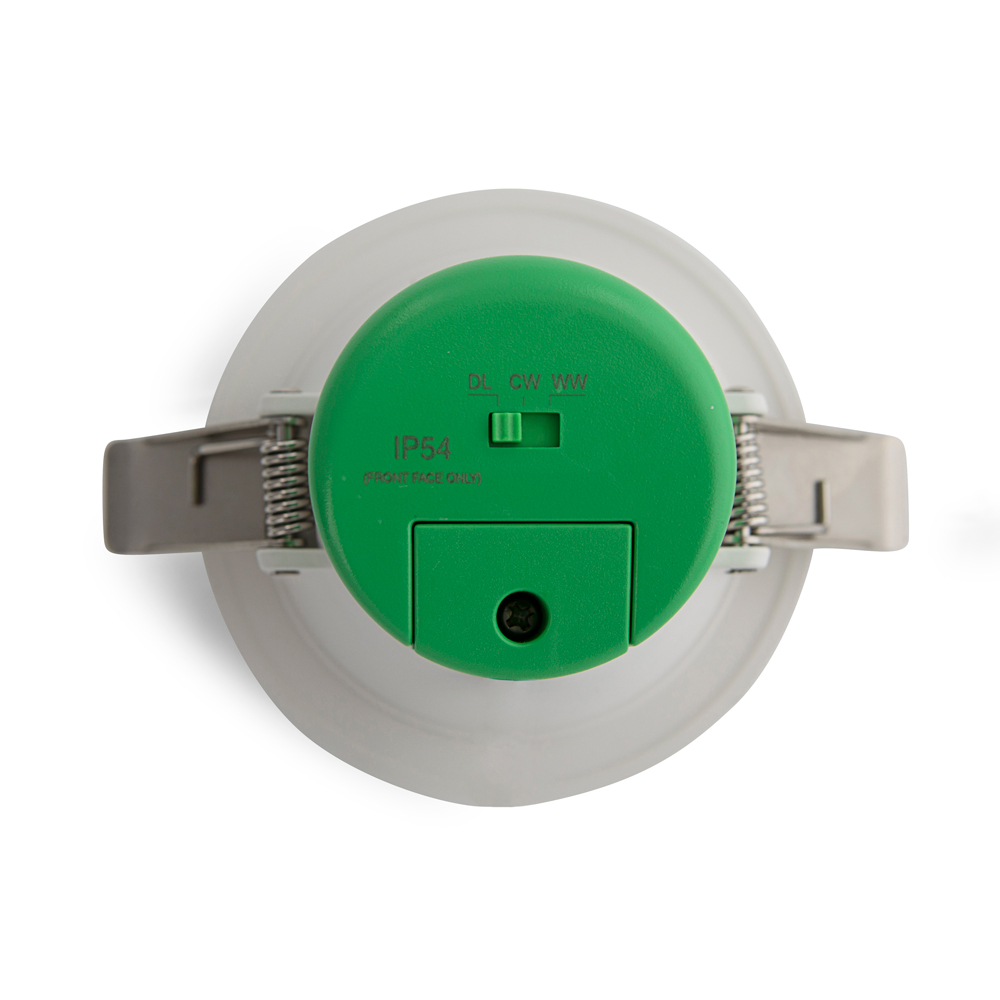

| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Beam Angle | 90 ° |
Colour temperature
| Warm White (3000 K) | 560 lm |
| Cool White (4000 K) | 650 lm |
| DayLight (5700 K) | 600 lm |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 63 mm |
|---|---|
| Cutout | 70 mm |
| Product Diameter | 85 mm |
AT9038
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 13262 | AT9038/WH/F/TRI | 7W LED Downlight w/Dimm Integral Driver - 70mm diam - White - Flush Lens - TRI |
Documents & Downloads
Datasheet
Instruction Manual
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 13345 | AT9038/BC/F/RING | Brushed Chrome trim to suit AT9038 |
