AT9067

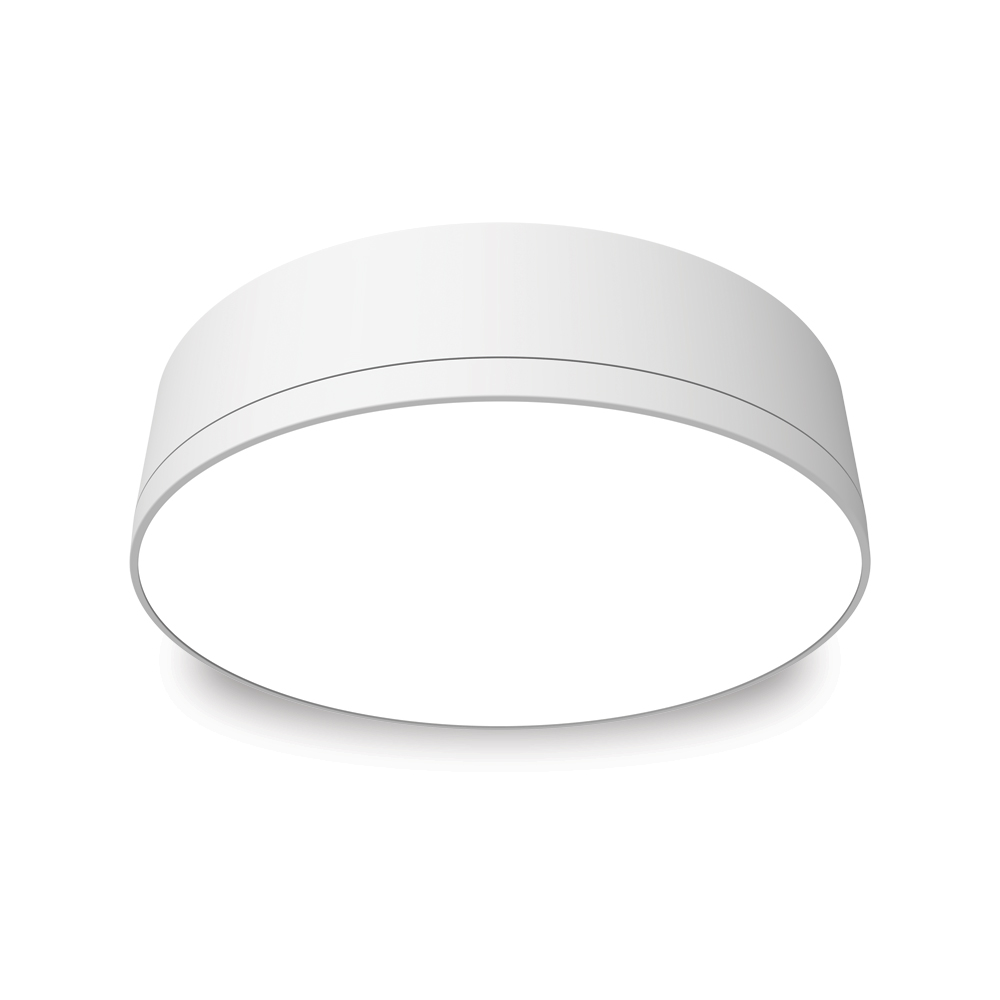

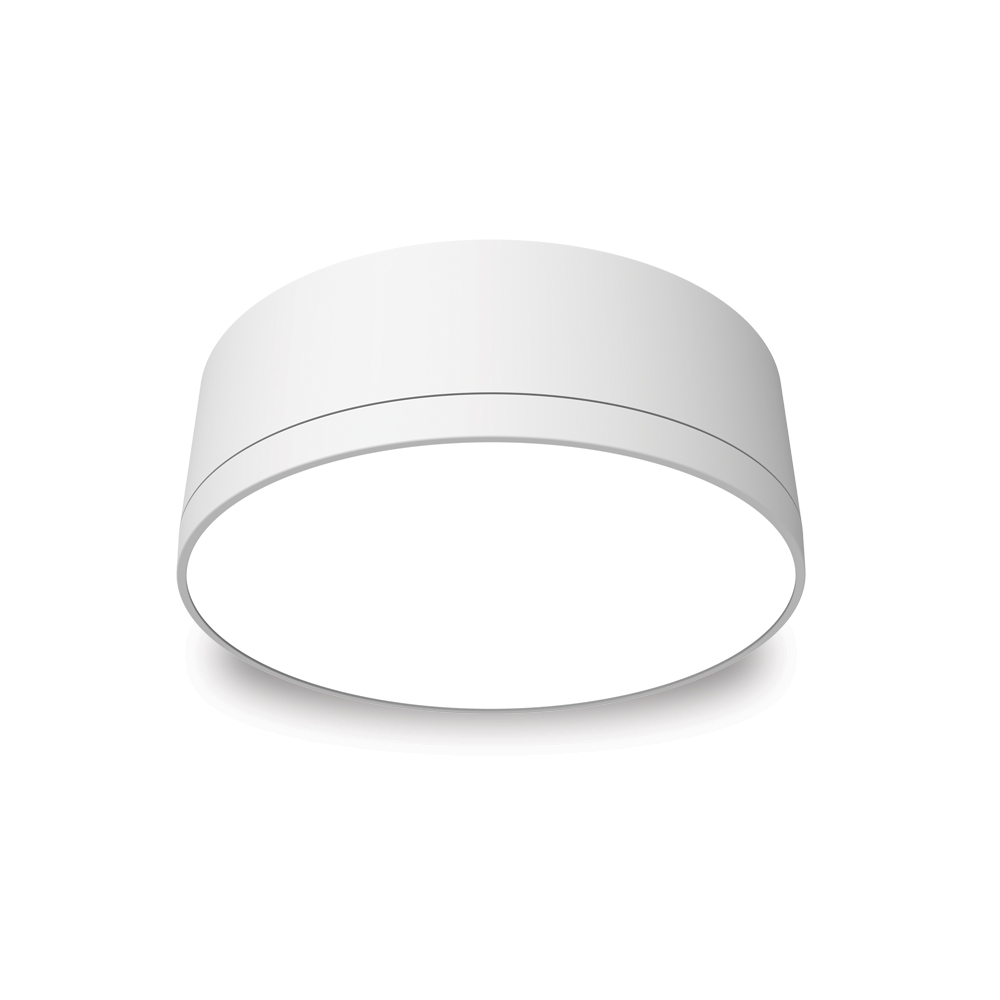

ATRIA 12W Power adjustable surface mount downlight IP54 – 120mm dia
- Durable plastic corrosion-resistant construction
- Compact, surface mount design
- Double insulated wiring
- TRI-CCT – 3000K/4000K/5700K
- Low glare UGR <19
- Power adjustable
- 110° beam angle
- Dimmable (leading & trailing edge)
- IP54 Weather resistant rated
Specifications
Mechanical
| IP Rating | IP54 |
|---|---|
| IK Rating | IK06 |
| Adjustability | Fixed |
| Fitting Colour | White |
| Body Material | Polycarbonate Plastic |
| Diffuser Material | Semi-Opaque Polycarbonate |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| LED Type | Diffused |
| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Beam Angle | 110 ° |
LED Lifetime
| LED Lifetime | 50000 hrs | ||||||
|---|---|---|---|---|---|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |||||||
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
AT9067/12/WH |
| ||||||
AT9067/20/WH |
| ||||||
AT9067/8/WH |
| ||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
Colour temperature
AT9067/12/WH
| |||||||||||||||||||||
AT9067/20/WH
| |||||||||||||||||||||
AT9067/8/WH
| |||||||||||||||||||||
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Driver Mode | Constant Current |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|
Dimensions
| Item Code | Product Height | Product Diameter |
|---|---|---|
| AT9067/12/WH | 54 mm | 160 mm |
| AT9067/20/WH | 54 mm | 220 mm |
| AT9067/8/WH | 54 mm | 120 mm |
AT9067/12/WH
AT9067/20/WH
AT9067/8/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11645 | AT9067/12/WH | ATRIA 12W Power adjustable surface mount downlight IP54 - 160mm dia | |
| 11646 | AT9067/20/WH | ATRIA 20W Power adjustable surface mount downlight IP54 - 220mm dia | |
| 11644 | AT9067/8/WH | ATRIA 8W Power adjustable surface mount downlight IP54 - 120mm dia |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Photometrics
AT9067/12/WH/3000K
AT9067/12/WH/4000K
AT9067/12/WH/5700K
AT9067/20/WH/5700K
AT9067/20/WH/3000K
AT9067/20/WH/4000K
AT9067/8/WH/5700K
AT9067/8/WH/4000K
AT9067/8/WH/3000K
