AT9075
Lumara 8-12W LED COB low-glare downlight with dimmable driver – Tri-CCT
- Tri-CCT selectable: 2700K / 3000K / 4000K
- High colour accuracy with CRI 90
- Low-glare design with UGR <19
- Slim, low-profile housing for shallow ceiling spaces
- Supplied with dimmable LED driver
- IP65 rated (front face only)
- Suitable for commercial, retail, showroom and feature lighting
Selected Models
- 12W LED COB delivering up to 1100lm
- Available in white, black and small versions
- 8W LED COB delivering up to 760lm
- Available in white
Specifications
Mechanical
| IP Rating | IP65 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| IK Rating | IK06 |
| Adjustability | Fixed |
| Fitting Colour | |

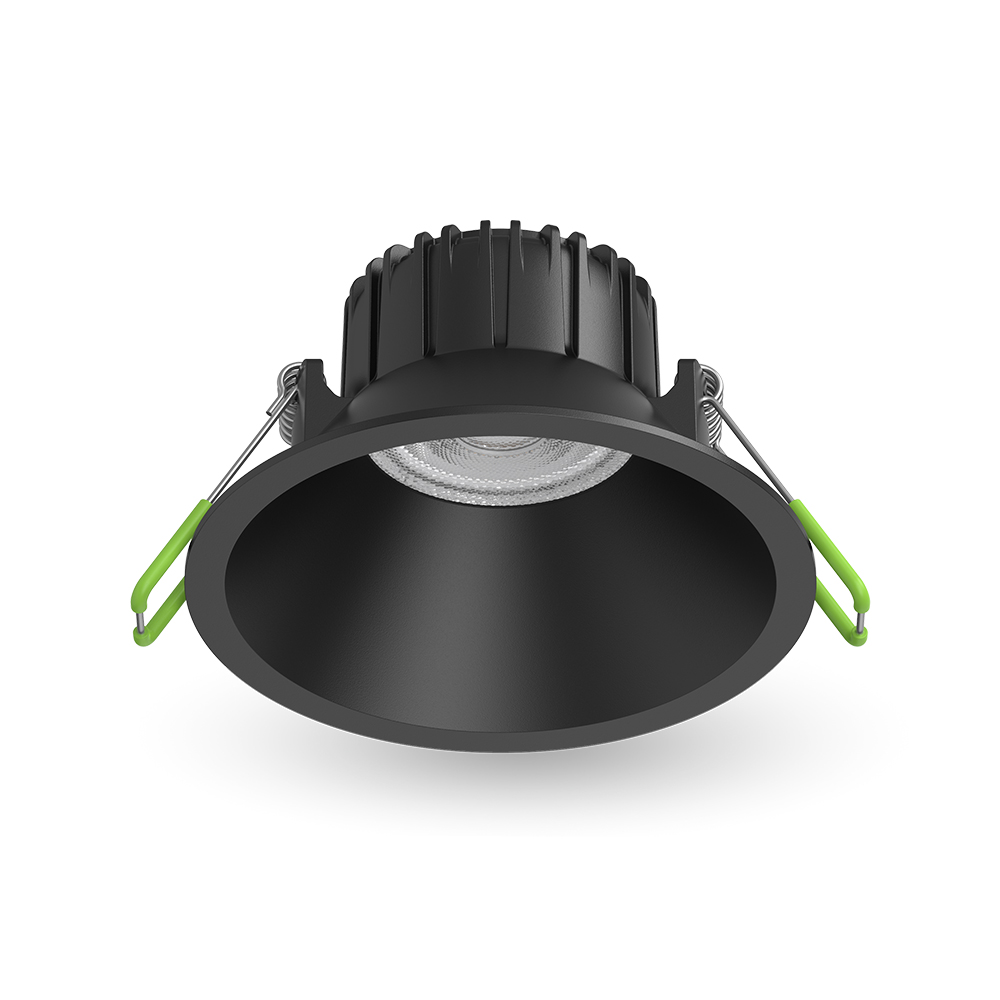

| AT9075/BK/TRI | Black |

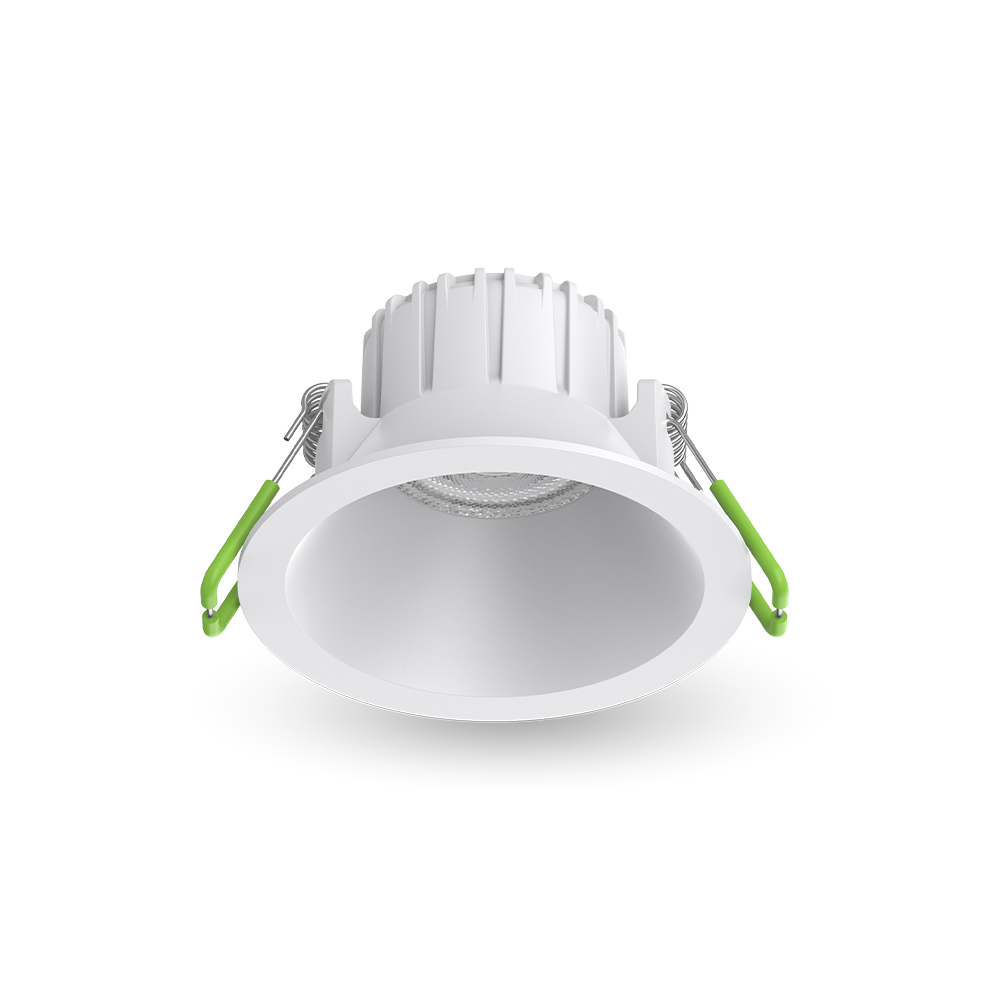

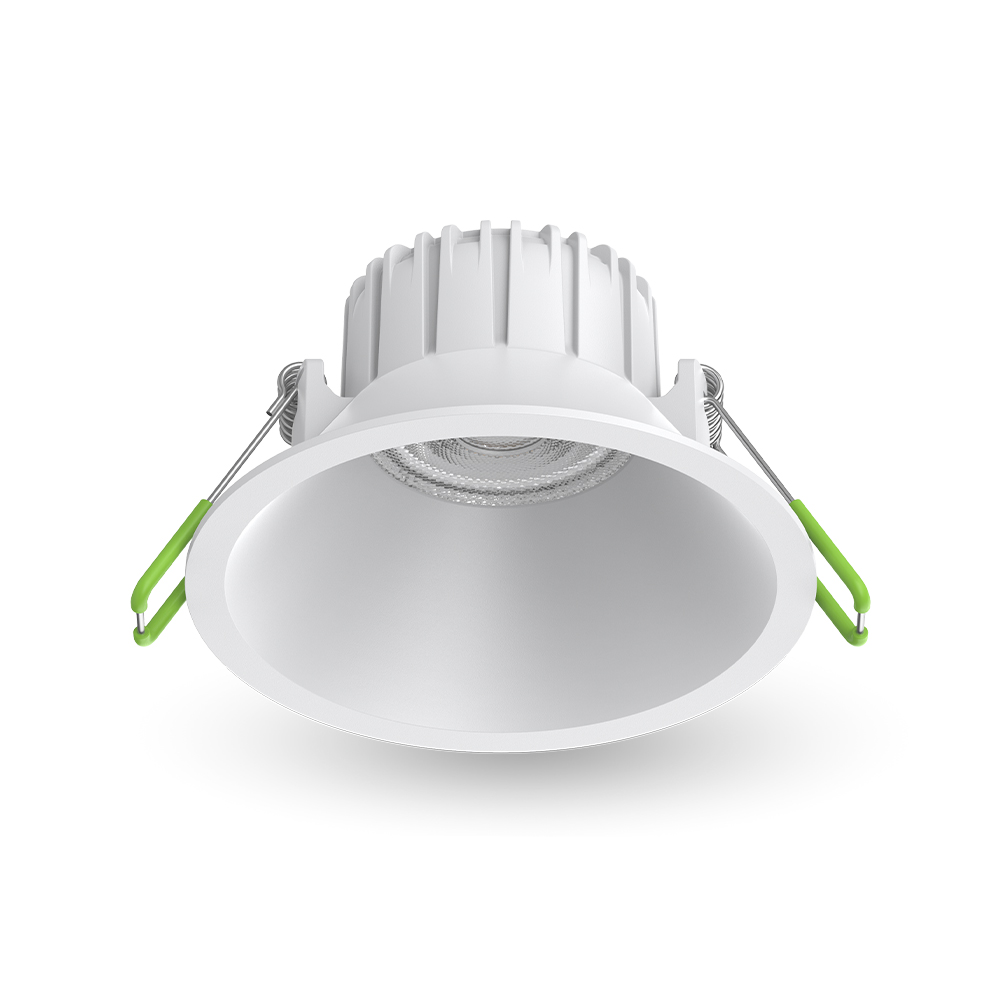

| AT9075/SML/WH/TRI AT9075/WH/TRI | White |
| Product Finish | Powder Coated |
| Body Material | Diecast Aluminium |
| Installation Type | Recessed |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Maximum Wattage | |
| AT9075/SML/WH/TRI | 8 W |
| AT9075/BK/TRI AT9075/WH/TRI | 12 W |
| Input voltage | 220-240 |
Lamp
| Colour Rendering Index (CRI) | >90 |
|---|---|
| LED Type | COB |
| UGR | <19 |
| CCT Configuration | TRI-CCT |
| Beam Angle | 60 ° |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
AT9075/BK/TRI |
| ||||||
AT9075/SML/WH/TRI |
| ||||||
AT9075/WH/TRI |
| ||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
Colour temperature
| AT9075/BK/TRI AT9075/WH/TRI
| |||||||||||
AT9075/SML/WH/TRI
| |||||||||||
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | Yes |
| Flex & Plug or Lead Length | 600 mm |
| Flicker Free | Yes |
| Driver Mode | Constant Current |
Compliance
| Standards |
|
|---|
Dimensions
| Item Code | Product Height | Cutout | Product Diameter |
|---|---|---|---|
| AT9075/BK/TRI | 55 mm | 90 mm | 100 mm |
| AT9075/WH/TRI | 55 mm | 90 mm | 100 mm |
| AT9075/SML/WH/TRI | 47 mm | 72 mm | 80 mm |
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12330 | AT9075/BK/TRI | Lumara - 12W 90mm Cutout Low Glare Downlight - CRI90 - Black - TRI-CCT | |
| 12328 | AT9075/SML/WH/TRI | Lumara - 8W 72mm Cutout Low Glare Downlight - CRI90 - White - TRI-CCT | |
| 12329 | AT9075/WH/TRI | Lumara - 12W 90mm Cutout Low Glare Downlight - CRI90 - White - TRI-CCT |
